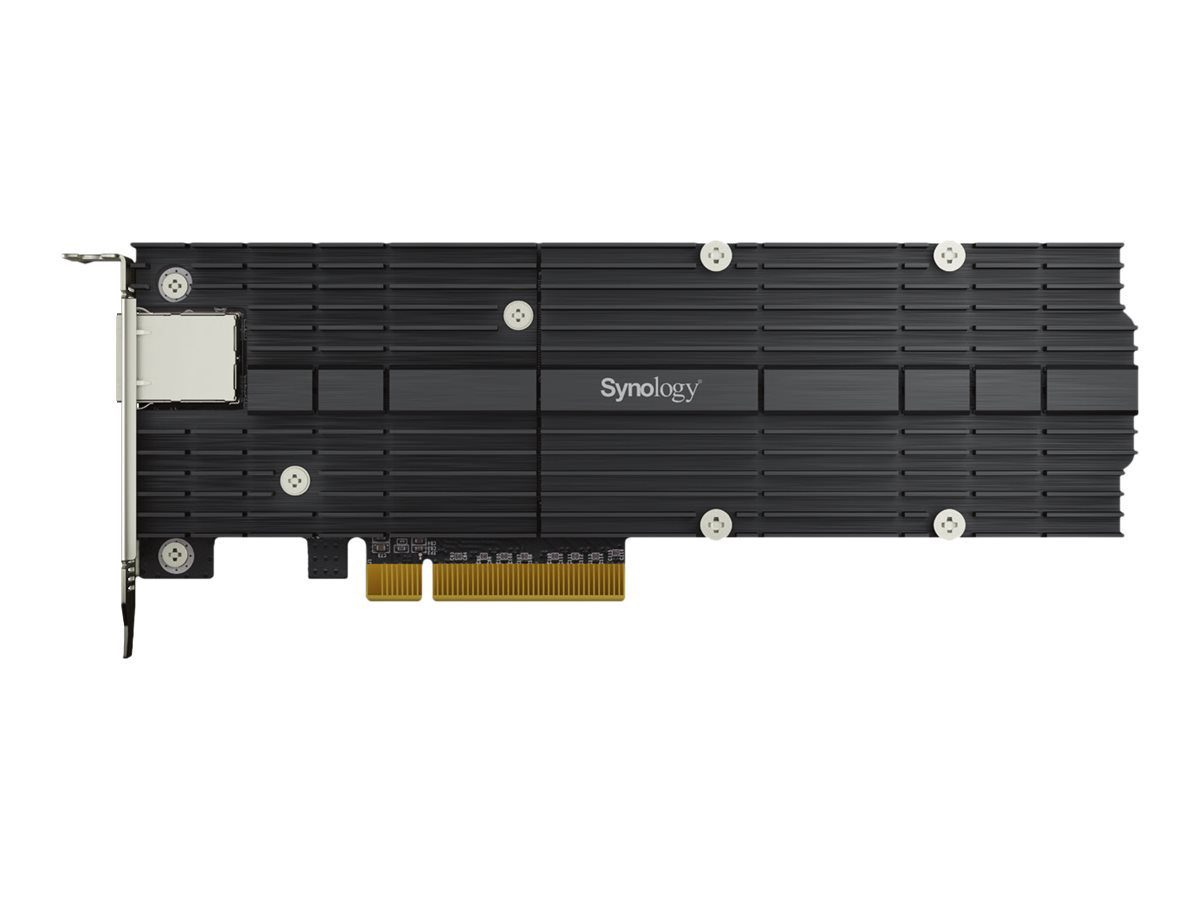

Network adapter, E10M20-T1, PCIe 3.0 x8
Synology · 4711174723485
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 4711174723485
- Brand
- Synology
Description
10GbE bandwidth and M.2 SSD cache, all at once
Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.
- Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.
- Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.
- Free up primary drive bays for data storage.
A perfect match with Synology SNV3000 series NVMe SSD
Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD’s enterprise-grade endurance, performance, and reliability with your Synology NAS.
Specifications
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 3.0 |
| Host interface | PCIe |
| NVMe | Yes |
| Output interface | PCIe |
| Cooling type | Passive |
| Internal | Yes |
| Colour | Black |
| Intended use | NAS / Storage server |
| Maximum data transfer rate | 10 Gbit/s |
| Full duplex | Yes |
| Operating humidity | 5 - 95 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -20 - 60 °C |
| Depth | 17.7 mm |
| Height | 71.75 mm |
| Width | 200.05 mm |
| Quick start guide included | Yes |
| Compatible with | SA series:SA3600, SA3400 22 series:DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ 20 series:RS820RP+, RS820+ 19 series:DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, DS3018xs, D |
| Model | E10M20-T1 |
| Net weight | 0.15 kg |
