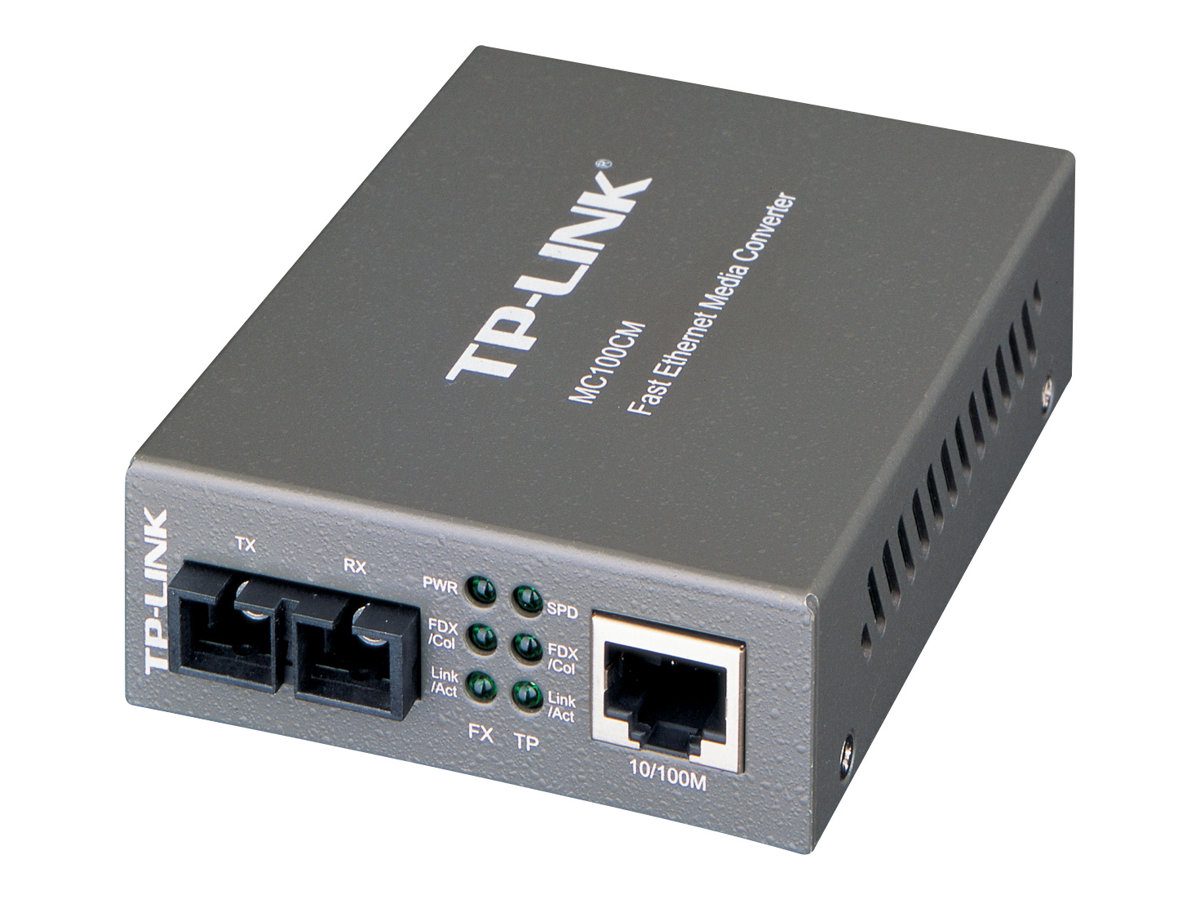

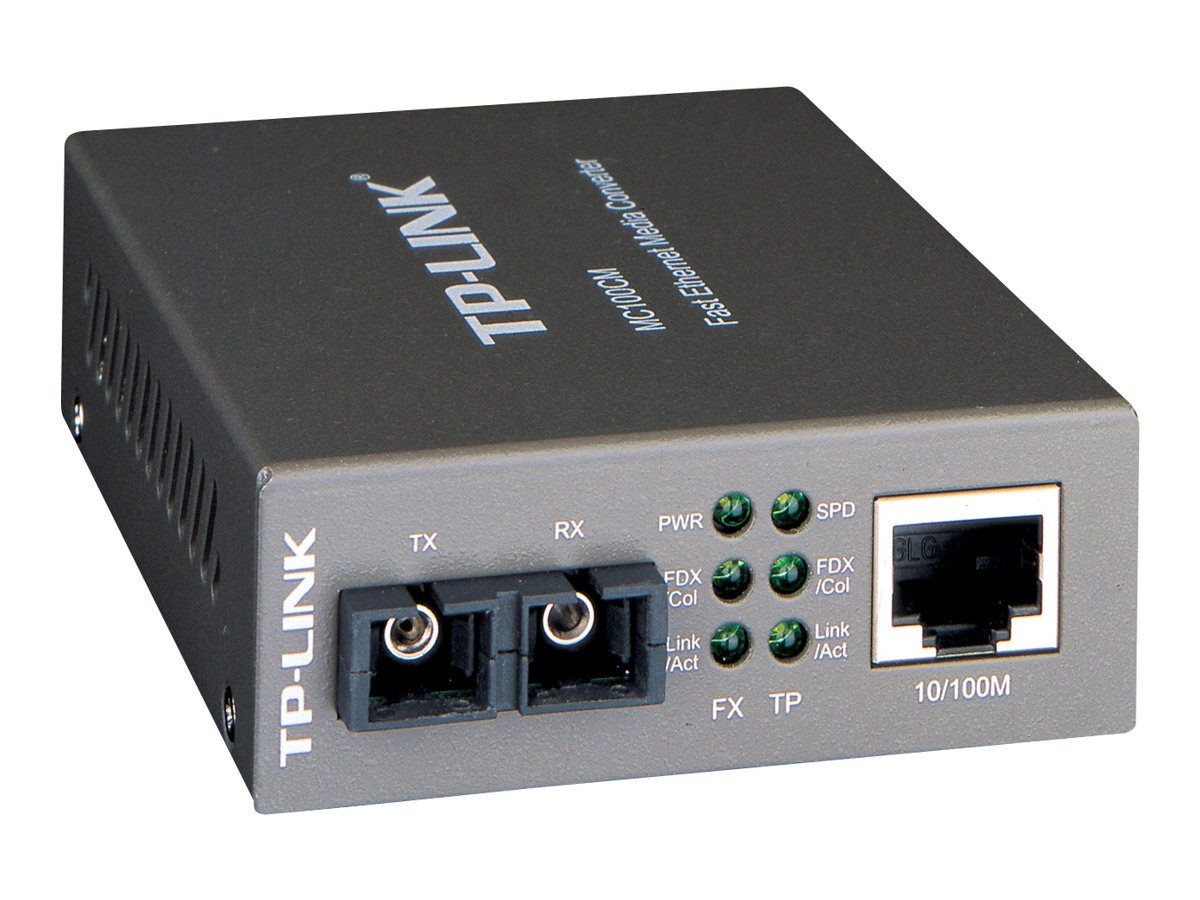

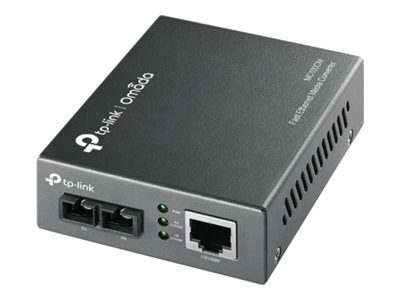

10/100Mbps Multi-Mode Media Converter, MC100CM, 10/100Base-TX
10/100Mbps Multi-Mode Media Converter, MC100CM, 10/100Base-TX, 100Base-FX
TP-LINK · 6935364030391
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 6935364030391
- Brand
- TP-LINK
Description
What This Product Does
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
- Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
- Extends fiber distance up to 2km
Specifications
| Cable type | Cat3/Cat4/Cat5/Cat5e |
| Ethernet type | Gigabit Ethernet |
| Ethernet data rates | 1000 Mbit/s |
| Cabling technology | 100BASE-FX |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3x |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Internal | No |
| LED indicators | Yes |
| Colour | Black |
| Connection technology | Wired |
| Ethernet (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| Fiber ports | 1 |
| Power consumption (max) | 2.5 W |
| Depth | 73 mm |
| Height | 27 mm |
| Width | 94.5 mm |
| Operating humidity | 10 - 90 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 5 - 90 % |
| Storage temperature | -40 - 70 °C |
| Certification | FCC, CE |
| Model | MC100CM |
