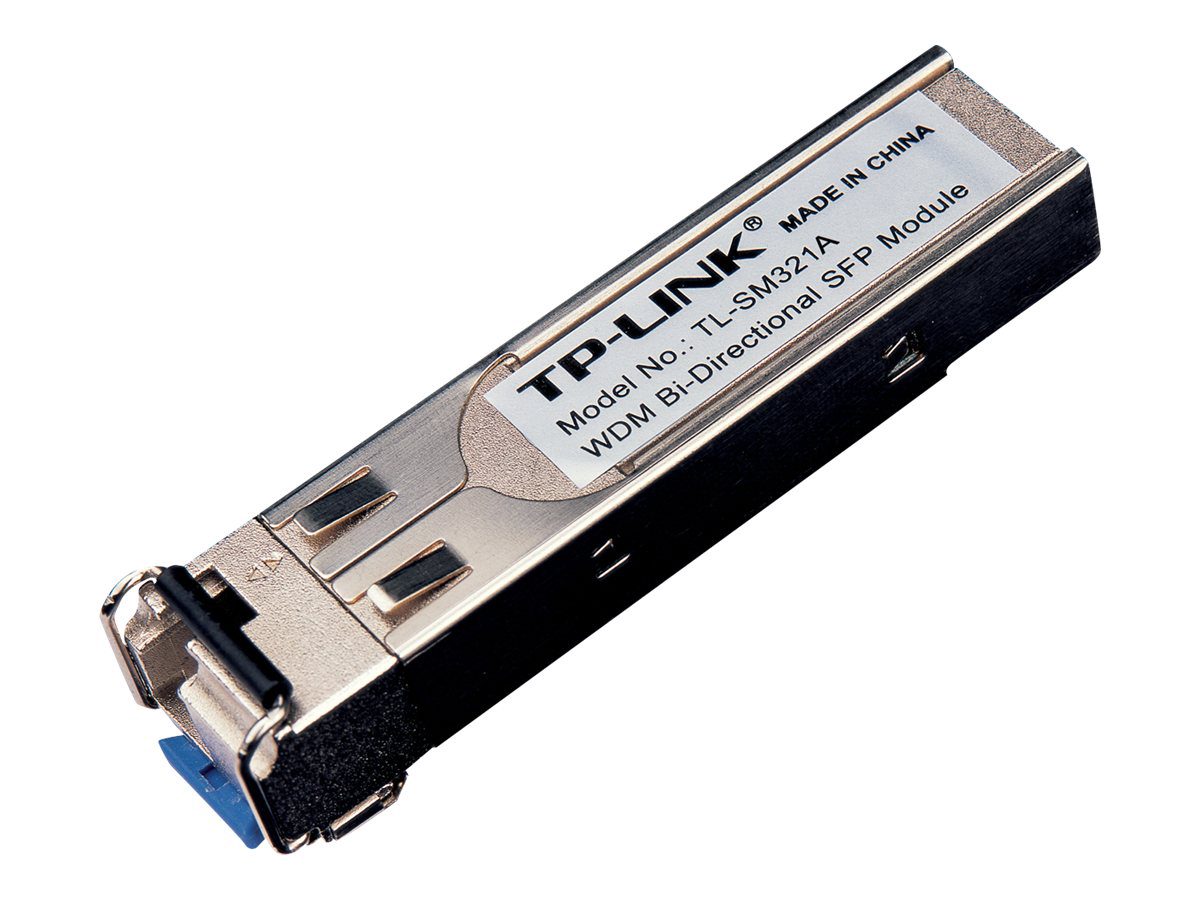

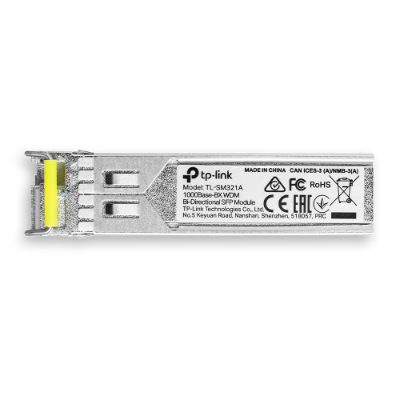

1000 Base-BX WDM Bi-Directional SFP Module, TL-SM321A-2
1000 Base-BX WDM Bi-Directional SFP Module, TL-SM321A-2, 9/125 μm SMF (Single-Mode Fiber)
TP-LINK · 6935364030513
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 6935364030513
- Brand
- TP-LINK
Description
Spotlight:
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
- Supports WDM Bi-Directional technology, using a single strand of fiber
- TX: 1550nm / RX: 1310nm
- Internal +3.3V Power Supply
- In pairs with TL-SM321B
- Plug-and-Play
- Suitable: MC220L, TL-R4199G/4299G, TL-SG3109, TL-SL3428/3452, TL-SG2109WEB/2216WEB/2224WEB,TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and the other equivalent devices
Specifications
| Supported fibre cable diameters | 9/125 µm |
| Fiber optic connector | LC (UPC) |
| Host interface | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Maximum transfer distance | 10000 m |
| Networking standards | IEEE 802.3z |
| Rx wavelength (max) | 1310 nm |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) support | Yes |
| Tx wavelength (max) | 1550 nm |
| Plug and Play | Yes |
| Colour | Metallic |
| Input voltage | 3.3 V |
| Certification | FCC, CE |
| Operating humidity | 10 - 90 % |
| Operating temperature | 0 - 70 °C |
| Non-operating relative humidity | 5 - 90 % |
| Storage temperature | -40 - 80 °C |
| Depth | 12.9 mm |
| Height | 12.9 mm |
| Width | 55.4 mm |
| Model | TL-SM321A |
