5-Port 10/100Mbps Desktop Network Switch, LS1005, Unmanaged, Desktop
5-Port 10/100Mbps Desktop Network Switch, LS1005, Unmanaged, Desktop, Power supply type External
TP-LINK · 6935364089061
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 6935364089061
- Brand
- TP-LINK
Description
5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3X flow control provides reliable data transfer
Plastic casing and desktop design
Plug and play, no configuration required
Fanless design ensures quiet operation
Easily Expand Your Network and Save Energy
5-Port 10/100 Mbps Desktop Switch
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

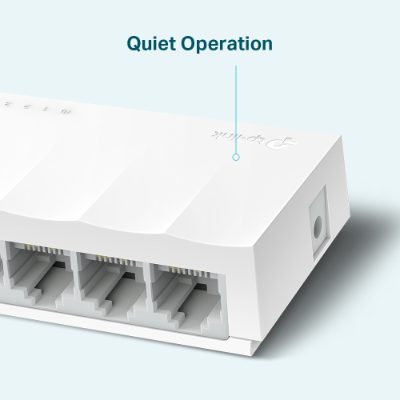

Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment.
Besides, fanless design ensures quiet operation.
Use Where You Need, However You Need
The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
- 5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing and desktop design
- Plug and play, no configuration required
- Fanless design ensures quiet operation
Specifications
| Switch type | Unmanaged |
| Ethernet (RJ-45) ports | 5 |
| Ethernet type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| 10 Gigabit support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control | Yes |
| Networking standards | IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Forwarding rate | 0.7 Mpps |
| Jumbo frame size | 2000 |
| Jumbo frames | Yes |
| MAC address table size | 2000 entries |
| Store and forward | Yes |
| Switching capacity | 1 Gbit/s |
| Material | Plastic |
| LED indicators | Activity/Link/Power |
| Colour | White |
| Rack mountable | No |
| Wall-mountable | No |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Power consumption (max) | 1.65 W |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet | No |
| Heat dissipation | 5.627 BTU/h |
| Operating humidity | 10 - 90 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 5 - 90 % |
| Storage temperature | -40 - 60 °C |
| Depth | 45.7 mm |
| Height | 22.8 mm |
| Width | 83.6 mm |
| Quick start guide included | Yes |
| Certification | CE, FCC, RoHS |
| Model | LS1005 |
| Model name | LS1005 |
