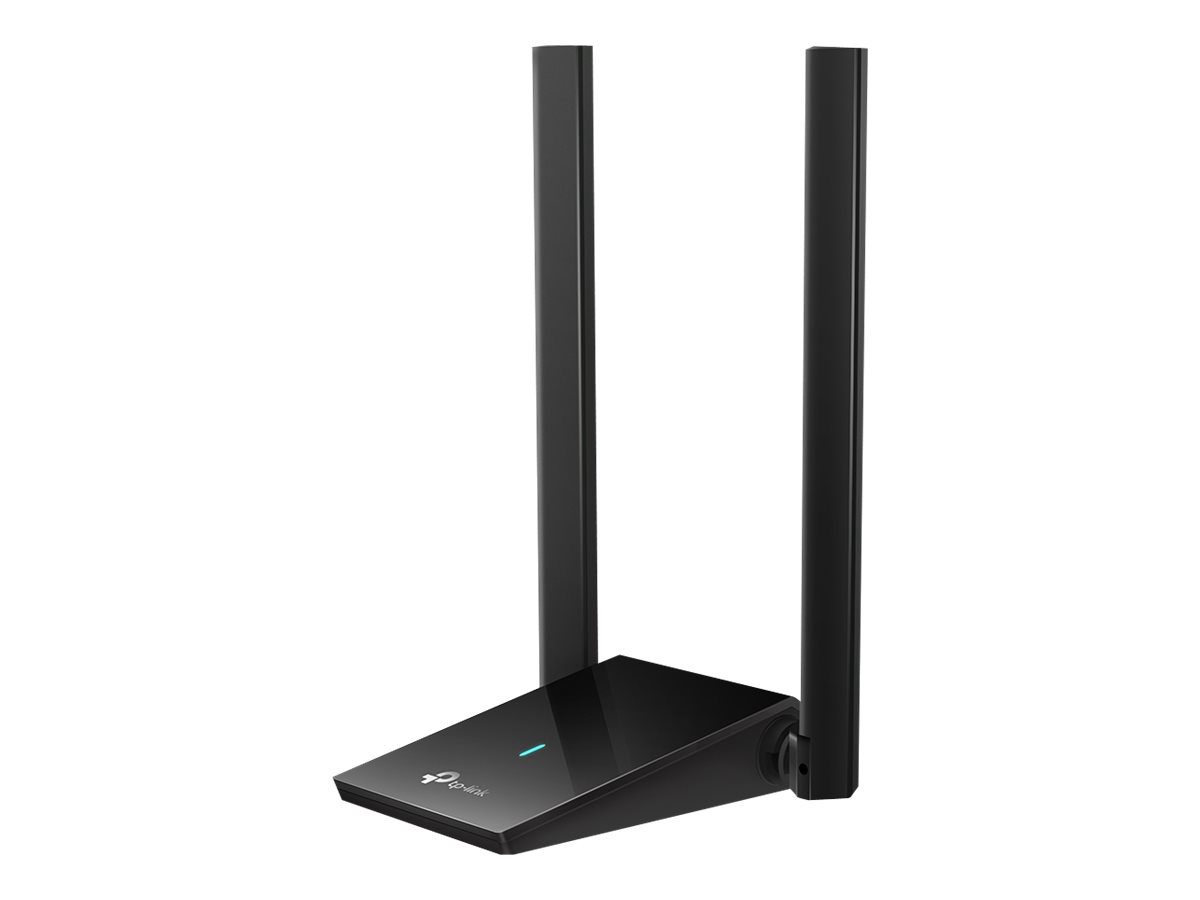

AX1800 Dual Antennas High Gain Wireless USB Adapter, Archer TX20U Plus
AX1800 Dual Antennas High Gain Wireless USB Adapter, Archer TX20U Plus, 802.11ax, 574+1201 Mbit/s, 10/100/1000 Mbit/s, Ethernet LAN (RJ-45) ports 0, Mesh Support No, MU-MiMO Yes, No mobile broadband, Antenna type External
TP-LINK · 4897098687888
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4897098687888
- Brand
- TP-LINK
Description
Level Up Your PC with WiFi 6
High-Gain Wireless USB Adapter
Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.
Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
A Perfect Match for Faster Speeds
USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.
Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.
Simple Design and Placement

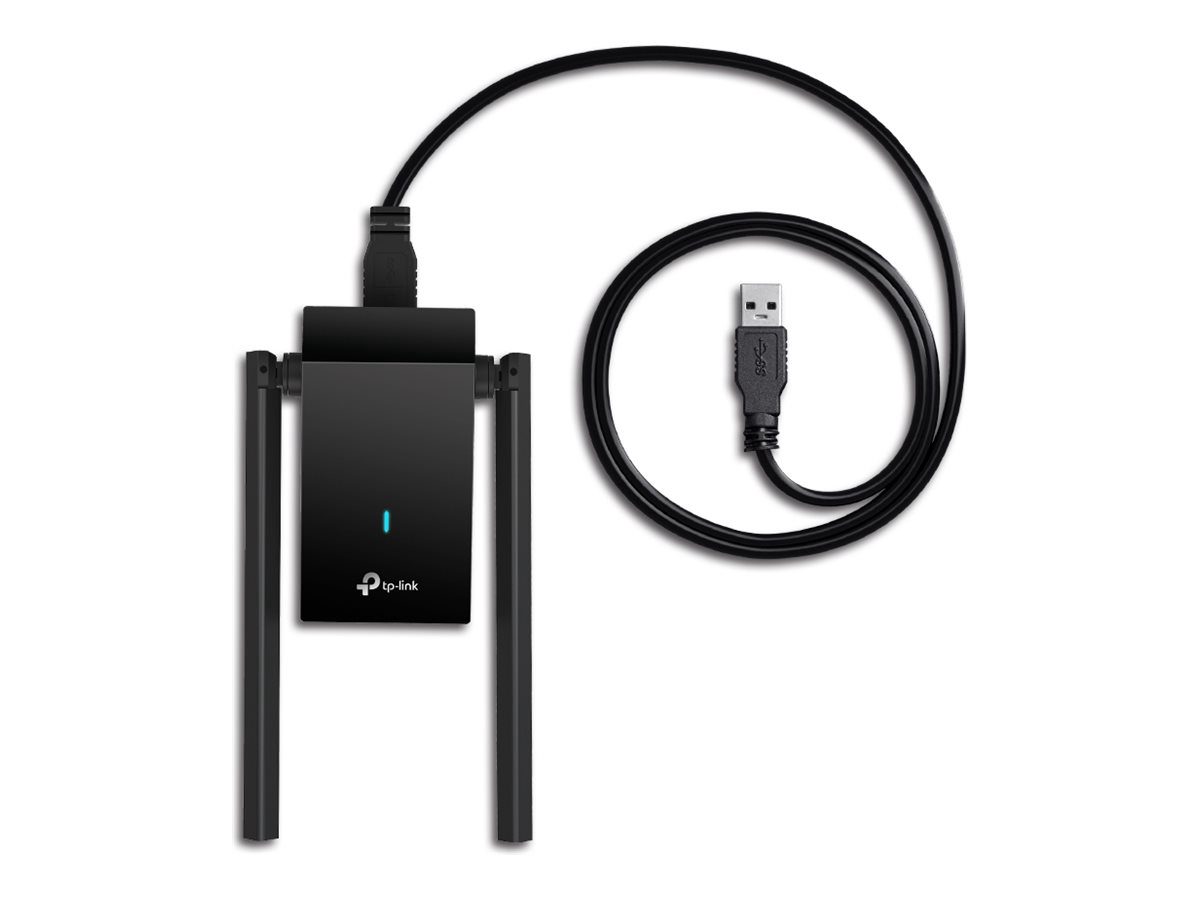

Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.
- Lightning-Fast WiFi 6 – Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)†
- Flexible Dual Band – Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands
- Dual High-Gain Antennas – Connect from farther away with high-quality signals and transmissions
- MU-MIMO – Maintain high download and upload speeds even when other devices are eating up your bandwidth△
- OFDMA – Reduce your latency for impeccable conferencing and gameplay on crowded networks△
- SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0
- Refined Security – Protect your personal data with the latest WPA3 encryption
Specifications
| Connection technology | Wireless |
| Host interface | USB |
| Drive interface | WLAN |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Maximum data transfer rate | 1800 Mbit/s |
| MU-MiMO | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Security algorithms | WEP/WPA/WPA2/WPA2-PSK/WPA3/WPA-PSK |
| Wi-Fi | Yes |
| Frequency band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates | 11/1200/300/400/54/574/867 Mbit/s |
| Antenna type | External |
| Component for | PC |
| Internal | No |
| LED indicators | Status |
| Operating modes | Infrastructure mode |
| Colour | Black |
| Transmitting power (CE) | 16 dBm |
| Transmitting power (FCC) | 19 dBm |
| Supported Windows operating systems | Windows/Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 IoT Enterprise/Windows 10 Pro/Windows 10 Pro x64/Windows 10 x64/Windows 11 |
| Operating humidity | 10 - 90 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 5 - 90 % |
| Sustainability compliance | Yes |
| Depth | 156.3 mm |
| Height | 19.2 mm |
| Width | 84 mm |
| Cables included | USB |
| Quick start guide included | Yes |
| Certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Number of antennas | 2 |
| Model | Archer TX20U Plus |
