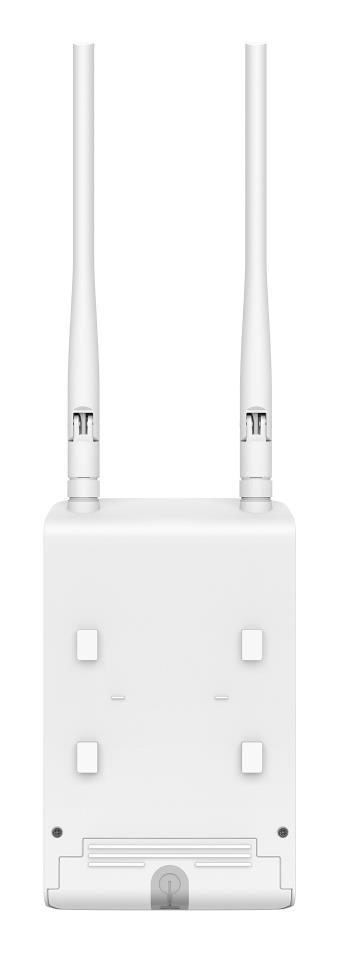

TP-LINK AX1800 Indoor/Outdoor Wi-Fi 6 Access Point, EAP603-Outdoor
TP-LINK AX1800 Indoor/Outdoor Wi-Fi 6 Access Point, EAP603-Outdoor, 802.11ax, 10/100/1000 Mbit/s, Ethernet LAN (RJ-45) ports 1, MU-MiMO No, PoE in, Antenna type External
TP-LINK · 1210002605731
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 1210002605731
- Brand
- TP-LINK
Description
TP-LINK EAP603-Outdoor
Точка доступу AX1800 Wi-Fi 6 для використання в приміщенні/на вулиці
Безшовний Wi-Fi 1,8 Гбіт/с зі швидкістю 6
574 Мбіт/с на 2,4 ГГц і 1201 Мбіт/с на 5 ГГц.
Дводіапазонне всеспрямоване покриття
Покриття на великій відстані до 300 м (984 фути).
Живлення від PoE+
Підтримує як 802.3at PoE, так і пасивний PoE (адаптер у комплекті).
Ідеально підходить для зовнішнього середовища
Захист від погодних умов IP65, блискавкозахист 6 кВ і надійний робочий діапазон від -40 °C до +70 °C.
Просте та швидке налаштування
Монтаж на стіну/стовп Omada SDN для налаштування в один клік
Розширені функції
Omada Mesh, безшовний роумінг та централізоване хмарне управління.
Up to 1.8 Gbps Wi-Fi 6 Speeds†
Long Coverage with 2× External Antennas
802.3at PoE &
Passive PoE (Adapter Included)
1× Gigabit PoE+
Port
Omada Mesh & Seamless Roaming
Centralized Cloud Management
IP65 Weatherproof
Easy Setup
Power up Your Business with Superior Wi-Fi6 Speeds
1775 Mbps
(5 GHz + 2.4 GHz)
5 GHz
1201 Mbps
2.4 GHz
574 Mbps
HE 80
HE 80
1024 QAM
1024 QAM
MU-MIMO
MU-MIMO
OFDMA
OFDMA
Perfect for Outdoor Wi-Fi Coverage
Yard
Yard
Shed/Barn
Shed/Barn
Farm
Farm
Swimming Pool
Swimming Pool
Outdoor Café
Outdoor Café
Park
Park
Long-Range Omni-directional Coverage
2× external antennas equipped with high-power amplifiers utilize Wi-Fi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.*
2.4 GHz up to
2150 ft/200 m
5 GHz up to
3200 ft/300 m
Flexible Deployment with PoE Support
Powered with PoE+ SwitchPoE
Powered with PoE+ Switch
Using the Provided Passive PoE AdapterInternet
Using the Provided Passive PoE Adapter
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
PoE+
Omada PoE+ Switch
phone
productproductproduct
Designed for Outdoors
The fully sealed EAP603-0utdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It withstands the harsh outdoor environments.
IP65 Weatherproof Enclosure
IP65 Weatherproof
6kV Lightning Protection
6kV Lightning Protection
-30 °C-70 °C Working Range
-30 °C-70 °C Working Range
Wind Resistance
Wind Resistance
Easy and Quick Setup
Easy Installation Through Pole and Wall Mount Options
Pole Mounting
Pole Mounting
Wall Mounting
Wall Mounting
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP603-Outdoor through automatic device identification and one-click adoption.
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Omada
Ceiling Mount
Wi-Fi 6 AP
Omada
Wall Plate
Wi-Fi 6 AP
Omada
Outdoor Wi-Fi 6 AP
EAP603-Outdoor
Omada
PoE Switch
Omada
VPN Gateway
Cloud Access
On-premises
Controllers
Hardware
Or
Software
Or
Omada Central (Cloud-Based)
Internet
Web Browser
Omada App
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
§Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers.
*The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
- Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.†
- Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.*
- PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included)
- Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C
- Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
- Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.§
Specifications
| 2.4 GHz Wi-Fi | Yes |
| 5 GHz Wi-Fi | Yes |
| 6 GHz Wi-Fi band | No |
| Bluetooth | Yes |
| Ethernet data rates | 10/100/1000 Mbit/s |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Maximum range | 300 m |
| Networking standards | IEEE 802.11a/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v/IEEE 802.3at |
| Access control list (ACL) | Yes |
| Guest access | Yes |
| IP address filtering | Yes |
| MAC address filtering | Yes |
| SSID count (max) | 16 |
| RADIUS | Yes |
| Security algorithms | EAP/EAP-FAST/EAP-GTC/EAP-MD5/EAP-PEAP/EAP-SIM/EAP-TLS/EAP-TTLS/PEAP/PPSK/SNMP/SSH/WPA2-Enterprise/WPA2-Personal/WPA3-Enterprise/WPA3-Personal/WPA-Enterprise/WPA-Personal |
| SSID features | Multiple SSIDs |
| Backup function | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Ethernet (RJ-45) ports | 1 |
| DC voltage range | 42.5 - 57 V |
| Input current | 0.36 A |
| Power consumption (max) | 4.8 W |
| Power over Ethernet | Yes |
| PoE type supported | Passive PoE |
| IP rating | IP65, IP66 |
| Placement | Pole,Wall |
| Colour | White |
| Antenna type | Omni-directional |
| Maximum antenna gain | 5 dBi |
| Number of antennas | 4 |
| Certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Depth | 207.5 mm |
| Height | 69.7 mm |
| Width | 230 mm |
| Mounting kit included | Yes |
| PoE adapter included | Yes |
| Quick start guide included | Yes |
| Operating humidity | 10 - 90 % |
| Operating temperature | -30 - 70 °C |
| Non-operating relative humidity | 5 - 90 % |
| Storage temperature | -40 - 70 °C |
| Model | EAP603-OUTDOOR |
| Model name | EAP603-Outdoor |
