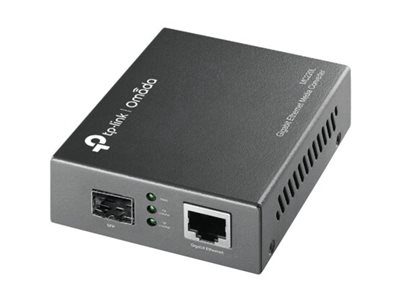

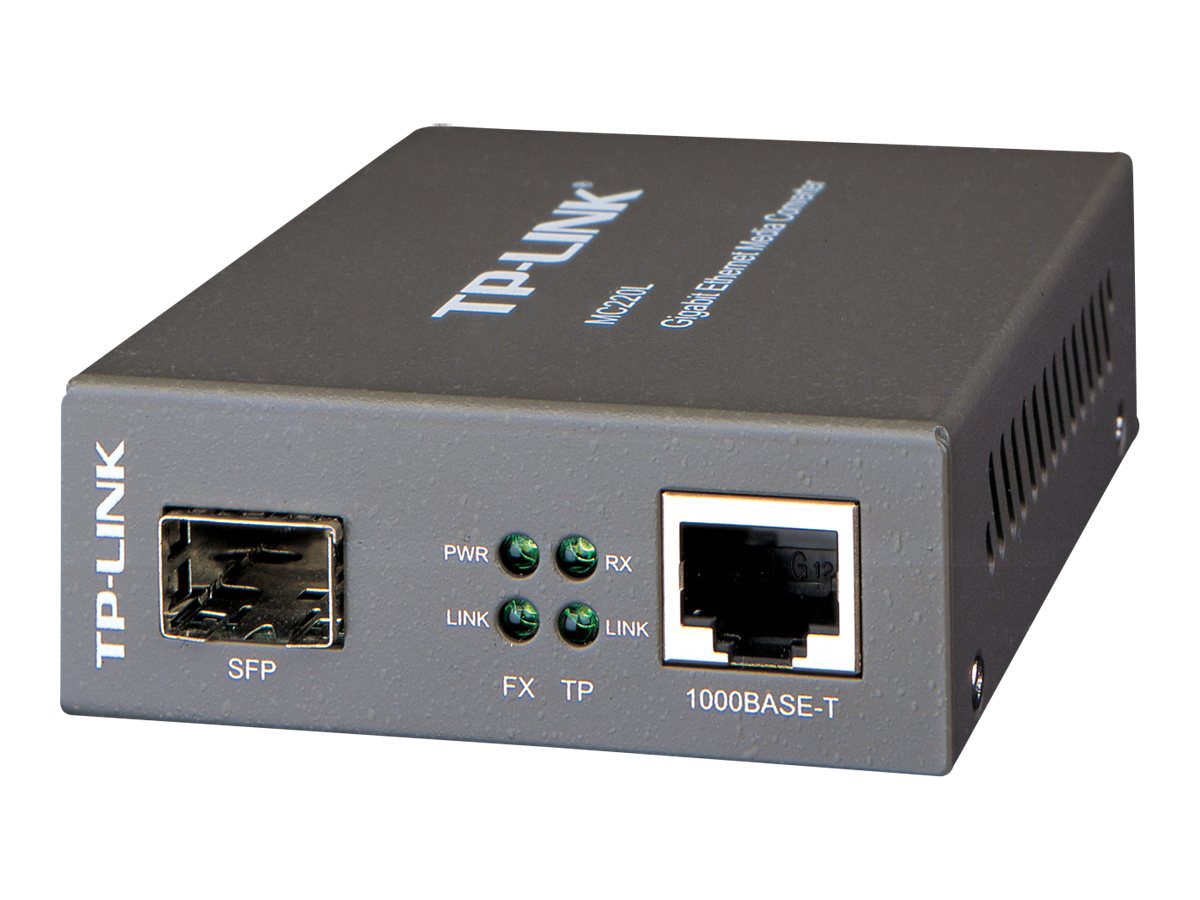

Gigabit Ethernet Media Converter, MC220L, Gigabit SFP port
Gigabit Ethernet Media Converter, MC220L, Gigabit SFP port, 10/100/1000M RJ45 port (Auto MDI/MDIX)
TP-LINK · 6935364030476
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 6935364030476
- Brand
- TP-LINK
Description
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
Specifications
| Auto MDI/MDI-X | Yes |
| Cabling technology | UTP 5e, 5 |
| Ethernet type | Gigabit Ethernet |
| Ethernet data rates | 1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z |
| Fiber mode structure | Multi-mode/Single-mode |
| Maximum transfer distance | 10000 m |
| Certificates | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Internal | No |
| LED indicators | Link |
| Colour | Black |
| Connection technology | Wired |
| Ethernet (RJ-45) ports | 1 |
| Fiber optic connector | SFP |
| Fiber ports | 1 |
| External power adapter | Yes |
| Power consumption (max) | 1.7 W |
| Depth | 73 mm |
| Height | 27 mm |
| Width | 94.5 mm |
| Operating humidity | 10 - 90 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 5 - 90 % |
| Storage temperature | -40 - 70 °C |
| Certification | FCC, CE |
| Dimensions | 94.5 x 73 x 27 mm |
| Full duplex | Yes |
| Interfaces | 1x 1000M SC 1x 1000M RJ45 |
