Gigabit Single-Mode WDM Media Converter, TL-SM321B-2

Name: Gigabit Single-Mode WDM Media Converter, TL-SM321B-2, 9/125 μm SMF (Single-Mode Fiber)
Brand: TP-LINK
SKU: 6935364072940

Gigabit Single-Mode WDM Media Converter, TL-SM321B-2, 9/125 μm SMF (Single-Mode Fiber)

TP-LINK · 6935364072940

—

The invoice is sent as soon as you order.

Out of stock

Payment: bank transfer or cash on delivery
Delivery: 1–3 working days, anywhere in Latvia
Warranty: 60 mo.
Invoice: with every order

EAN: 6935364072940
Brand: TP-LINK

Description

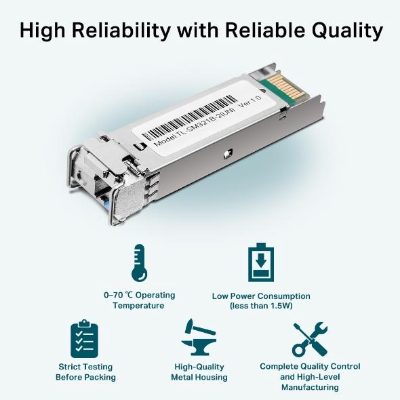

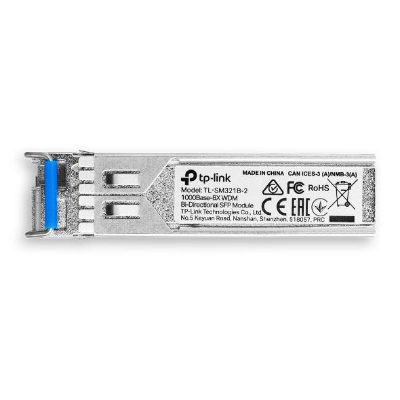

TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.

WDM Bi-Directional SFP Module

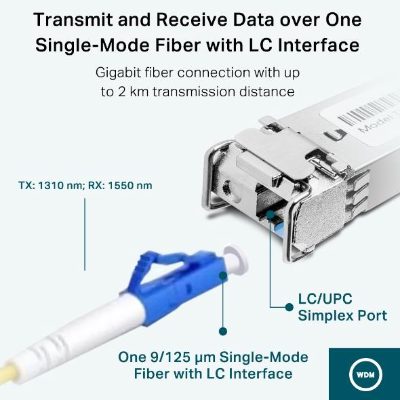

Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

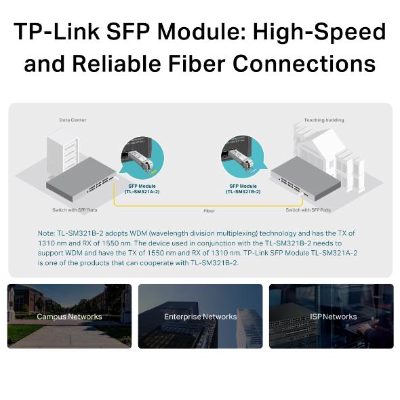

Pairing with TL-SM321A or MC111CS

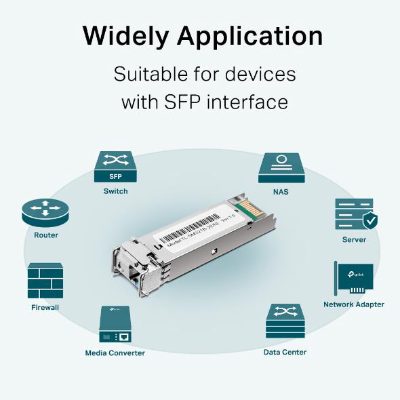

Compatible with T3700 series, T2700 series, T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L

Specifications

Supported fibre cable diameters	9/125 µm
Fiber optic connector	LC
Host interface	SFP
Maximum data transfer rate	1250 Mbit/s
Maximum transfer distance	1000 m
Multi-mode fiber (MMF) support	No
Networking standards	IEEE 802.3z
Rx wavelength (max)	1550 nm
SFP transceiver standard	BX
SFP transceiver type	Fiber optic
Single-mode fiber (SMF) support	Yes
Tx wavelength (max)	1310 nm
Wavelength-division multiplexing (WDM)	Yes
Colour	Metallic
Certification	FCC, CE
Certificates	RoHS
Operating humidity	10 - 90 %
Operating temperature	0 - 70 °C
Non-operating relative humidity	5 - 90 %
Storage temperature	-40 - 80 °C
Depth	14.6 mm
Height	12.9 mm
Width	55.4 mm
Manual included	Yes
