TV SET ACC CEILING MOUNT/37-75" PLASMA-C100D NEOMOUNTS
NEOMOUNTS · 8717371441739
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 8717371441739
- Brand
- NEOMOUNTS
Description

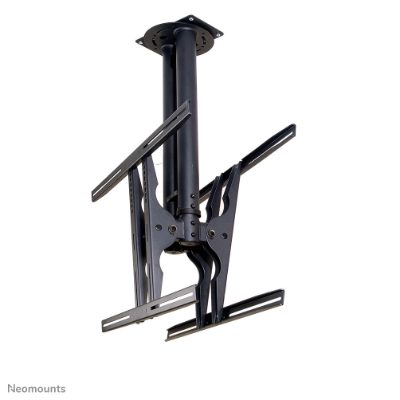

The Neomounts ceiling mount, model PLASMA-C100D is a dual-sided tilt- and swivel ceiling mount for flat screens up to 75" (191 cm). This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

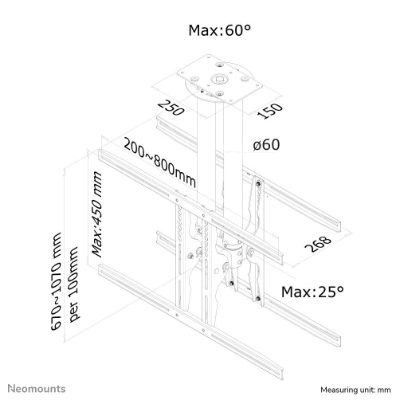

Neomounts versatile tilt (25°) and swivel (60°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 67 to 107 centimetres. If different heights are needed extension poles are available. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.
Neomounts PLASMA-C100D has one pivot point and is suitable for screens up to 75" (191 cm). The weight capacity of this product is 100 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 200x200 to 800x450mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
By using extension poles (FPMA-CP100 up to FPMA-CP200) you can increase the distance to the ceiling. These can be ordered additionally. This pole replaces the original pole. Please note that to extend the PLASMA-C100D you will need two extension poles.
Specifications
| Maximum screen size | 75 " |
| Maximum VESA pattern | 800 x 450 mm |
| Maximum load | 50 kg |
| Maximum load per display | 50 kg |
| Minimum screen size | 37 " |
| Minimum VESA pattern | 200 x 200 mm |
| Mounting type | Ceiling |
| Supported displays | 2 |
| VESA pattern | 200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400/680 x 300/800 x 200/800 x 400 mm |
| Height adjustment | Yes |
| Height adjustment range | 670 - 1070 mm |
| Height adjustment type | Manual |
| Swivel angle | 60 ° |
| Swivel angle range | 0 - 60 ° |
| Swivel | Yes |
| Tilt adjustment | Yes |
| Tilt angle | 25 ° |
| Tilt angle range | 0 - 25 ° |
| Material | Steel |
| Colour | Black |
| Country of origin | Taiwan |
| Height | 1070 mm |
| Weight | 20850 g |
