CABLE USB2 8M ACTIVE EXT. PRO/42780 LINDY
LINDY · 4002888427807
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 24 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4002888427807
- Zīmols
- LINDY
Apraksts

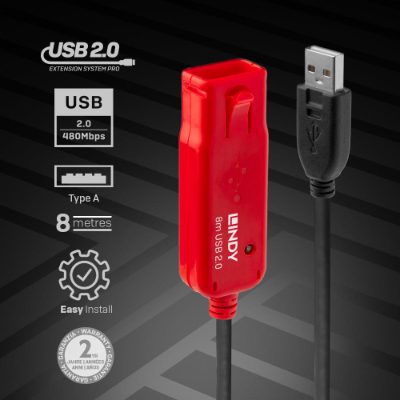

The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.
This 8m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

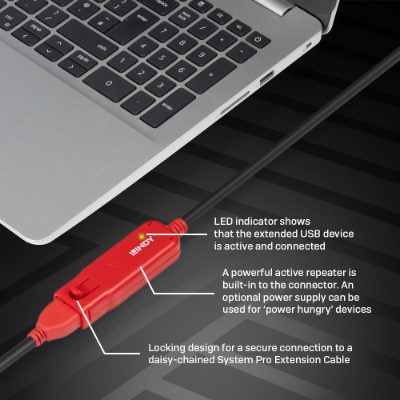

The 8m and 12m cable, and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

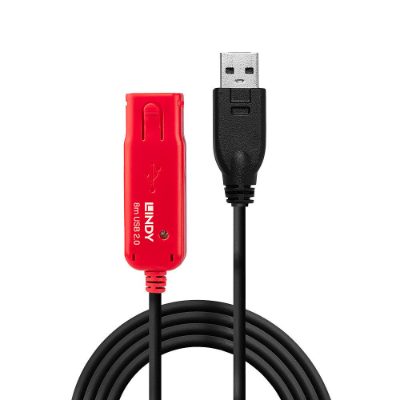

- High performance, active cable that provides an extended 8m connection between a computer and USB 2.0 device
- Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m
- Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps
- USB Type A Male to A Female connects to the deviceandrsquo;s existing USB cable (2m maximum)
- 2 year warranty
Specifikācija
| Minimālais liekuma rādiuss | 26 mm |
| Kabeļa diametrs | 5 mm |
| Kabeļa garums | 8 m |
| 1. pieslēgvietes izmēri | 15 x 43 x 8 mm |
| 2. pieslēgvietes izmēri | 20 x 64 x 13 mm |
| Svars | 280 g |
| Stieples gabarīts | 26/20 |
| Kabeļa virsējā slāņa materiāls | Polyvinyl chloride (PVC) |
| Kabeļa veids | Apaļš kabelis |
| Vadītāja materiāls | Tinots varš |
| Savienotājs 1 | USB A |
| Savienotāja 1 forma | Taisns |
| Savienotāja 1 dzimums | Tēviņš |
| Savienotājs 2 | USB A |
| Savienotāja 2 forma | Taisns |
| Savienotāja 2 dzimums | Mātīte |
| Kontaktu pārklājums | Zeltains |
| Materiāls | Plastmasa |
| Pieslēgvietes materiāls | Gold/Nickel |
| Pieslēgvietes ekrāna materiāls | Alumīnijs |
| Pieslēgvietes blindēšana | Jā |
| Kontakta materiāls | Brass |
| Maksimālais datu pārsūtīšanas ātrums | 480 Mbit/s |
| Nomināls vājinājums | (0.064 MHz, -0.08 dB) (0.256MHz, -0.11 dB) (0.512MHz, -0.13 dB) (0.772 MHz, -0.15 dB) (1 MHz, -0.2 dB) (4 MHz, -0.39 dB) (8 MHz, -0.57 dB) (12 MHz, -0.76 dB) (24 MHz, -0.95 dB) (48 MHz, -1.35dB) (96 MHz, -1.9 dB) (200 MHz, -3.2 dB) (400 MHz, -5.8 dB) |
| Krāsa | Melns |
| Pārraides vidējais | Twisted pair |
| USB centrmezgla versija | USB 2.0 |
| Instrukcija iekļauta | Jā |
| Darbības temperatūra | 0 - 50 °C |
| Uzglabāšanas temperatūra | -20 - 60 °C |
| Sertifikācija | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Modeļa nosaukums | 8m USB 2.0 Active Extension Pro |
