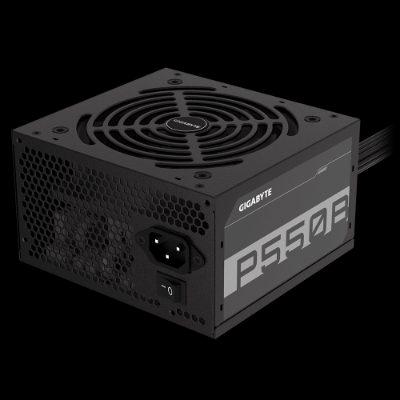

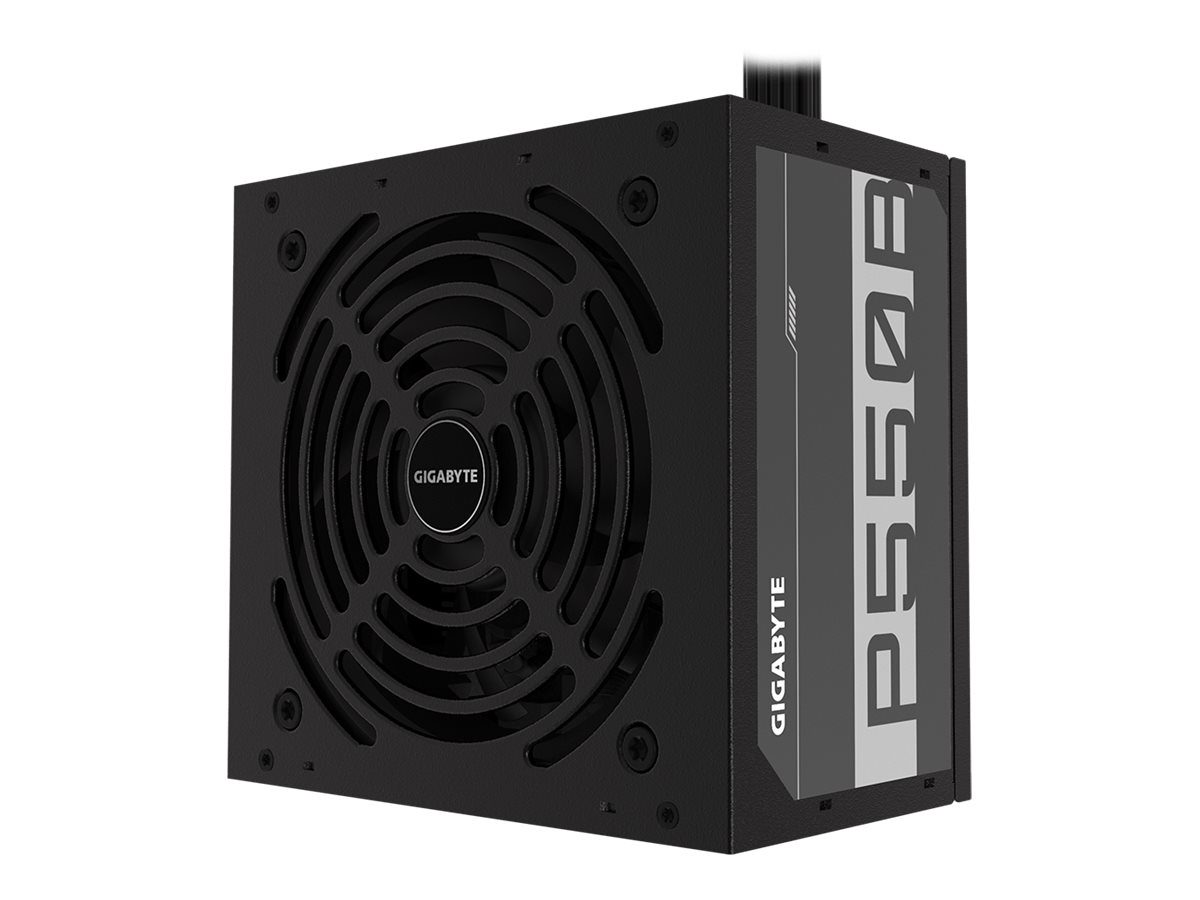

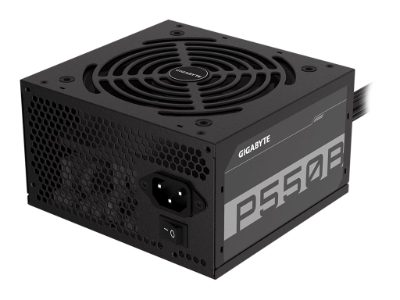

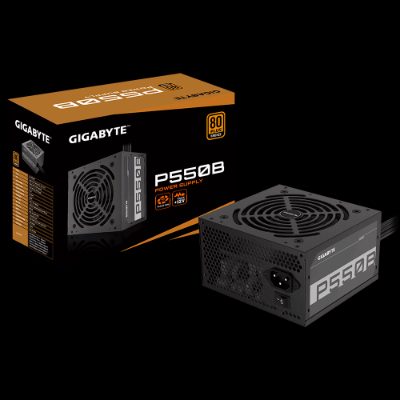

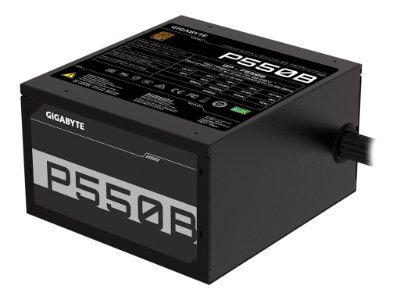

GP-P550B, 550 W, 80 PLUS Bronze certified
Gigabyte · 4719331551490
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 36 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4719331551490
- Zīmols
- Gigabyte
Apraksts
80 PLUS BRONZE CERTIFIED
80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
Reliable Flat Cable
P550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.

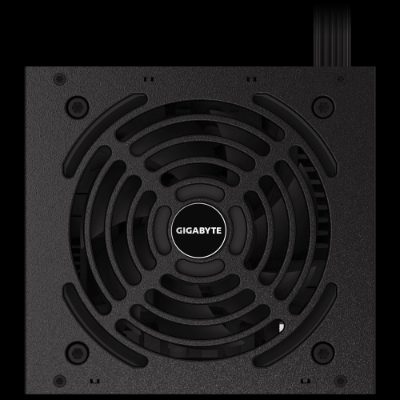

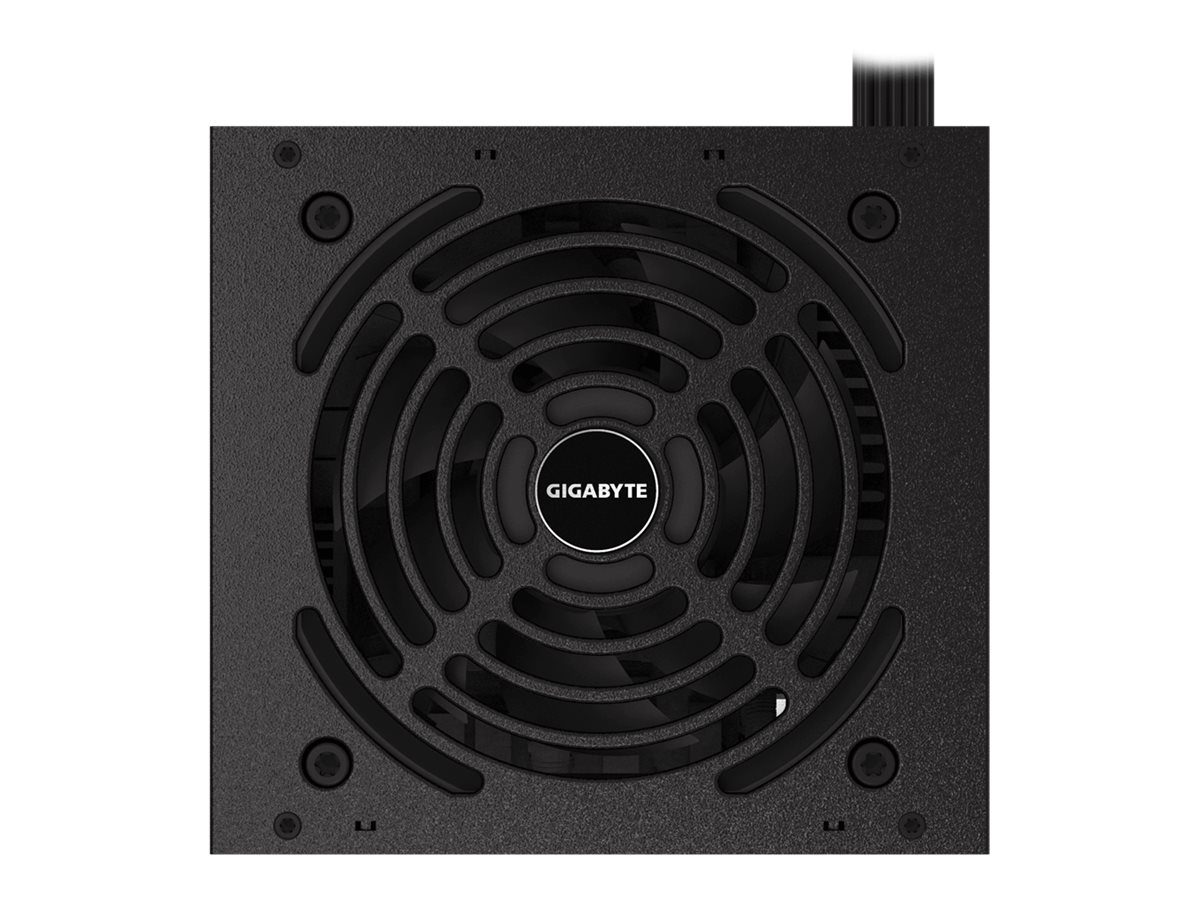

120mm Silent Hydraulic Bearing (HYB) Fan
120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
- 80 PLUS Bronze certified
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Reliable flat cable
- Single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
Specifikācija
| Ieejas frekvence | 50 - 60 Hz |
| Ieejas spriegums | 100 - 240 V |
| Kopējā jauda (+12V magistrāle) | 522 W |
| Kopējā jauda (+3,3V) | 108 W |
| Kopējā jauda (+5V) | 108 W |
| Kopējā jauda (+5Vsb) | 15 W |
| Kopējā jauda (-12V) | 3.6 W |
| Efektivitāte | 85 % |
| Pieturamais laiks | 16 ms |
| Ieejas strāva | 8 - 4 A |
| Maksimālā izejas strāva (+12V) | 43.5 A |
| Maksimālā izejas strāva (+3,3V) | 18 A |
| Maksimālā izejas strāva (+5V) | 15 A |
| Maksimālā izejas strāva (+5Vsb) | 3 A |
| Maksimālā izejas strāva (-12V) | 0.3 A |
| Jaudas faktors | 0.9 |
| Jaudas koeficienta korekcijas (PFC) veids | Aktīvs |
| Enerģijas aizsardzības funkcijas | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Nominālā jauda | 550 W |
| ATX enerģijas savienotājs | Jā |
| PSU kabeļu veids | Non-Modular |
| CPU barošanas kabeļa garums | 600 mm |
| CPU barošanas pieslēgvieta (4+4 tapas) | Jā |
| Diskas diska diska savienotājs | Jā |
| Diskas diska strāvas savienotājs | 1 |
| Pamatplates barošanas kabeļa garums | 550 mm |
| Pamatplates enerģijas savienotājs | 20+4 pin ATX |
| SATA enerģijas savienotāju skaits | 6 |
| PCI Express savienotājs | Jā |
| PCI Express barošanas kabeļa garums | 550 mm |
| PCI Express enerģijas savienotāju (12+4 pin) | 2 |
| Molex barošanas kabeļa garums | 500 mm |
| Molex enerģijas savienotāju | 3 |
| SATA barošanas kabeļa garums | 500 mm |
| 80 PLUS sertifikācija | 80 PLUS Bronze |
| ATX versija | 2.31 |
| Gultņa tehnoloģija | HDB |
| MTBF | 100000 h |
| Formas faktors | ATX |
| Paredzētā izmantošana | PC |
| Dzesēšanas veids | Aktīvs |
| Ventiliatora diametrs | 120 mm |
| Ventilatora vieta | Augšā |
| Ventilatoru skaits | 1 ventilatori |

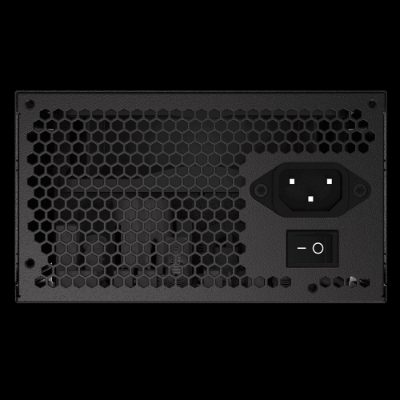

| Ieslēgšanas/izslēgšanas poga | Jā |
| Krāsa | Melns |
| Dziļums | 140 mm |
| Augstums | 86 mm |
| Platums | 150 mm |
| Modeļa nosaukums | P550B |
