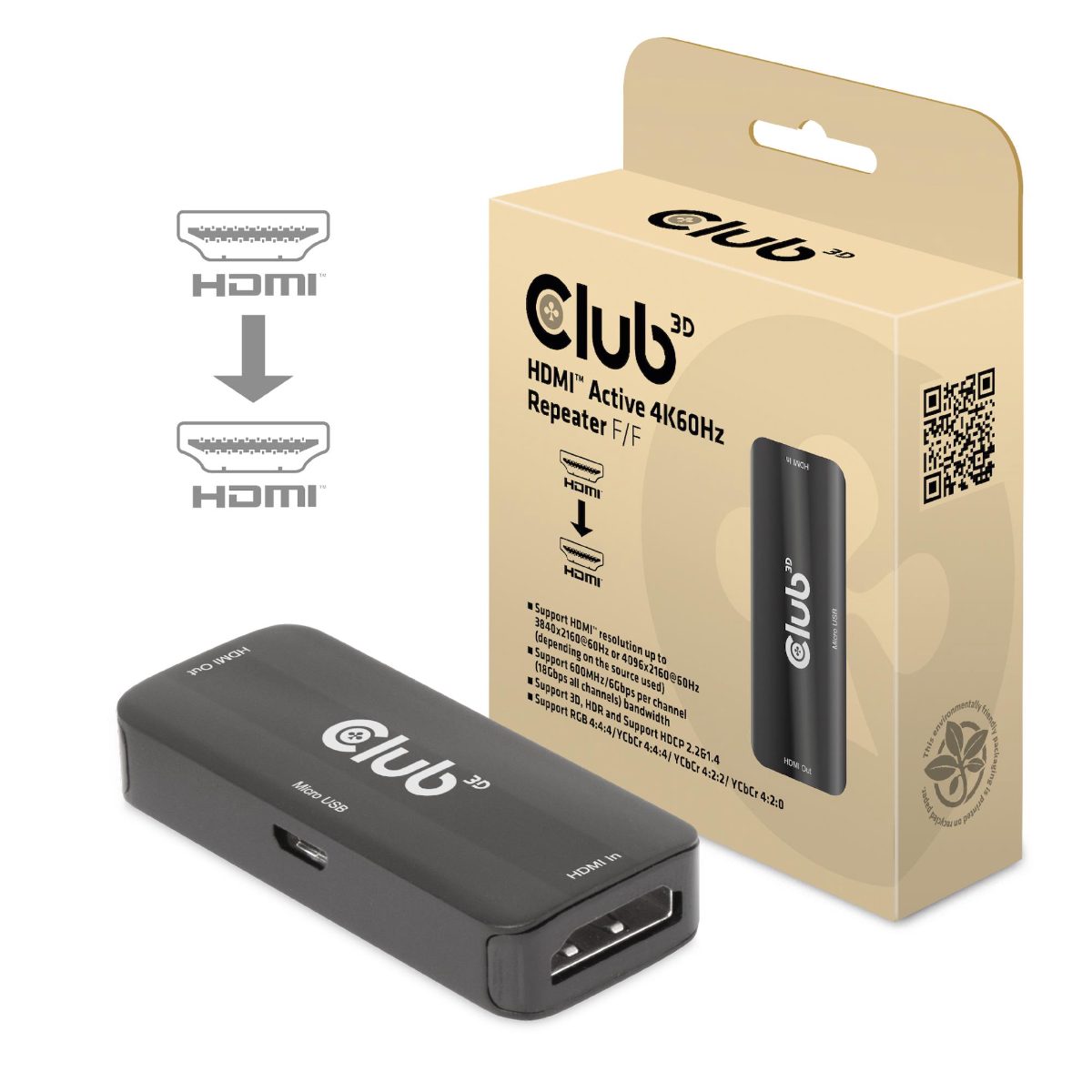

I/O ADAPTER HDMI TO USB/F/F CAC-1307 CLUB3D

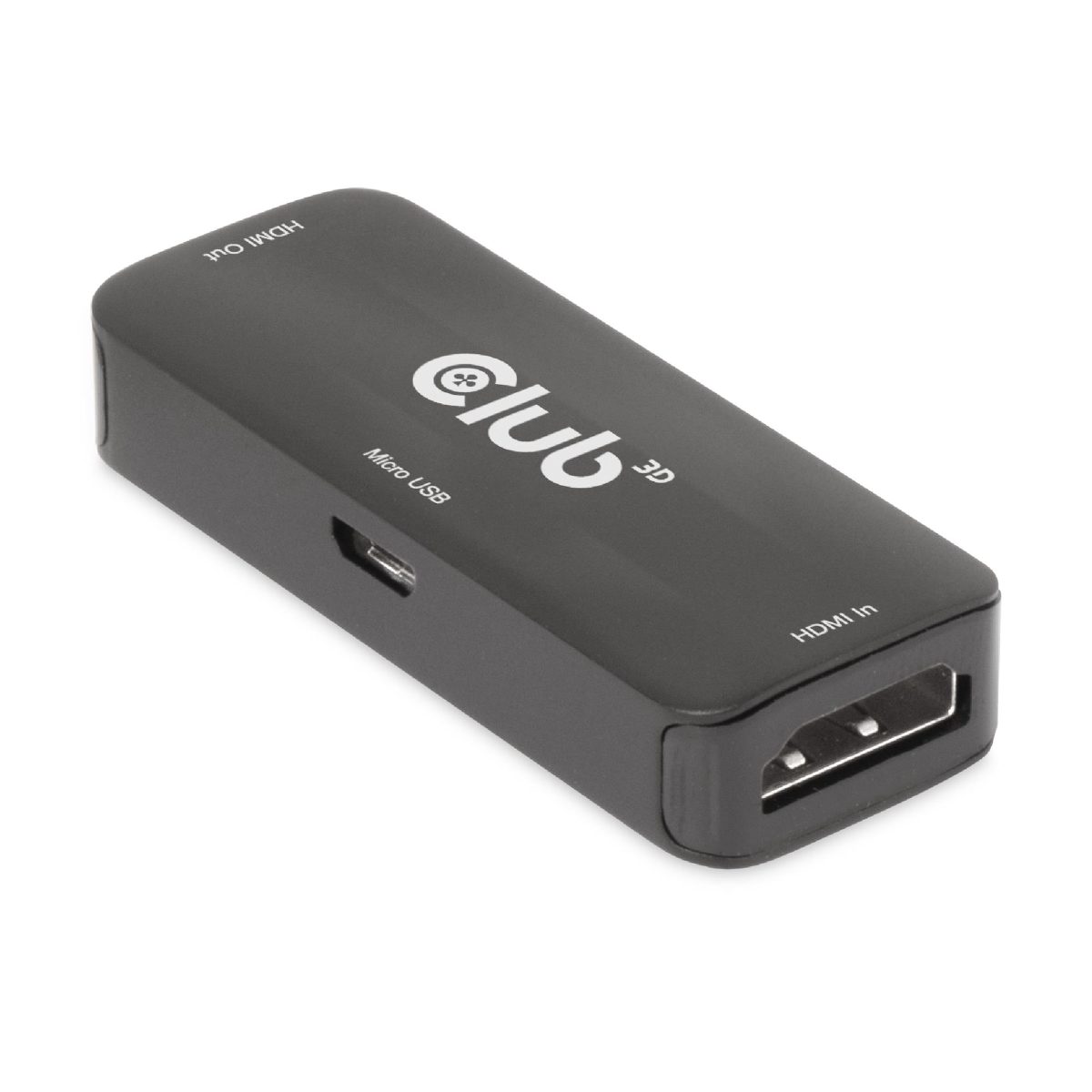

The Club 3D CAC-1307 HDMI™ Active 4K60Hz Repeater extends the length of any
HDMI™ cable by regenerating the HDMI™ signal before it sends the outputs to the
HDMI™ monitor or projector. The active HDMI™ repeater will clean out the digital

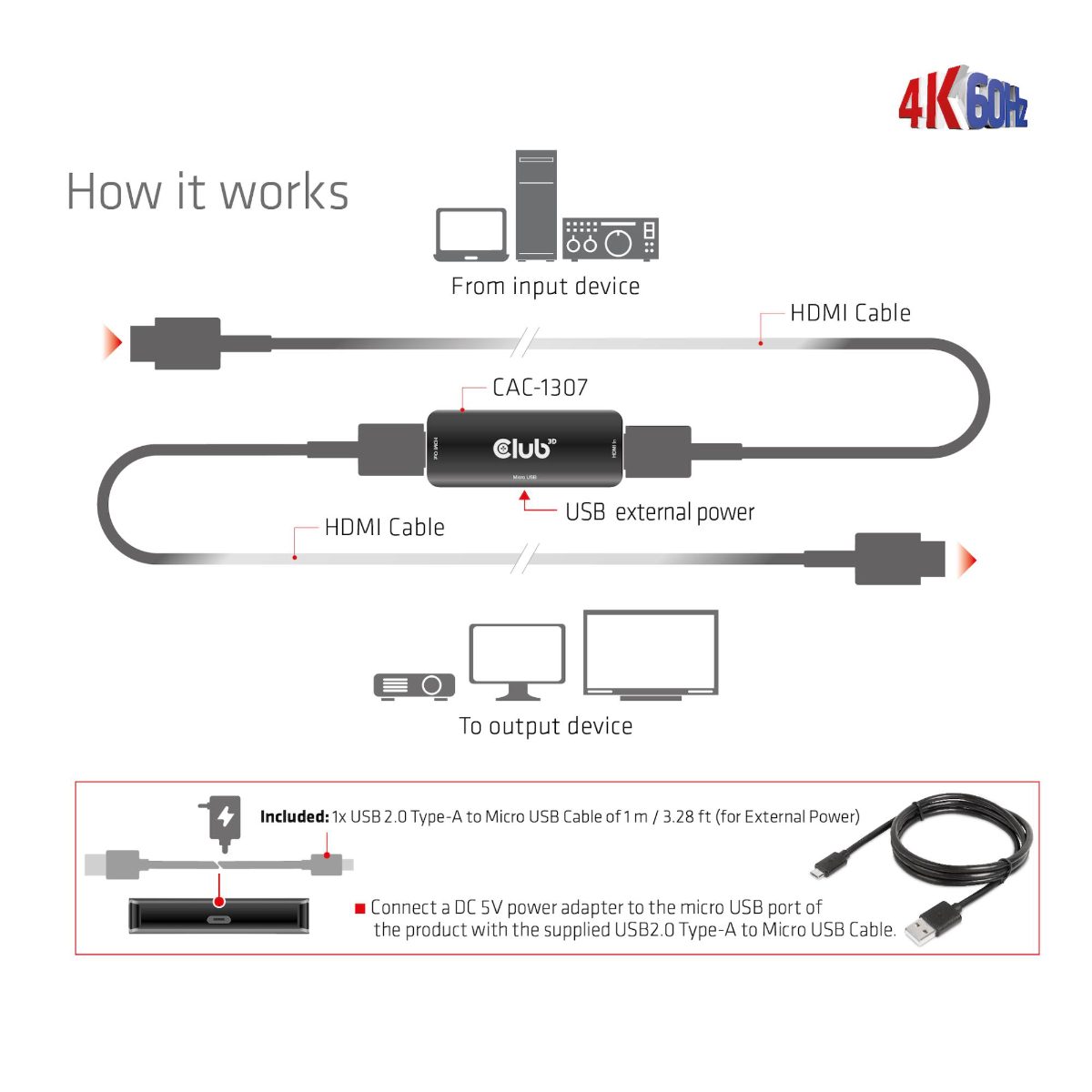

noise (sparkles) in your picture. The input of the HDMI™ active repeater is connected
with a long HDMI™ (male to male) cable from the HDMI™ device like DVD player or
Satellite set top box with a HDMI™ output port. The HDMI™ active repeater output
is connected to a second HDMI™ (male to male) cable to go from the output to any
HDMI™ display or projector with a HDMI™ connector. The unit is placed as near as
possible to the display(max. distance 5 m/16.4 ft) to remove any noise that has
been generated by a long HDMI™ cable.

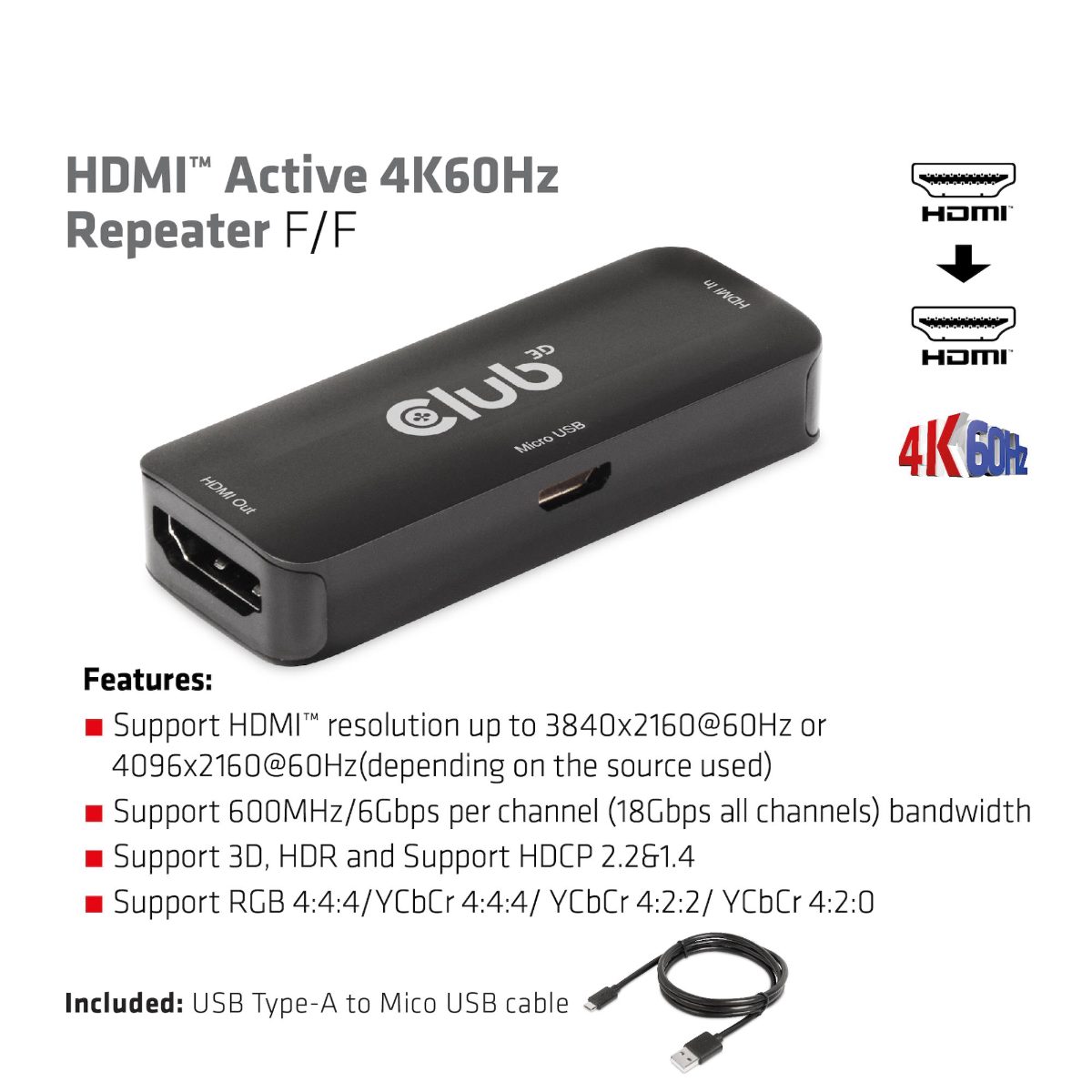

• Support HDMI™ resolution up to 3840x2160@60Hz or
• 4096x2160@60Hz(depending on the source used)
• Support 600MHz/6Gbps per channel (18Gbps all channels) bandwidth
• Support 12bit per channel (36bit all channels) deep color
• Support RGB 4:4:4/YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
• Support 3D, HDR
• Support HDCP 2.2&1.4

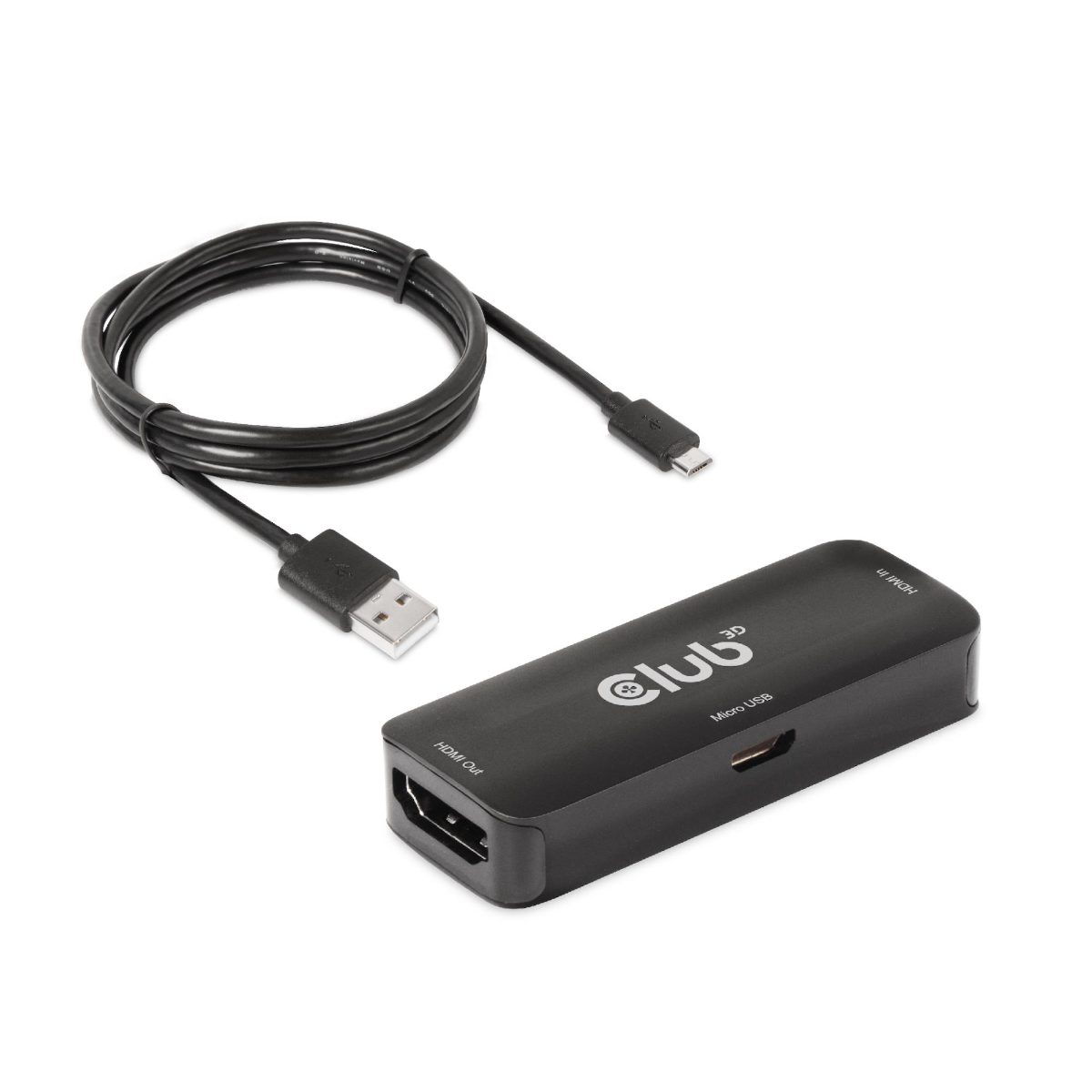

• Support 5V power supply through Micro USB port(cable included
