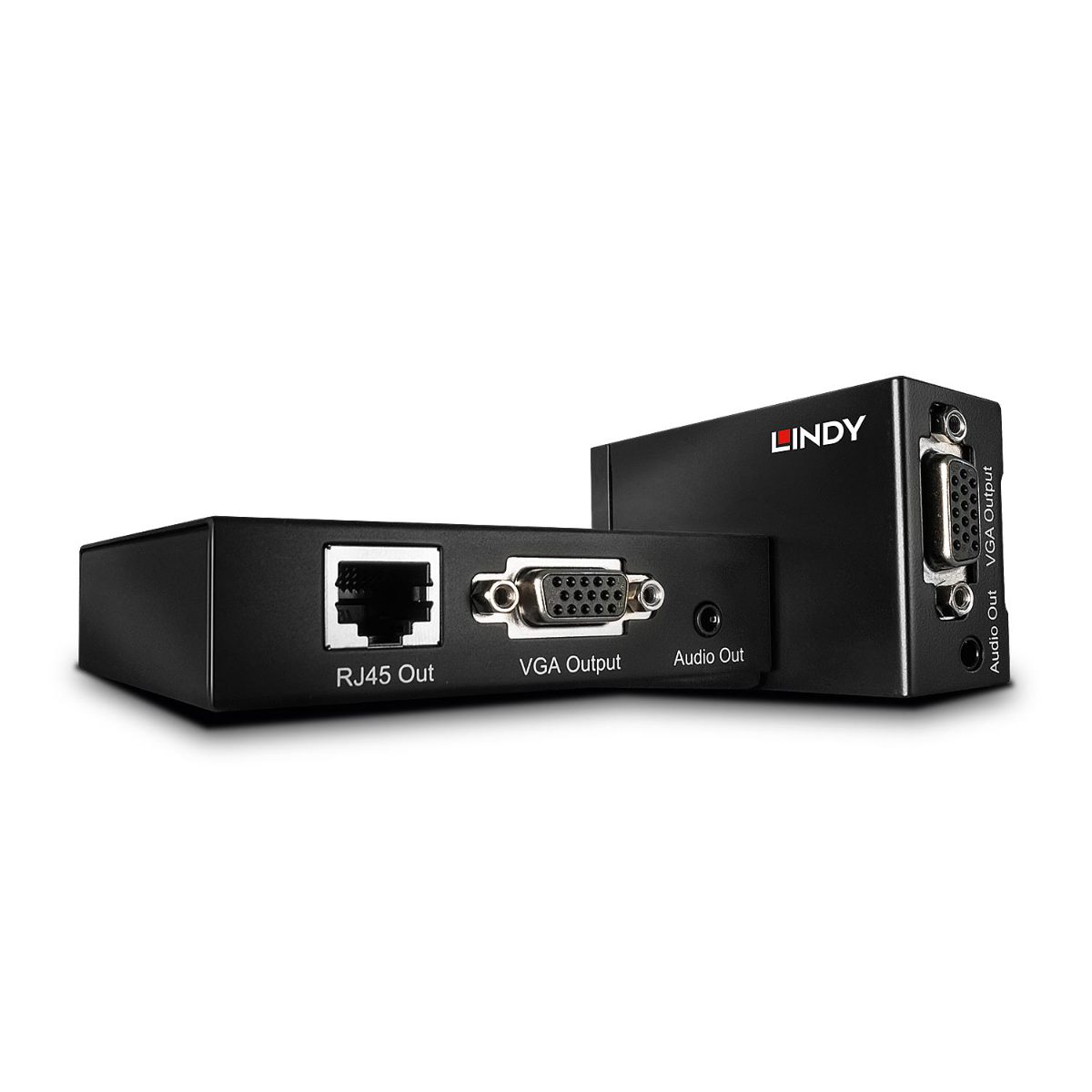

I/O EXTENDER VGA 300M CAT6/32540 LINDY

This VGA Extender transmits VGA and audio signals through CAT5e network cables over distances of up to 300m when using high-quality solid core network cable.

Easy to install the Extender system is made up of local transmitter and remote receiver units that are connected together with CAT5e cable (not included), high quality solid core installation cable is recommended. The local transmitter unit connects to the computer system's VGA port, with a VGA output available to connect a local monitor, while the receiver unit connects to your remote monitor or projector.

The extender includes both Gain and Skew controls to allow you to adjust the brightness and sharpness of the picture according to your requirement. An optional skew compensation unit (like Lindy No. 32766) can be used to correct colour shadows on the display caused by different lengths of RGB signal transmission over the twisted pairs in the Cat.5e cable.

Both Extender units are housed in sturdy metal casings, making them ideally suited to use in factories and other industrial applications.

Please note: Maximum supported distances and resolutions are dependent on both the monitor and the chipset used in the graphics card.

• Extends VGA and Audio signals up to 300m with a single CAT5e cable
• Supports resolutions up 1920x1200/1600x1200@60Hz
• Built in Gain and Skew controls
• Mono audio signal support (left and right channels are combined)
• 2 year warranty
