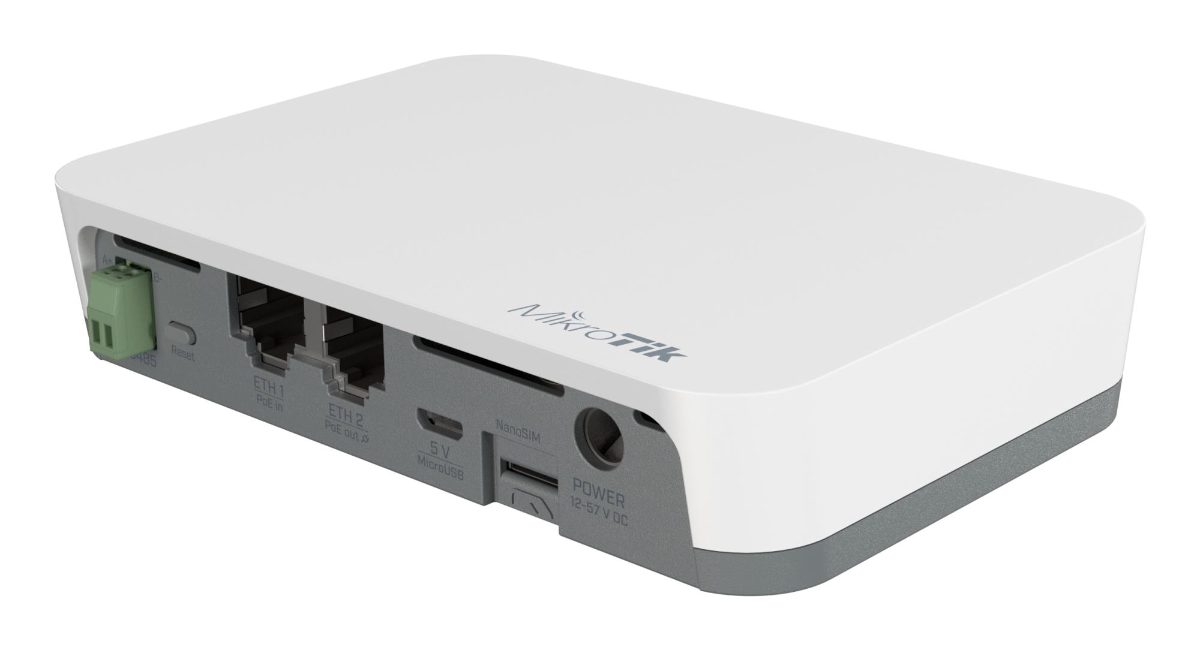

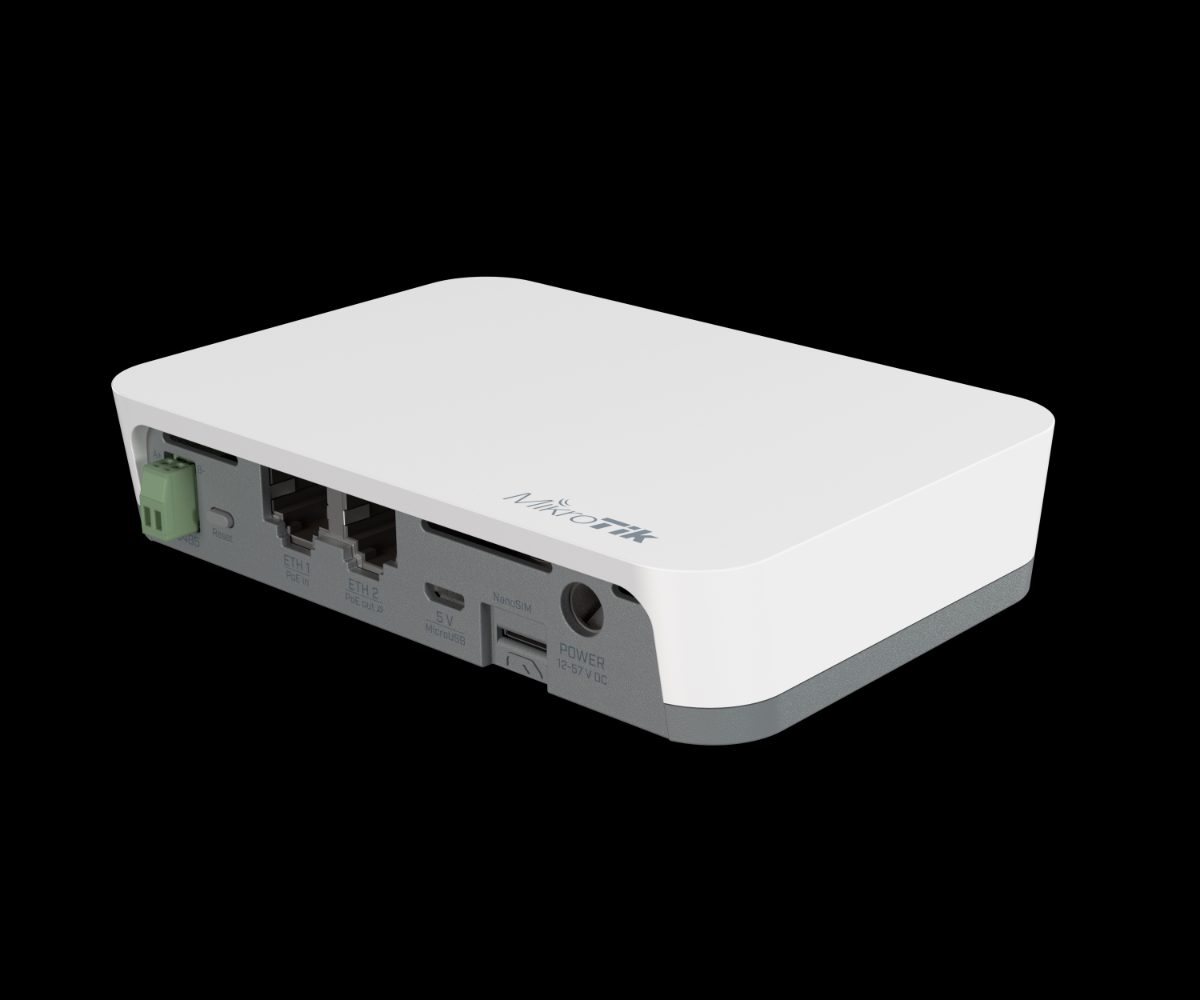

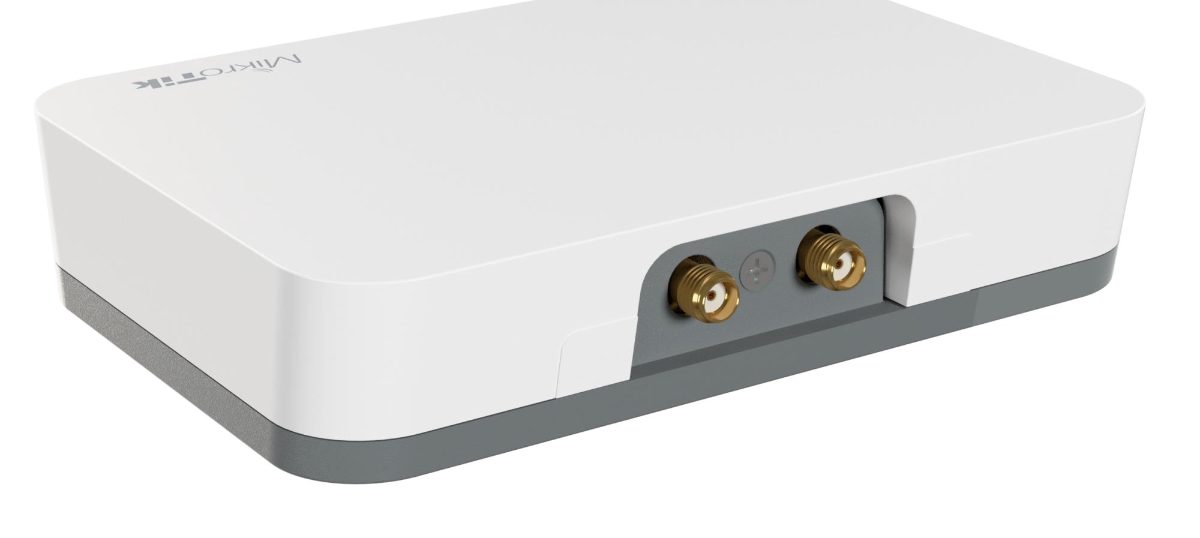

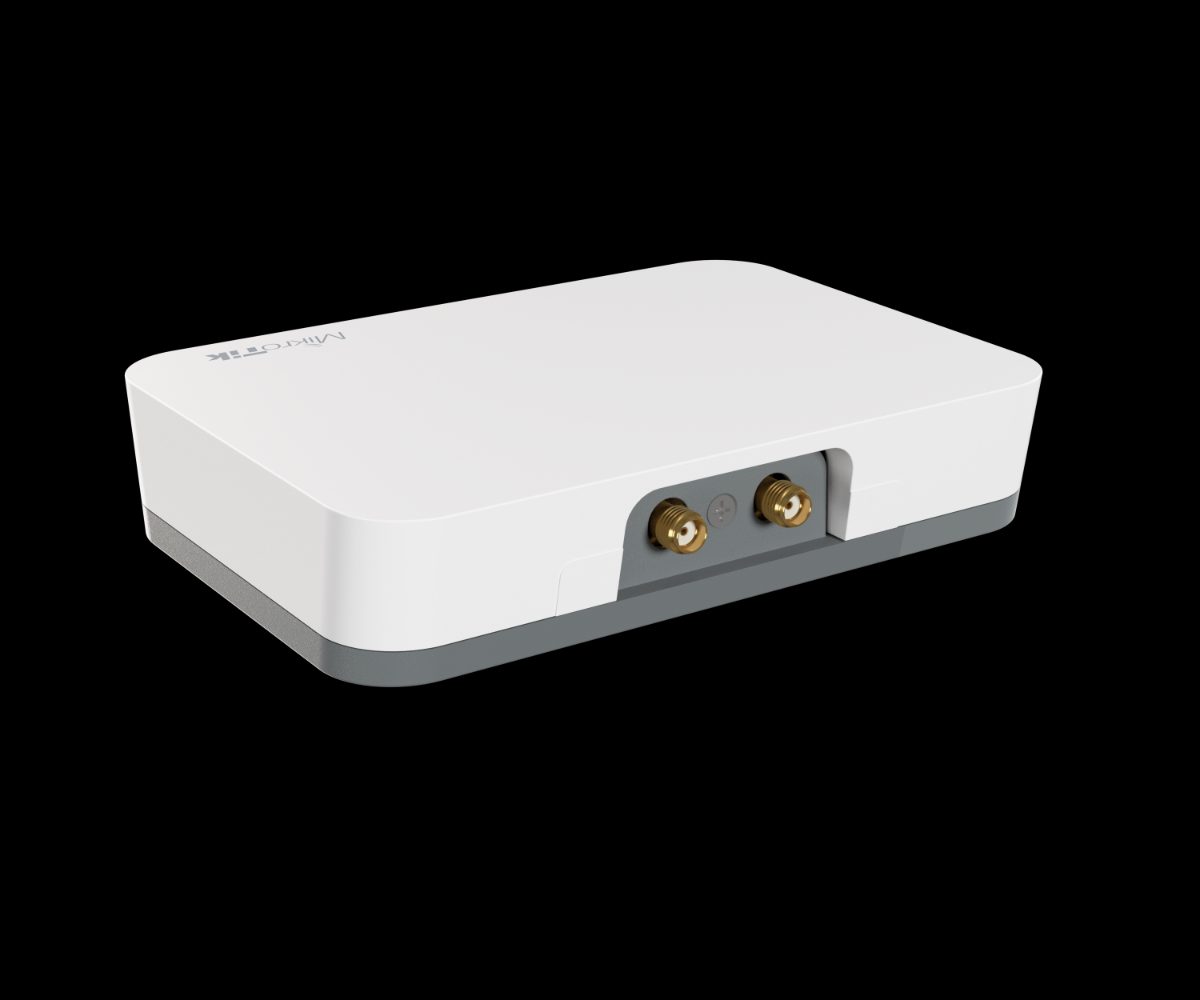

Router, RB924i-2nD-BT5&BG77, 802.11n, 10/100 Mbit/s
Router, RB924i-2nD-BT5&BG77, 802.11n, 10/100 Mbit/s, Ethernet LAN (RJ-45) ports 2, Mesh Support No, MU-MiMO No, No mobile broadband
MikroTik · 4752224007131
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 12 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4752224007131
- Zīmols
- MikroTik
Apraksts
The newest addition to the MikroTik IoT product family – KNOT – is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.
KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.
You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!
KNOT features so many protocol support and connectivity options:
2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!
With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.
It has powerful filters for forwarding only relevant packets and ignoring others.

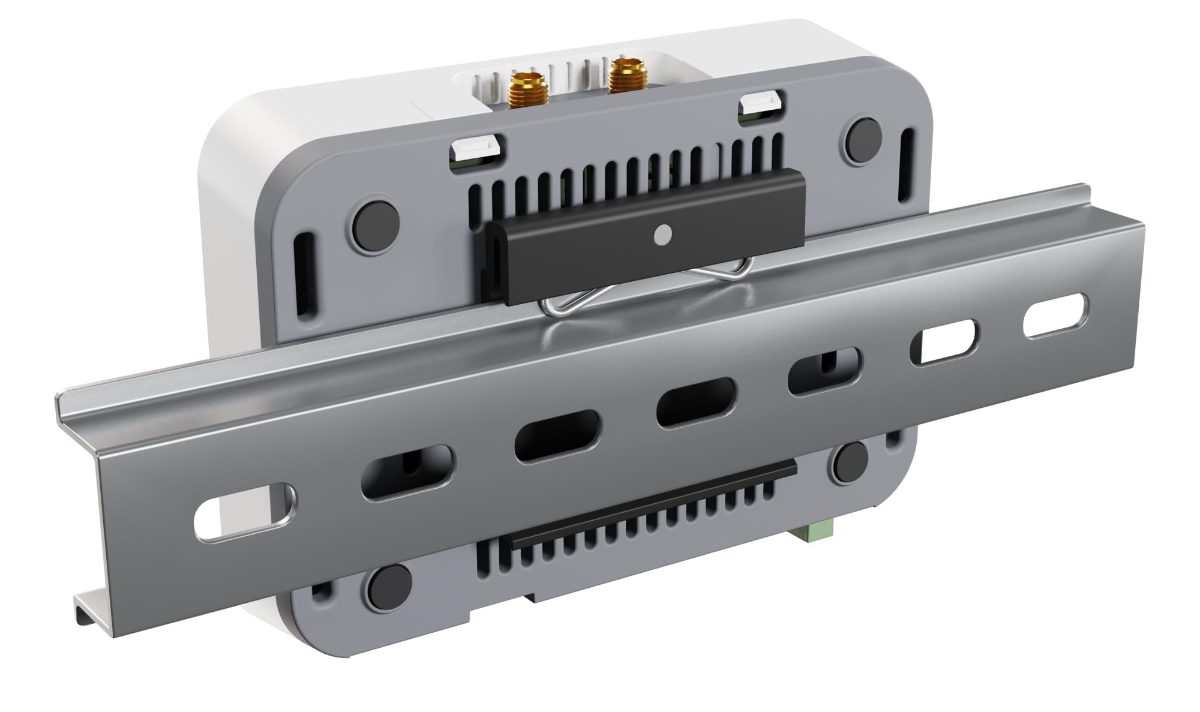

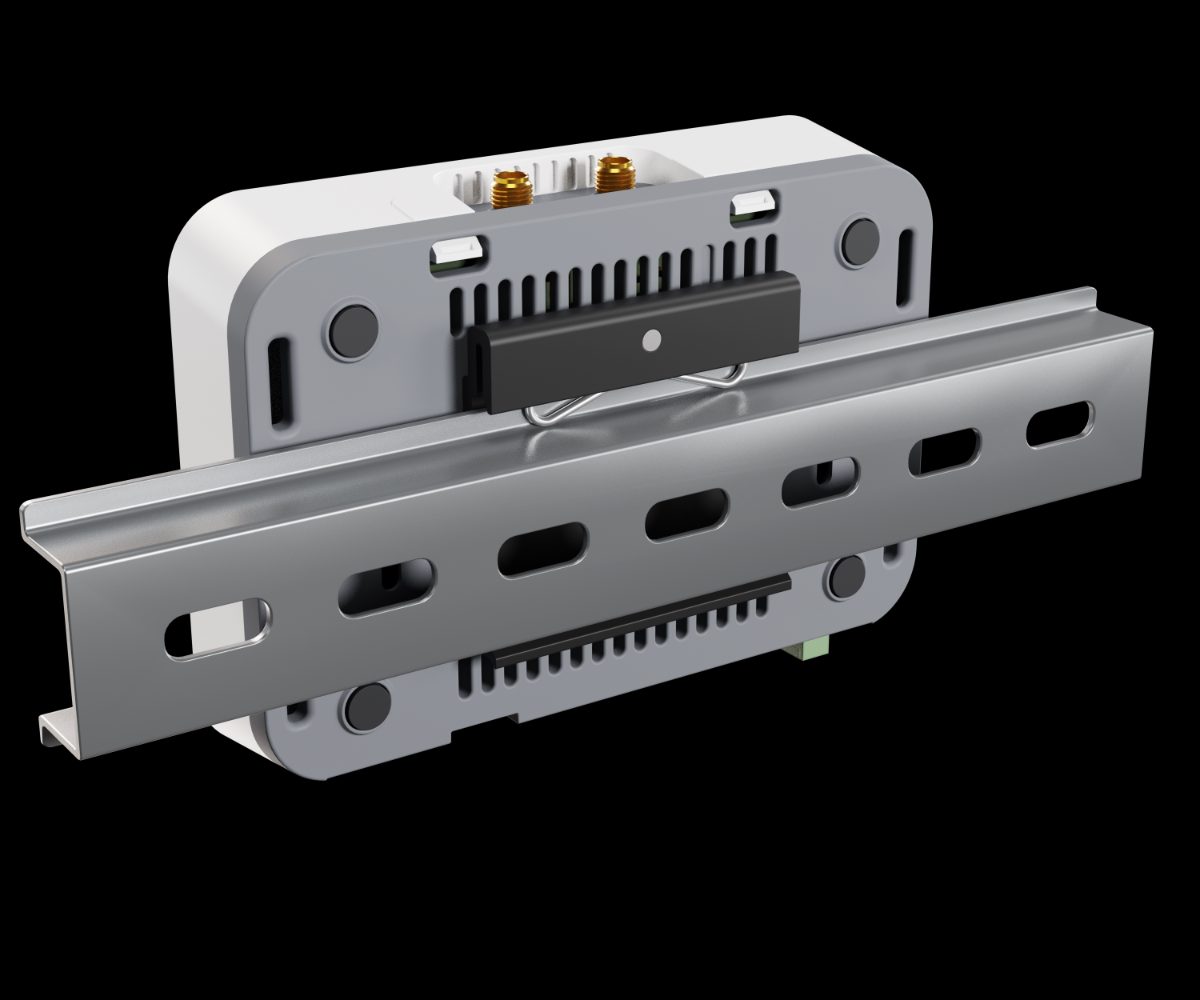

KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.
Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!
Specifikācija
| IP klase | IP20 |
| Montāžas veids | DIN-rail |
| Krāsa | Balts |
| Maksimālais antenas pastiprinājums | 1.5 dBi |
| Iebūvēts procesors | Jā |
| Flash atmiņa | 16 MB |
| Atmiņas ietilpība | 64 MB |
| Instalēto procesoru skaits | 1 |
| Procesora frekvence | 650 MHz |
| Procesora modelis | QCA9531 |
| Bluetooth | Jā |
| Bluetooth versija | 5.2 |
| Kabeļu tehnoloģija | 10/100Base-T(X) |
| Ethernet datu pārsūtīšanas ātrumi | 10/100 Mbit/s |
| Pārsūtīšanas ātrums | 300 Mpps |
| Tīkla standardi | IEEE 802.11a/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at |
| Augstākais Wi-Fi standarts | Wi-Fi 4 (802.11n) |
| Wi-Fi | Jā |
| Frekvences josla | Single-band (2.4 GHz) |
| Wi-Fi standardi | 802.11b/802.11g/Wi-Fi 4 (802.11n) |
| Bezvadu savienojums | Jā |
| Wi-Fi datu pārsūtīšanas ātrums (maks.) | 300 Mbit/s |
| WLAN datu pārsūtīšanas ātrumi | 300 Mbit/s |
| Ethernet (RJ-45) portu skaits | 2 |
| Micro-USB 2.0 portu skaits | 1 |
| Seriālā saskarnes veids | RS-485 |
| SIM kartes slots | Jā |
| SIM kartes veids | NanoSIM |
| Tipiska enerģijas patēriņa | 18 W |
| Power over Ethernet | Jā |
| Savienojamas operētājsistēmas | RouterOS |
| Dziļums | 87 mm |
| Augstums | 26 mm |
| Platums | 122 mm |
| Darbības temperatūra | -40 - 70 °C |
| Sertifikācija | CE, FCC, IC, EAC, ROHS |
| Modelis | KNOT // RB924i-2nD-BT5&BG77 |
| Neto svars | 0.35 kg |
