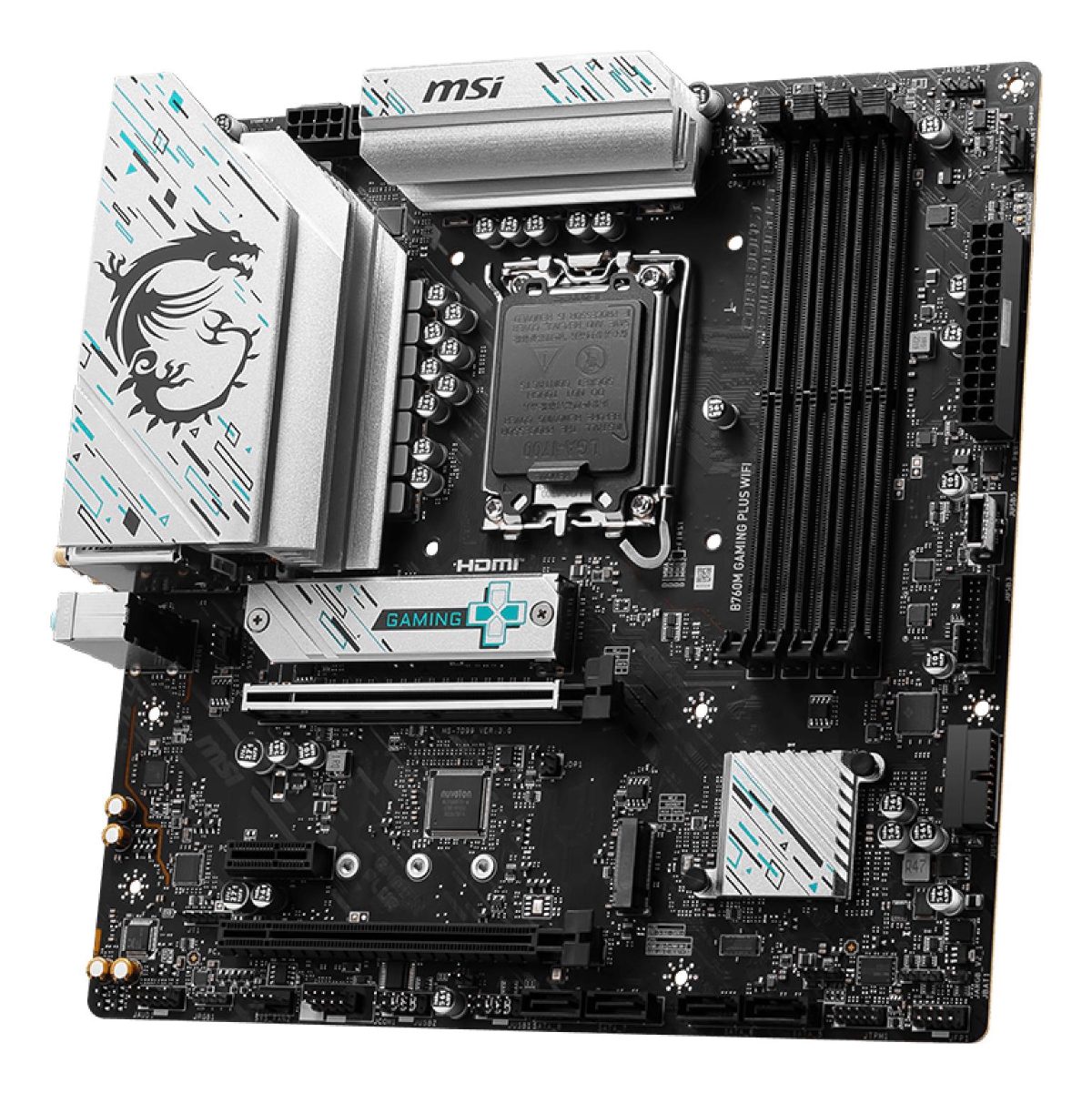

B760M GAMING PLUS WIFI, Processor family Intel, Processor socket LGA1700

Name: B760M GAMING PLUS WIFI, Processor family Intel, Processor socket LGA1700, DDR5, Supported hard disk drive interfaces SATA, M.2, Number of SATA connectors 4
Brand: MSI
SKU: 4711377154017
Price: 131.43 EUR
Availability: InStock

B760M GAMING PLUS WIFI, Processor family Intel, Processor socket LGA1700, DDR5, Supported hard disk drive interfaces SATA, M.2, Number of SATA connectors 4

MSI · 4711377154017

131,43 €

Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.

Pieejams · 36 gab.

Apmaksa: pārskaitījums vai maksājums saņemot
Piegāde: 1–3 darba dienas, visā Latvijā
Garantija: 36 mēn.
Rēķins: katram pasūtījumam

EAN: 4711377154017
Zīmols: MSI

Apraksts

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifikācija

Audio čips	Realtek ALC897
Audio kanālu	7.1 kanāli
Komponente paredzēta	PC
Čipkomplekts	Intel B760
Čipkomplekta ģimene	Intel
Formas faktors	micro ATX
Enerģijas avots	ATX
Atbalstītās Windows operētājsistēmas	Windows 10/Windows 11
Savienojams procesora sērijas	Intel® Celeron®/Intel® Pentium® Gold
Maksimālais SMP procesoru skaits	1
Procesora ražotājs	Intel
Procesora ligzda	LGA 1700
ECC saderība	Non-ECC
Maksimālā atmiņa	192 GB
Atmiņas kanāli	Dual-channel
Atmiņas formas faktors	DIMM
Atmiņas slotu skaits	4
Atmiņas frekvence (maks.)	6800 MHz
Atbalstītie atmiņas pulksteņa ātrumi	4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
Atbalstītie atmiņas tipi	DDR5-SDRAM
RAID līmeņi	0/1/10/5
RAID atbalsts	Jā
Atbalstītās diska saskarne	M.2,SATA III
ATX enerģijas savienotājs	Jā
CPU ventiliatora savienotājs	Jā
Priekšējais panelis audio savienotājs	Jā
Priekšējā paneļa pieslēgvieta	Jā
SATA savienotāji	4
RGB LED pinheader	Jā
TPM galvene	Jā
Iekšējie USB 2.0 savienotāji	4
Iekšējie USB 3.2 Gen 1 savienotāji	4
USB 3.2 Gen 2 savienotāji	1
DisplayPort versija	1.4
DisplayPort portu skaits	2
Ethernet (RJ-45) portu skaits	1
HDMI portu skaits	2
HDMI versija	2.1
USB 2.0 portu skaits	2
USB 3.2 Gen 1 Type-A portu skaits	2
USB 3.2 Gen 2 Type-A portu skaits	2
Bluetooth	Jā
Bluetooth versija	5.3
Ethernet veids	2.5 Gigabit Ethernet
Ethernet LAN	Jā
Augstākais Wi-Fi standarts	Wi-Fi 6E (802.11ax)
Wi-Fi	Jā
Wi-Fi standardi	802.11a/802.11ad/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
PCI Express x1 (Gen 3.x) spraugas	2
ACPI versija	6.4
BIOS atmiņas lielums	256 Mbit
BIOS veids	UEFI AMI
Izmēģinājuma skaidru CMOS jumper	Jā
SMBIOS versija	3.5
Dziļums	243.84 mm
Platums	243.84 mm
Modelis	B760M GAMING PLUS WIFI
