MSI B850 GAMING PLUS WIFI6E, Processor family AMD, Processor socket AM5
MSI B850 GAMING PLUS WIFI6E, Processor family AMD, Processor socket AM5, DDR5, Supported hard disk drive interfaces SATA, M.2, Number of SATA connectors 4
MSI · 4711377365321
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 36 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4711377365321
- Zīmols
- MSI
Apraksts

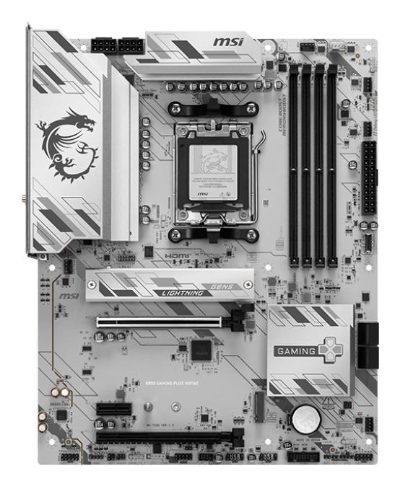

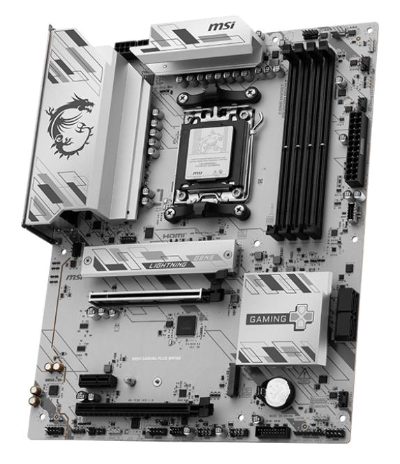

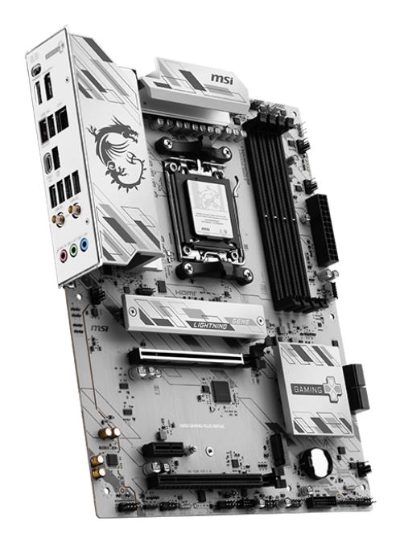

B850 GAMING PLUS WIFI6E
The B850 GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Back-Connect Design
The B850 GAMING PLUS WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.
12+2+1 Duet Rail Power System
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, the B850 GAMING PLUS WIFI PZ is ready to sustain heavy gaming loadings.
Cooling Overview
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 2.5G LAN with Wi-Fi 6E Solution - The premium solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ PCIe Clip II, EZ M.2 Clip II, EZ-Conn Design and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifikācija
| Audio čips | Realtek ALC897 |
| Audio kanālu | 7.1 kanāli |
| Komponente paredzēta | PC |
| Čipkomplekts | AMD B850 |
| Čipkomplekta ģimene | AMD |
| Formas faktors | ATX |
| Krāsa | Melns |
| Atbalstītās Windows operētājsistēmas | Windows 11 x64 |
| Savienojams procesora sērijas | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Maksimālā atmiņa | 256 GB |
| Procesora ražotājs | AMD |
| Procesora ligzda | Socket AM5 |
| ECC saderība | Non-ECC |
| Atmiņas kanāli | Dual-channel |
| Atmiņas formas faktors | DIMM |
| Atmiņas slotu skaits | 4 |
| Atmiņas frekvence (maks.) | 8200 MHz |
| Atbalstītie atmiņas pulksteņa ātrumi | 4800/5600/6400/8200 MHz |
| Atbalstītie atmiņas tipi | DDR5-SDRAM |
| Atbalstītie cietie diski | 4 |
| Atbalstīti uzglabāšanas diska | 7 |
| RAID līmeņi | 0/1/10/5 |
| RAID atbalsts | Jā |
| Atbalstītās diska saskarne | M.2,Micro SATA III |
| Atbalstīto diska veidi | HDD & SSD |
| Iebūvēta grafika | Nē |
| CPU ventiliatora savienotājs | Jā |
| CPU ventilātora pieslēgviecu skaits | 4 |
| RGB LED pinu galvieņu skaits | 3 |
| SATA savienotāji | 4 |
| Ūdens sūkņa pieslēgviecu skaits | 1 |
| RGB LED pinheader | Jā |
| S/PDIF izejas savienotājs | Jā |
| Iekšējie USB 2.0 savienotāji | 4 |
| Iekšējie USB 3.2 Gen 1 savienotāji | 4 |
| USB 3.2 Gen 2 savienotāji | 1 |
| DisplayPort versija | 1.2 |
| DisplayPort portu skaits | 1 |
| Ethernet (RJ-45) portu skaits | 1 |
| HDMI portu skaits | 1 |
| HDMI versija | 2.1 |
| USB 2.0 portu skaits | 4 |
| USB 3.2 Gen 1 Type-A portu skaits | 1 |
| USB 3.2 Gen 2 Type-A portu skaits | 1 |
| USB 3.2 Gen 2 Type-C portu skaits | 2 |
| Bluetooth | Jā |
| Bluetooth versija | 5.3 |
| Ethernet veids | 2.5 Gigabit Ethernet |
| Ethernet LAN | Jā |
| LAN kontrolieris | Realtek RTL8125D |
| Augstākais Wi-Fi standarts | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Jā |
| Wi-Fi standardi | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| 1. M.2 augstākā PCI Express paaudze | 5.0 |
| 1. M.2 lielākais atslēgas izmērs | 2280 |
| 2. M.2 augstākā PCI Express paaudze | 4.0 |
| 2. M.2 lielākais atslēgas izmērs | 22110 |
| 3. M.2 augstākā PCI Express paaudze | 4.0 |
| 3. M.2 lielākais atslēgas izmērs | 2280 |
| M.2 slotu skaits | 3 |
| PCI Express x16 (Gen 3.x) spraugas | 2 |
| PCI Express x16 (Gen 4.x) sloti | 1 |
| PCI Express x16 (Gen 5.x) sloti | 1 |
| ACPI versija | 6.5 |
| BIOS veids | UEFI AMI |
| SMBIOS versija | 3.7 |
| Dziļums | 304.8 mm |
| Platums | 243.84 mm |
| Modelis | B850 GAMING PLUS WIFI6E |
