NB ACC DOCKING STATION/USB-C 120W CSV-1568 CLUB3D
CLUB3D · 8719214472115
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 24 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 8719214472115
- Zīmols
- CLUB3D
Apraksts

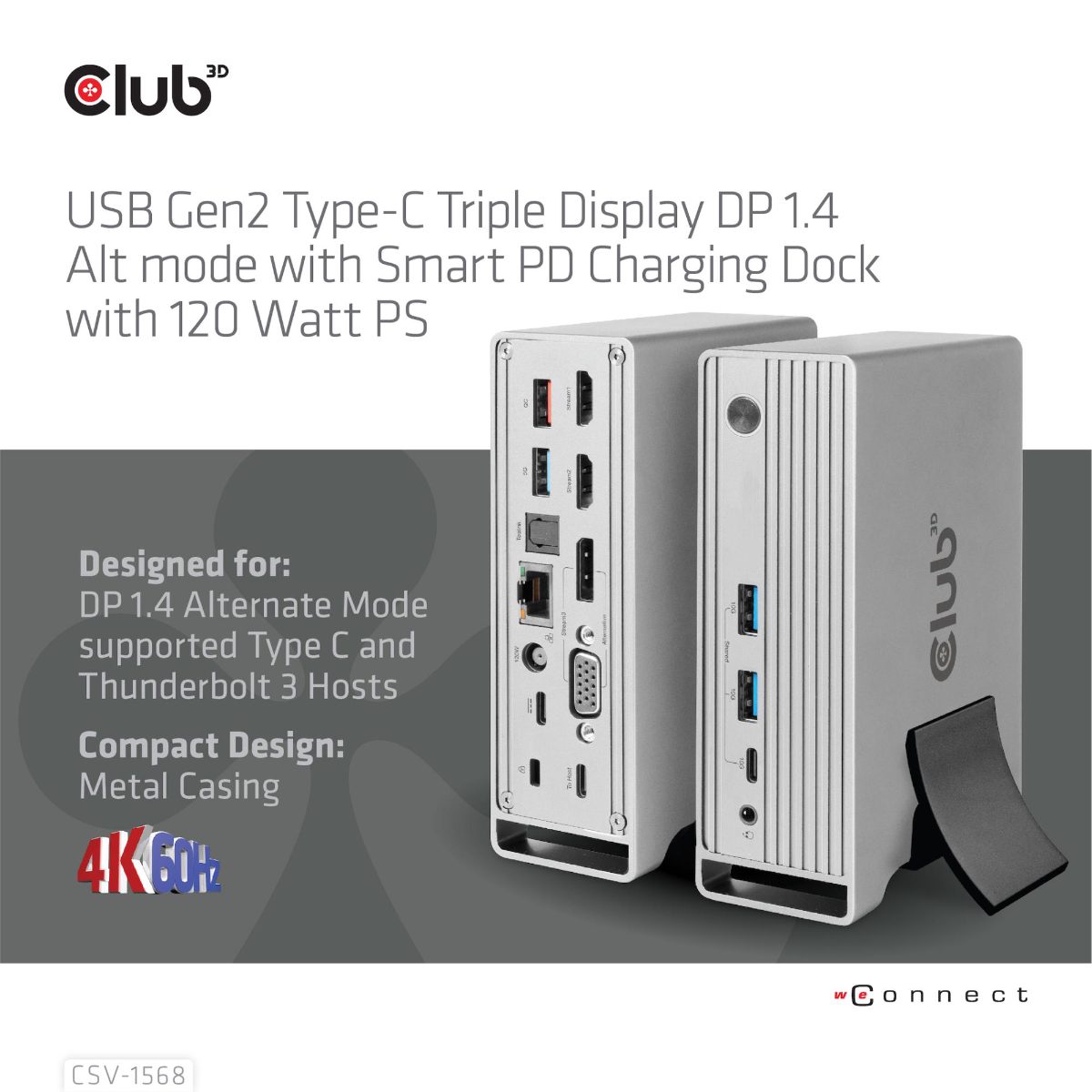

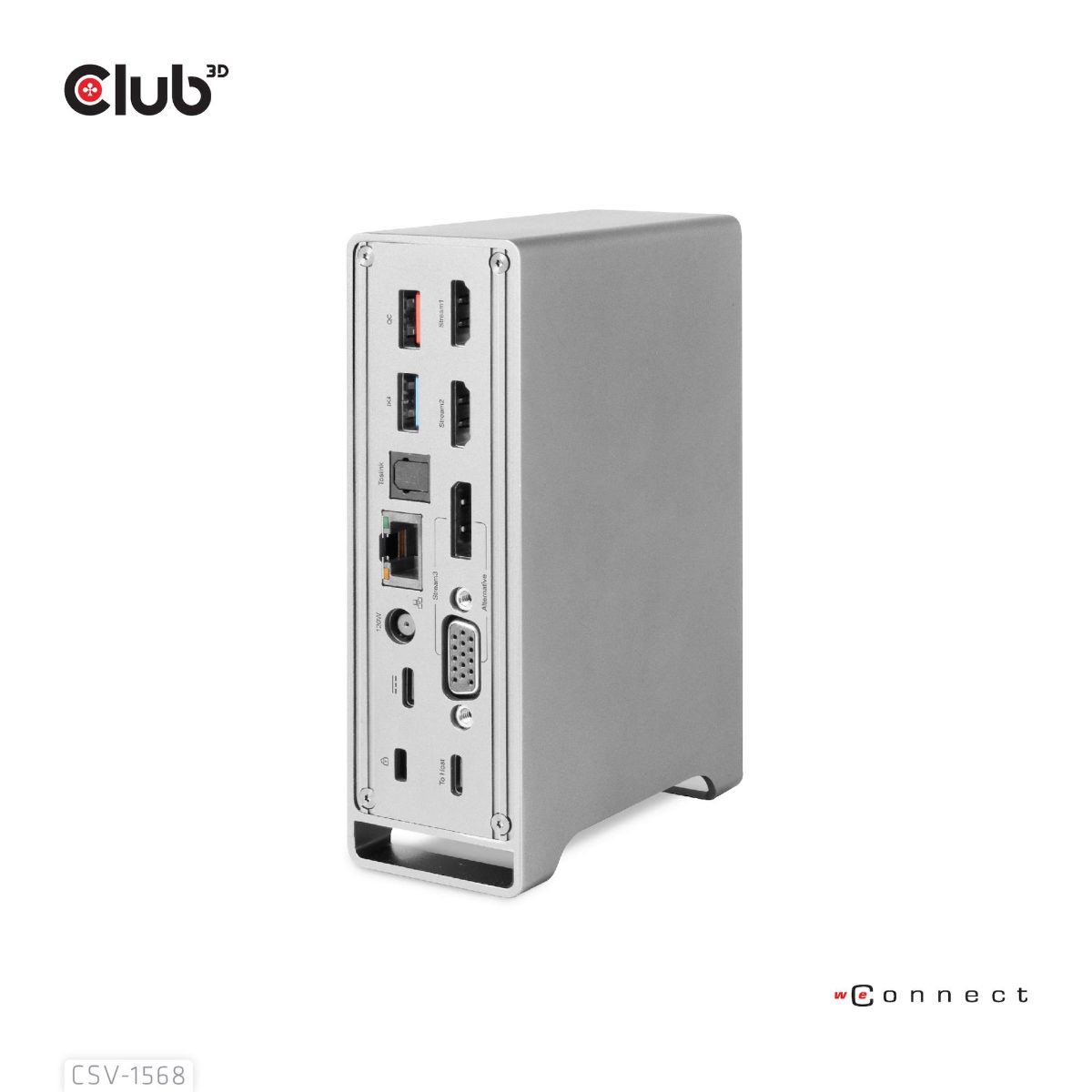

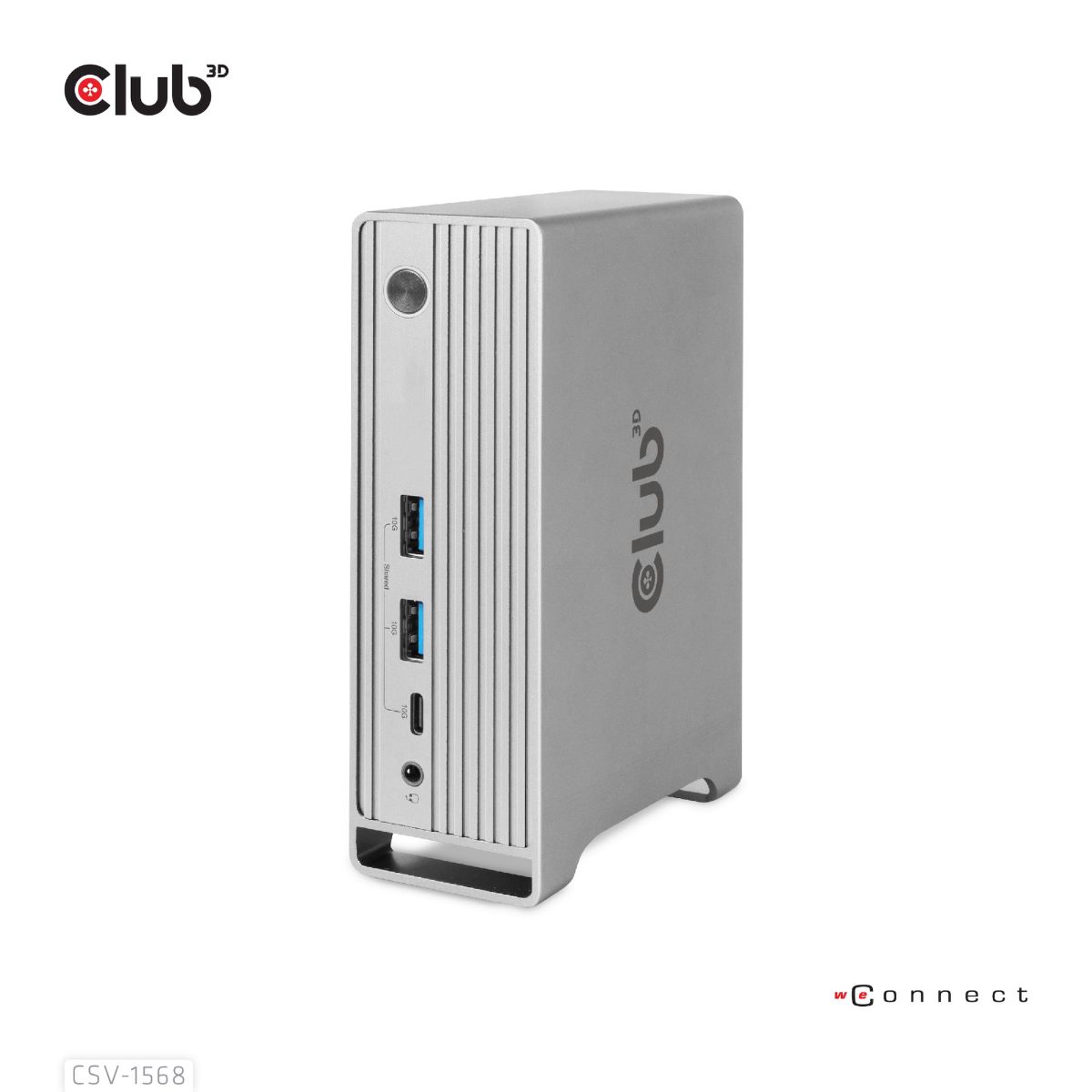

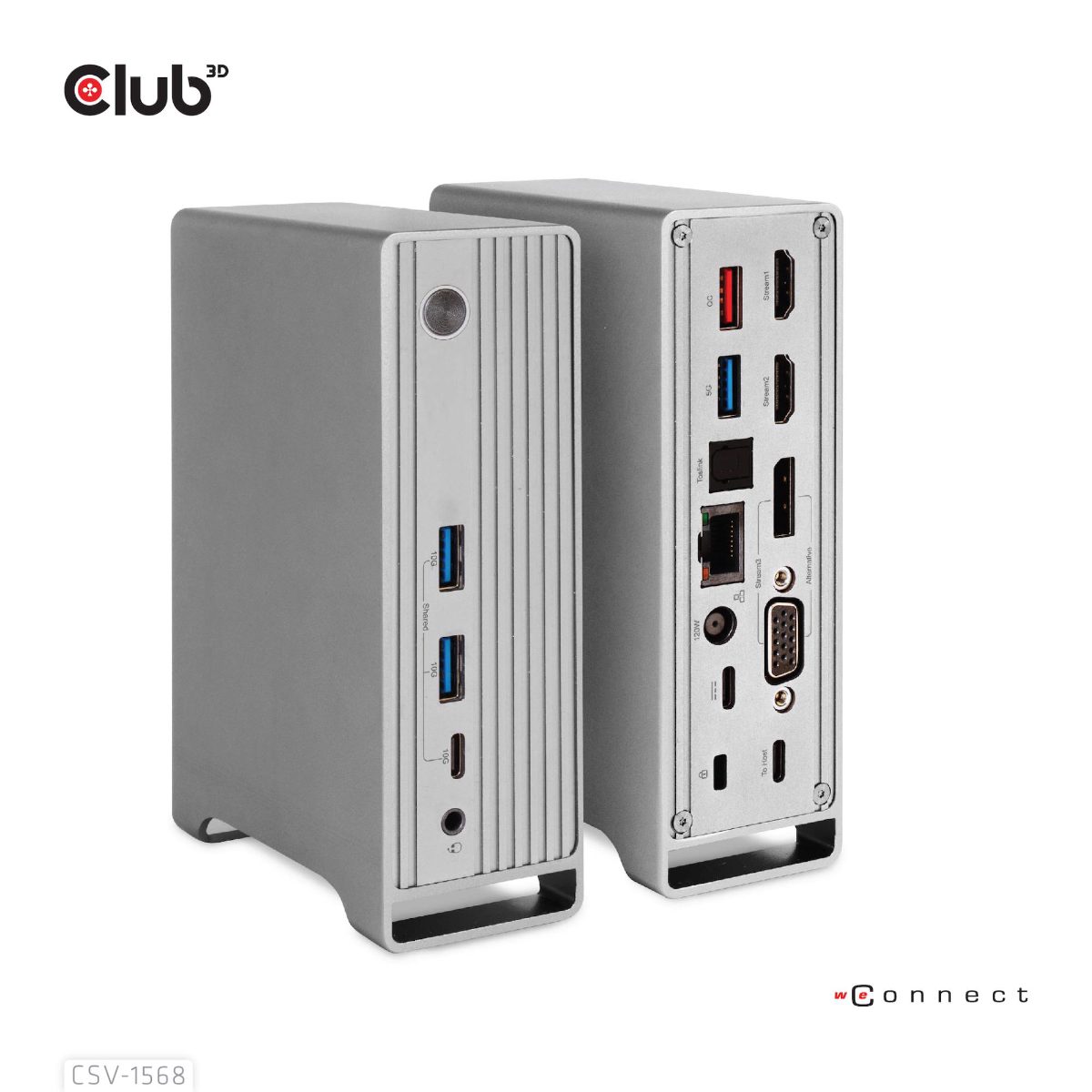

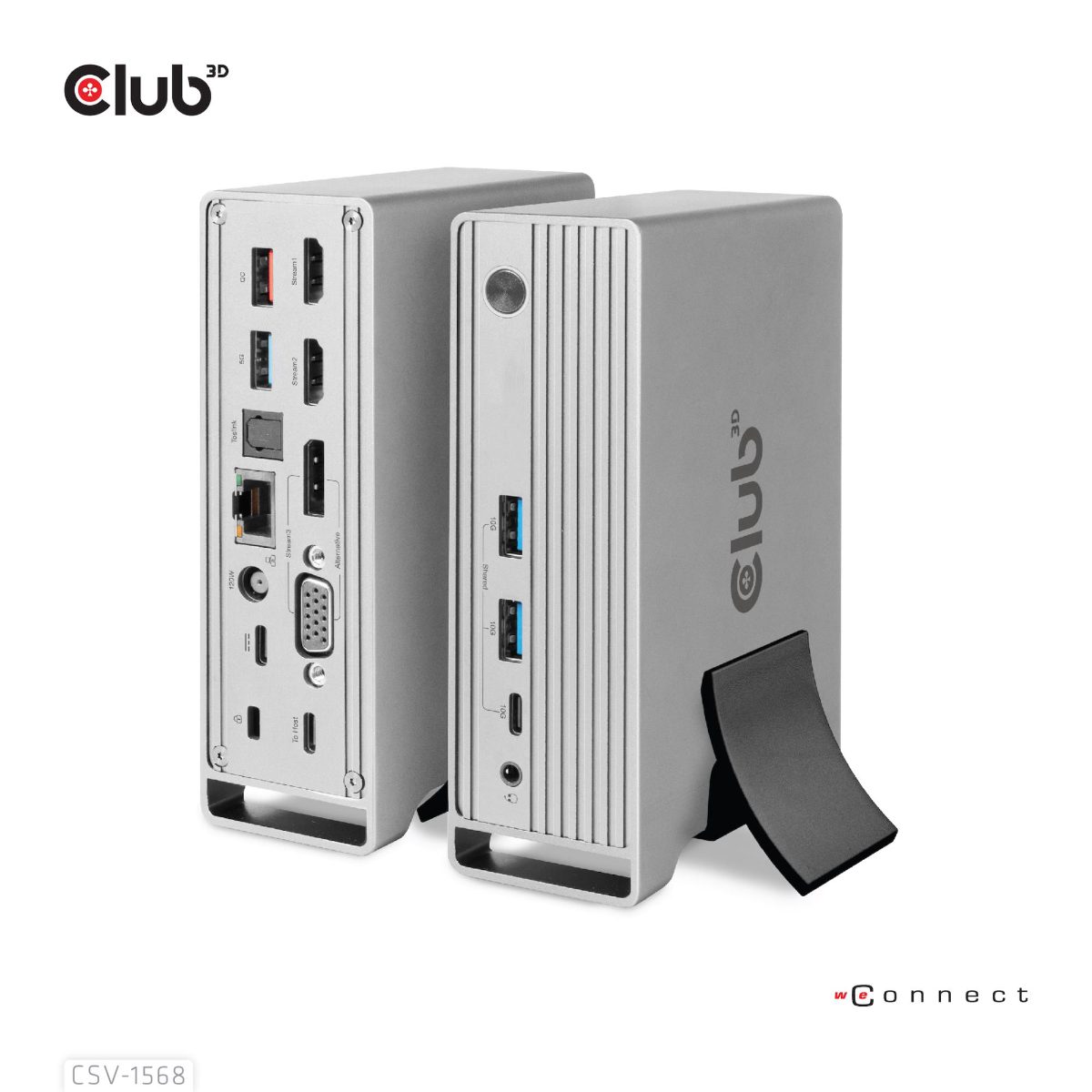

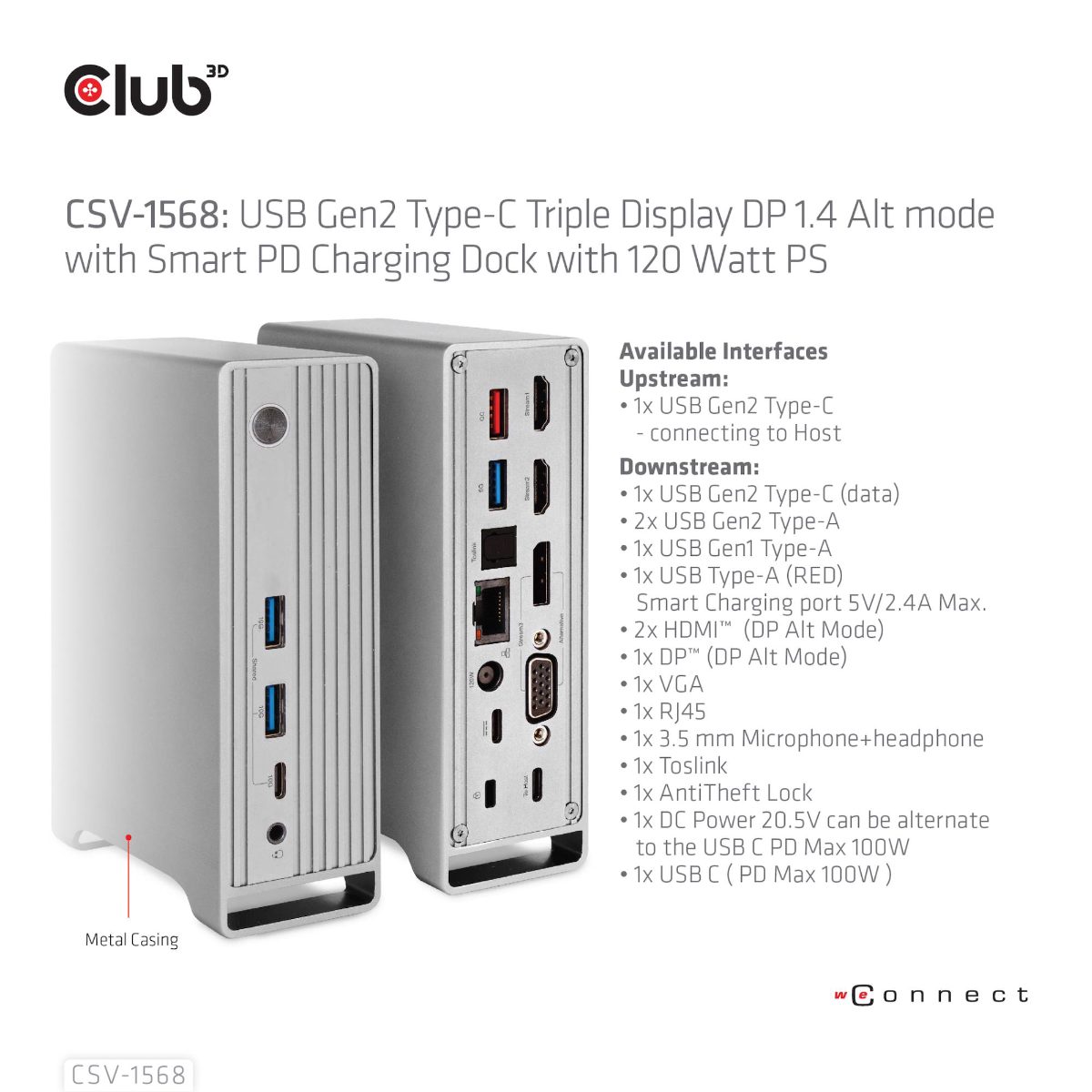

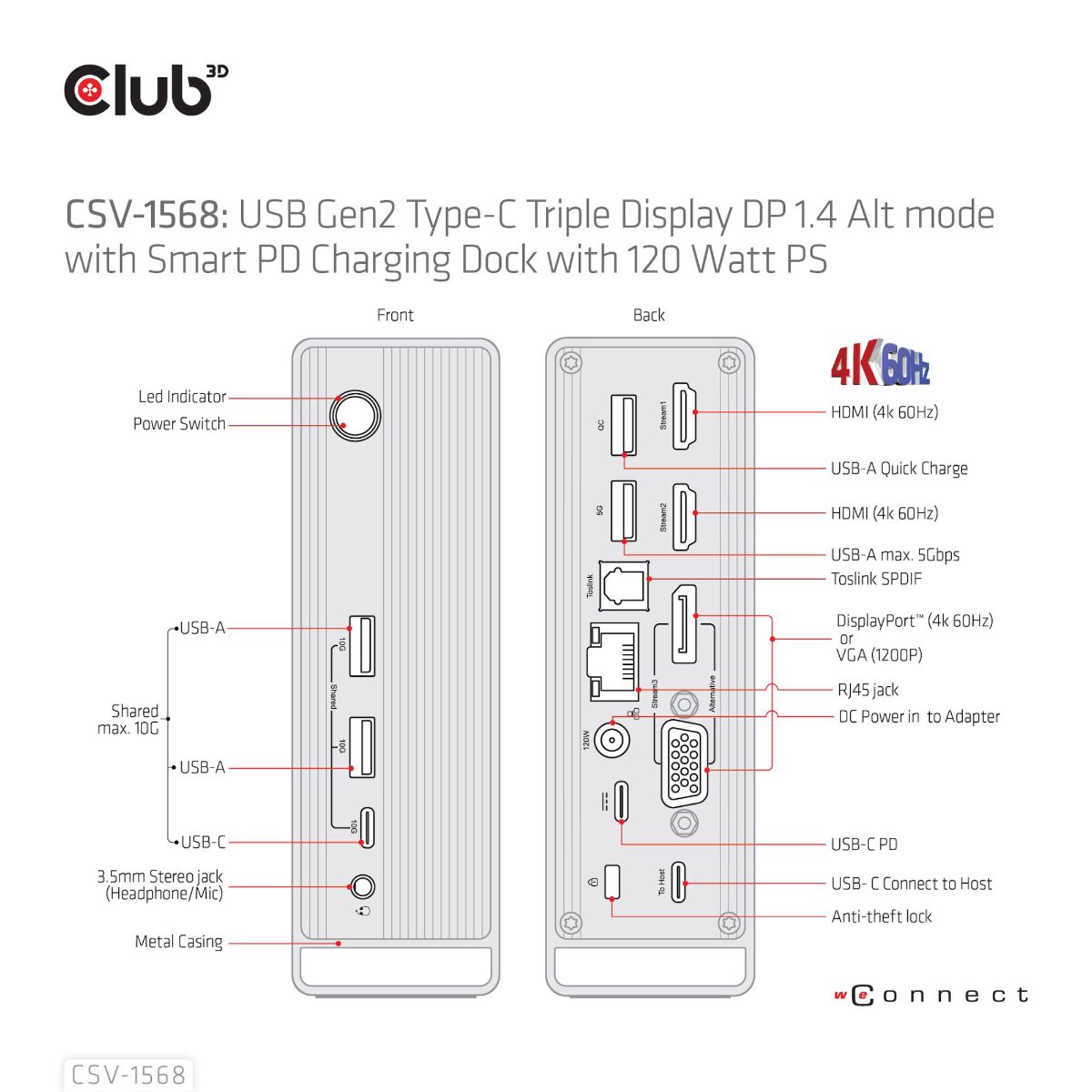

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).
It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.
- Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc.)
- Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP has priority over VGA)
- When 3 Displays are connected - 16.2Gbps bandwidth will be shared
- Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
- DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
- DP and HDMI support deep color 8/10 bit
- DP and HDMI support HDR
- DP and HDMI support HDCP2.2 & 1.4
- DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
- Support Gigabit Ethernet 10/100/1000M
- Support USB3.2 Gen2 with max 10Gbps data transfer
- Support smart charging
- Support Digital audio with max 96KHz/24bit sampling rate

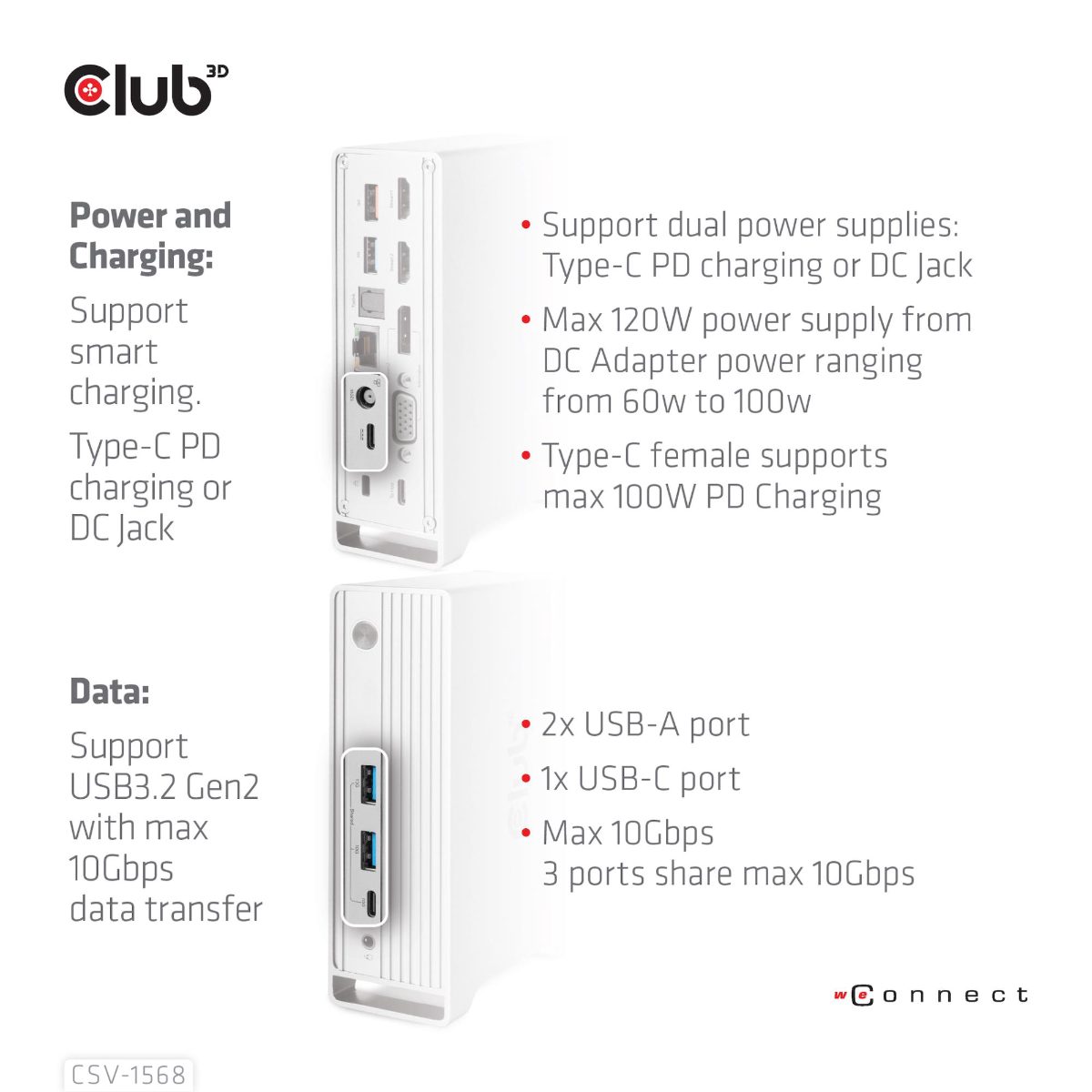

- Support dual power supplies: Type-C PD charging or DC Jack
- Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
- Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
Specifikācija
| Kombinēts austiņu/mikrofona ports | Jā |
| Savienojuma tehnoloģija | Docking |
| DC izejas ligzda | Jā |
| DisplayPort versija | 1.4 |
| DisplayPort portu skaits | 1 |
| HDCP | Jā |
| HDCP versija | 1.4/2.2 |
| HDMI portu skaits | 2 |
| Austiņu savienotājs | 3.5 mm |
| Resursdatora saskarnes | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Thunderbolt 3 enerģijas piegāde | Jā |
| USB 3.2 Gen 1 Type-A portu skaits | 1 |
| USB 3.2 Gen 2 Type-A portu skaits | 2 |
| USB 3.2 Gen 2 Type-C portu skaits | 1 |
| USB Power Delivery | Jā |
| USB barošanas piegādes revīzija | 3.0 |
| USB Power Delivery jauda | 100 W |
| USB-C DisplayPort Alternatīvais režīms | Jā |
| VGA (D-Sub) izejas porti | 1 |
| Ethernet LAN | Jā |
| Ethernet (RJ-45) portu skaits | 1 |
| Savienojamas markas | Apple |
| Karšu lasītājs | Jā |
| Sertifikācija | Meets ROHS, FCC, and CE EMI requirements |
| Savienojams ar | Lenovo Dell Acer Asus MSI Toshiba Apple HP Razer |
| Izcelsmes valsts | Ķīna |
| Maksimālais datu pārsūtīšanas ātrums | 16.2 Gbit/s |
| HDR | Jā |
| Atslēgas slēdzis | Jā |
| Maksimālais atsvaidzināšanas ātrums | 60 Hz |
| Plug and Play | Jā |
| Krāsa | Metālisks |
| Ieejas spriegums | 100 - 240 V |
| Kabeļa garums | 1 m |
| Barošanas pieslēgvietes veids | USB Type-C |
| Maksimālais enerģijas patēriņš | 120 W |
| Enerģijas avots | DC |
| Nominālā jauda | 120 W |
| Atbalstītās macOS versijas | Jā |
| Atbalstītās Windows operētājsistēmas | Jā |
| Dziļums | 90 mm |
| Augstums | 44 mm |
| Svars | 563 g |
| Platums | 139 mm |
| AC adapteris iekļauts | Jā |
| Ātrā sākuma ceļvedis iekļauts | Jā |
| Statīvs iekļauts | Jā |

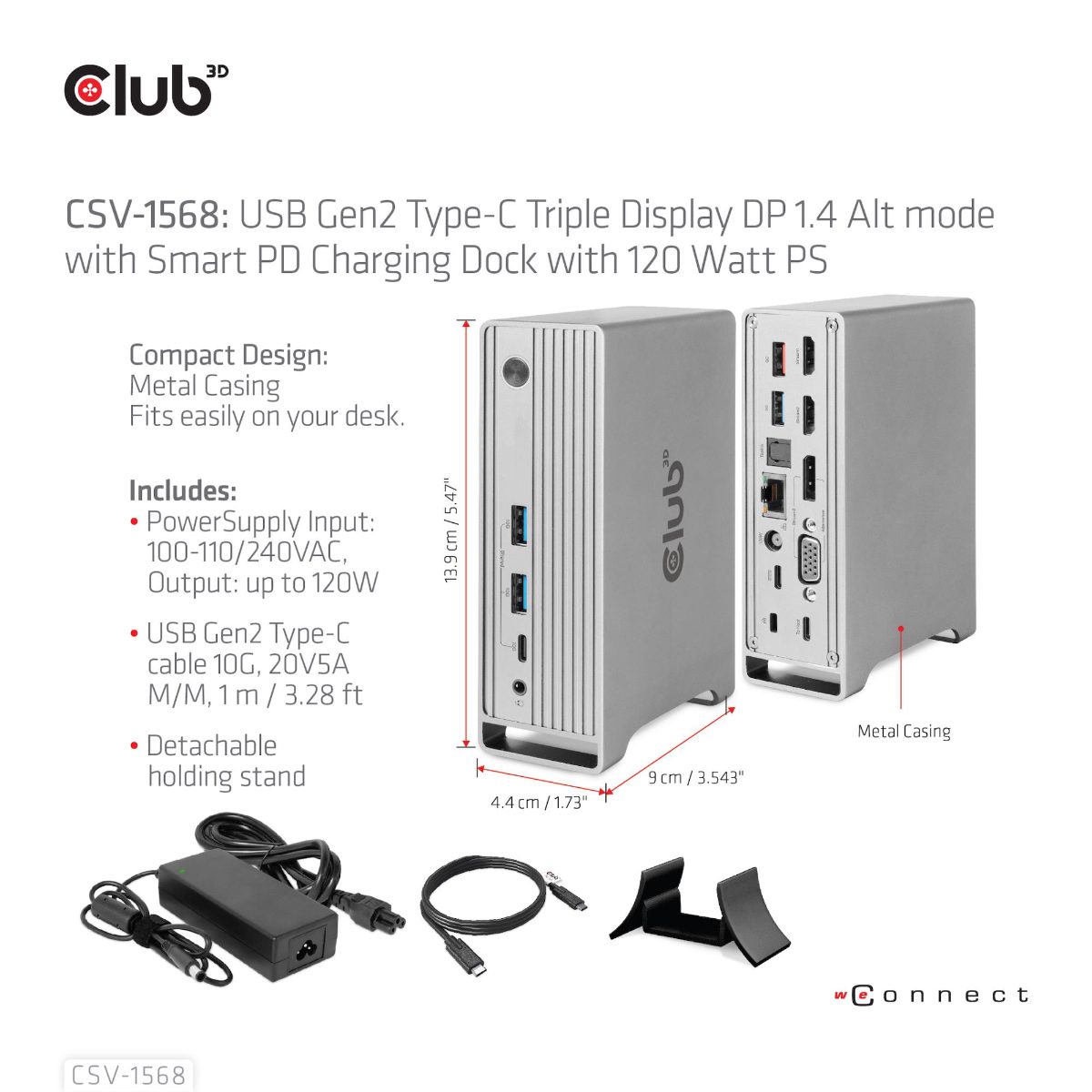

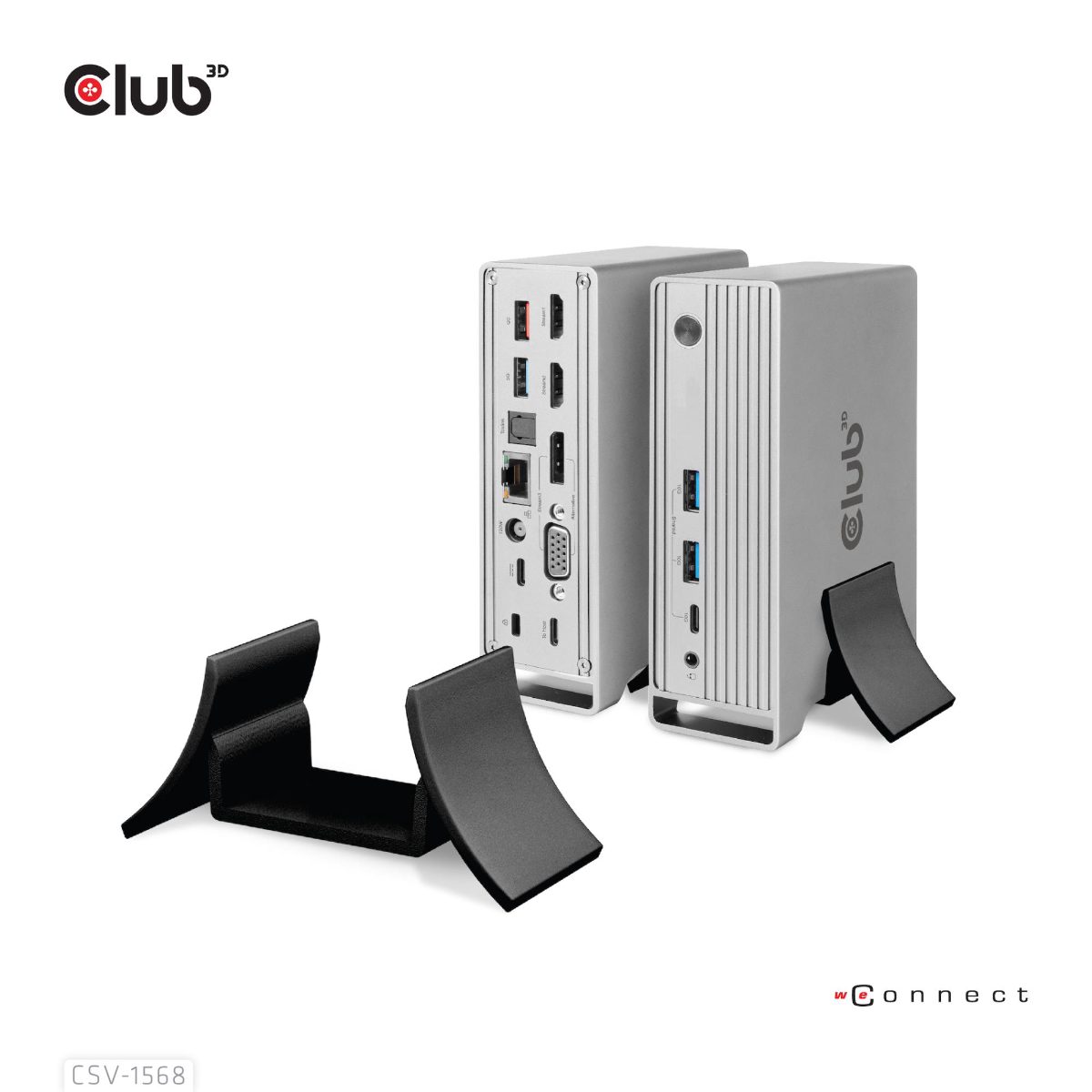

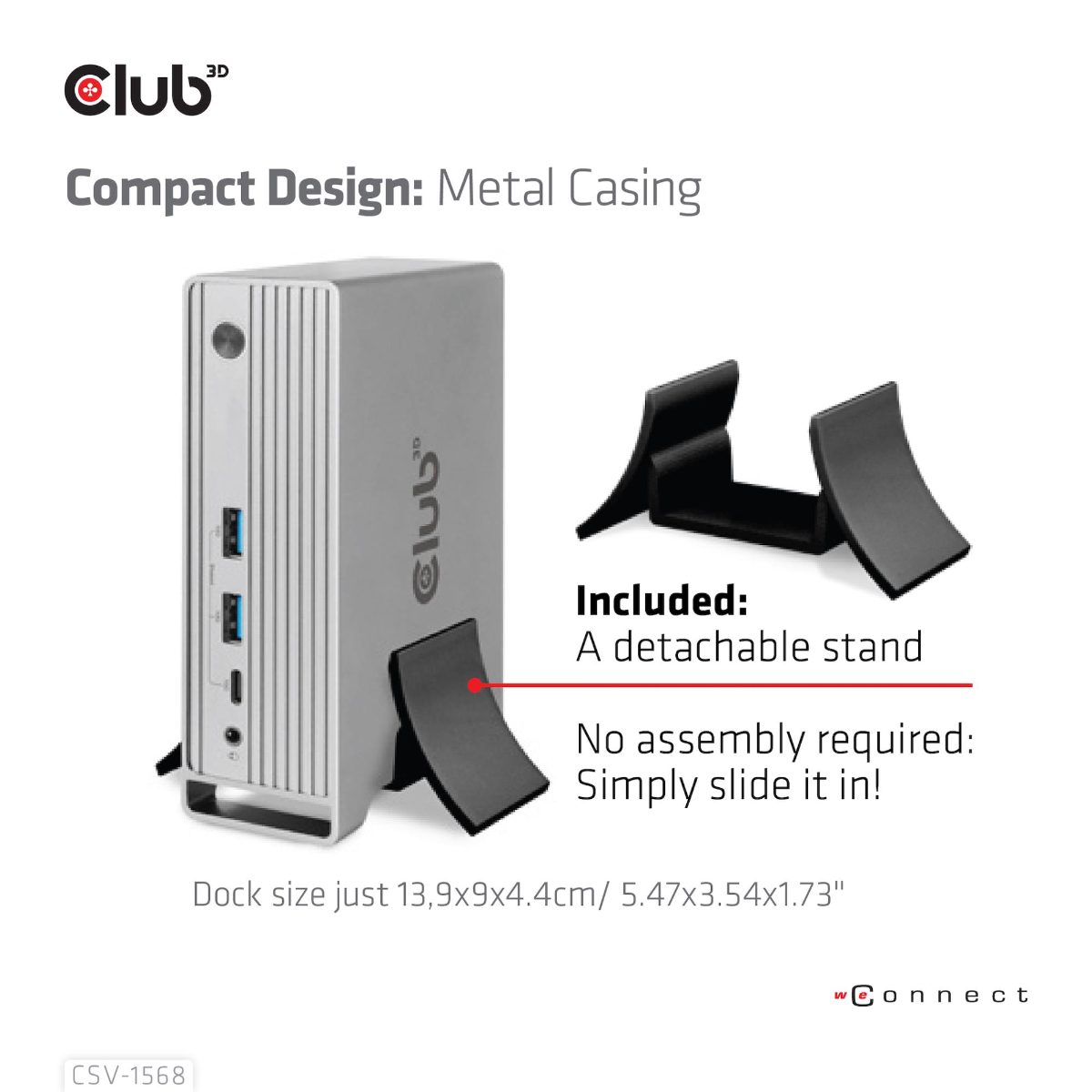

| Speciālas funkcijas | In the box: CSV-1568 Docking Station PowerSupply Input:100-110/240VAC, Output: up to 120W USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft Detachable stand Quick Install Guide |
| Modelis | CSV-1568 |
