Neomounts Desk Mount, DS70PLUS-450BL1 Monitor Arm, Adjustable Height
Neomounts Desk Mount, DS70PLUS-450BL1 Monitor Arm, Adjustable Height, Rotate, Tilt, Swivel, 17-49 ", Maximum weight (capacity) 18 kg, Black
Neomounts · 8717371441654
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 60 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 8717371441654
- Zīmols
- Neomounts
Apraksts

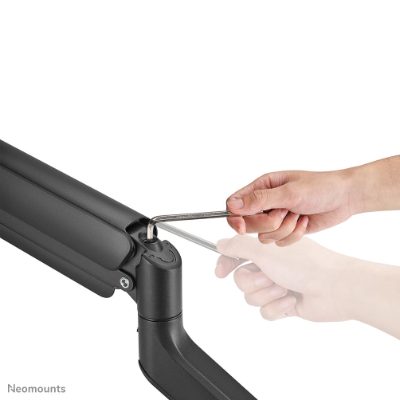

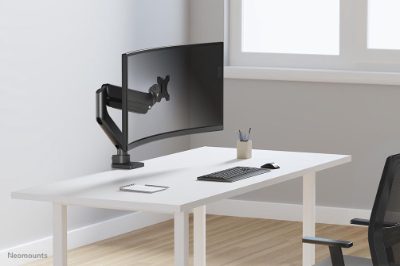

The Neomounts DS70PLUS-450BL1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49". The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (5,4-49,7 cm), to create the perfect working position.

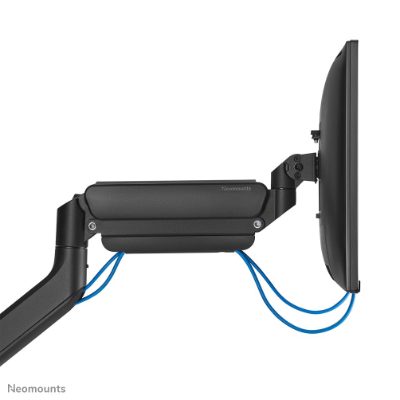

The DS70PLUS-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70PLUS-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

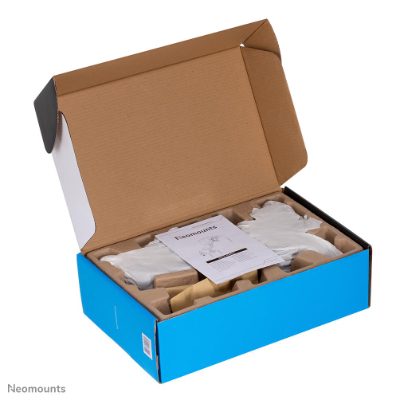

The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.
For wall installation, the AWL75-450BL wall adapter is optionally available.

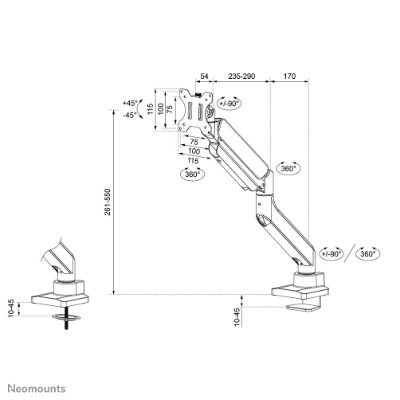

Specifikācija
| Galda biezums (maks.) | 45 mm |
| Galds biezums (min) | 10 mm |
| Maksimālais attālums uz sienu | 568 mm |
| Minimālais attālums uz sienu | 108 mm |
| Maksimālais ekrāna izmērs | 49 " |
| Maksimālais VESA modelis | 100 x 100 mm |
| Maksimālā noslodze | 18 kg |
| Maksimālā noslodze uz displeju | 14 kg |
| Minimālais ekrāna izmērs | 17 " |
| Minimālais VESA modelis | 75 x 75 mm |
| Stiprinājuma veids | Clamp/Grommet |
| Montāžas veids | Galds |
| Atbalstīti displei | 1 |
| VESA standarts | 100 x 100/75 x 75 mm |
| Regulējams dziļums | Jā |
| Pagriešanas leņķis | 360 ° |
| Kabeļu vadīšana | Jā |
| Dziļuma regulēšanas diapazons | 54 - 511 mm |
| Augstuma regulēšana | Jā |
| Augstuma regulēšanas diapazons | 261 - 555 mm |
| Augstuma regulēšanas veids | Gāzes atspere |
| Pagrieziena leņķa diapazons | -180 - 180 ° |
| Griešanās montāža | Jā |
| Pagriešanas leņķa diapazons | -90 - 90 ° |
| Slīpuma regulēšana | Jā |
| Slīpuma leņķa diapazons | -45 - 45 ° |
| Platuma pielāgošana | 920 mm |
| Materiāls | Tērauds |
| Krāsa | Melns |
| Dziļums | 568 mm |
| Augstums | 653 mm |
| Svars | 3980 g |
| Platums | 120 mm |
| Minimālais svars | 1 kg |
| Platuma regulēšanas diapazons | 0 - 920 mm |
| Izcelsmes valsts | Ķīna |
| Modelis | DS70PLUS-450BL1 |
