Neomounts Wall mount, WL35-750BL18 Heavy duty wall mount
Neomounts Wall mount, WL35-750BL18 Heavy duty wall mount, Adjustable Height, Tilt, 43-98 ", Maximum weight (capacity) 125 kg, Black
Neomounts · 8717371443375
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 60 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 8717371443375
- Zīmols
- Neomounts
Apraksts

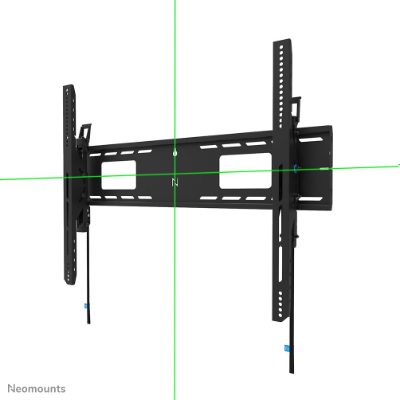

The Neomounts WL35-750BL18 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

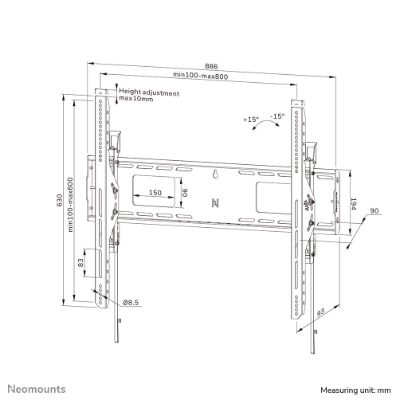

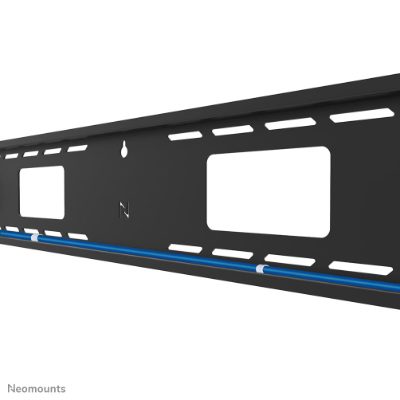

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

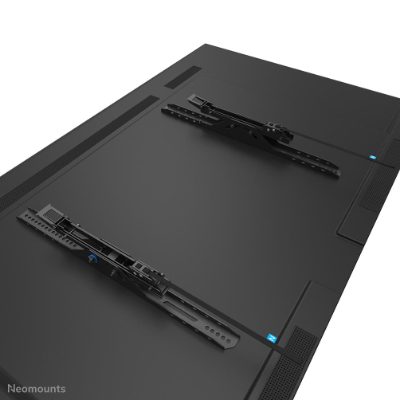

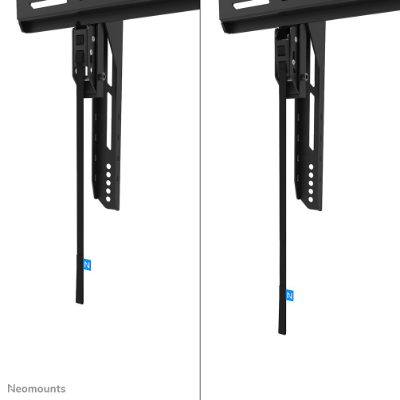

The WL35-750BL18 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.
For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.
Specifikācija
| Maksimālais ekrāna izmērs | 98 " |
| Maksimālais VESA modelis | 800 x 600 mm |
| Maksimālā noslodze | 125 kg |
| Maksimālā noslodze uz displeju | 125 kg |
| Minimālais ekrāna izmērs | 55 " |
| Minimālais VESA modelis | 100 x 100 mm |
| Montāžas veids | Siena |
| Atbalstīti displei | 1 |
| VESA standarts | 100 x 100/100 x 150/100 x 200/120 x 120/150 x 200/200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/500 x 400/500 x 500/600 x/600 x 200/600 x 300/600 x 400/600 x 500 mm |
| Kabeļu vadīšana | Jā |
| Maksimālais attālums uz sienu | 93 mm |
| Augstuma regulēšana | Jā |
| Augstuma regulēšanas diapazons | 0 - 10 mm |
| Slīpuma regulēšana | Jā |
| Slīpuma leņķa diapazons | -15 - 15 ° |
| Materiāls | Tērauds |
| Krāsa | Melns |
| Izcelsmes valsts | Ķīna |
| Slēdzama | Padlock not included |
| Dziļums | 93 mm |
| Dziļums (maks.) | 93 mm |
| Augstums | 684 mm |
| Svars | 6800 g |
| Platums | 886 mm |
| Modelis | WL35-750BL18 |
