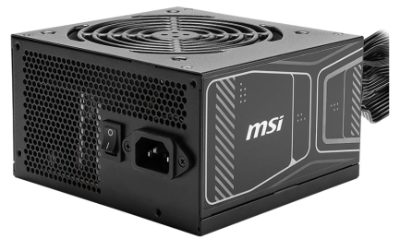

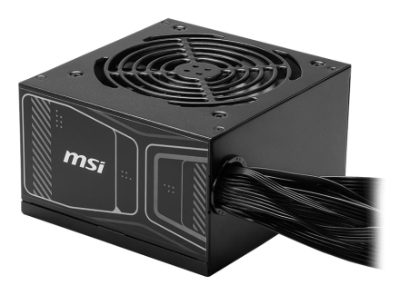

Power Supply, MSI, MAG A850GN PCIE5, ATX, PC, 100 - 240 V, 850 W
Power Supply, MSI, MAG A850GN PCIE5, ATX, PC, 100 - 240 V, 850 W, MAGA850GNPCIE5
MSI · 4711377244275
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 36 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4711377244275
- Zīmols
- MSI
Apraksts
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
ATX 3.1 Ready
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.
POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.
SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.

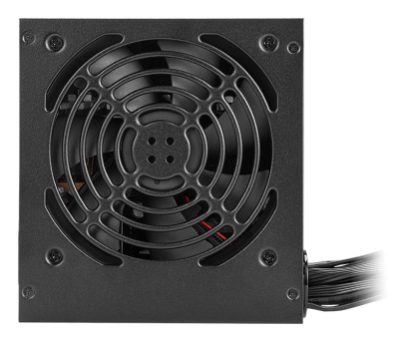

FAN
The fan curve is designed to prioritize low noise output while maintaining effective cooling. When the power supply operates at 70% load, the resulting noise level is kept below 20 dBA.
Capacitors You Can Trust
The 105°C main capacitor is designed to perform reliably in handling high temperatures and peak voltage fluctuations. It ensures stable performance, providing your system with dependable reliability.
CERTIFIED CABLE
This power supply comes equipped with certified cables and connector made of copper alloy terminals. This provides greater safety than typical phosphor bronze connectors, especially during high current surges.
PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
connectors
This power supply equipped with black, flat cables that are soft, and easy to bend, making cable management a breeze./
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
ATX 3.1 Ready
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.
POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.
SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.
FAN
The fan curve is designed to prioritize low noise output while maintaining effective cooling. When the power supply operates at 70% load, the resulting noise level is kept below 20 dBA.
Capacitors You Can Trust
The 105°C main capacitor is designed to perform reliably in handling high temperatures and peak voltage fluctuations. It ensures stable performance, providing your system with dependable reliability.
CERTIFIED CABLE
This power supply comes equipped with certified cables and connector made of copper alloy terminals. This provides greater safety than typical phosphor bronze connectors, especially during high current surges.
PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
connectors
This power supply equipped with black, flat cables that are soft, and easy to bend, making cable management a breeze.
- ATX 3.1 ready, native PCIe 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
- 105°C main capacitor
- 80 Plus Gold certified for high efficiency with Active PFC design
- Industrial level protection with OVP, OCP, OPP, OTP, SCP
- 120 mm Sleeve Bearing Fan
- Full Bridge Topology with DC-DC module design
Specifikācija
| Detalizēts apraksts | MSI MAG A850GN PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
| Ieejas frekvence | 47 - 63 Hz |
| Ieejas spriegums | 100 - 240 V |
| Kopējā jauda (+12V magistrāle) | 846 W |
| Kopējā jauda (+3,3V) | 110 W |
| Kopējā jauda (+5V) | 110 W |
| Kopējā jauda (+5Vsb) | 15 W |
| Kopējā jauda (-12V) | 3.6 W |
| Efektivitāte | 90 % |
| Maksimālā izejas strāva (+12V) | 70.5 A |
| Maksimālā izejas strāva (+3,3V) | 20 A |
| Maksimālā izejas strāva (+5V) | 20 A |
| Maksimālā izejas strāva (+5Vsb) | 3 A |
| Maksimālā izejas strāva (-12V) | 0.3 A |
| +12V šīnes skaits | 1 |
| Jaudas koeficienta korekcijas (PFC) veids | Aktīvs |
| Enerģijas aizsardzības funkcijas | Over current/Over power/Over voltage/Overheating/Short circuit |
| Nominālā jauda | 850 W |
| ATX enerģijas savienotājs | Nē |
| PSU kabeļu veids | Non-Modular |
| CPU barošanas pieslēgvieta (4+4 tapas) | Jā |
| EPS enerģijas savienotājs | Jā |
| Pamatplates barošanas kabeļa garums | 600 mm |
| Pamatplates enerģijas savienotājs | 20+4 pin ATX |
| SATA enerģijas savienotāju skaits | 4 |
| PCI Express barošanas savienotāji (16 tapa) | 1 |
| PCI Express enerģijas savienotāju (12+4 pin) | 2 |
| Molex enerģijas savienotāju | 2 |
| 80 PLUS sertifikācija | 80 PLUS Gold |
| Formas faktors | ATX |
| Paredzētā izmantošana | PC |
| Dzesēšanas veids | Aktīvs |
| Ventiliatora diametrs | 120 mm |
| Apgaismojums | Nē |
| Ventilatoru skaits | 1 ventilatori |
| Ieslēgšanas/izslēgšanas poga | Jā |
| Krāsa | Melns |
| Dziļums | 140 mm |
| Augstums | 86 mm |
| Platums | 150 mm |
| Aizzīme punkti | <ul> <li>ATX 3.1 ready, native PCIe 5.1 connector</li> <li>Supports NVIDIA® GeForce RTX™ 40 Series graphics cards</li> <li>105°C main capacitor</li> <li>80 Plus Gold certified for high efficiency with Active PFC design</li> <li>Industrial level protection with OVP, OCP, OPP, OTP, SCP</li> <li>120 mm Sleeve Bearing Fan</li> <li>Full Bridge Topology with DC-DC module design</li> </ul> |
| Modeļa nosaukums | MAG A850GN PCIE5 |
