Power Supply, MSI, MPG Ai1300TS PCIE5, ATX, PC, 100 - 240 V, 1300 W
Power Supply, MSI, MPG Ai1300TS PCIE5, ATX, PC, 100 - 240 V, 1300 W, MPGAI1300TSPCIE5
MSI · 4711377406130
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 24 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4711377406130
- Zīmols
- MSI
Apraksts
Support MSI Exclusive GPU Safeguard+, it’s the comprehensive and precisely protection, while under of computer using scenario.
SiC MOSFETs
Server-grade material, resulting in 10% less waste heat.
ATX 3.1 READY
Handle up to 240% total power excursion, 300% GPU power excursion.
TITANIUM
Energy efficiency, offering up to 94% efficiency.
2 x 12V-2x6
Comes with 2 x native 12V-2x6 connectors.
STABLE POWER DELIVERY
Minimizing the +12V regulation fluctuation into ±1%.

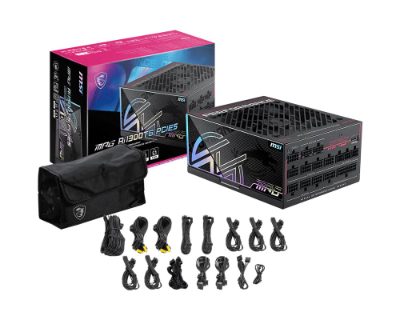

FULL DIGITAL DESIGN
The MCU controller can quickly manage dynamic adjustments.
NIGHT SOUND LEVEL
Low noise design.
ZERO FAN MODE
Fan completely stops under low load, delivering silent operating environment.
FDB FAN BEARING
To improve thermal performance and reduce noise, choose a larger, longer-lasting fan.
100% SERVER-GRADE
105°C CAPACITOR
High quality Japanese capacitor for the stability and durability.
ALLOY COPPER
For safety, offering superior current handling capability for higher current surges.
SAFETY CABLE
UL certified cable, robust high current handling capability.
PROTECTION
Equipped with multiple protection mechanisms, ensuring your system operates worry-free at all times.
DUAL COLOR 12V-2x6
CONNECTOR
Allowing you to quickly confirm connection tightness.
EMBOSSED CABLE
More Flexibility and Bendability, easy for the cable management.
CABLE ORGANIZER
Pre-installed with cable organizers, streamline the cable management process, resulting in a cleaner pc build.
POWER SUPPLY
OVERVIEW
Overall real-time current, output wattage, energy efficiency.
REAL-TIME DASHBOARD
Monitor the PSU detail message, and exporting selected real-time data.
COOLING WIZARD
Zero fan mode switch, and Allows users to customize the fan curve.
MSI Center
MSI’s exclusive MSI Center software allows you to customize power settings and monitor real-time electrical data through an intuitive graphical interface; please connect the USB Type-C cable to sync your power supply information.
Afterburner
MSI Afterburner (version 4.6.7 Beta 2) now supports individual pin current monitoring. This update also allows you to limit GPU power consumption automatically whenever the GPU Safeguard+ protection is triggered./
The Reliable Engine of Your PC Build
Support MSI Exclusive GPU Safeguard+, it’s the comprehensive and precisely protection, while under of computer using scenario.
SiC MOSFETs
Server-grade material, resulting in 10% less waste heat.
ATX 3.1 READY
Handle up to 240% total power excursion, 300% GPU power excursion.
TITANIUM
Energy efficiency, offering up to 94% efficiency.
2 x 12V-2x6
Comes with 2 x native 12V-2x6 connectors.
STABLE POWER DELIVERY
Minimizing the +12V regulation fluctuation into ±1%.
FULL DIGITAL DESIGN
The MCU controller can quickly manage dynamic adjustments.
NIGHT SOUND LEVEL
Low noise design.
ZERO FAN MODE
Fan completely stops under low load, delivering silent operating environment.
FDB FAN BEARING
To improve thermal performance and reduce noise, choose a larger, longer-lasting fan.
100% SERVER-GRADE
105°C CAPACITOR
High quality Japanese capacitor for the stability and durability.
ALLOY COPPER
For safety, offering superior current handling capability for higher current surges.
SAFETY CABLE
UL certified cable, robust high current handling capability.
PROTECTION
Equipped with multiple protection mechanisms, ensuring your system operates worry-free at all times.
DUAL COLOR 12V-2x6
CONNECTOR
Allowing you to quickly confirm connection tightness.
EMBOSSED CABLE
More Flexibility and Bendability, easy for the cable management.
CABLE ORGANIZER
Pre-installed with cable organizers, streamline the cable management process, resulting in a cleaner pc build.
POWER SUPPLY
OVERVIEW
Overall real-time current, output wattage, energy efficiency.
REAL-TIME DASHBOARD
Monitor the PSU detail message, and exporting selected real-time data.
COOLING WIZARD
Zero fan mode switch, and Allows users to customize the fan curve.
MSI Center
MSI’s exclusive MSI Center software allows you to customize power settings and monitor real-time electrical data through an intuitive graphical interface; please connect the USB Type-C cable to sync your power supply information.
Afterburner
MSI Afterburner (version 4.6.7 Beta 2) now supports individual pin current monitoring. This update also allows you to limit GPU power consumption automatically whenever the GPU Safeguard+ protection is triggered.
- Premium protection, GPU Safeguard+ and Fan Safeguard
- Server-grade materials, SiC interleaved PFC MOSFET
- Supports Nvidia® GeForce RTX™ 50 series graphics cards
- 2 x native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Titanium certified
- Optimized the sound level
- 100% all Server-grade 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Specifikācija
| Detalizēts apraksts | MSI MPG Ai1300TS PCIE5. Total power: 1300 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 190 mm, Depth: 150 mm, Height: 86 mm |
| Ieejas frekvence | 50/60 Hz |
| Ieejas spriegums | 100 - 240 V |
| Kopējā jauda (+12V magistrāle) | 1299.96 W |
| Kopējā jauda (+3,3V) | 120 W |
| Kopējā jauda (+5V) | 120 W |
| Kopējā jauda (+5Vsb) | 15 W |
| Maksimālā izejas strāva (+12V) | 108.33 A |
| Maksimālā izejas strāva (+3,3V) | 22 A |
| Maksimālā izejas strāva (+5V) | 22 A |
| Maksimālā izejas strāva (+5Vsb) | 3 A |
| Maksimālā ieejas strāva (@110V) | 15 A |
| Maksimālā ieejas strāva (@220V) | 10 A |
| Jaudas koeficienta korekcijas (PFC) veids | Aktīvs |
| Enerģijas aizsardzības funkcijas | Over current/Over power/Over voltage/Short circuit/Under voltage |
| Nominālā jauda | 1300 W |
| ATX enerģijas savienotājs | Jā |
| PSU kabeļu veids | Fully-Modular |
| EPS enerģijas savienotājs | Jā |
| Diskas diska diska savienotājs | Jā |
| Pamatplates barošanas kabeļa garums | 600 mm |
| Pamatplates enerģijas savienotājs | 24-pin ATX |
| SATA enerģijas savienotāju skaits | 8 |
| PCI Express enerģijas savienotāju (12+4 pin) | 8 |
| Molex enerģijas savienotāju | 4 |
| 80 PLUS sertifikācija | 80 PLUS Titanium |
| ATX versija | 3.1 |
| Formas faktors | ATX |
| Paredzētā izmantošana | PC |
| Dzesēšanas veids | Aktīvs |
| Ventiliatora diametrs | 135 mm |
| Apgaismojums | Nē |
| Ventilatoru skaits | 1 ventilatori |
| Ieslēgšanas/izslēgšanas poga | Jā |
| Krāsa | Melns |
| Dziļums | 150 mm |
| Augstums | 86 mm |
| Platums | 190 mm |
| Izcelsmes valsts | Ķīna |
| Aizzīme punkti | <ul><li>Premium protection, GPU Safeguard+ and Fan Safeguard</li><li>Server-grade materials, SiC interleaved PFC MOSFET</li><li>Supports Nvidia® GeForce RTX™ 50 series graphics cards</li><li>2 x native 12V-2x6 connector</li><li>Dual-color 12V-2x6 cable</li><li>80 PLUS Titanium certified</li><li>Optimized the sound level</li><li>100% all Server-grade 105oC capacitor</li><li>Embossed Jacket Cables, the cables are more bending and routing</li><li>Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO</li></ul> |
| Modeļa nosaukums | MPG Ai1300TS PCIE5 |
