Power Supply, MSI, PRO A1000PL PCIE5, ATX, PC, 100 - 240 V, 1000 W
Power Supply, MSI, PRO A1000PL PCIE5, ATX, PC, 100 - 240 V, 1000 W, PROA1000PLPCIE5
MSI · 4711377383622
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 24 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4711377383622
- Zīmols
- MSI
Apraksts
Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

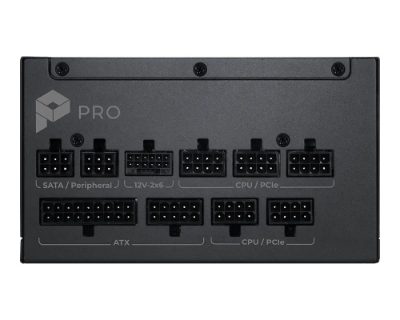

Reliable Connector Design
The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 600W of power, making it suitable for even the most demanding high-end graphics cards.
GPU compatibility
Versatile ways of connection according to the power connector design of different graphics cards.
Platinum Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.
105°C Main Capacitor
Aiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability.
Built for Maximum Safety
The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability./
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Reliable Connector Design
The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 600W of power, making it suitable for even the most demanding high-end graphics cards.
GPU compatibility
Versatile ways of connection according to the power connector design of different graphics cards.
Platinum Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.
105°C Main Capacitor
Aiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability.
Built for Maximum Safety
The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.
- Dual-color 12V-2x6 Cable
- ATX 3.1 Ready
- PCIe 5.1 Ready (600W)
- 105°C Main Electrolytic Capacitor
- 80 PLUS Platinum Certification
- Embossed Jacket Certified Cables
- Industrial level protection with OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO
Specifikācija
| Detalizēts apraksts | MSI PRO A1000PL PCIE5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm |
| Ieejas frekvence | 50/60 Hz |
| Ieejas spriegums | 100 - 240 V |
| Kopējā jauda (+12V magistrāle) | 999.6 W |
| Kopējā jauda (+3,3V) | 100 W |
| Kopējā jauda (+5V) | 100 W |
| Kopējā jauda (+5Vsb) | 12.5 W |
| Kopējā jauda (-12V) | 3.6 W |
| Efektivitāte | 92 % |
| Maksimālā izejas strāva (+12V) | 70.8 A |
| Maksimālā izejas strāva (+3,3V) | 20 A |
| Maksimālā izejas strāva (+5V) | 20 A |
| Maksimālā izejas strāva (+5Vsb) | 2.5 A |
| Maksimālā izejas strāva (-12V) | 0.3 A |
| Jaudas koeficienta korekcijas (PFC) veids | Aktīvs |
| Nominālā jauda | 1000 W |
| ATX enerģijas savienotājs | Jā |
| PSU kabeļu veids | Fully-Modular |
| CPU barošanas pieslēgvieta (4+4 tapas) | Jā |
| EPS enerģijas savienotājs | Jā |
| Diskas diska diska savienotājs | Nē |
| Pamatplates barošanas kabeļa garums | 600 mm |
| Pamatplates enerģijas savienotājs | 20+4 pin ATX |
| SATA enerģijas savienotāju skaits | 6 |
| PCI Express enerģijas savienotāju (12+4 pin) | 3 |
| Molex enerģijas savienotāju | 2 |
| 80 PLUS sertifikācija | 80 PLUS Platinum |
| Formas faktors | ATX |
| Paredzētā izmantošana | PC |
| Dzesēšanas veids | Aktīvs |
| Ventiliatora diametrs | 120 mm |
| Ventilatoru skaits | 1 ventilatori |
| Ieslēgšanas/izslēgšanas poga | Jā |
| Krāsa | Melns |
| Dziļums | 150 mm |
| Augstums | 86 mm |
| Platums | 150 mm |
| Aizzīme punkti | <ul><li>Dual-color 12V-2x6 Cable</li><li>ATX 3.1 Ready</li><li>PCIe 5.1 Ready (600W)</li><li>105°C Main Electrolytic Capacitor</li><li>80 PLUS Platinum Certification</li><li>Embossed Jacket Certified Cables</li><li>Industrial level protection with OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO</li></ul> |
| Modeļa nosaukums | PRO A1000PL PCIE5 |
