Power Supply, SEASONIC, ATX, PC, 100 - 240 V, 650 W, SRP-CBC651-A5A51JF
SEASONIC · 4711173879435
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 84 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4711173879435
- Zīmols
- SEASONIC
Apraksts

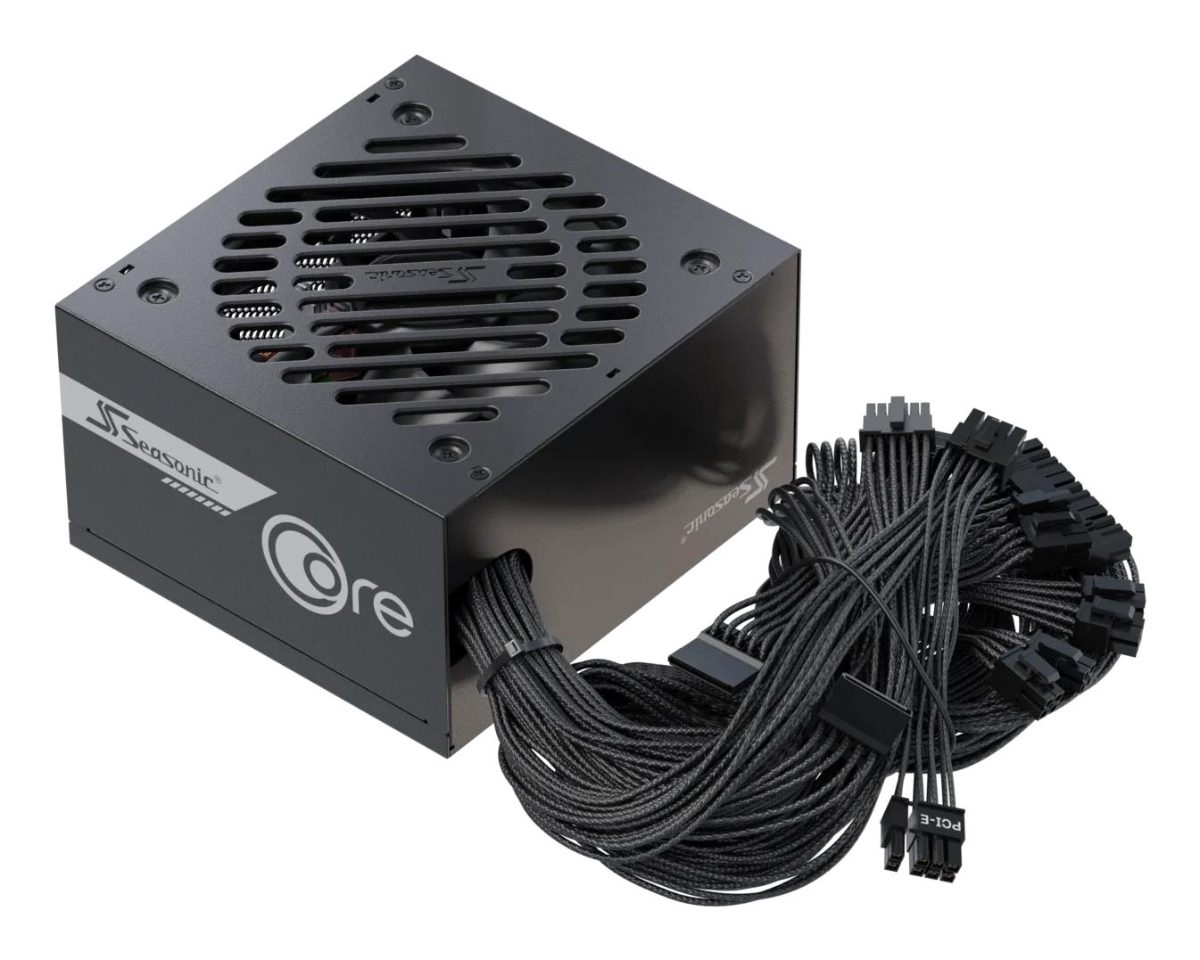

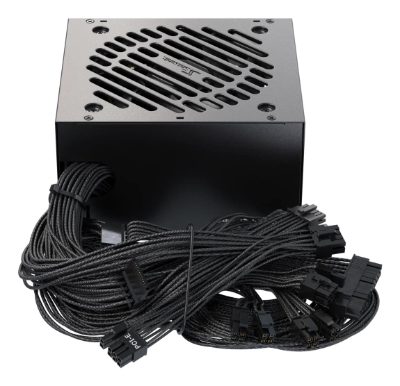

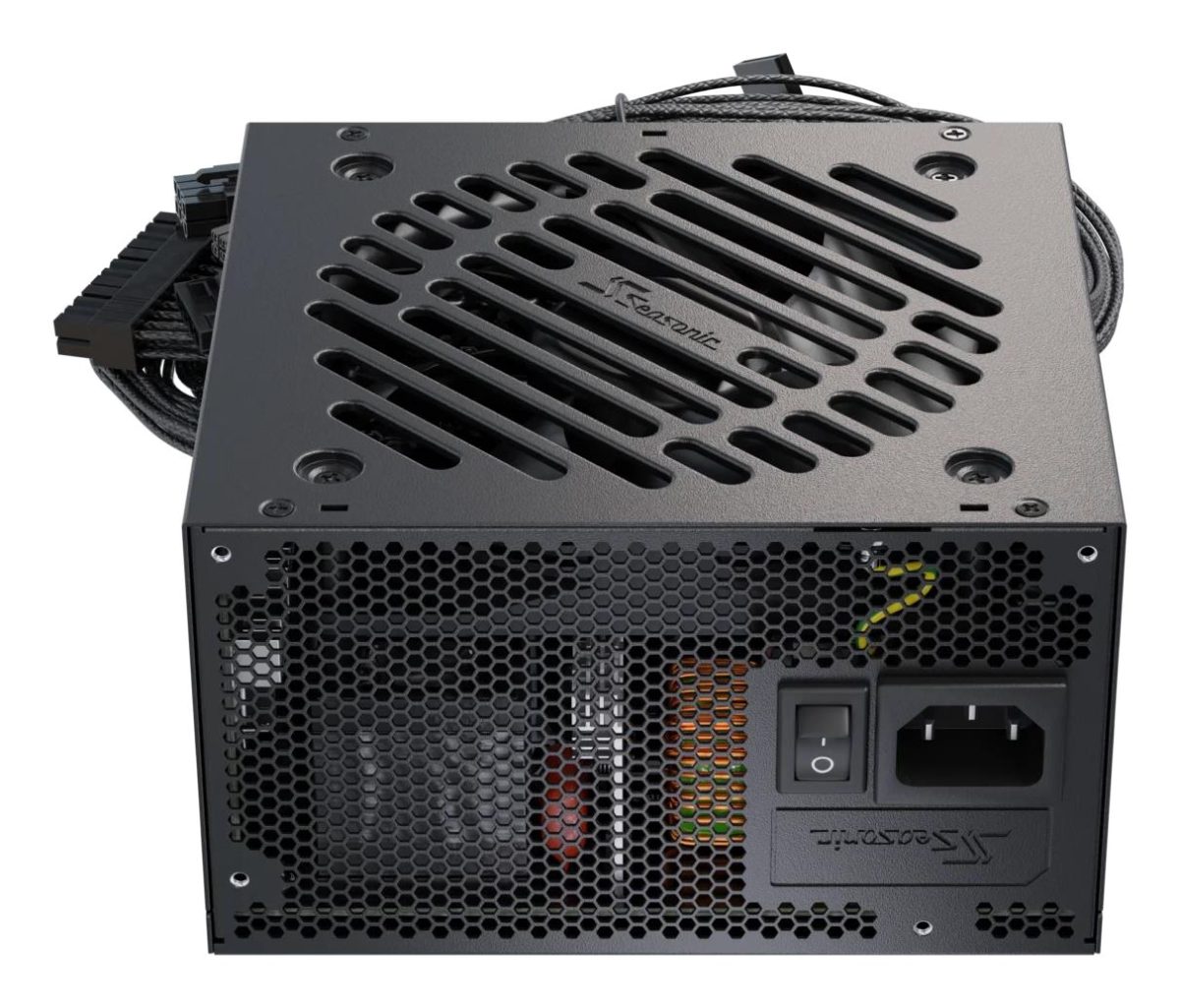

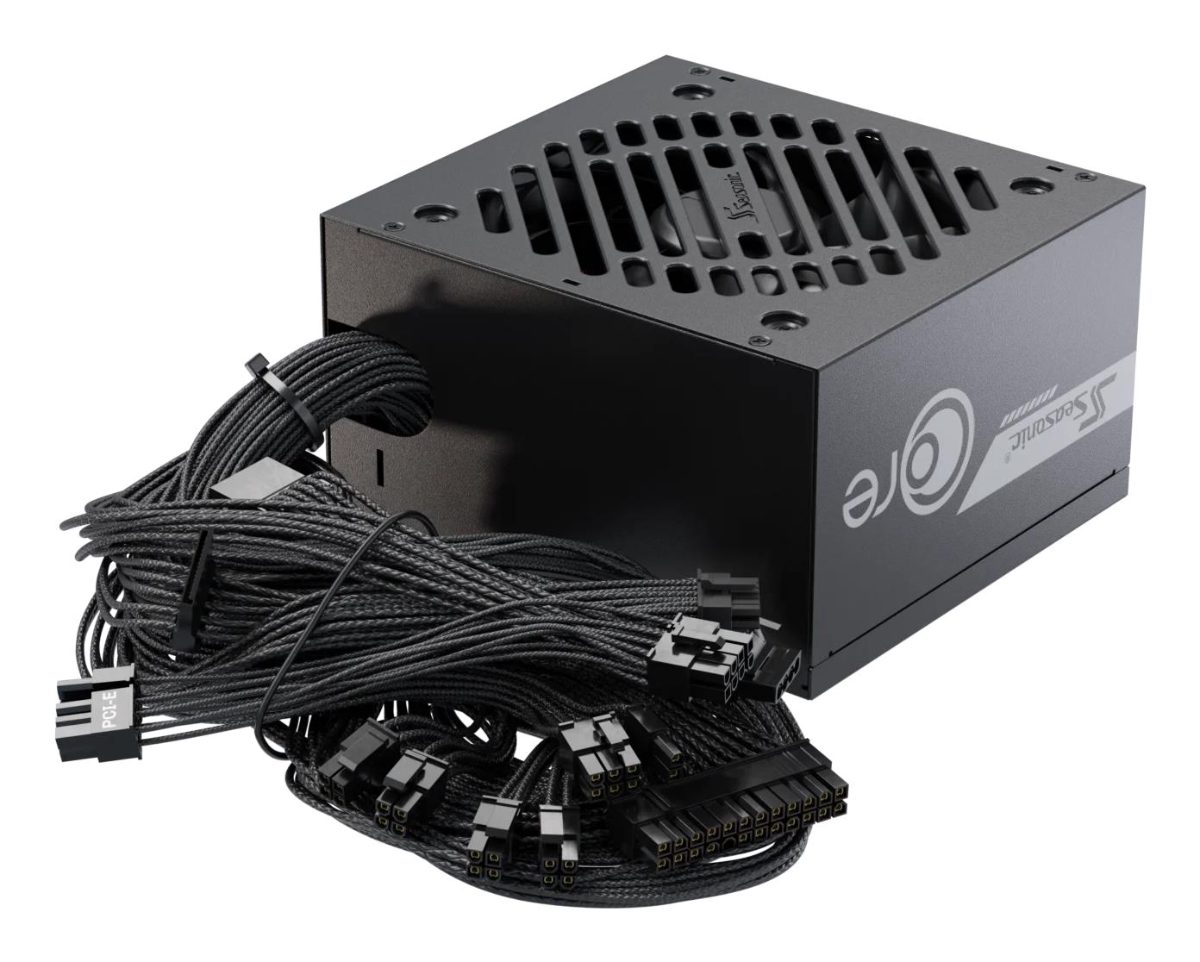

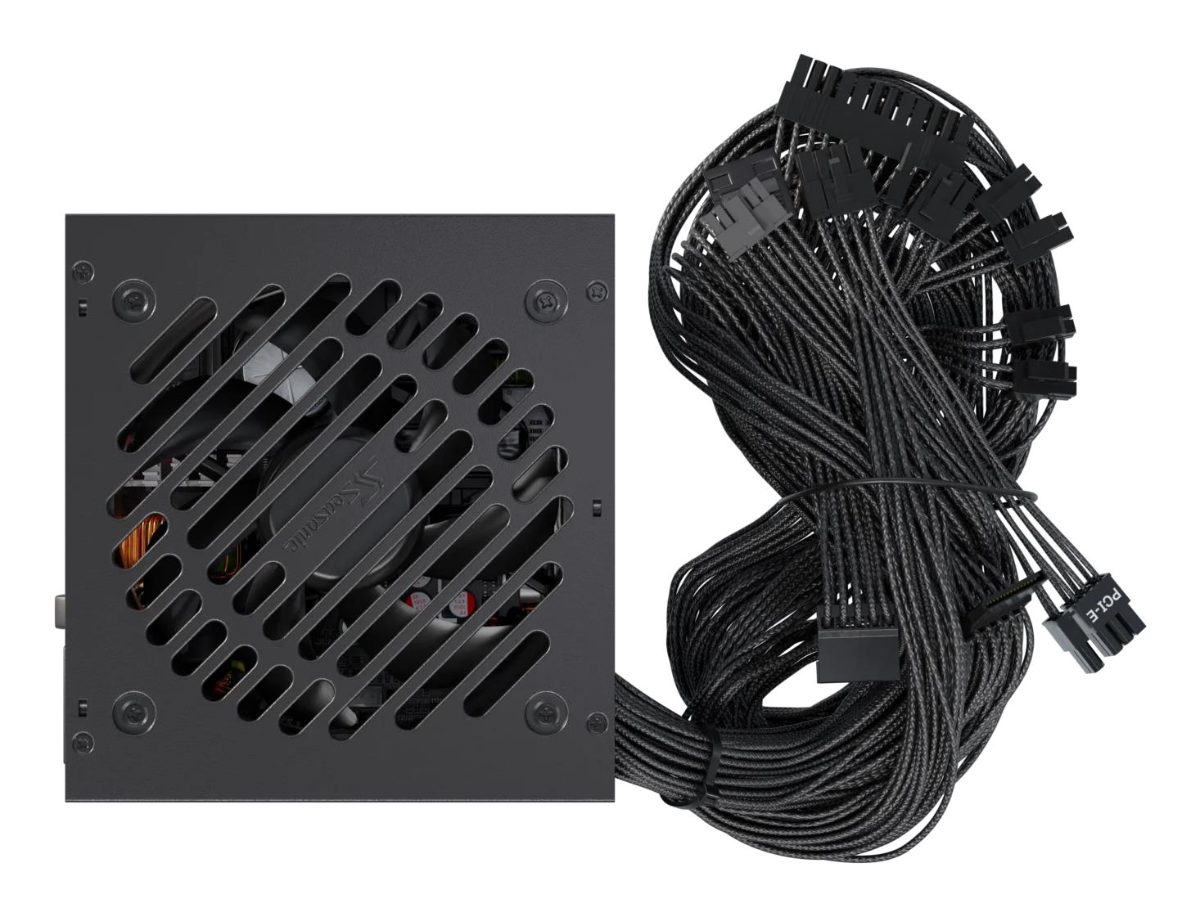

Seasonic CORE BC 650W (CORE BC-650
CORE BC – Power Made Simple
The Seasonic CORE BC Series delivers reliable performance and modern ATX 3.1 compliance at an essential value. Designed for everyday builders and gamers, it embodies Seasonic’s trusted quality in a compact 140 mm design with a durable scratch-resistant finish.
With 80 PLUS® Bronze efficiency, Smart and Silent Fan Control (S2FC), and a 120 mm HDB fan, it ensures cool, quiet, and stable operation. The CORE BC-750 and CORE BC-850 include a 12V-2×6 PCIe Gen 5.1 cable, ready for the latest GPUs, while the CORE BC-650 meets all ATX 3.1 requirements with traditional connectors.
Built on decades of engineering excellence, the CORE BC Series delivers the quiet efficiency, reliability, and durability that define every Seasonic power supply.
Next-Gen and Legacy GPU Cable
Includes native 12V-2x6 and 2× 8-pin cables for maximum compatibility
S2FC - Intelligent Fan Control Technology
The Smart and Silent Fan Control (S2FC) system intelligently regulates the power supply’s fan speed to achieve the ideal balance between cooling efficiency and silent operation. By dynamically adjusting the fan curve according to temperature, it ensures that your system remains quiet during low-to-medium usage and effectively cooled when performance demands increase.
Specifikācija
| Ieejas frekvence | 50/60 Hz |
| Ieejas spriegums | 100 - 240 V |
| Kopējā jauda (+12V magistrāle) | 648 W |
| Kopējā jauda (+3,3V) | 100 W |
| Kopējā jauda (+5Vsb) | 12.5 W |
| Kopējā jauda (-12V) | 3.6 W |
| Ieejas strāva | 9 - 4.5 A |
| Maksimālā izejas strāva (+12V) | 54 A |
| Maksimālā izejas strāva (+3,3V) | 20 A |
| Maksimālā izejas strāva (+5V) | 2.5 A |
| Maksimālā izejas strāva (+5Vsb) | 20 A |
| Maksimālā izejas strāva (-12V) | 0.3 A |
| Enerģijas aizsardzības funkcijas | Over current/Over power/Over voltage/Short circuit |
| Nominālā jauda | 650 W |
| ATX enerģijas savienotājs | Jā |
| PSU kabeļu veids | Non-Modular |
| CPU barošanas kabeļa garums | 600 mm |
| CPU barošanas pieslēgvieta (4+4 tapas) | Jā |
| EPS enerģijas savienotājs | Jā |
| Pamatplates barošanas kabeļa garums | 550 mm |
| Pamatplates enerģijas savienotājs | 20+4 pin ATX |
| SATA enerģijas savienotāju skaits | 6 |
| PCI Express savienotājs | Jā |
| PCI Express enerģijas savienotāju (12+4 pin) | 4 |
| Molex enerģijas savienotāju | 3 |
| 80 PLUS sertifikācija | 80 PLUS Bronze |
| Gultņa tehnoloģija | Mājturis |
| MTBF | 100000 h |
| Formas faktors | ATX |
| Paredzētā izmantošana | PC |
| Dzesēšanas veids | Aktīvs |
| Ventiliatora diametrs | 120 mm |
| Ventilatora vieta | Augšā |
| Ventilatoru skaits | 1 ventilatori |
| Ieslēgšanas/izslēgšanas poga | Jā |
| Krāsa | Melns |
| Darbības temperatūra | 0 - 40 °C |
| Sertifikācija | CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6 |
| Sertifikāti | BSMI/CB/CCC/CE/cTUVus/EAC/REACH/RoHS/UKCA/WEEE |
| Dziļums | 140 mm |
| Augstums | 86 mm |
| Platums | 150 mm |
| Ilgtspējamības sertifikāti | ENERGY STAR |
