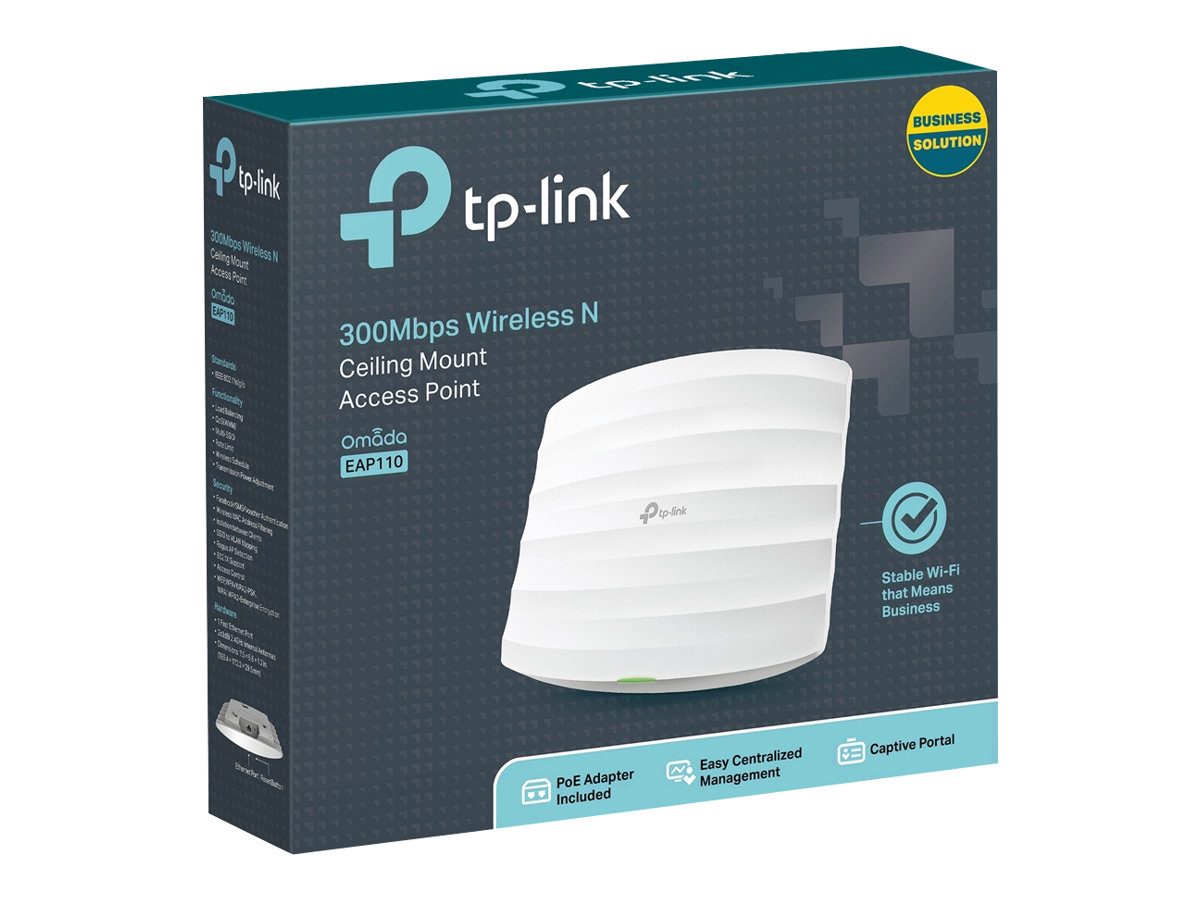

Access Point, EAP110, 802.11n, 2.4GHz, 300 Mbit/s, 10/100 Mbit/s
Access Point, EAP110, 802.11n, 2.4GHz, 300 Mbit/s, 10/100 Mbit/s, Ethernet LAN (RJ-45) ports 1, MU-MiMO No, no PoE, Antenna type 2xInternal
TP-LINK · 6935364091620
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 60 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 6935364091620
- Zīmols
- TP-LINK
Apraksts
Flexible Placement
Easy mounting design & PoE
The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Cloud Centralized Management - Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports passive PoE for convenient installation up to 100meters
- Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Multi-SSID divides multiple wireless networks for different users
- Enterprise class Wi-Fi security help to decrease network security threats
- Supports management vlan for an enhanced network management
Specifikācija
| 2,4 GHz Wi-Fi | Jā |
| 5 GHz Wi-Fi | Nē |
| 6 GHz Wi-Fi josla | Nē |
| Kabeļu tehnoloģija | 10/100Base-T(X) |
| Ethernet datu pārsūtīšanas ātrumi | 10/100 Mbit/s |
| Frekvences josla | 2.4 - 2.4835 GHz |
| Maksimālais datu pārsūtīšanas ātrums | 300 Mbit/s |
| Maksimālais datu pārsūtīšanas ātrums (2,4 GHz) | 300 Mbit/s |
| Tīkla standardi | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1x |
| Pakalpojuma kvalitāte (QoS) | Jā |
| Pārsūtīšanas ātruma ierobežošana | Jā |
| Uztvērēja jutība | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Pārsūtīšanas jauda (CE) | 19 dBm |
| Pārsūtīšanas jauda (FCC) | 21 dBm |
| Virtuālā LAN funkcijas | VLAN mapping |
| VLAN atbalsts | Jā |
| Wi-Fi Multimedia (WMM)/(WME) | Jā |
| Bezvadu izolācija | Jā |
| Piekļuves kontroles saraksts (ACL) | Jā |
| MAC adreses filtrēšana | Jā |
| SSID skaits (max) | 8 |
| Drošības algoritmi | 128-bit WEP/152-bit WEP/64-bit WEP/HTTPS/SNMP/SNMPv2/SSH/WPA/WPA2-Enterprise/WPA2-PSK/WPA-PSK |
| SSID pazīmes | Multiple SSIDs |
| Syslog | Jā |
| Tīmekļa vadīšana | Jā |
| Ethernet (RJ-45) portu skaits | 1 |
| Ieejas spriegums | 24 V |
| Tipiska enerģijas patēriņa | 2.8 W |
| Power over Ethernet | Jā |
| PoE veids atbalstīts | Passive PoE |
| LED indikatori | Strāva |
| Novietojums | Ceiling,Wall |
| Krāsa | Balts |
| Atiestatīšanas poga | Jā |
| Antenas veids | Visvirzīens |
| Maksimālais antenas pastiprinājums | 4 dBi |
| Antenu skaits | 2 |
| Sertifikāti | CE/Federal Communications Commission (FCC)/RoHS |
| Dziļums | 170.5 mm |
| Augstums | 29.7 mm |
| Platums | 189.5 mm |
| Iekļautie kabeļi | AC |
| Montāžas komplekts iekļauts | Jā |
| PoE adapters iekļauts | Jā |
| Ātrā sākuma ceļvedis iekļauts | Jā |
| Darbības mitrums | 10 - 90 % |
| Darbības temperatūra | 0 - 40 °C |
| Uzglabāšanas mitrums (ne-darbības) | 5 - 90 % |
| Uzglabāšanas temperatūra | -40 - 70 °C |
| Ilgtspējamības atbilstība | Jā |
| Produktu sērija | Omada |
| Modeļa nosaukums | 300Mbps Wireless N Ceiling Mount Access Point |
