AX3000 Ceiling Mount WiFi 6 Access Point, EAP653, 802.11ax, 2.4 + 5 GHz
AX3000 Ceiling Mount WiFi 6 Access Point, EAP653, 802.11ax, 2.4 + 5 GHz, 574 + 2402 Mbit/s, Ethernet LAN (RJ-45) ports 1, MU-MiMO Yes, PoE in
TP-LINK · 4897098685235
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 60 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4897098685235
- Zīmols
- TP-LINK
Apraksts
Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

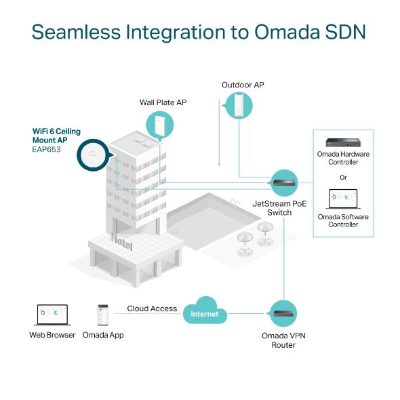

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

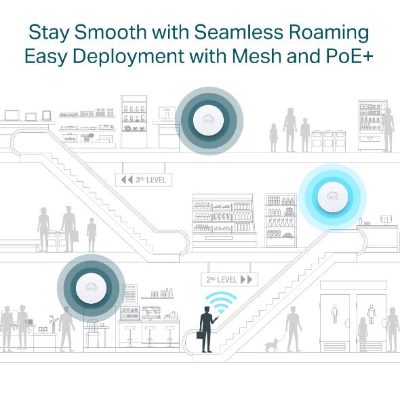

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

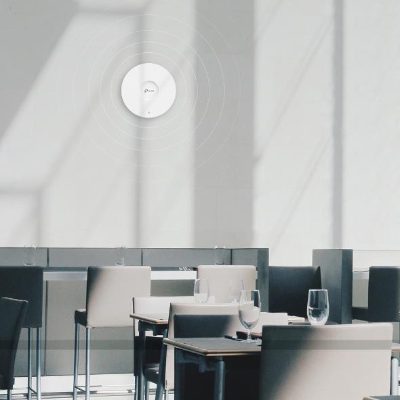

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility
Specifikācija
| 2,4 GHz Wi-Fi | Jā |
| 5 GHz Wi-Fi | Jā |
| 6 GHz Wi-Fi josla | Nē |
| Airtime Fairness (ATF) | Jā |
| Automātiska kanālu skenēšana | Jā |
| Automātiskā kanāla atlase | Jā |
| Joslas vadīšana | Jā |
| BeamForming | Jā |
| Kabeļu tehnoloģija | 10/100/1000Base-T(X) |
| Ethernet datu pārsūtīšanas ātrumi | 10/100/1000 Mbit/s |
| AP režīma pazīmes | Mesh tīkls |
| Plūsmas kontrole | Jā |
| Frekvences josla | 2.4 - 5 GHz |
| Maksimālais datu pārsūtīšanas ātrums | 2976 Mbit/s |
| Maksimālais datu pārsūtīšanas ātrums (2,4 GHz) | 574 Mbit/s |
| Maksimālais datu pārsūtīšanas ātrums (5 GHz) | 2402 Mbit/s |
| MIMO | Jā |
| MIMO veids | Multi User MIMO |
| Tīkla standardi | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11h |
| Lietotāju skaits | 250 lietotājs(i) |
| Pakalpojuma kvalitāte (QoS) | Jā |
| Pārsūtīšanas ātruma ierobežošana | Jā |
| Spektra izkliedes metode | OFDMA |
| Pārsūtīšanas jauda (CE) | 27 dBm |
| Pārsūtīšanas jauda (FCC) | 22 dBm |
| VLAN atbalsts | Jā |
| MAC adreses filtrēšana | Jā |
| Drošības algoritmi | HTTPS/SNMP/SNMPv2/SNMPv3/SSH/WPA/WPA2/WPA3 |
| Atjaunināms firmware | Jā |
| Syslog | Jā |
| Tīmekļa vadīšana | Jā |
| DC izejas ligzda | Jā |
| Ethernet (RJ-45) portu skaits | 1 |
| Līdzstrāvas sprieguma diapazons | 12 V |
| Power over Ethernet | Jā |
| LED indikatori | Jā |
| Novietojums | Ceiling,Wall |
| Krāsa | Balts |
| Atiestatīšanas poga | Jā |
| Antenas veids | Iekšējs |
| Dziļums | 160 mm |
| Augstums | 33.6 mm |
| Platums | 160 mm |
| Montāžas komplekts iekļauts | Jā |
| Ātrā sākuma ceļvedis iekļauts | Jā |
| Darbības mitrums | 10 - 90 % |
| Darbības temperatūra | 0 - 40 °C |
| Uzglabāšanas mitrums (ne-darbības) | 5 - 90 % |
| Uzglabāšanas temperatūra | -40 - 70 °C |
| Produktu sērija | Omada |
| Modeļa nosaukums | EAP653 |
