Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, EAP235-Wall, 802.11ac, 2.4 GHz/5 GHz, 867+300 Mbit/s, 10/100/1000 Mbit/s, Ethernet LAN (RJ-45) ports 4, MU-MiMO Yes, PoE in
TP-LINK · 6935364088972
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 60 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 6935364088972
- Zīmols
- TP-LINK
Apraksts
Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.
Full Gigabit Ports to Bridge Network

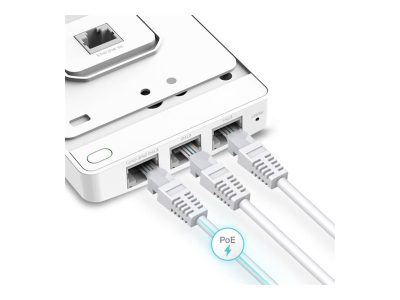

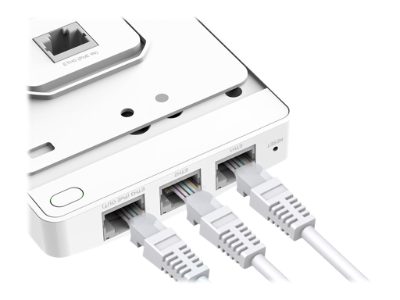

Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
- Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments
- Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment
- Interface: 4 Gigabit Ethernet ports for bridging (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
- High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
- Cloud management and Omada app supported for ultra-convenience and easy management
- Enterprise class Wi-Fi security helps to decrease network security threats
- Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology
Specifikācija
| 2,4 GHz Wi-Fi | Jā |
| 5 GHz Wi-Fi | Jā |
| 6 GHz Wi-Fi josla | Nē |
| Automātiska kanālu skenēšana | Jā |
| Automātiskā kanāla atlase | Jā |
| Joslas vadīšana | Jā |
| BeamForming | Jā |
| Kabeļu tehnoloģija | 10/100/1000Base-T(X) |
| Ethernet datu pārsūtīšanas ātrumi | 10/100/1000 Mbit/s |
| Frekvences josla | 2.4 - 5 GHz |
| Maksimālais datu pārsūtīšanas ātrums | 1167 Mbit/s |
| Maksimālais datu pārsūtīšanas ātrums (2,4 GHz) | 300 Mbit/s |
| Maksimālais datu pārsūtīšanas ātrums (5 GHz) | 867 Mbit/s |
| MIMO | Jā |
| MIMO veids | Multi User MIMO |
| Tīkla standardi | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Pakalpojuma kvalitāte (QoS) | Jā |
| Pārsūtīšanas ātruma ierobežošana | Jā |
| Pārsūtīšanas jauda (CE) | 20 - 23 dBm |
| Pārsūtīšanas jauda (FCC) | 21 dBm |
| Virtuālā LAN funkcijas | Port-based VLAN/VLAN mapping |
| VLAN atbalsts | Jā |
| Wi-Fi Multimedia (WMM)/(WME) | Jā |
| Bezvadu izolācija | Jā |
| Piekļuves kontroles saraksts (ACL) | Jā |
| MAC adreses filtrēšana | Jā |
| SSID skaits (max) | 16 |
| RADIUS | Jā |
| Drošības algoritmi | 128-bit WEP/152-bit WEP/64-bit WEP/802.1x RADIUS/HTTPS/SNMP/SNMPv3/SSH/WPA/WPA2/WPA2-Enterprise/WPA2-PSK/WPA-Enterprise/WPA-PSK |
| SSID pazīmes | Multiple SSIDs |
| Universāla Plug and Play (UPnP) | Jā |
| Syslog | Jā |
| Tīmekļa vadīšana | Jā |
| Ethernet (RJ-45) portu skaits | 4 |
| WAN savienojuma veids | Ethernet (RJ-45) |
| Tipiska enerģijas patēriņa | 24.4 W |
| Power over Ethernet | Jā |
| PoE veids atbalstīts | Active PoE/Passive PoE |
| Kabeļa bloķēšanas ligzda | Jā |
| LED indikatori | LAN/Power/Status/WAN/WLAN |
| Novietojums | Siena |
| Krāsa | Balts |
| Atiestatīšanas poga | Jā |
| Antenas pazīmes | Integrated antenna |
| Maksimālais antenas pastiprinājums | 4 dBi |
| Antenas veids | Iekšējs |
| Antenu skaits | 2 |
| Savienojamas operētājsistēmas | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Sertifikāti | CE/Federal Communications Commission (FCC)/RoHS |
| Dziļums | 86 mm |
| Augstums | 20 mm |
| Platums | 143 mm |
| Montāžas komplekts iekļauts | Jā |
| Ātrā sākuma ceļvedis iekļauts | Jā |
| Darbības mitrums | 10 - 90 % |
| Darbības temperatūra | 0 - 40 °C |
| Uzglabāšanas mitrums (ne-darbības) | 5 - 90 % |
| Uzglabāšanas temperatūra | -40 - 70 °C |
| Ilgtspējamības atbilstība | Jā |
| Produktu sērija | Omada |
| Modeļa nosaukums | EAP235-Wall |
