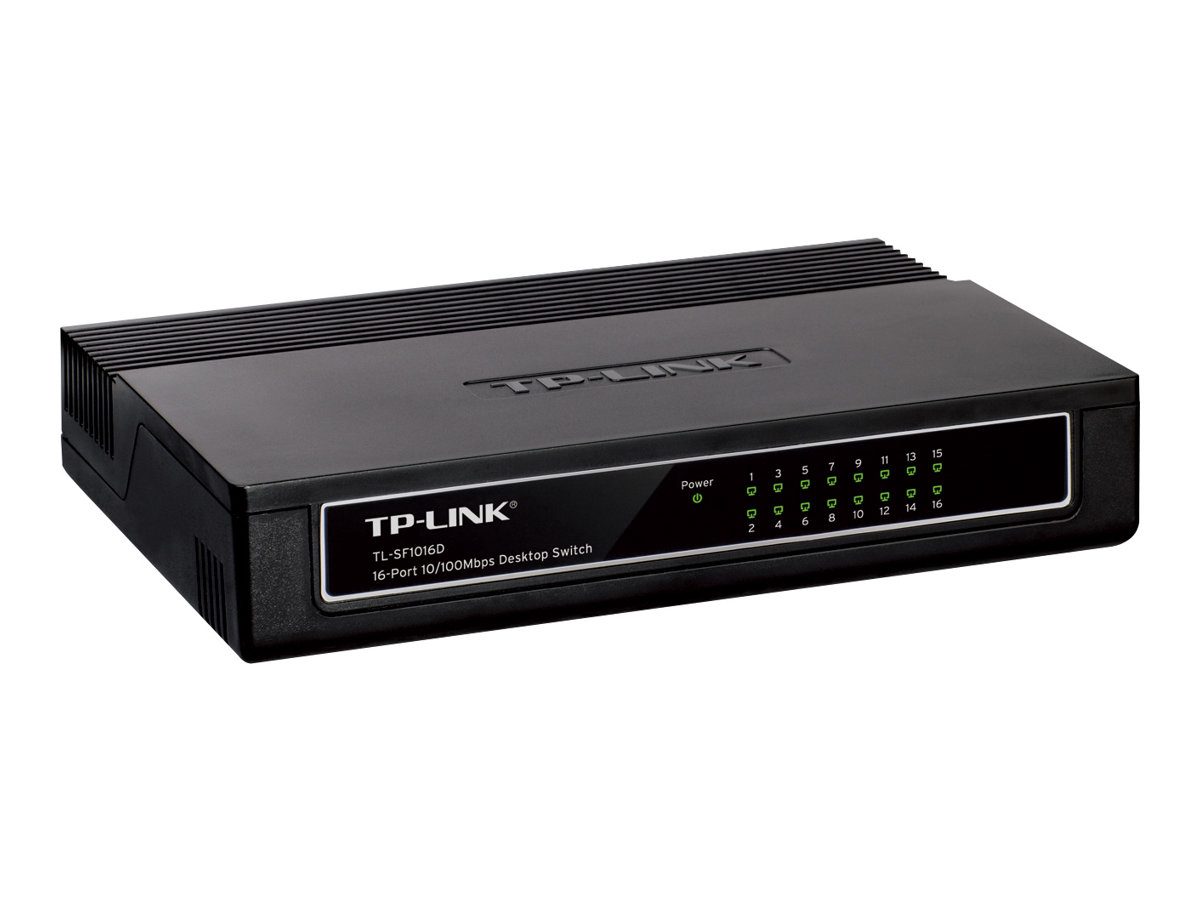

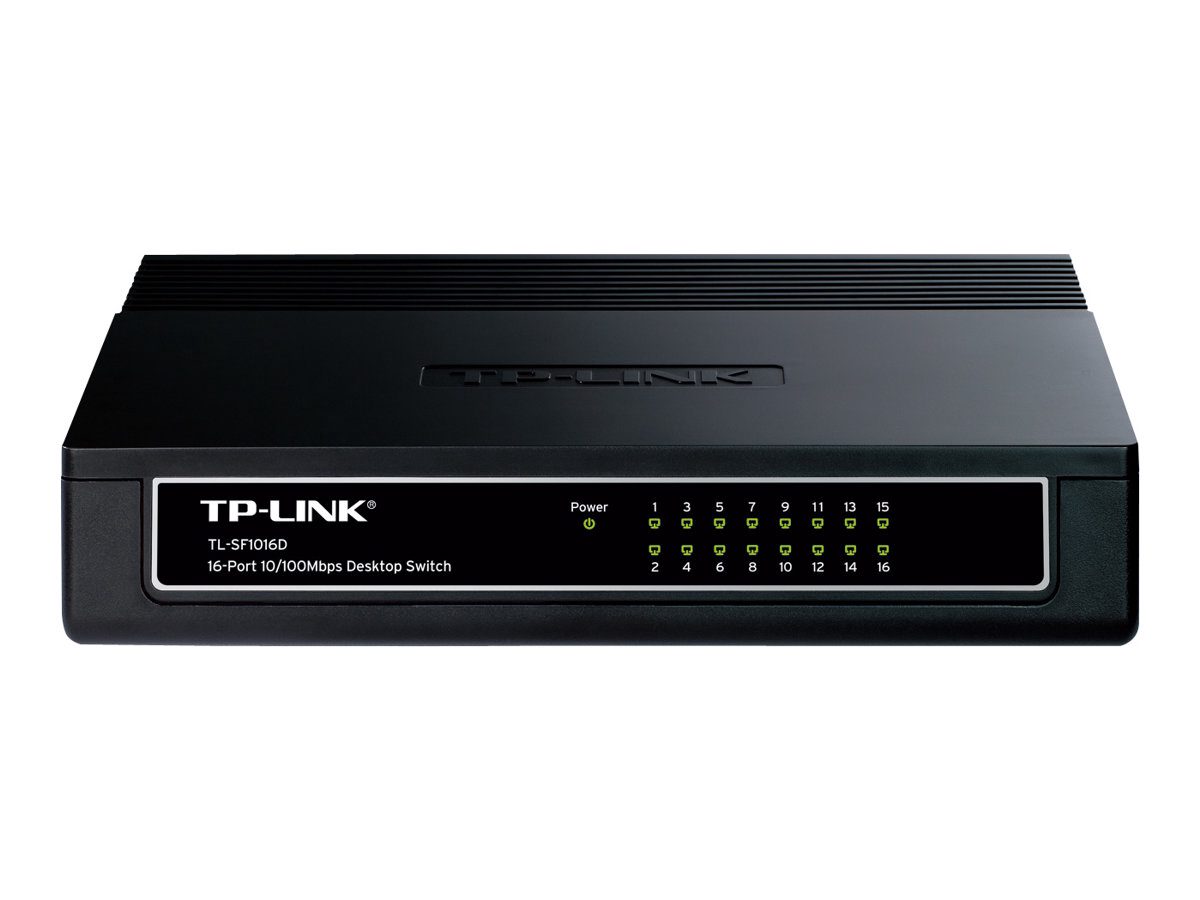

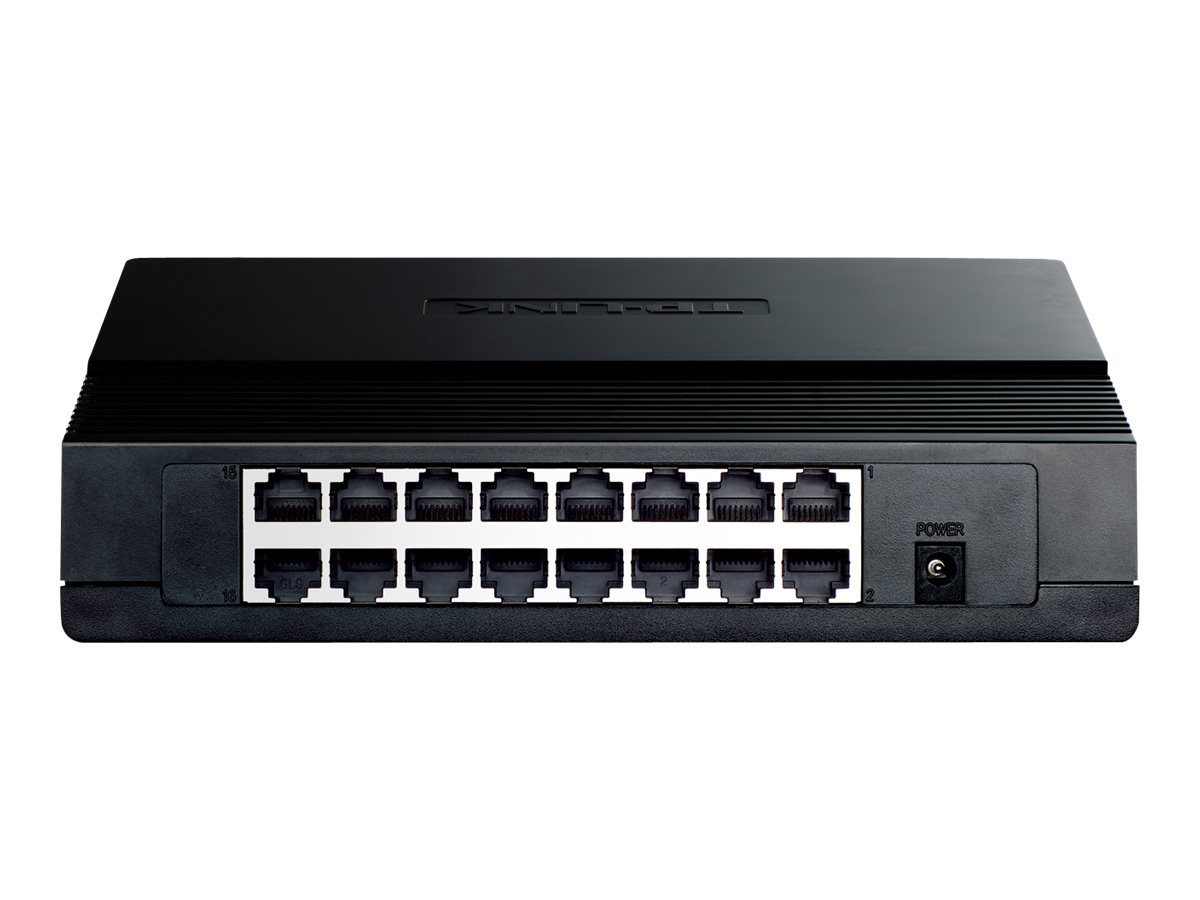

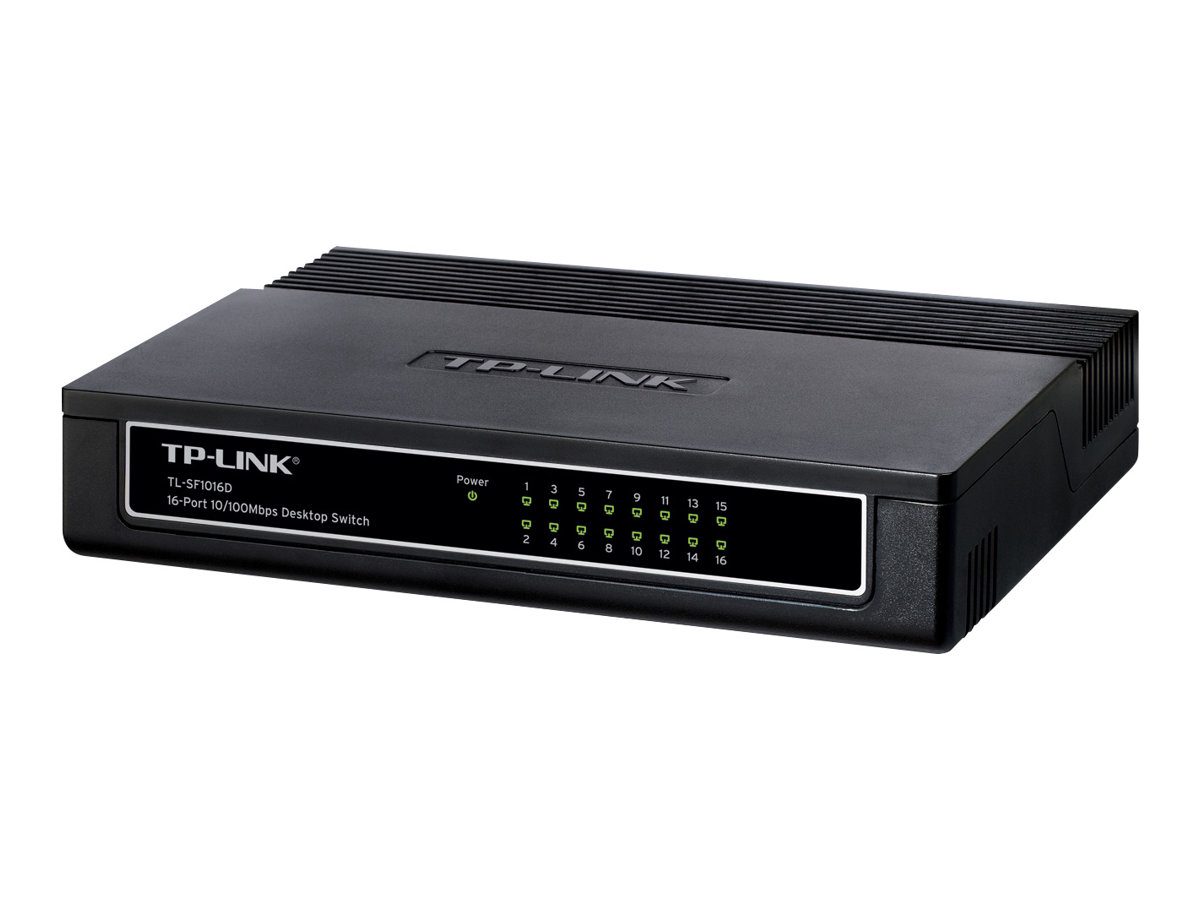

Switch, TL-SF1016D, Desktop, 10/100 Mbps (RJ-45) ports quantity 16
Switch, TL-SF1016D, Desktop, 10/100 Mbps (RJ-45) ports quantity 16, Power supply type External
TP-LINK · 6935364020293
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 24 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 6935364020293
- Zīmols
- TP-LINK
Apraksts
What This Product Does
The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1016D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016D work reliably.
TP-LINK Green Technology
This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
- 16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop or wall-mounting design
- Plug and play, no configuration required
Specifikācija
| Slēdža veids | Unmanaged |
| Ethernet (RJ-45) portu skaits | 16 |
| Ethernet veids | Fast Ethernet (10/100) |
| Ātrs Ethernet (vara) porti | 16 |
| Barošanas pieslēgvietes veids | DC-in jack |
| 10 Gigabitu atbalsts | Nē |
| Auto MDI/MDI-X | Jā |
| Automātiska negociācija | Jā |
| Kabeļu tehnoloģija | 100BASE-TX/10BASE-T |
| Ethernet datu pārsūtīšanas ātrumi | 10,100 Mbit/s |
| Plūsmas kontrole | Jā |
| Pilnduplexa režīms | Jā |
| Pus-duplekss | Jā |
| MAC adreses automātiskā apgūšana | Jā |
| Tīkla standardi | IEEE 802.3u/IEEE 802.3x |
| MAC adreses tabulas lielums | 2000 ieraksti |
| Noglabāt un pārsūtīt | Jā |
| Pārslēgšanas jauda | 3.2 Gbit/s |
| LED indikatori | Jā |
| Krāsa | Melns |
| Kreklu montējams | Jā |
| Sakraujams | Nē |
| Sienas montējams | Jā |
| Bez ventilatora | Jā |
| Ieteiktās sistēmas prasības | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux |
| Ieejas spriegums | 9 V |
| Ieejas strāva | 0.6 A |
| Maksimālais enerģijas patēriņš | 3.23 W |
| Enerģijas avots | DC |
| Barošanas bloks iekļauts | Jā |
| Power over Ethernet | Nē |
| Siltuma izkliede | 11.01 BTU/h |
| Darbības mitrums | 10 - 90 % |
| Darbības temperatūra | 0 - 40 °C |
| Uzglabāšanas mitrums (ne-darbības) | 5 - 90 % |
| Uzglabāšanas temperatūra | -40 - 70 °C |
| Dziļums | 142 mm |
| Augstums | 40 mm |
| Platums | 200 mm |
| Instrukcija iekļauta | Jā |
| AC adapteris iekļauts | Jā |
| Ilgtspējamības atbilstība | Jā |
| Sertifikāti | CE/Federal Communications Commission (FCC)/RoHS |
| Modeļa nosaukums | 16-Port 10/100Mbps Desktop Switch |
