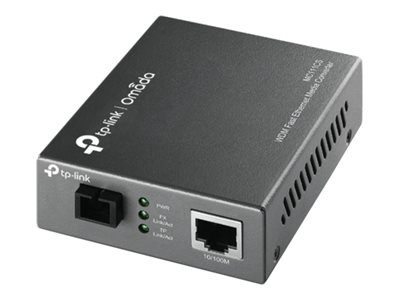

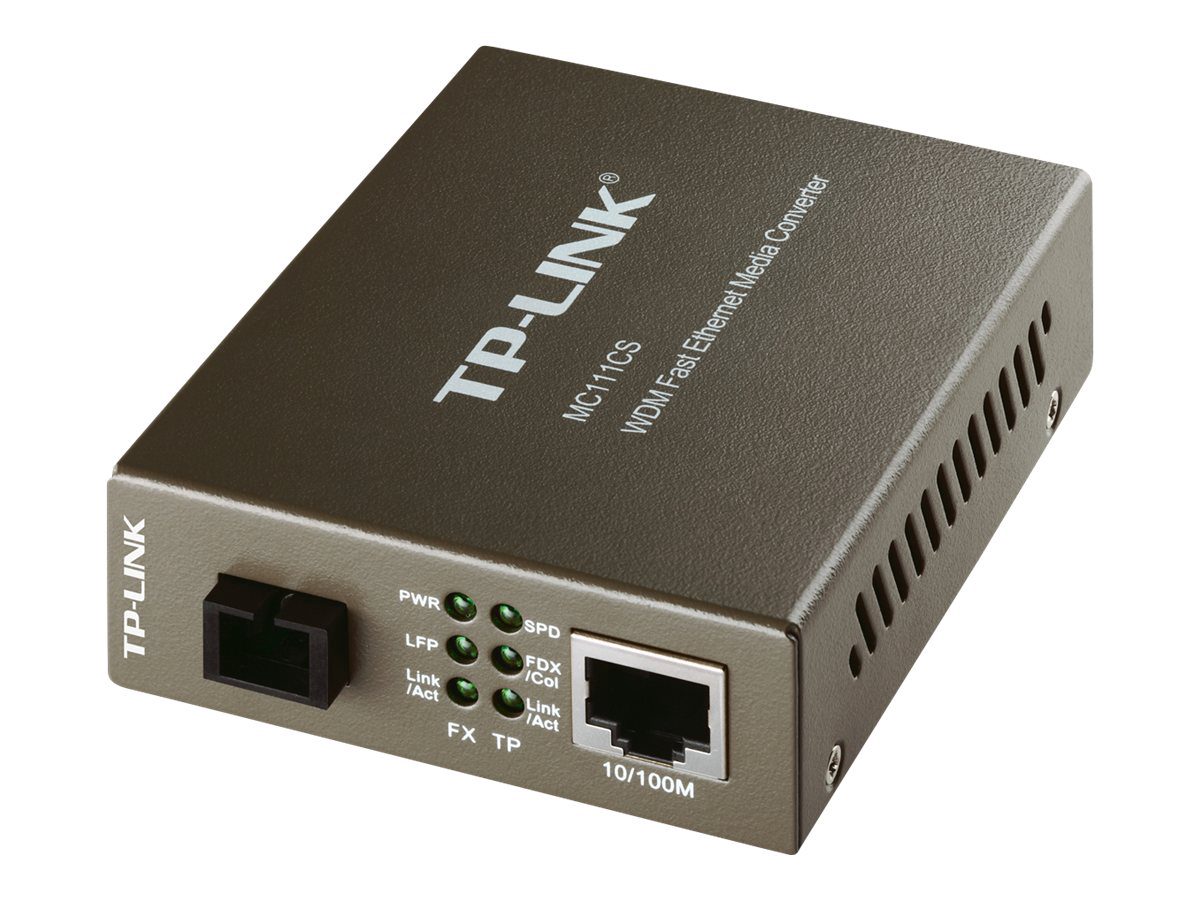

VDM Media Converter, MC111CS, 10/100M RJ45 port
TP-LINK · 6935364030414
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 60 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 6935364030414
- Zīmols
- TP-LINK
Apraksts
What This Product Does
The MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-LINK´s media converter MC112CS is just one of the examples to cooperate with MC111CS.

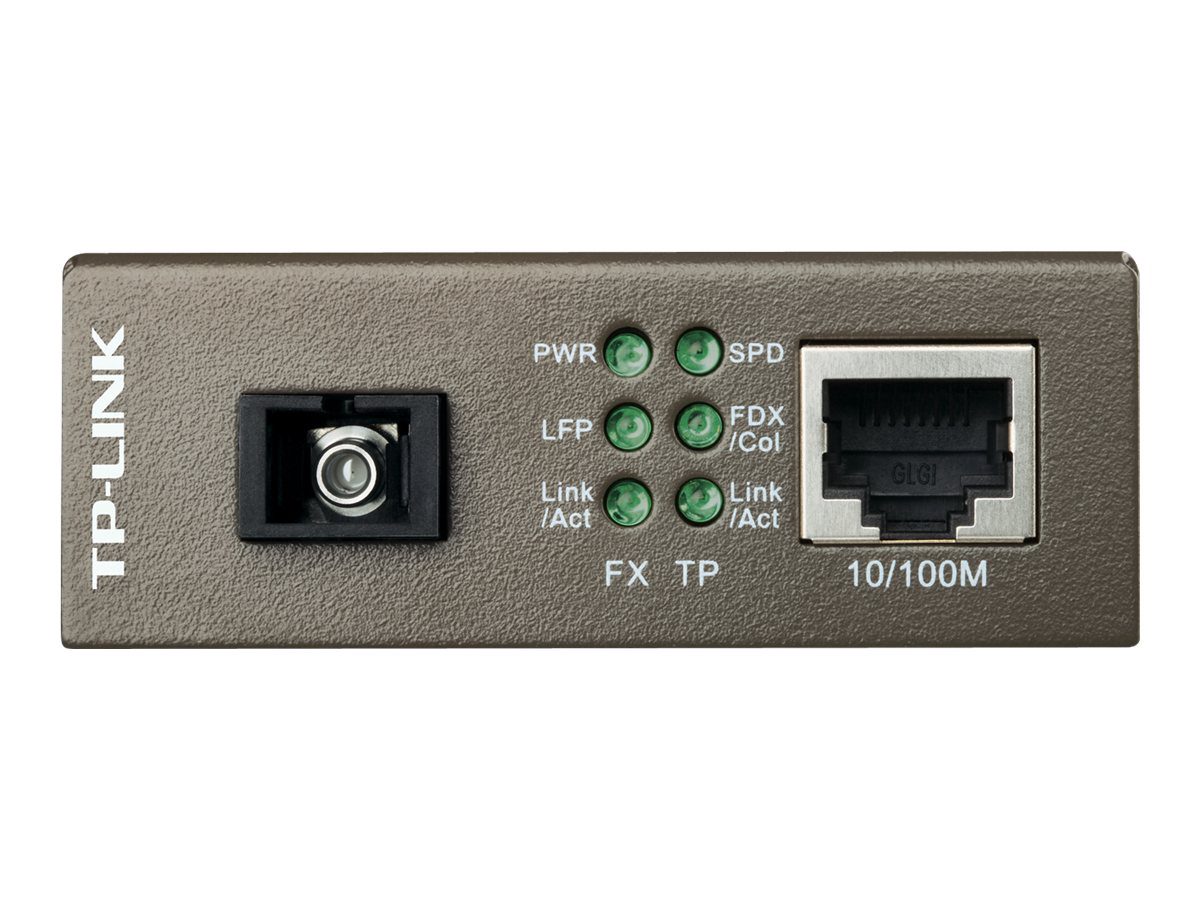

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
- Adopts WDM technology, transmitting and receiving data on one single fiber
Specifikācija
| Auto MDI/MDI-X | Jā |
| Kabeļa veids | Cat3/Cat4/Cat5/Cat5e |
| Ethernet veids | Gigabit Ethernet |
| Ethernet datu pārsūtīšanas ātrumi | 1000 Mbit/s |
| Kabeļu tehnoloģija | 100BASE-FX |
| Maksimālais datu pārsūtīšanas ātrums | 1000 Mbit/s |
| Tīkla standardi | IEEE 802.3/IEEE 802.3u/IEEE 802.3x |
| Optiskā vlakna režīma struktūra | Single-mode |
| Maksimālais pārsūtīšanas attālums | 20000 m |
| Viļņa garums | 1550 nm |
| Iekšējais | Nē |
| LED indikatori | Activity/Power |
| Krāsa | Melns |
| Savienojuma tehnoloģija | Vadu |
| Ethernet (RJ-45) portu skaits | 1 |
| Optiskā šķiedra savienotājs | SC |
| Optiskā šķiedra porti | 1 |
| Maksimālais enerģijas patēriņš | 1.23 W |
| Dziļums | 73 mm |
| Augstums | 27 mm |
| Platums | 94.5 mm |
| Darbības mitrums | 10 - 90 % |
| Darbības temperatūra | 0 - 40 °C |
| Uzglabāšanas mitrums (ne-darbības) | 5 - 90 % |
| Uzglabāšanas temperatūra | -40 - 70 °C |
| Sertifikācija | FCC, CE |
| Sertifikāti | RoHS |
| Pilnduplexa režīms | Jā |
| Saskares | 1x 100M SC 1x 100M RJ45 |
