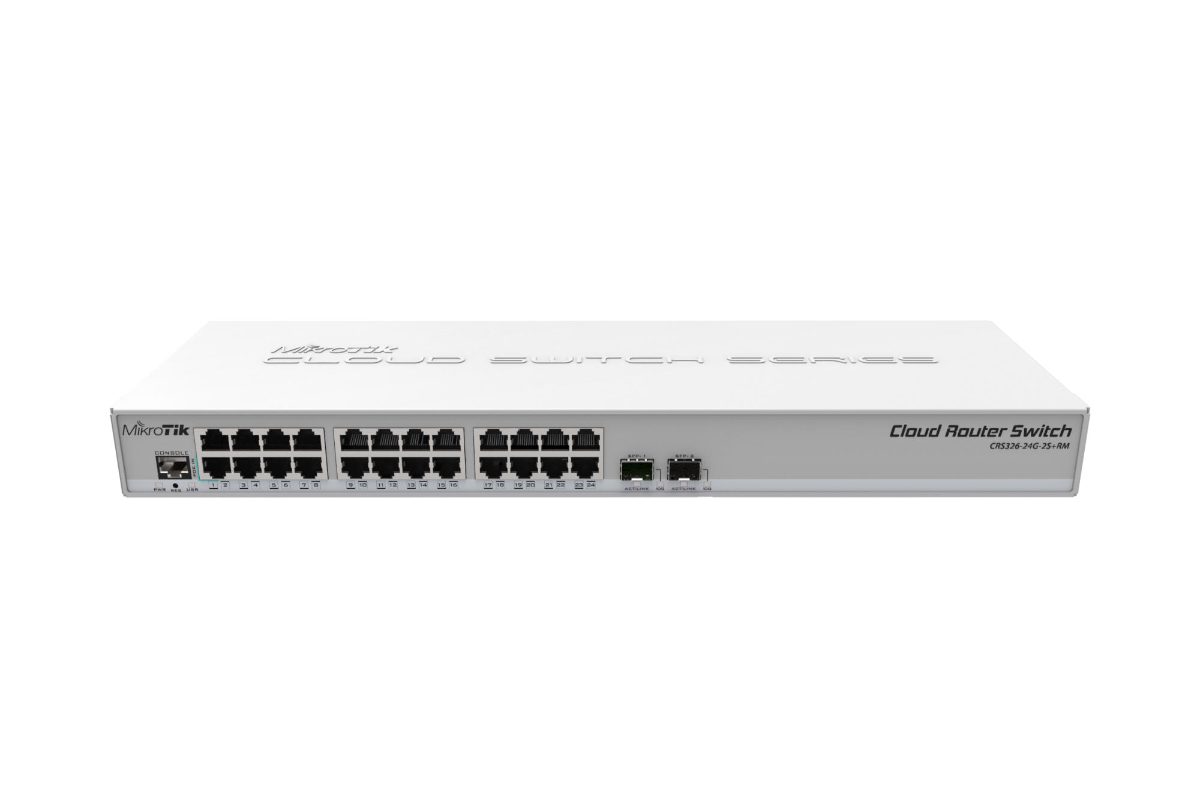

Cloud Router Switch CRS326-24G-2S+RM, Managed L3, Rackmountable
Cloud Router Switch CRS326-24G-2S+RM, Managed L3, Rackmountable, Gigabit Ethernet (copper) ports quantity 24, SFP+ ports quantity 2, 12 month(s)
MikroTik · 4752224002198
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 12 mo.
- Invoice: with every order
- EAN
- 4752224002198
- Brand
- MikroTik
Description
SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!
It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Specifications
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Ethernet (RJ-45) ports | 24 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| Console port type | RJ-45 |
| SFP+ module slots | 2 |
| 10 Gigabit support | Yes |
| Broadcast storm control | Yes |
| Networking standards | IEEE 802.1Q |
| Number of VLANs | 4000 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Access control list (ACL) | Yes |
| Security algorithms | SNMP |
| Colour | Grey |
| Built-in processor | Yes |
| Compatible operating systems | RouterOS, SwitchOS |
| Flash memory | 16 MB |
| Memory capacity | 512 MB |
| Processor frequency | 800 MHz |
| Power consumption (max) | 24 W |
| Power supply included | Yes |
| Operating temperature | -40 - 60 °C |
| Depth | 144 mm |
| Height | 44 mm |
| Width | 440 mm |
| Rack mount kit included | Yes |
| AC adapter included | Yes |
