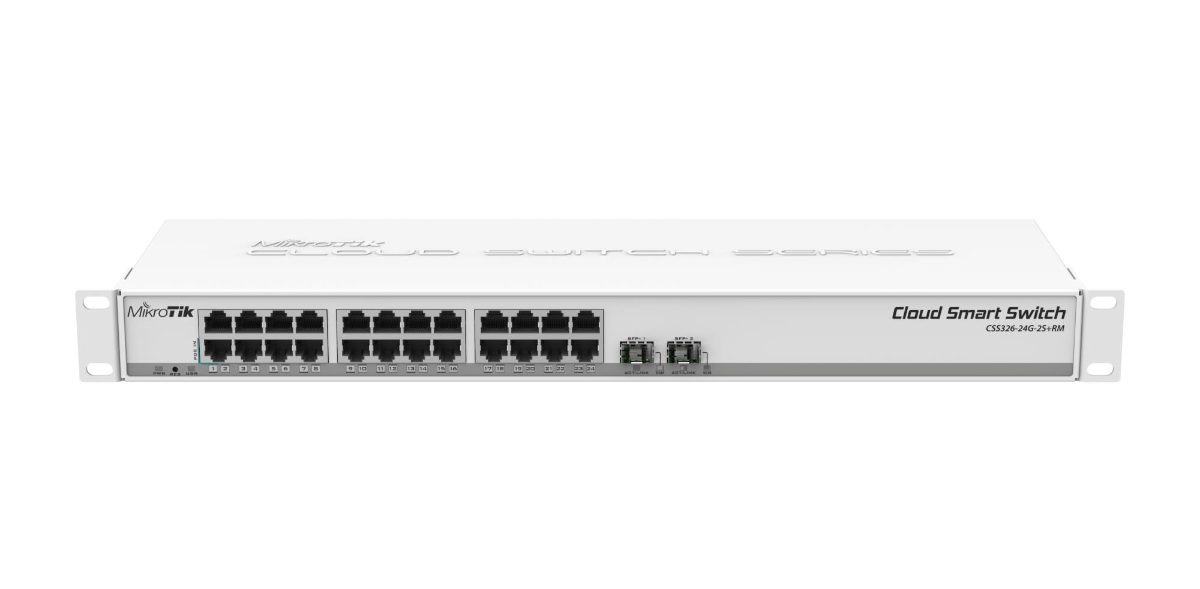

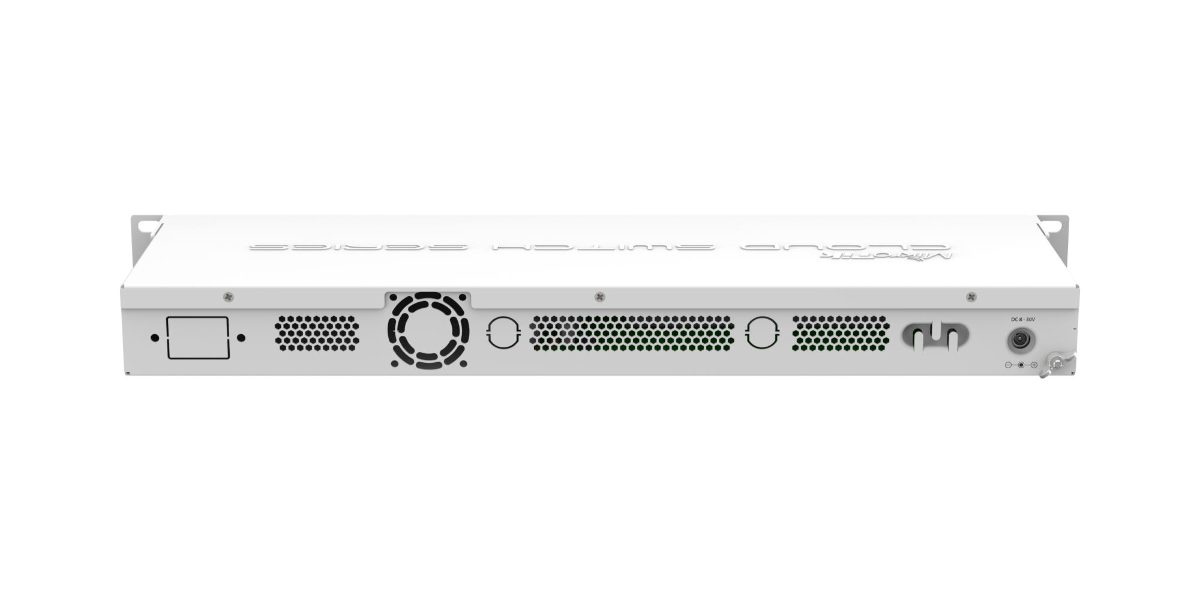

Cloud Smart Switch, CSS326-24G-2S+RM, Managed L2, Rackmountable
Cloud Smart Switch, CSS326-24G-2S+RM, Managed L2, Rackmountable, Gigabit Ethernet (copper) ports quantity 24, SFP+ ports quantity 2, 12 month(s)
MikroTik · 4752224002334
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 12 mo.
- Invoice: with every order
- EAN
- 4752224002334
- Brand
- MikroTik
Description
SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features.
The device is powered by a Marvell DX switch chip. The device is running an operating system designed specifically for MikroTik switch products - SwOS. SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Specifications
| Switch type | Managed |
| Web-based management | Yes |
| Ethernet (RJ-45) ports | 24 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| SFP+ module slots | 2 |
| 10 Gigabit support | Yes |
| Broadcast storm control | Yes |
| Networking standards | IEEE 802.1Q |
| Number of VLANs | 4000 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Access control list (ACL) | Yes |
| MAC address filtering | Yes |
| Security algorithms | SNMP |
| Form factor | 1U |
| Colour | White |
| Rack mountable | Yes |
| Reset button | Yes |
| Built-in processor | Yes |
| Flash memory | 2 MB |
| Memory capacity | 2 MB |
| Number of power supply units | 1 |
| Power consumption (typical) | 19 W |
| Power source | DC/PoE |
| Power supply included | Yes |
| Power over Ethernet | Yes |
| PoE type supported | Passive PoE |
| PoE voltage range | 10 - 30 V |
| Operating temperature | -40 - 70 °C |
| Depth | 144 mm |
| Height | 44 mm |
| Width | 440 mm |
| Manual included | Yes |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Model name | CSS326-24G-2S+RM |
