NET ROUTER IOT GATEWAY LTE4/KNOT EC25-EU&KNE MIKROTIK
MIKROTIK · 4752224009883
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 12 mo.
- Invoice: with every order
- EAN
- 4752224009883
- Brand
- MIKROTIK
Description
Industrial LTE/BLE/GNSS connectivity that fits anywhere. Originally designed for coffee and vending machines – perfect for all kinds of industrial automation.

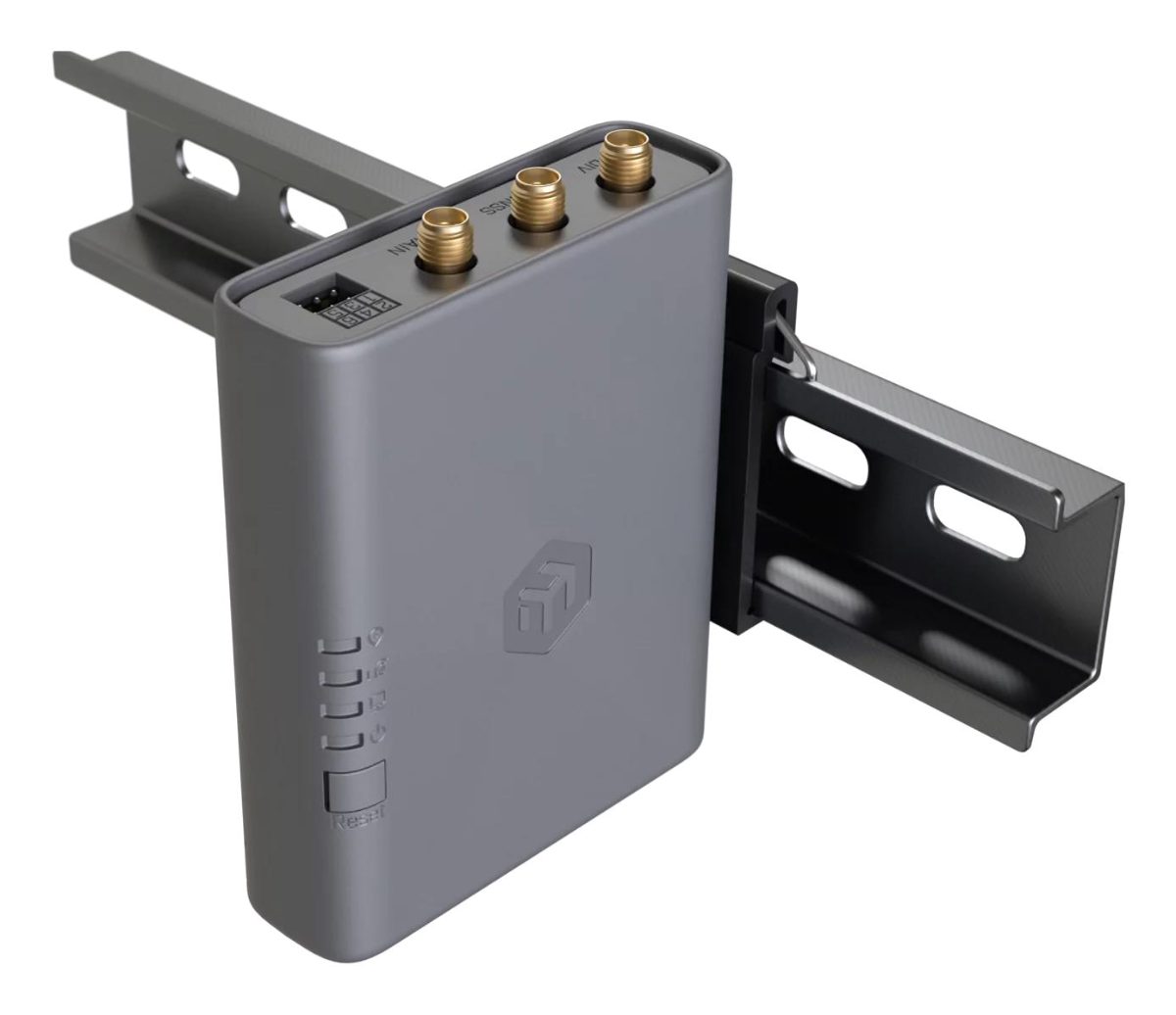

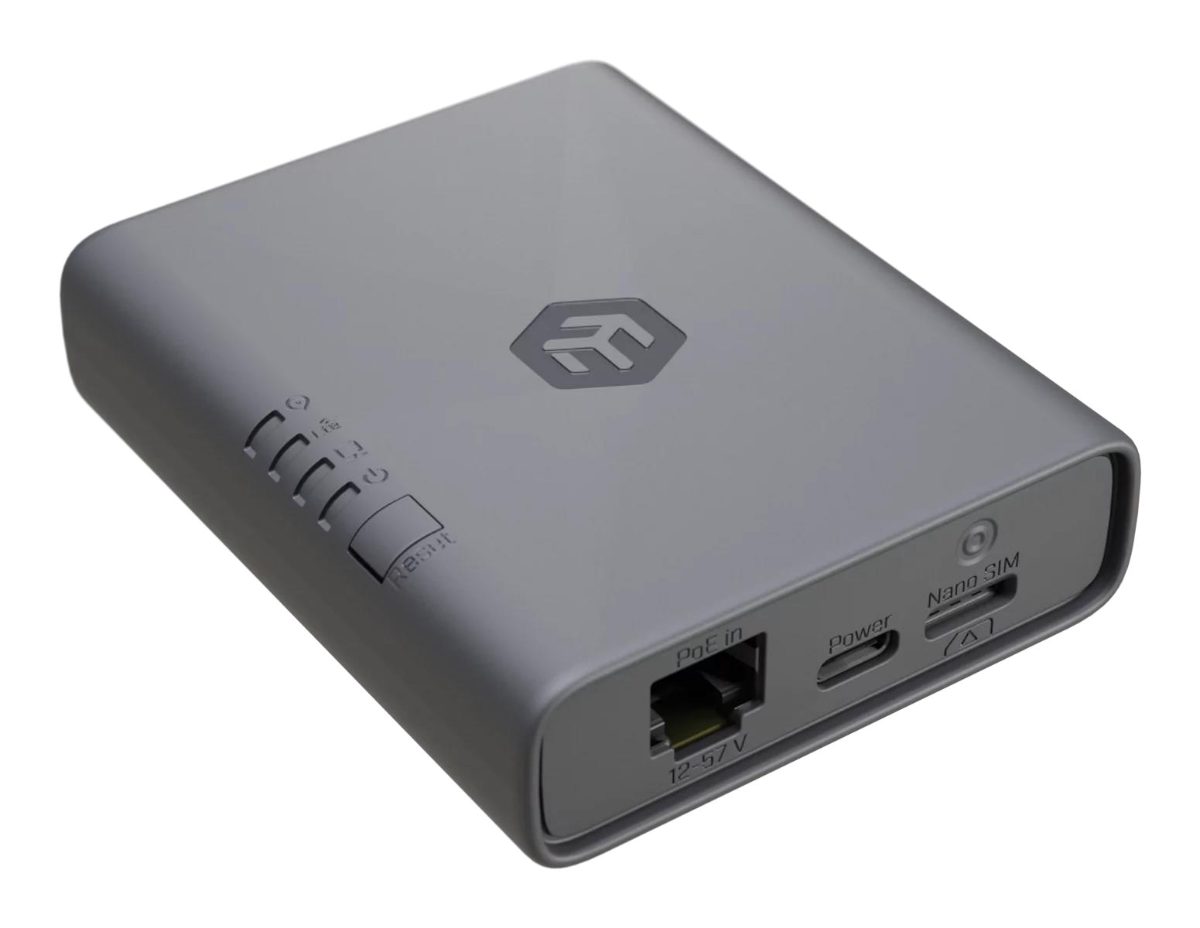

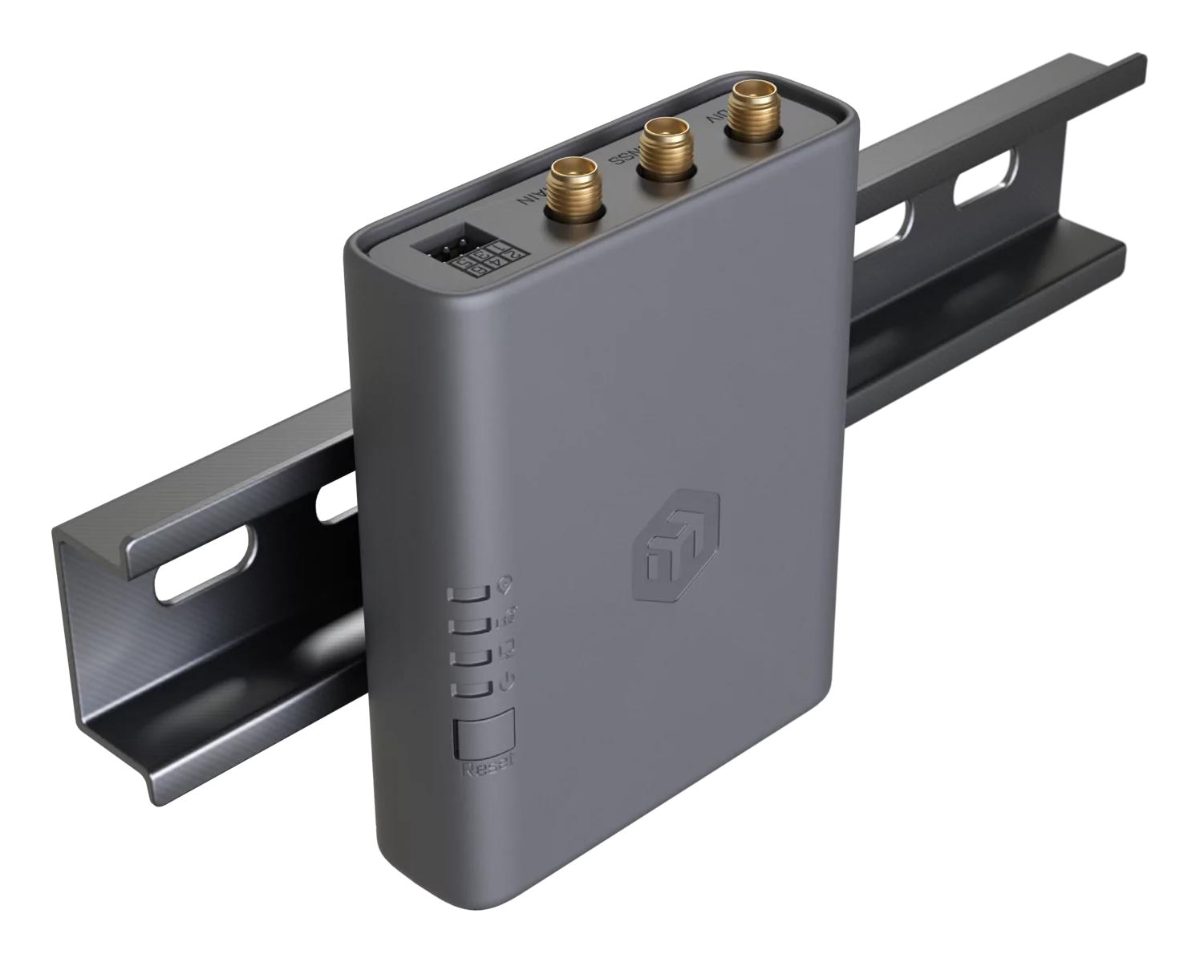

KNOT Embedded LTE4 is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.
Use it as a primary gateway, a backup link, or an IoT data collection node – everything is powered by RouterOS for maximum flexibility.
Sensor-ready GPIO header
For simple automation and monitoring (Digital input/Analog Input/OD output). All pins are 24V tolerant.
Powered by RouterOS
Full networking stack, VPNs, firewall, SMS control and notifications, automation, remote management, and so much more!
Whether you’re building a new system or adding LTE to an existing installation, KNOT Embedded LTE4 adapts easily. It’s easy to integrate, easy to deploy, and built to perform in harsh environments – from smart city deployments to industrial automation and mobile tracking.
Specifications
| LED indicators | Yes |
| Mounting type | DIN-rail |
| Colour | Grey |
| Antenna connector type | SMA |
| Antenna type | Internal |
| GPS | Yes |
| MTBF | 100000 h |
| SMS | Yes |
| Built-in processor | Yes |
| Memory capacity | 256 MB |
| Number of processors installed | 1 |
| Processor family | ARM Cortex |
| Processor frequency | 1200 MHz |
| Processor manufacturer | ARM |
| Processor model | Cortex-A7 |
| SSD capacity | 512 GB |
| 4G FDD-LTE bands supported | 800,900,1800,2100,2600,700 MHz |
| LTE category | 4 |
| 4G TDD-LTE bands supported | 2600,2500,2300 MHz |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.1 |
| Data networks | 2G/3G/4G/LTE |
| Ethernet data rates | 10/100/1000 Mbit/s |
| Mobile network generation | 4G |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Ethernet (RJ-45) ports | 1 |
| Number of simultaneous SIM cards | 1 |
| SIM card slot | Yes |
| SIM card type | NanoSIM + eSIM |
| Management platform | RouterOS v7 |
| Input voltage | PoE 12-57, USB-C 5 V |
| Power consumption (typical) | 7 W |
| Power over Ethernet | Yes |
| AC adapter included | Yes |
| Operating temperature | -40 - 70 °C |
| Certificates | CE/EAC/RoHS |
| Model | KNOT Embedded LTE4 |
| Net weight | 0.1 kg |
