NET ROUTER IOT GATEWAY LTE4/KNOT EC25-EU&KNE MIKROTIK
MIKROTIK · 4752224009883
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 12 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4752224009883
- Zīmols
- MIKROTIK
Apraksts
Industrial LTE/BLE/GNSS connectivity that fits anywhere. Originally designed for coffee and vending machines – perfect for all kinds of industrial automation.

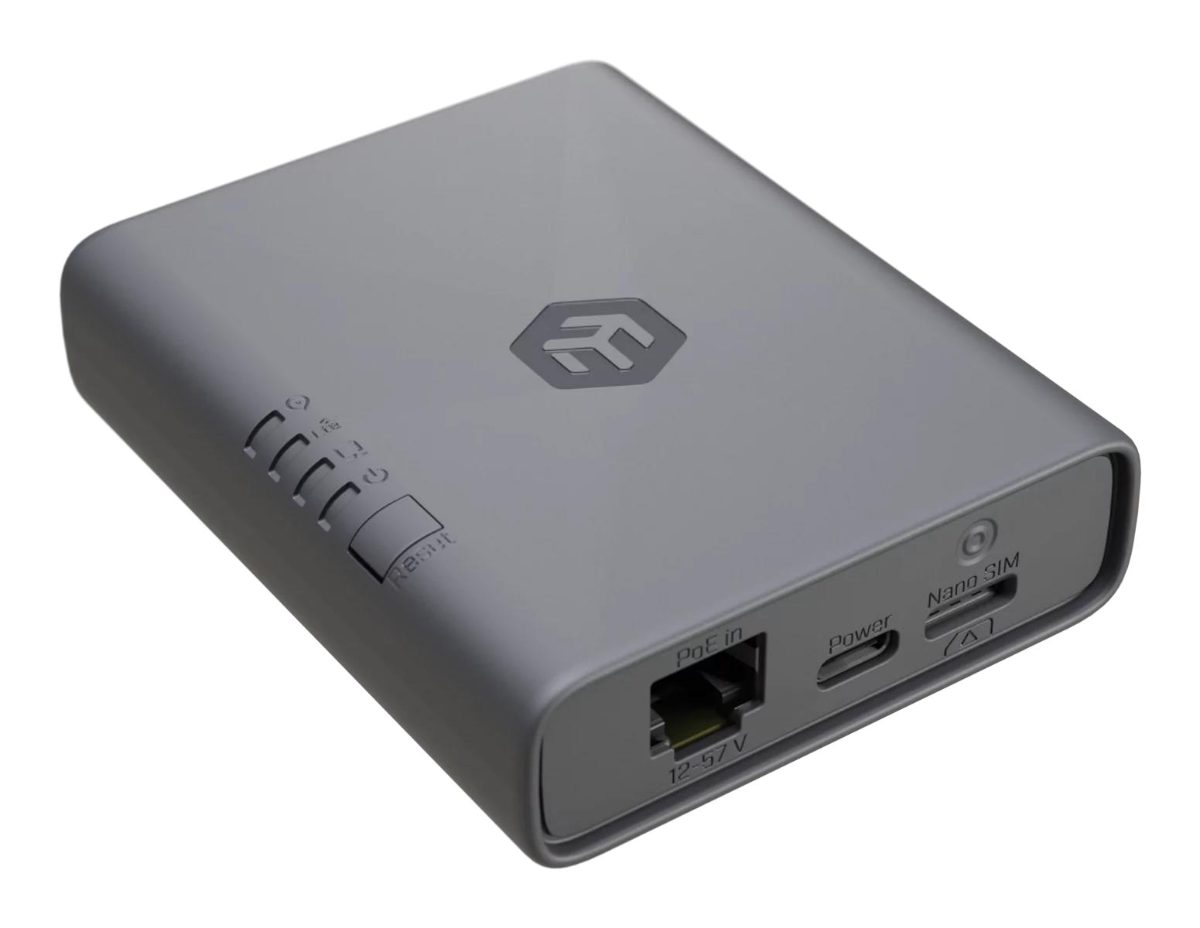

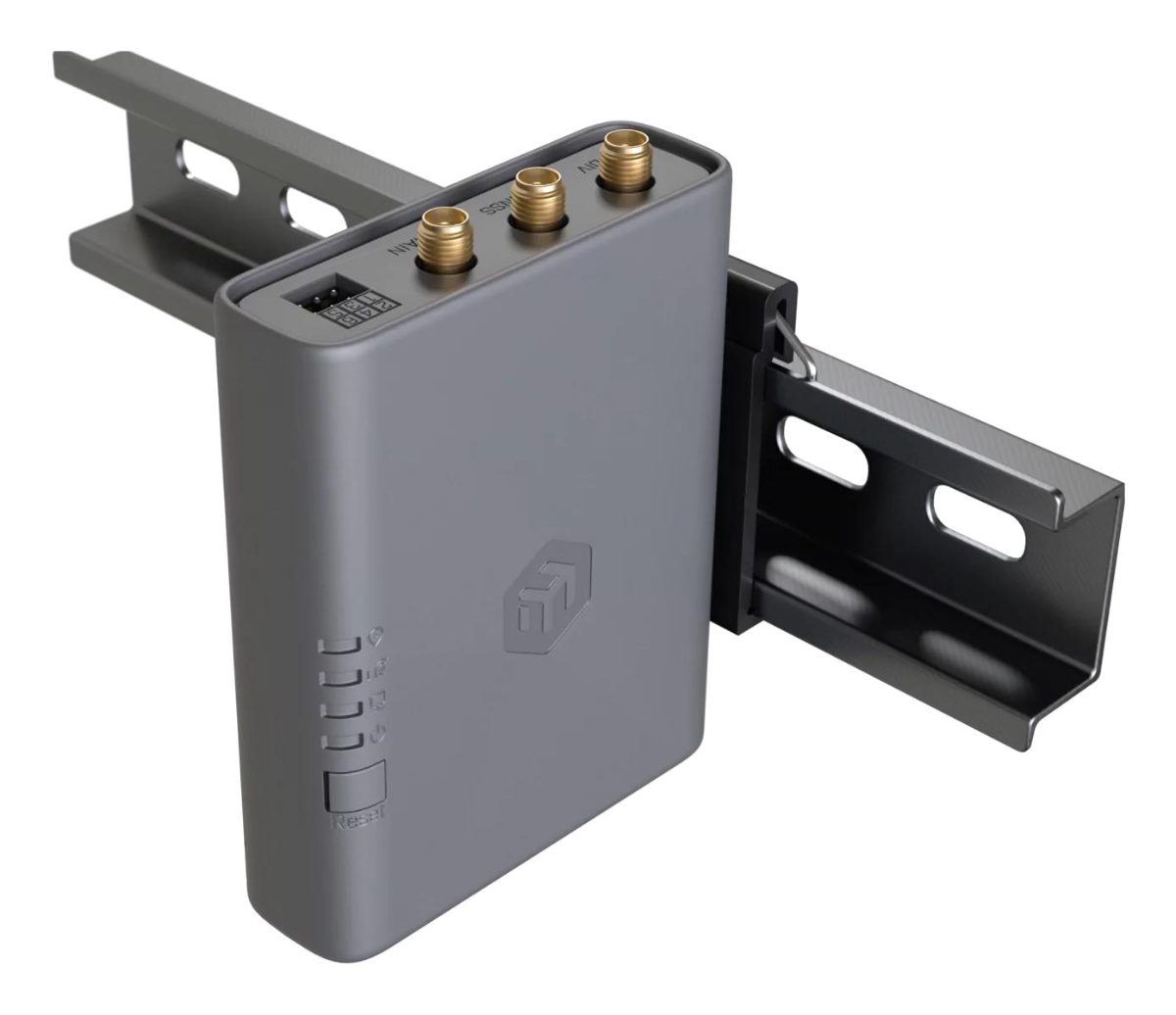

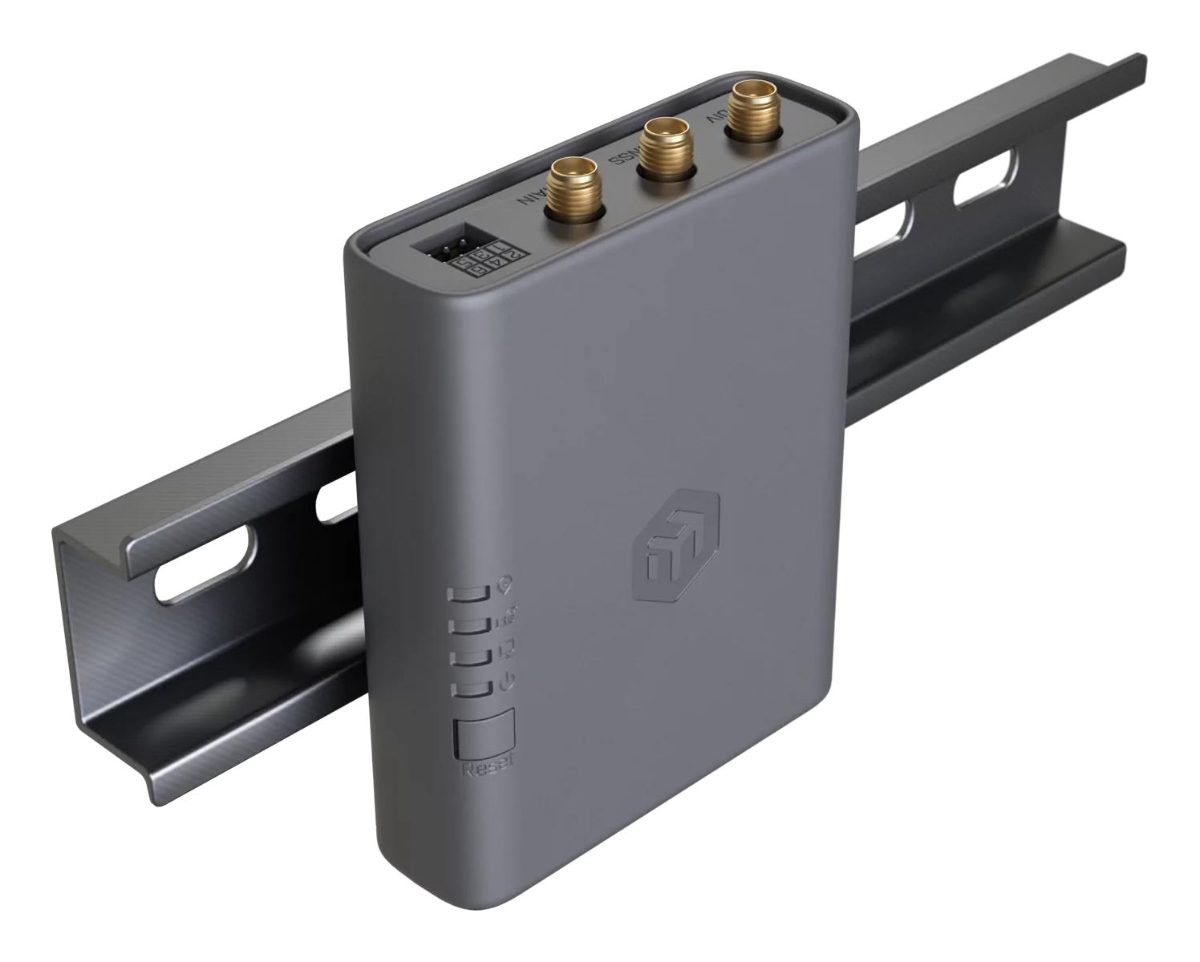

KNOT Embedded LTE4 is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.
Use it as a primary gateway, a backup link, or an IoT data collection node – everything is powered by RouterOS for maximum flexibility.
Sensor-ready GPIO header
For simple automation and monitoring (Digital input/Analog Input/OD output). All pins are 24V tolerant.
Powered by RouterOS
Full networking stack, VPNs, firewall, SMS control and notifications, automation, remote management, and so much more!
Whether you’re building a new system or adding LTE to an existing installation, KNOT Embedded LTE4 adapts easily. It’s easy to integrate, easy to deploy, and built to perform in harsh environments – from smart city deployments to industrial automation and mobile tracking.
Specifikācija
| LED indikatori | Jā |
| Montāžas veids | DIN-rail |
| Krāsa | Pelēks |
| Antenas savienotāja veids | SMA |
| Antenas veids | Iekšējs |
| GPS | Jā |
| MTBF | 100000 h |
| SMS | Jā |
| Iebūvēts procesors | Jā |
| Atmiņas ietilpība | 256 MB |
| Instalēto procesoru skaits | 1 |
| Procesora saime | ARM Cortex |
| Procesora frekvence | 1200 MHz |
| Procesora ražotājs | ARM |
| Procesora modelis | Cortex-A7 |
| SSD ietilpība | 512 GB |
| Atbalstītie 4G FDD-LTE joslas | 800,900,1800,2100,2600,700 MHz |
| LTE kategorija | 4 |
| Atbalstītie 4G TDD-LTE joslas | 2600,2500,2300 MHz |
| Bluetooth | Jā |
| Bluetooth Low Energy (BLE) | Jā |
| Bluetooth versija | 5.1 |
| Datu tīkli | 2G/3G/4G/LTE |
| Ethernet datu pārsūtīšanas ātrumi | 10/100/1000 Mbit/s |
| Mobilo sakaru paaudze | 4G |
| Tīkla standardi | IEEE 802.3af/IEEE 802.3at |
| Ethernet (RJ-45) portu skaits | 1 |
| Vienlaicīgu SIM karšu skaits | 1 |
| SIM kartes slots | Jā |
| SIM kartes veids | NanoSIM + eSIM |
| Vadības platforma | RouterOS v7 |
| Ieejas spriegums | PoE 12-57, USB-C 5 V |
| Tipiska enerģijas patēriņa | 7 W |
| Power over Ethernet | Jā |
| AC adapteris iekļauts | Jā |
| Darbības temperatūra | -40 - 70 °C |
| Sertifikāti | CE/EAC/RoHS |
| Modelis | KNOT Embedded LTE4 |
| Neto svars | 0.1 kg |
