Switch, AXIS, D8248, Switch type Managed, Switch layer L2
Switch, AXIS, D8248, Switch type Managed, Switch layer L2, Rack mounting Yes, 48xRJ-45 ports, RJ-45 Ports Type Gigabit Ethernet (10/100/1000), 4xFiber ports quantity, 10G support Yes, Power over Ethernet (PoE) Yes, 48xPower over Ethernet 4PPoE (PoE++) ports quantity, Total Power over Ethernet (PoE) budget 740 W, 02620-002
AXIS · 7331021080171
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021080171
- Brand
- AXIS
Description

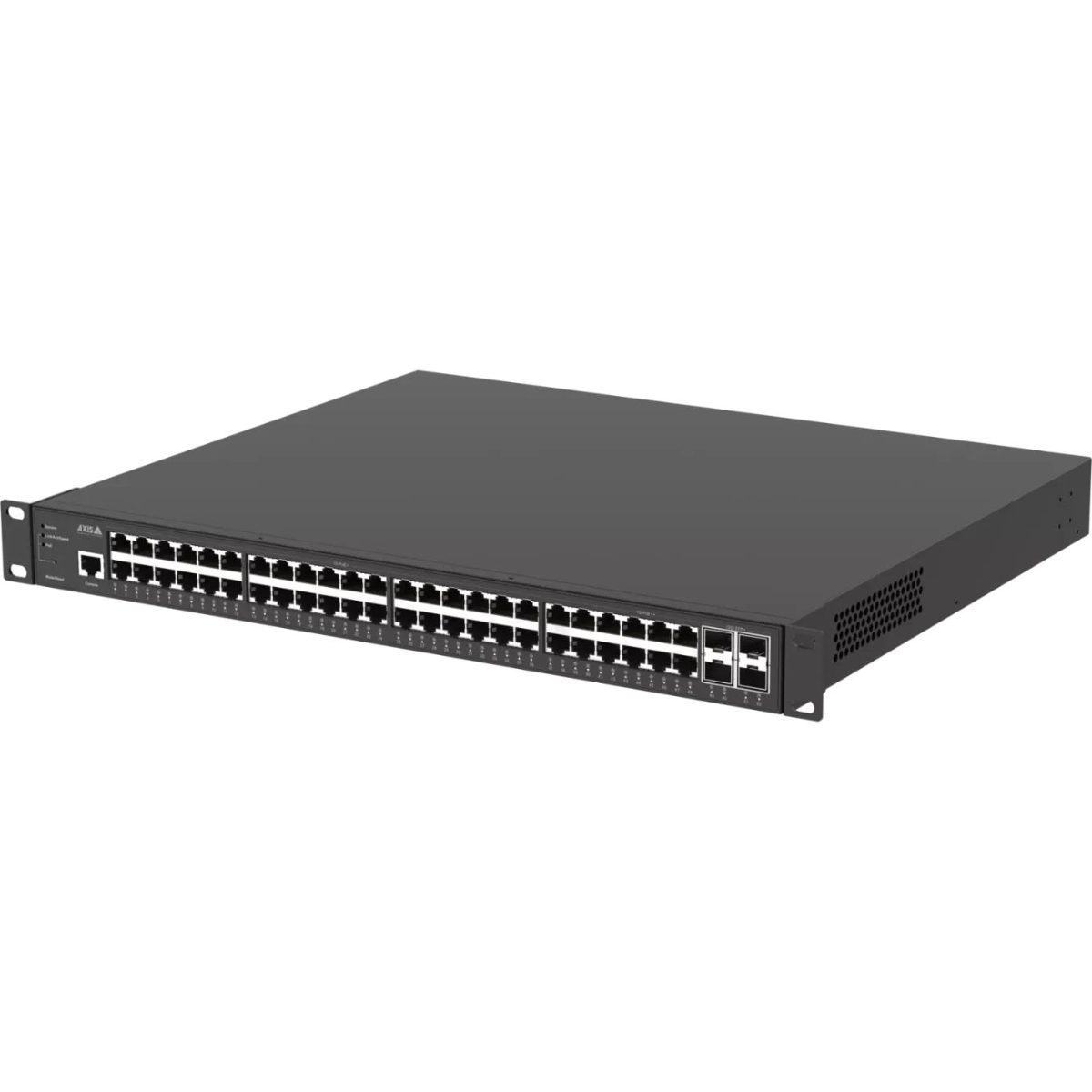

AXIS D8248 Managed PoE++ Switch
This 48 port network switch is optimized for surveillance solutions. With a unique web graphic user interface, it offers a topology for easy overview and management of all devices in the system.
Perfect match for Axis surveillance solutions
AXIS D8248 Managed PoE++ Switch is made for the surveillance industry and a perfect complement to Axis recorders such as AXIS Camera Station S12 Series. It has a total power budget of 740 W, and it is equipped with four additional SFP+ ports, allowing high speed data traffic over long distances. This 48-port switch supports PoE class 4, and eight of these ports offer up to 90 W per port. Additional power can also be added by connecting midspans.
Total overview of your devices
Featuring a unique web user interface, this switch offers a graphic topology for an overview of all devices in the system. With access to all information, statuses, and notifications about your connected devices, you can easily manage all devices, reboot cameras in the system, monitor network traffic, perform cable diagnostics, and much more.
Specifications
| ARP inspection | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ethernet (RJ-45) ports | 48 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| Fiber optic connector | SFP+ |
| Fiber ports | 4 |
| 10 Gigabit support | Yes |
| Cabling technology | 1000BASE-T/100BASE-T/10BASE-T/10GBASE-LR |
| Networking standards | IEEE 802.3at/IEEE 802.3bt |
| VLAN support | Yes |
| Jumbo frame size | 10240 |
| Jumbo frames | Yes |
| MAC address table size | 32000 entries |
| Switching capacity | 176 Gbit/s |
| Throughput | 130.944 Mpps |
| Access control list (ACL) | Yes |
| DHCP features | DHCP server/DHCP snooping |
| Loop protection | Yes |
| Password protection | Yes |
| Security algorithms | 802.1x RADIUS/HTTPS/TLS |
| Network protocols | IPv4, IPv6, HTTP, HTTPS, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnPa, SNMP v1/v2c/v3 , DNS/DNSv6, NTP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-MED, STP, MSTP, RSTP, LACP |
| Material | Steel |
| Colour | Black |
| Rack mountable | Yes |
| Input frequency | 50/60 Hz |
| Input voltage | 110 - 240 V |
| Power protection | Surge protection |
| Power source | AC |
| Power over Ethernet | Yes |
| PoE power per port | 90 W |
| PoE type supported | PoE++ (4PPoE) |
| PoE port count | 48 |
| Total PoE budget | 740 W |
| Operating humidity | 0 - 95 % |
| Operating temperature | 0 - 45 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -20 - 70 °C |
| Depth | 376 mm |
| Height | 44 mm |
| Weight | 5620 g |
| Width | 483 mm |
| Cables included | AC |
| Free from | CFR/PVC/BFR |
| Certificates | CE/cUL/Federal Communications Commission (FCC)/ICES/MIC/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UL/VCCI |
| Model name | D8248 |
