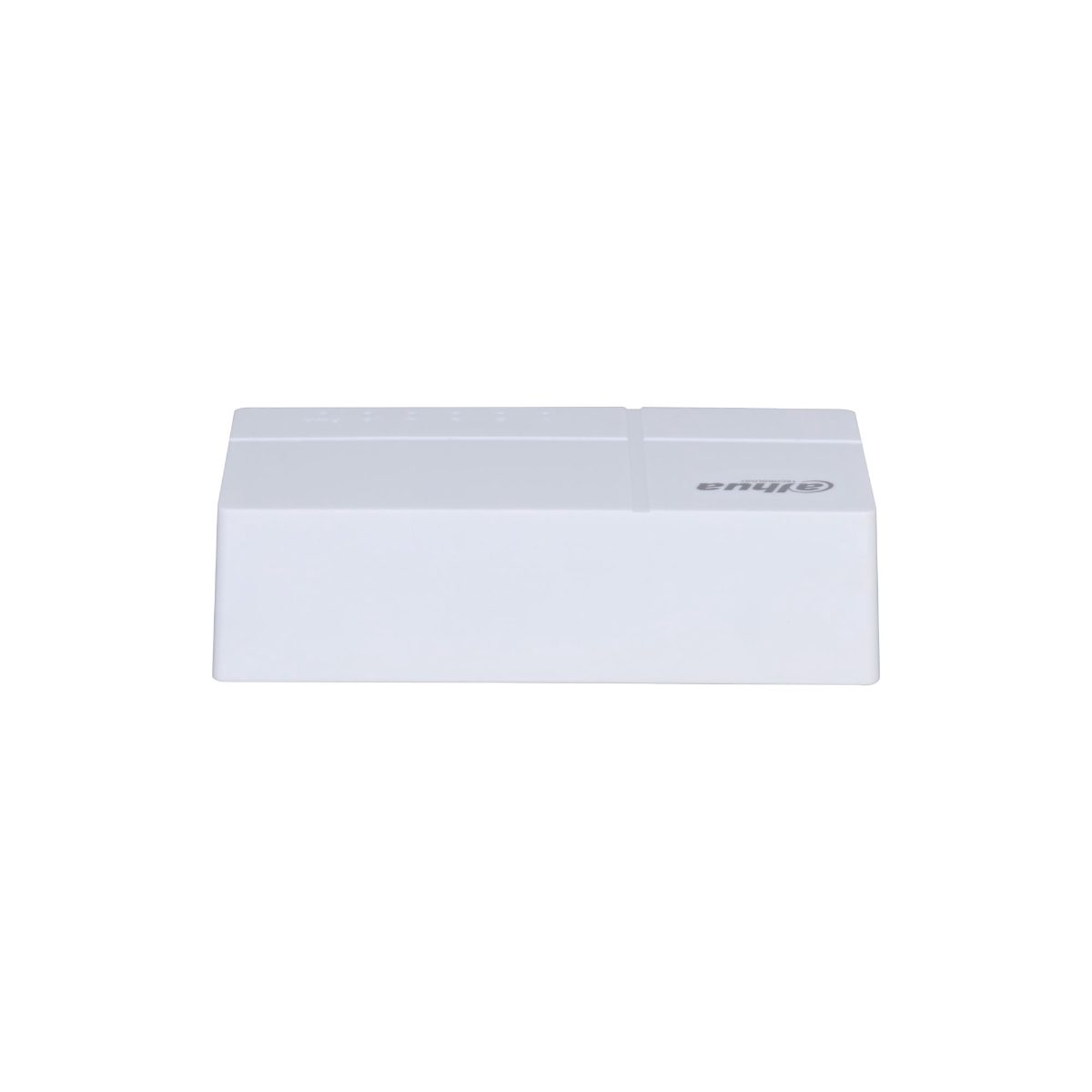

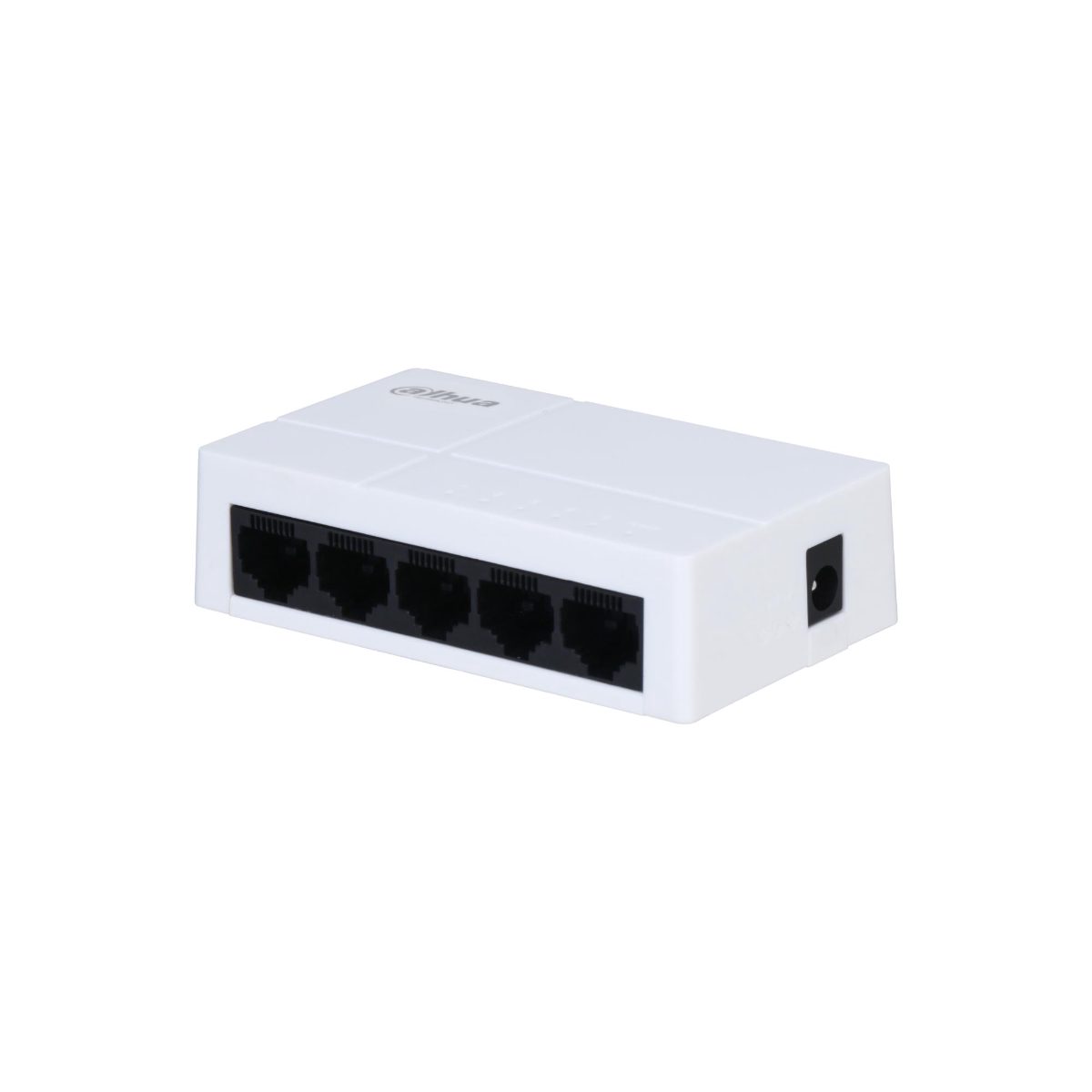

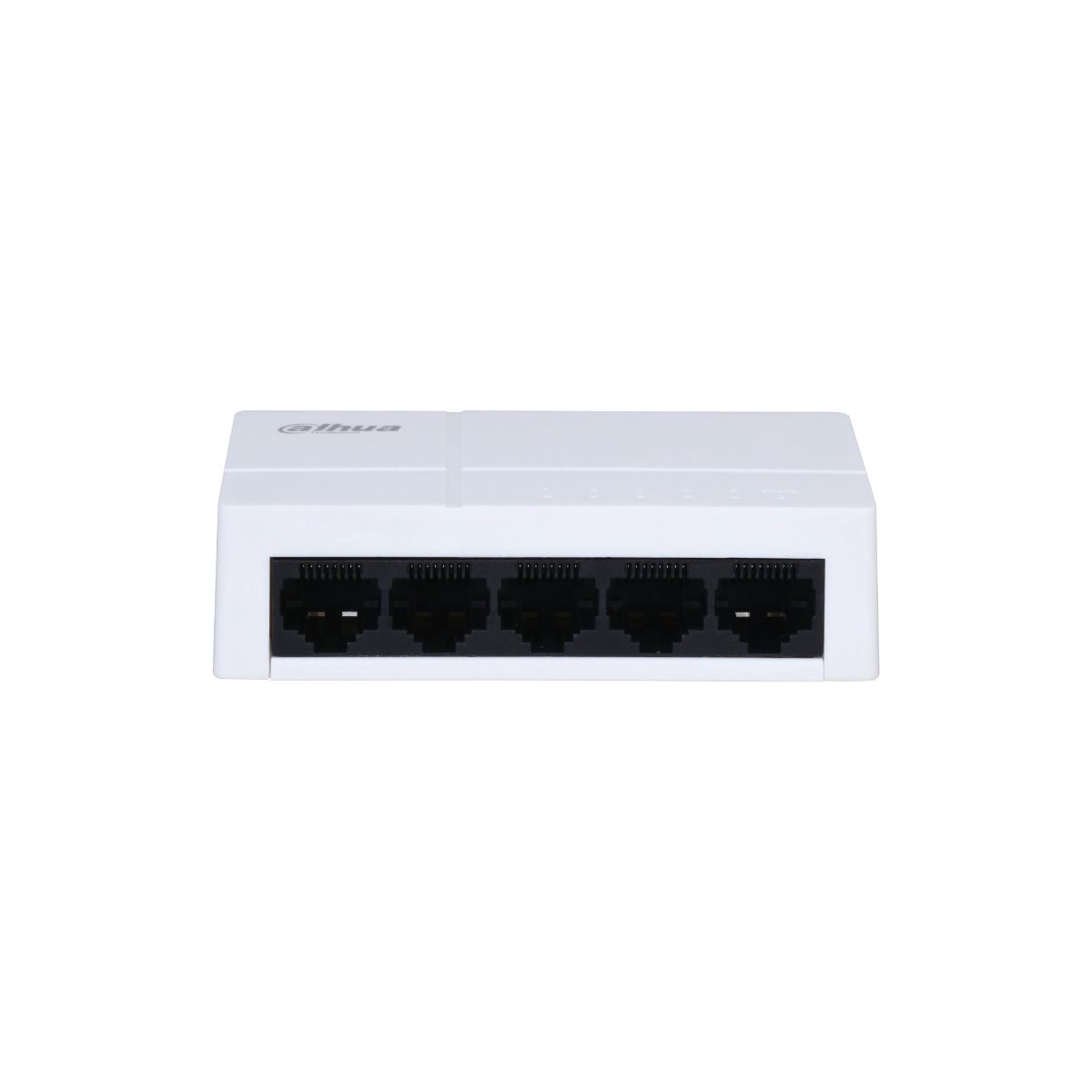

Switch, DAHUA, PFS3005-5GT-L-V2, Type L2, DH-PFS3005-5GT-L-V2
DAHUA · 6923172582010
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 6923172582010
- Brand
- DAHUA
Description
The Device is a layer-2 commercial switch. It has a high-performance
switching engine and a large buffer memory to ensure smooth video
stream transmission. With a plastic and fanless design, the device
provides a more cost-effective option for customers. The Device is an
unmanaged switch, so it does not need to be configured through web
interface, which simplifies installation
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance
All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
- Supports five 10/100/1000 Mbps adaptive ports
- Small and light, it is easy to carry and has multiple chips embedded in it
- Easy to operate
Specifications
| Switch layer | L2 |
| Switch type | Unmanaged |
| Ethernet (RJ-45) ports | 5 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports | 5 |
| 10 Gigabit support | No |
| Cabling technology | 1000BASE-T/100BASE-T/10BASE-T |
| Forwarding rate | 7.44 Mpps |
| MAC address table size | 2000 entries |
| Packet buffer memory | 1 MB |
| Switching capacity | 10 Gbit/s |
| Material | Plastic |
| Colour | White |
| Rack mountable | No |
| MTBF | 3184161.84 h |
| Plug and Play | Yes |
| Input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 1.5 W |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet | No |
| Operating humidity | 5 - 95 % |
| Operating temperature | 0 - 45 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -40 - 70 °C |
| Depth | 86.4 mm |
| Height | 23 mm |
| Weight | 120 g |
| Width | 52 mm |
| Sustainability compliance | Yes |
| Certificates | CE/Federal Communications Commission (FCC) |
| Model name | PFS3005-5GT-L-V2 |
