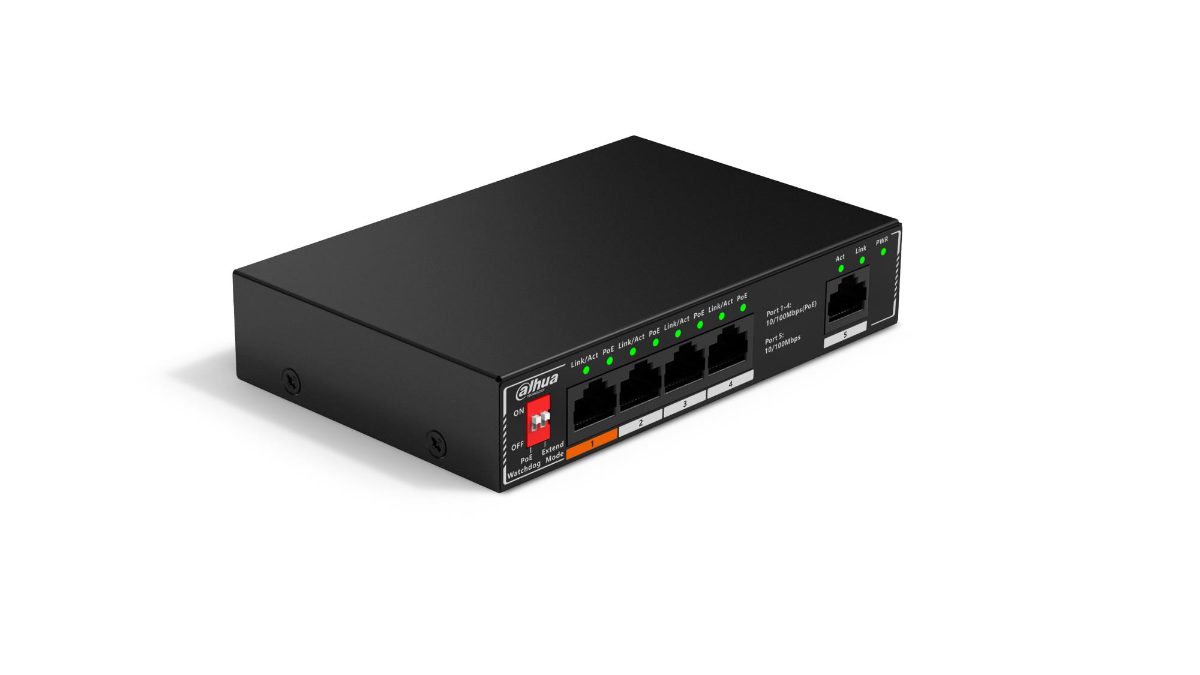

Switch, DAHUA, PoE ports 4, 60 Watts, SF1005P
DAHUA · 6923172571427
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 6923172571427
- Brand
- DAHUA
Description
DH-SF1005P is an unmanaged desktop switch with 4 × 10/100 Mbps PoE Ports. It provides 4 × 10/100 Mbps Ethernet ports and 1 × 10/100 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On and Extend Mode Off). It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Intelligent PoE
Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.
Hi-PoE 60W (Orange Port)
In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering high- power devices.
PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.
Long Distance PoE
Breaking the IEEE 100 m transmission limit, the device supports 250 m long distance PoE transmission with a more flexible networking.
8-pin Assignment PoE Power Supply
The 8-pin Ethernet port supports power supply, to enhance front-end and rear-end compatibility.
Reduce cable loss and promote loading capacity.
- Intelligent PoE
- Hi-PoE 60W (orange port)
- 8-pin assignment PoE power supply
- Long distance PoE
- PoE watchdog
- Wide working temperature
Specifications
| Switch layer | L2 |
| Switch type | Unmanaged |
| Ethernet (RJ-45) ports | 5 |
| Ethernet type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports | 5 |
| Uplink ports | 1 |
| 10 Gigabit support | No |
| Cable type | Cat5e/Cat6 |
| Cabling technology | 100BASE-TX/10BASE-T |
| Ethernet data rates | 10,100 Mbit/s |
| Flow control | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3x |
| Forwarding rate | 0.744 Mpps |
| Packet buffer memory | 0.125 MB |
| Switching capacity | 1.8 Gbit/s |
| LED indicators | Yes |
| Colour | Black |
| Rack mountable | No |
| Wall-mountable | Yes |
| Input voltage | 48 - 57 V |
| Power consumption (max) | 60 W |
| Power source | DC/PoE |
| Power over Ethernet | Yes |
| PoE port count | 4 |
| Total PoE budget | 60 W |
| Operating humidity | 5 - 95 % |
| Operating temperature | -10 - 55 °C |
| Depth | 85 mm |
| Height | 26 mm |
| Weight | 300 g |
| Width | 130 mm |
| Model | SF1005P |
