Switch, TELTONIKA, TSW100000000, PoE+ ports 4, 120 Watts, TSW100

Name: Switch, TELTONIKA, TSW100000000, PoE+ ports 4, 120 Watts, TSW100
Brand: TELTONIKA
SKU: 4779027312828

TELTONIKA · 4779027312828

—

The invoice is sent as soon as you order.

Out of stock

Payment: bank transfer or cash on delivery
Delivery: 1–3 working days, anywhere in Latvia
Warranty: 24 mo.
Invoice: with every order

EAN: 4779027312828
Brand: TELTONIKA

Description

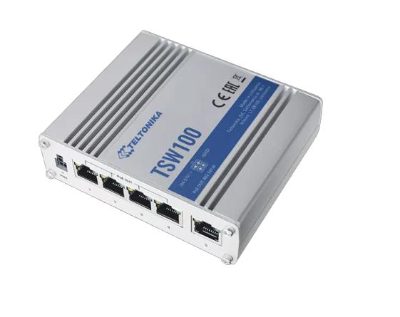

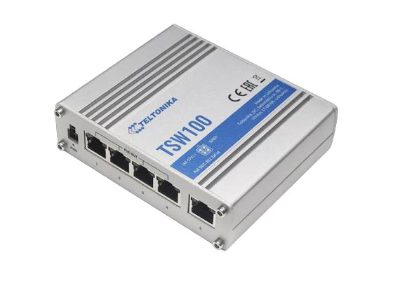

TSW100 – 5-port, unmanaged full Gigabit Ethernet switch supporting Power-over-Ethernet (802.3af and 802.3at standards). This device is classified as power source equipment (PSE), and when used in this way, TSW100 switch enables centralization of the power supply, providing up to 30 watts of power per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.

Specifications

Ethernet (RJ-45) ports	5
Ethernet type	Gigabit Ethernet (10/100/1000)
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3af/IEEE 802.3at/IEEE 802.3az
Jumbo frame size	9216
MAC address table size	2000 entries
Packet buffer memory	0.128 MB
Material	Aluminium
LED indicators	Power/Status
Colour	Blue/Metallic
Input voltage	7 - 58 V
Power consumption (max)	129 W
Power over Ethernet	Yes
PoE port count	4
PoE power per port	30 W
Total PoE budget	120 W
Operating humidity	10 - 90 %
Operating temperature	-40 - 75 °C
Depth	95 mm
Height	32 mm
Width	115 mm
Certification	CE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61000-4-3:2006 +
Model	TSW100
Model name	TSW100000000
