Switch, TELTONIKA, TSW2000000B0, PoE ports 8, 240 Watts, TSW200
TELTONIKA · 4779051840120
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 4779051840120
- Brand
- TELTONIKA
Description

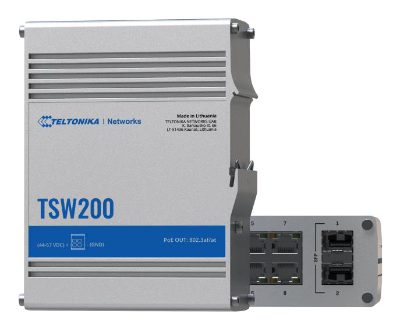

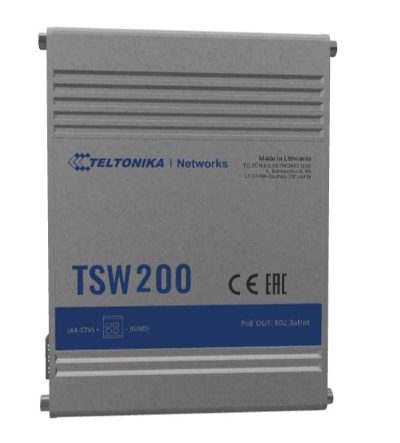

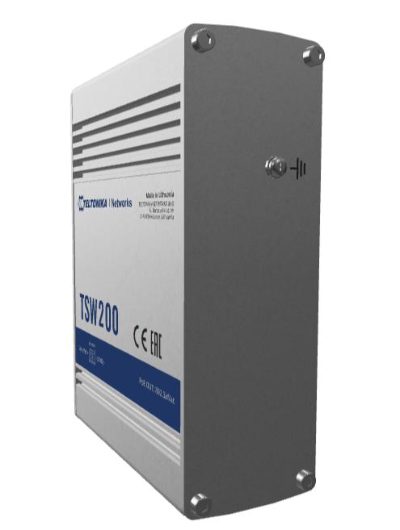

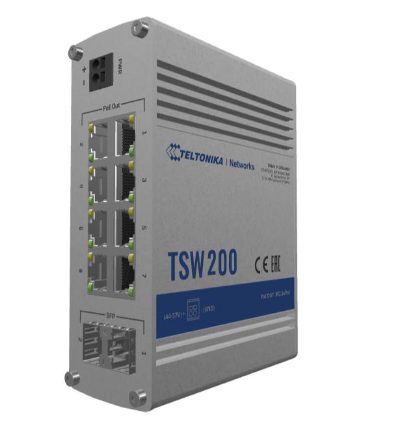

TSW200 is industrial unmanaged switch from Teltonika Networks.
TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
- POE+
- SFP
- ETHERNET
- DURABILITY
- MOUNTING (DIN rail)
- POWER BUDGET
Specifications
| Switch type | Unmanaged |
| Ethernet (RJ-45) ports | 8 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| SFP/SFP+ slots | 2 |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u |
| Jumbo frame size | 9216 |
| Jumbo frames | Yes |
| MAC address table size | 2000 entries |
| Packet buffer memory | 0.128 MB |
| DIN rail mounting | Yes |
| Material | Aluminium |
| IP rating | IP30 |
| LED indicators | LAN/PoE/Status |
| Colour | Aluminium |
| Rack mountable | Yes |
| Wall-mountable | Yes |
| Input voltage | 7 - 57 V |
| Power consumption (max) | 106 W |
| Power consumption (typical) | 1.8 W |
| Power source | DC |
| Power supply included | No |
| Power over Ethernet | Yes |
| PoE port count | 8 |
| PoE power per port | 30 W |
| PoE voltage | 57 V |
| Total PoE budget | 240 W |
| Operating temperature | -40 - 75 °C |
| Depth | 44.2 mm |
| Height | 132 mm |
| Weight | 456 g |
| Width | 95.1 mm |
| Model | TSW200 |
| Model name | TSW200 |
