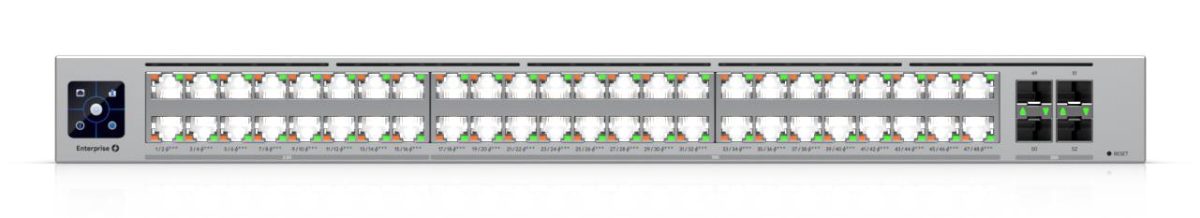

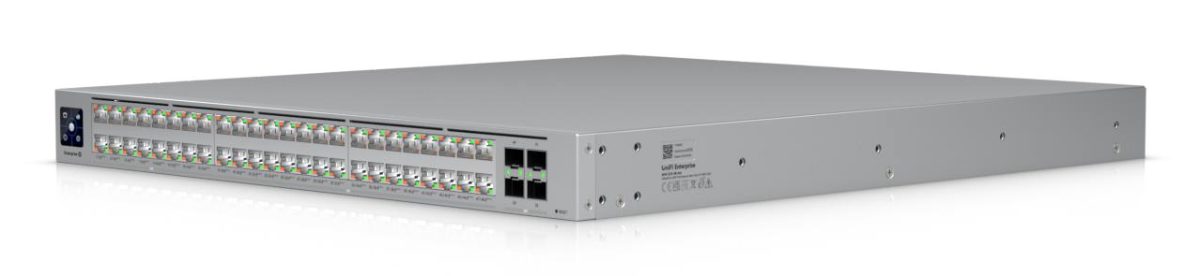

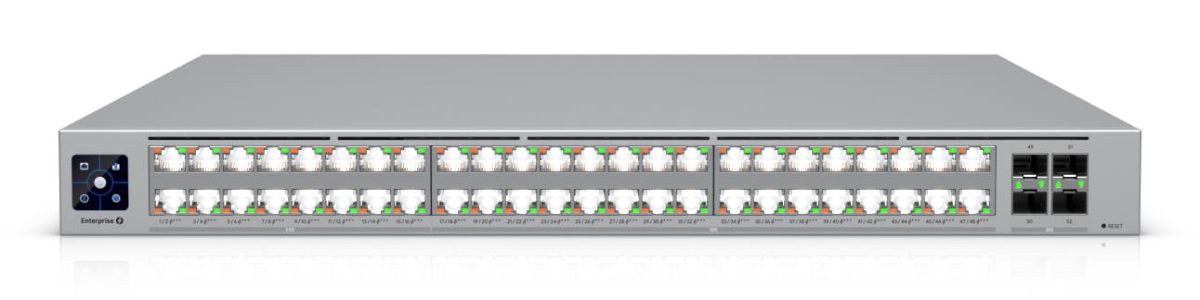

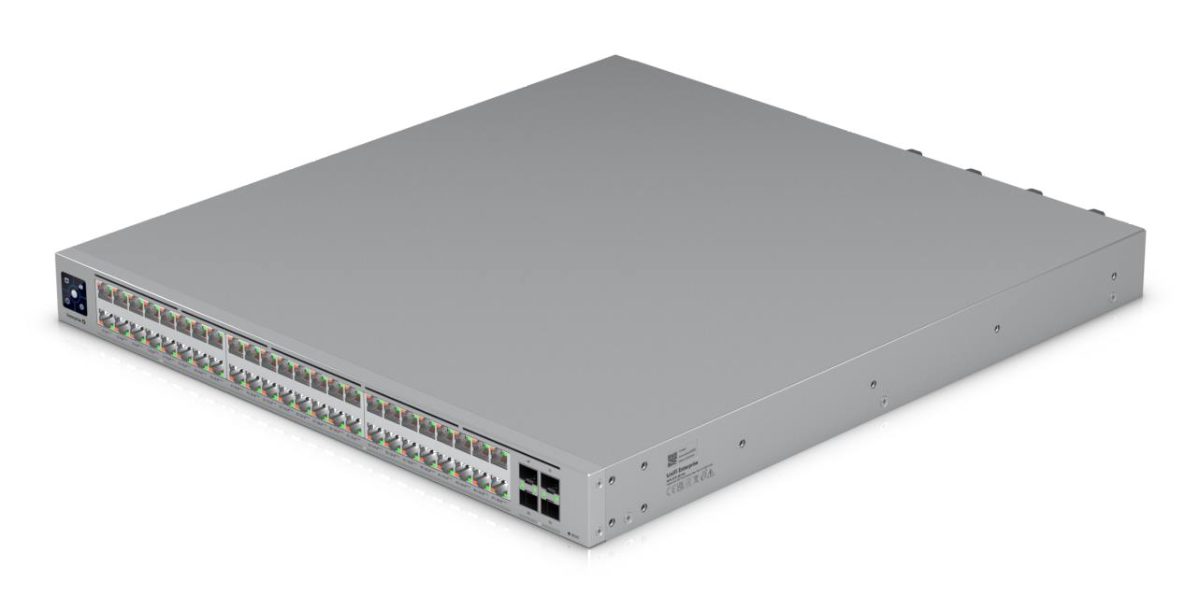

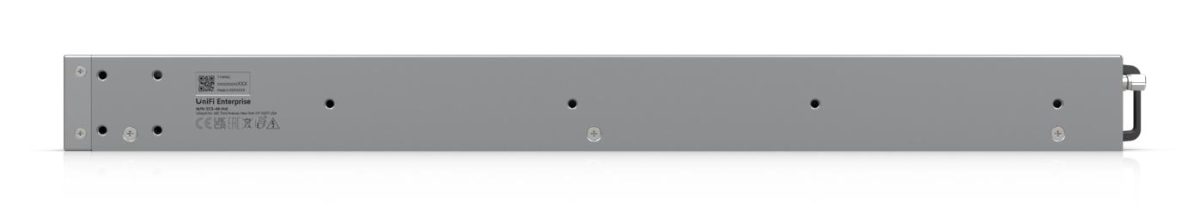

Switch, UBIQUITI, Enterprise Campus 48 PoE, 16x2.5GbE, 32x10GbE, 4xSFP28
Switch, UBIQUITI, Enterprise Campus 48 PoE, 16x2.5GbE, 32x10GbE, 4xSFP28, PoE+ ports 16, 2150 Watts, ECS-48-POE
UBIQUITI
—
The invoice is sent as soon as you order.
Out of stock
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 12 mo.
- Invoice: with every order
- Brand
- UBIQUITI
Description
Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
Specifications
| Quality of Service (QoS) | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| 10G Ethernet ports | 32 |
| 2.5G Ethernet ports | 16 |
| Ethernet (RJ-45) ports | 48 |
| Ethernet type | 10G Ethernet (100/1000/10000) |
| Power connector | AC-in jack |
| SFP/SFP+ slots | 4 |
| SFP28 ports | 4 |
| 10 Gigabit support | Yes |
| Broadcast storm control | Yes |
| Ethernet data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Flow control | Yes |
| IPv4 route count | 256000 |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3bt |
| Number of VLANs | 1000 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Virtual LAN features | Voice VLAN |
| VLAN support | Yes |
| Forwarding rate | 684 Mpps |
| Jumbo frames | Yes |
| MAC address table size | 128000 entries |
| Packet buffer memory | 8 MB |
| Static route | Yes |
| Switching capacity | 920 Gbit/s |
| Throughput | 460 Gbit/s |
| DHCP features | DHCP guarding/DHCP relay/DHCP snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Multicast support | Yes |
| Display type | LCM |
| Form factor | 1U |
| Material | SGCC |
| LED indicators | Activity/Link/Status |
| Number of fans | 4 fan(s) |
| Colour | Grey |
| Rack mountable | Yes |
| Redundant fans support | Yes |
| Reset button | Yes |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |

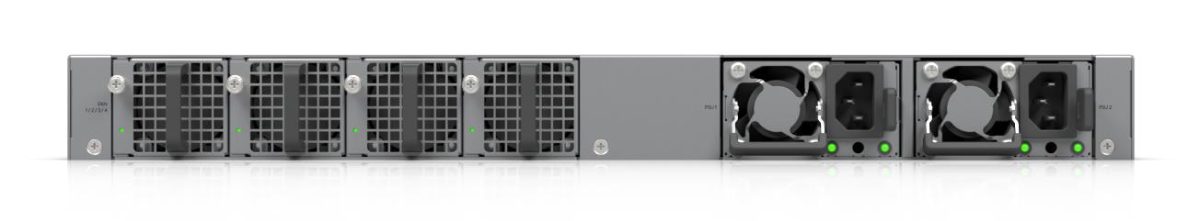

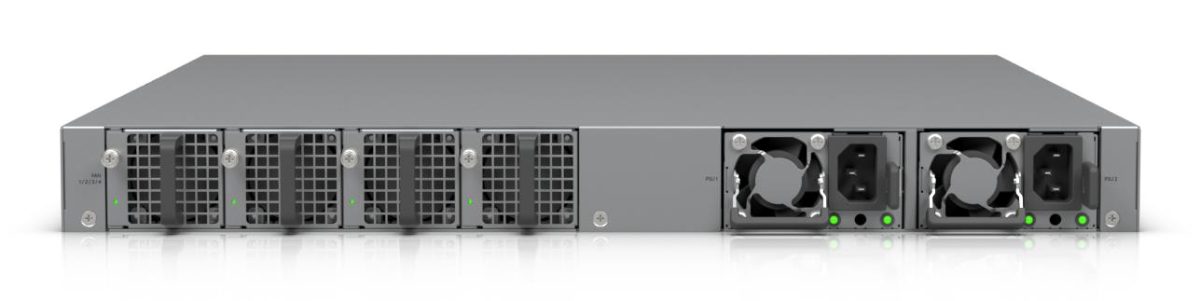

| Number of power supply units | 2 |
| Power consumption (max) | 2400 W |
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet | Yes |
| PoE power per port | 90 W |
| PoE type supported | PoE+/PoE++ (4PPoE) |
| Total PoE budget | 2150 W |
| Operating humidity | 10 - 90 % |
| Operating temperature | -5 - 40 °C |
| Depth | 496 mm |
| Height | 43.7 mm |
| Weight | 9460 g |
| Width | 442 mm |

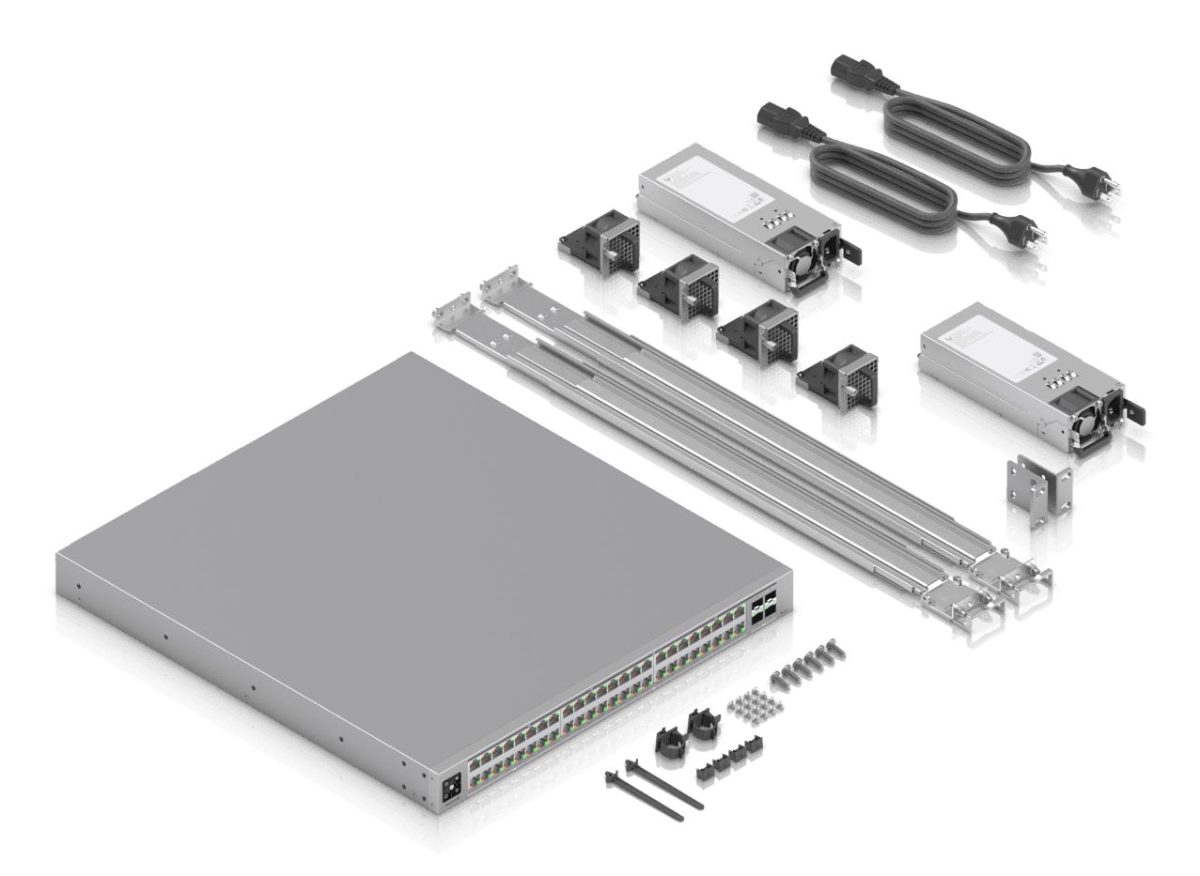

| Cables included | Power |
| Rack mount kit included | Yes |
| Mounting brackets included | Yes |

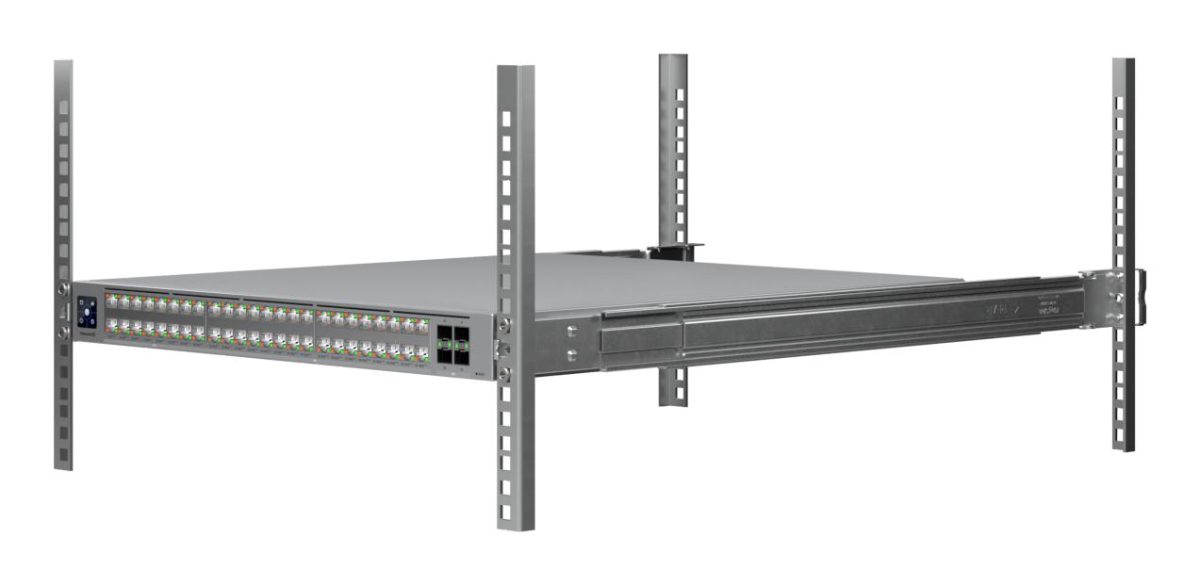

| Rack rails included | Yes |
| Certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
| Model | ECS-48-POE |
| Model name | Enterprise Campus 48 PoE |
