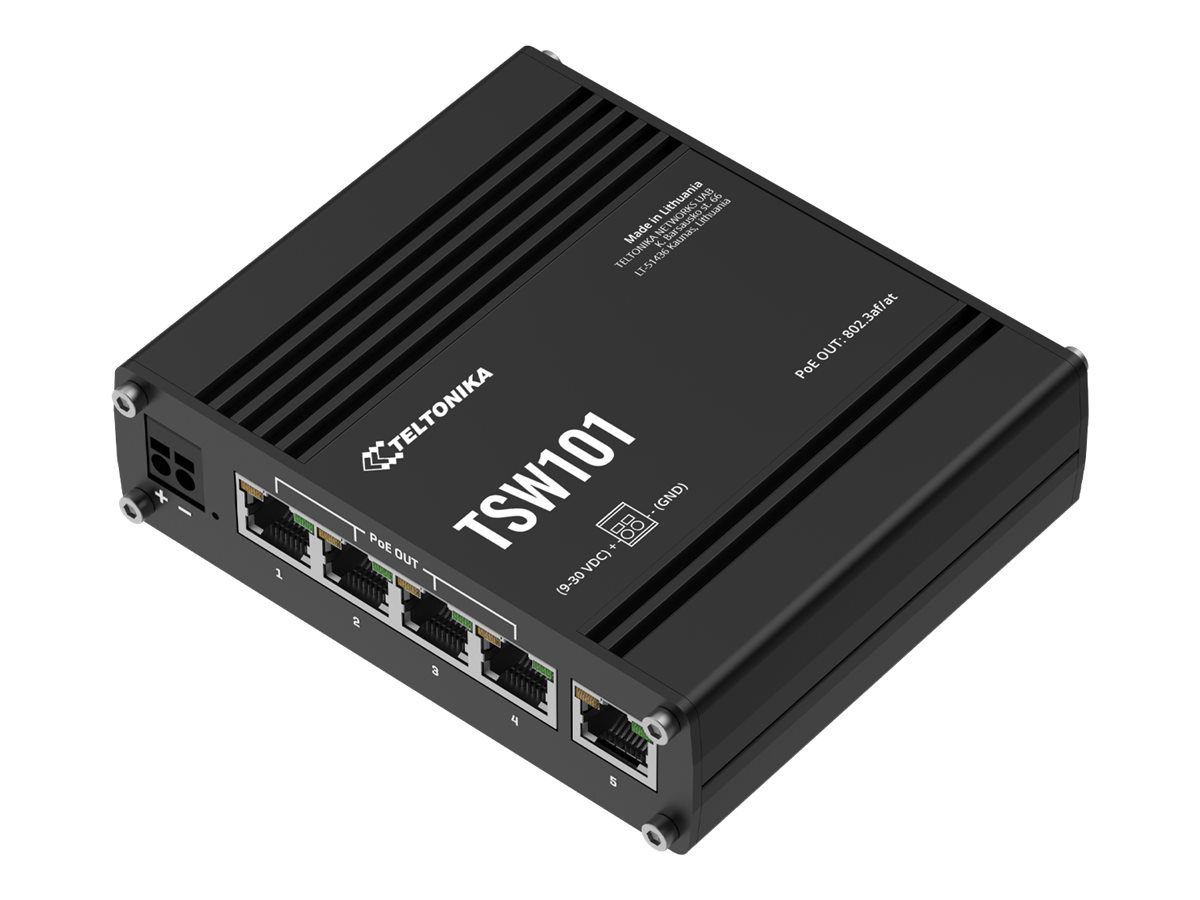

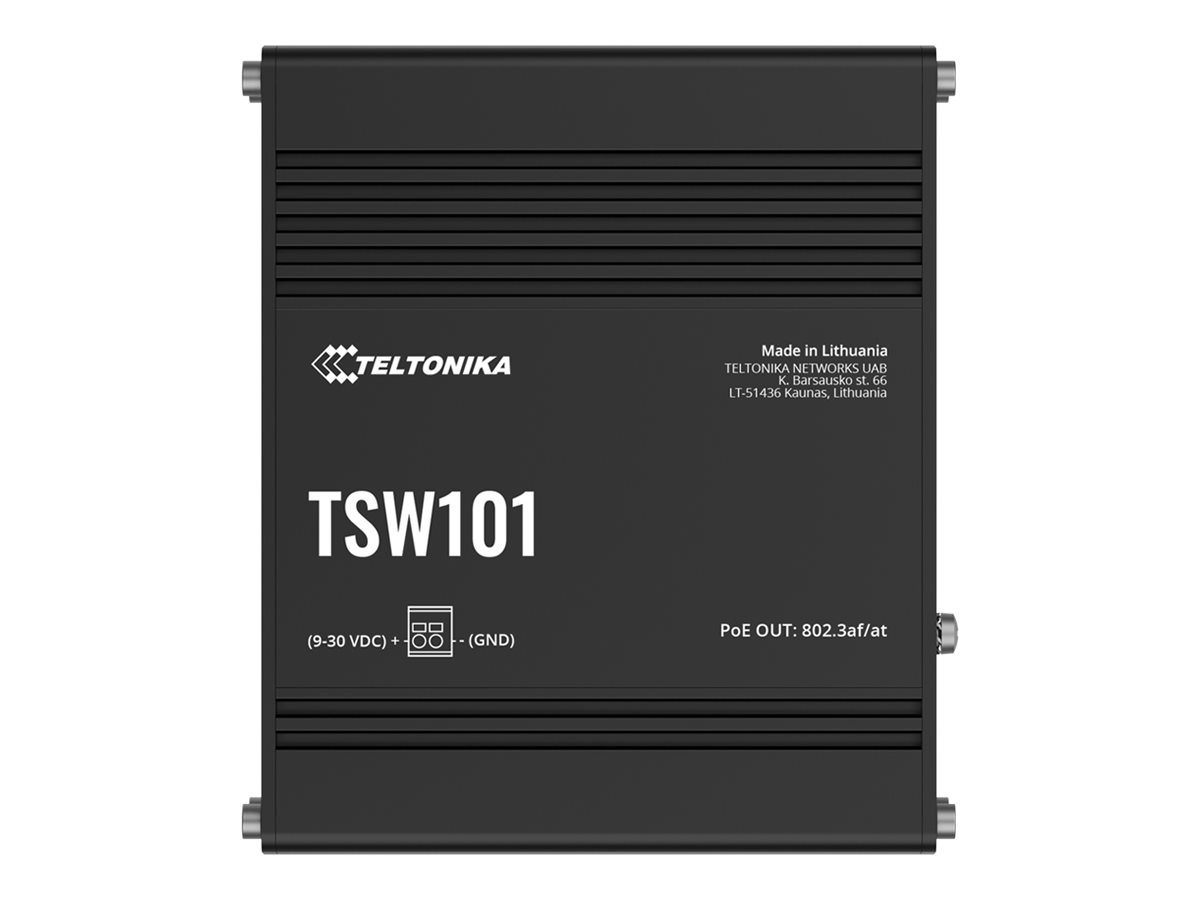

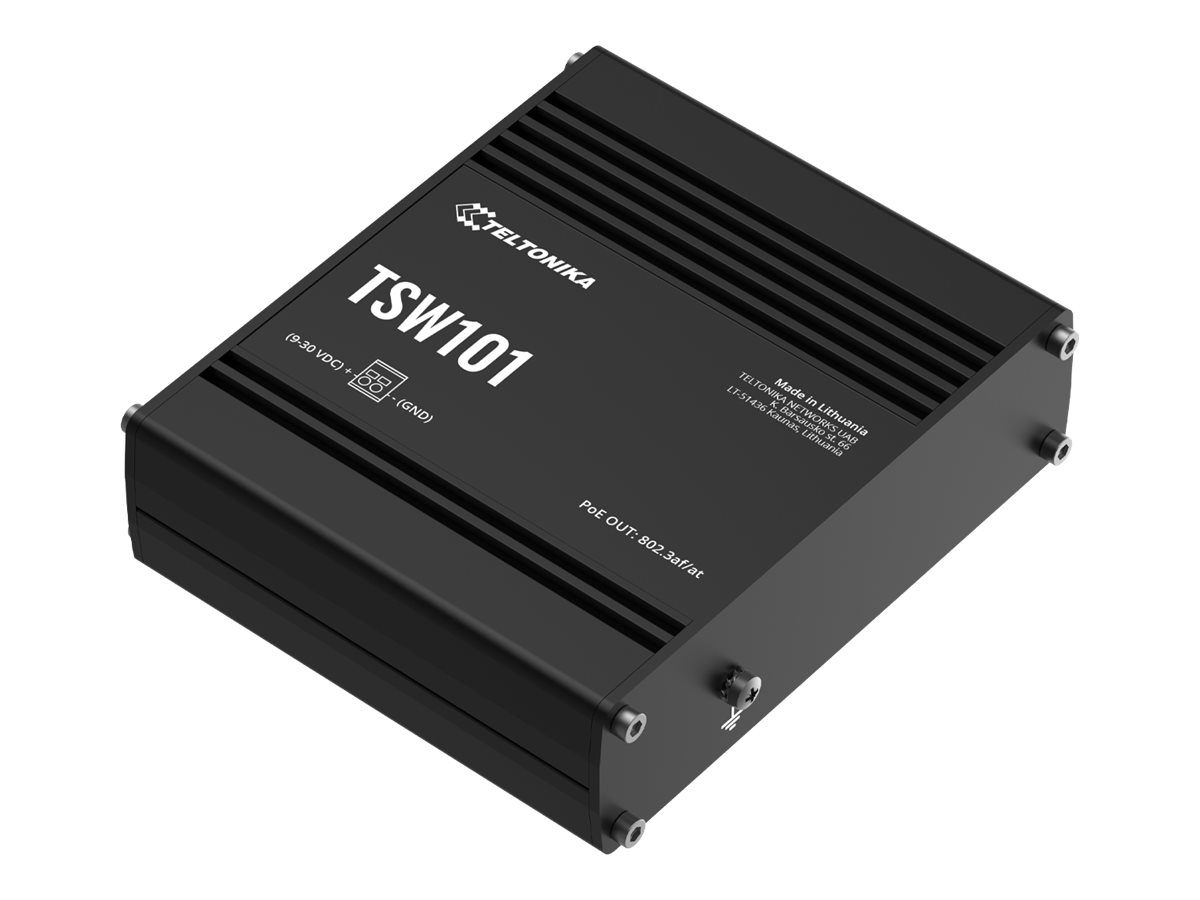

Automotive Switch, 5 ports, TSW101, Unmanaged, Wall-mountable
Teltonika · 4779051840113
60,26 €
The invoice is sent as soon as you order.
Available · 11 pcs
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 4779051840113
- Brand
- Teltonika
Description
AUTOMOTIVE POE+ SWITCH
Our first-ever switch for the automotive industry features five Gigabit Ethernet ports with PoE+ support to connect multiple devices to the network and power them up using the same interfaces. Enjoy reliable high bandwidth connectivity in a simple, economical, and easy-to-install solution.
Specifications

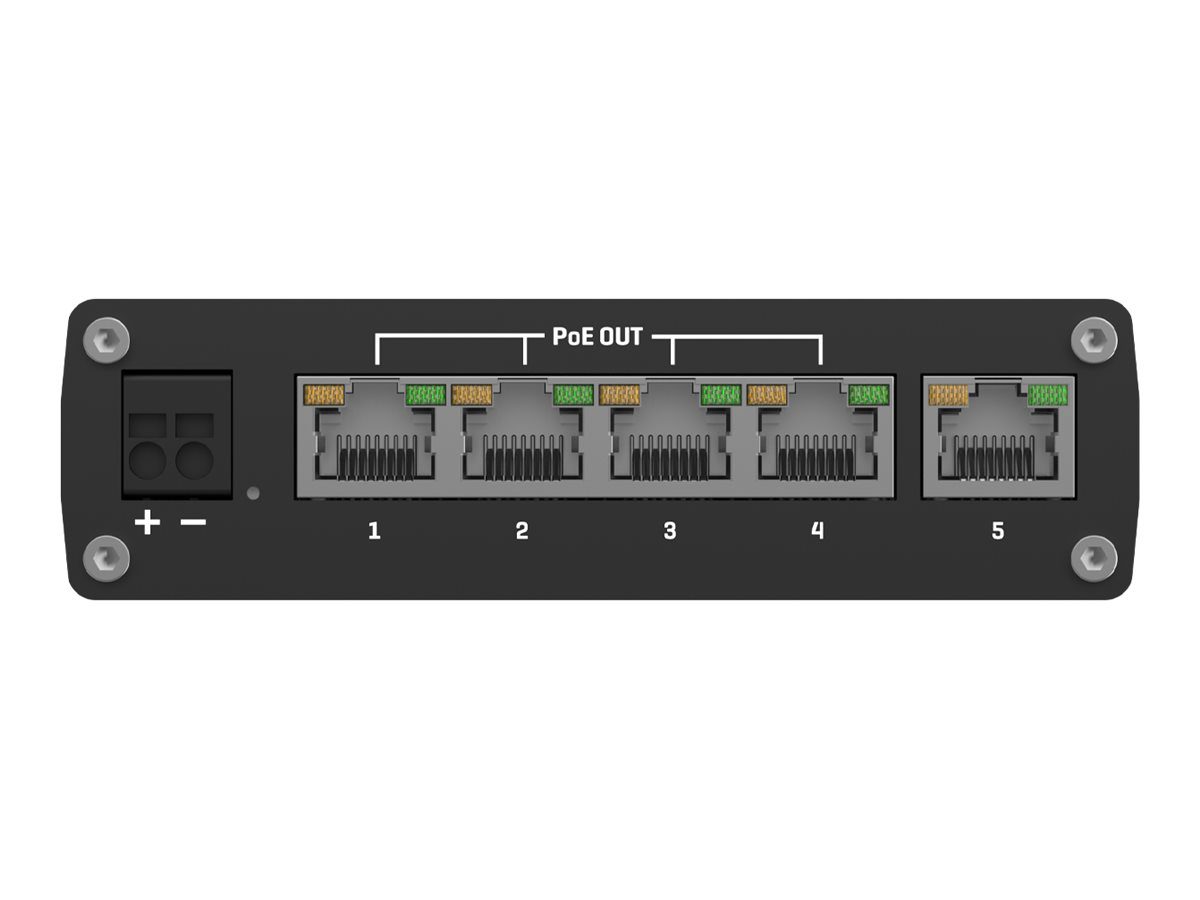

| Ethernet (RJ-45) ports | 5 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| Power connector | Terminal block (2-pin) |
| 10 Gigabit support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3/IEEE 802.3az/IEEE 802.3u |
| Jumbo frame size | 9216 |
| Jumbo frames | Yes |
| MAC address table size | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Material | Aluminium |
| IP rating | IP30 |
| LED indicators | Power/Status |
| Colour | Metallic |
| Input voltage | 9 - 30 V |
| Power consumption (max) | 2.31 W |
| Power consumption (typical) | 0.64 W |
| Power source | DC |
| Power over Ethernet | Yes |
| PoE port count | 4 |
| PoE power per port | 30 W |
| PoE type supported | Passive PoE |
| Total PoE budget | 120 W |
| Operating humidity | 10 - 90 % |
| Operating temperature | -40 - 75 °C |
| Depth | 32 mm |
| Height | 95 mm |
| Weight | 354 g |
| Width | 115 mm |
| Certification | CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark |
| Model | TSW101 |
| Model name | TSW101000000 |
