8-Port Gigabit Switch, TL-SG1008, Unmanaged, Desktop/Rackmountable
TP-LINK · 6935364021573
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 6935364021573
- Brand
- TP-LINK
Description
What This Product Does

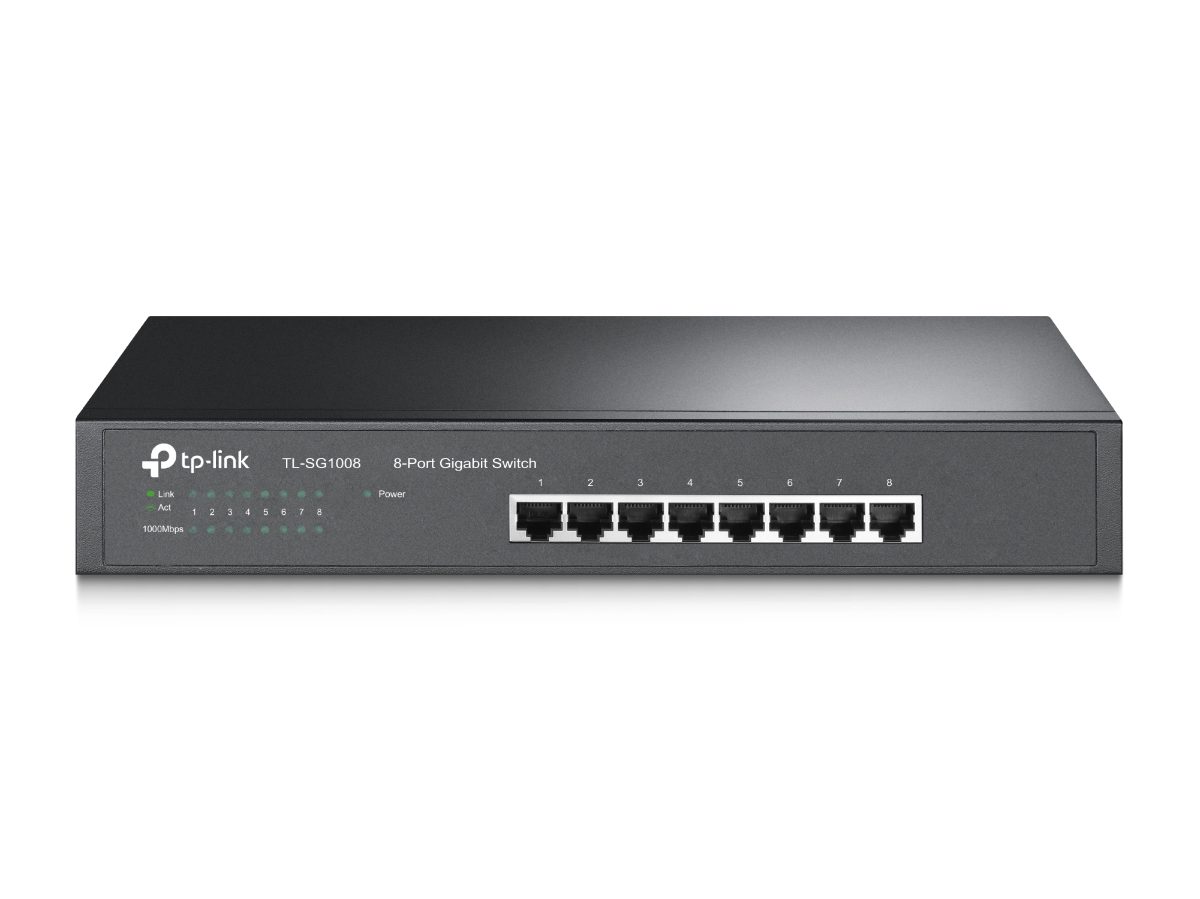

The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save the power consumption, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation The 8-Port Gigabit Desktop/Rackmount Switch TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
The TL-SG1008 features non-blocking wire-speed architecture with a 16Gbps switching capacity for maximum data throughput. An 4K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.
Ease to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis. TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
- 8 10/100/1000Mbps RJ45 ports
- Supports MAC address auto-learning and auto-aging and auto MDI/MDIX
- Standard 13-inch rackmount steel case
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
Specifications
| Switch type | Unmanaged |
| Ethernet (RJ-45) ports | 8 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| 10 Gigabit support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Flow control | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x |
| Jumbo frame size | 16000 |
| Jumbo frames | Yes |
| MAC address table size | 4000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Store and forward | Yes |
| Ethernet data rates | 10/100/1000 Mbps |
| Switching capacity | 16 Gbit/s |
| Network protocols | CSMA/CD, TCP/IP |
| Form factor | 1U |
| LED indicators | Yes |
| Colour | Black |
| Rack mountable | Yes |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 4.3 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet | No |
| Bandwidth | 16 Gbit/s |
| Connection technology | Wired |
| Dimensions | 9.8 x 6.2 x 1.7 " |
| Networking features | Gigabit Ethernet |
| Heat dissipation | 14.67 BTU/h |
| Operating humidity | 10 - 90 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 5 - 90 % |
| Storage temperature | -40 - 70 °C |
| Depth | 180 mm |
| Height | 44 mm |
| Width | 294 mm |
| Cables included | AC |
| Quick start guide included | Yes |
| Certification | FCC, CE, RoHS |
