Switch, TL-SF1005P, Unmanaged, Desktop
Switch, TL-SF1005P, Unmanaged, Desktop, 10/100 Mbps (RJ-45) ports quantity 5, Power over Ethernet (PoE) ports quantity 4, Power supply type External, 36 month(s)
TP-LINK · 6935364083199
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 6935364083199
- Brand
- TP-LINK
Description
PoE Switches for Your Ultra Convenience

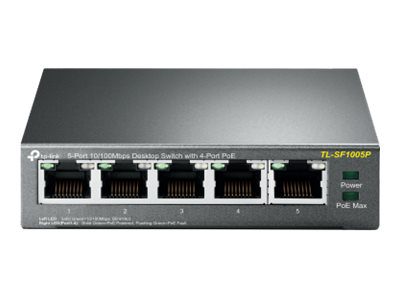

5-Port 10/100Mbps Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
- 5 10/100Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 58W for all PoE ports
- Requires no configuration and installation
Specifications
| Switch type | Unmanaged |
| Ethernet (RJ-45) ports | 5 |
| Ethernet type | Fast Ethernet (10/100) |
| 10 Gigabit support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable type | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Cabling technology | 100BASE-T/100BASE-TX/10BASE-T |
| Flow control | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| MAC address auto-aging | Yes |
| MAC address auto-learning | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3x |
| Forwarding rate | 0.744 Mpps |
| Jumbo frame size | 2000 |
| Jumbo frames | Yes |
| MAC address table size | 2000 entries |
| Store and forward | Yes |
| Switching capacity | 1 Gbit/s |
| LED indicators | Yes |
| Colour | Black |
| Rack mountable | No |
| Stackable | No |
| Fanless | Yes |
| Maximum cable length | 100 m |
| Input frequency | 50 Hz |
| Input voltage | 220 V |
| Input current | 1.31 A |
| Power consumption (max) | 74 W |
| Power source | DC/PoE |
| Power supply included | No |
| Power over Ethernet | Yes |
| Power over Ethernet plus (PoE+) ports | 4 |
| Total PoE budget | 67 W |
| Heat dissipation | 252.34 BTU/h |
| Operating humidity | 10 - 90 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 5 - 90 % |
| Storage temperature | -40 - 70 °C |
| Depth | 98 mm |
| Height | 25 mm |
| Width | 99.8 mm |
| Manual included | Yes |
| AC adapter included | Yes |
| Sustainability compliance | Yes |
| Certificates | CE/Federal Communications Commission (FCC)/RoHS |
