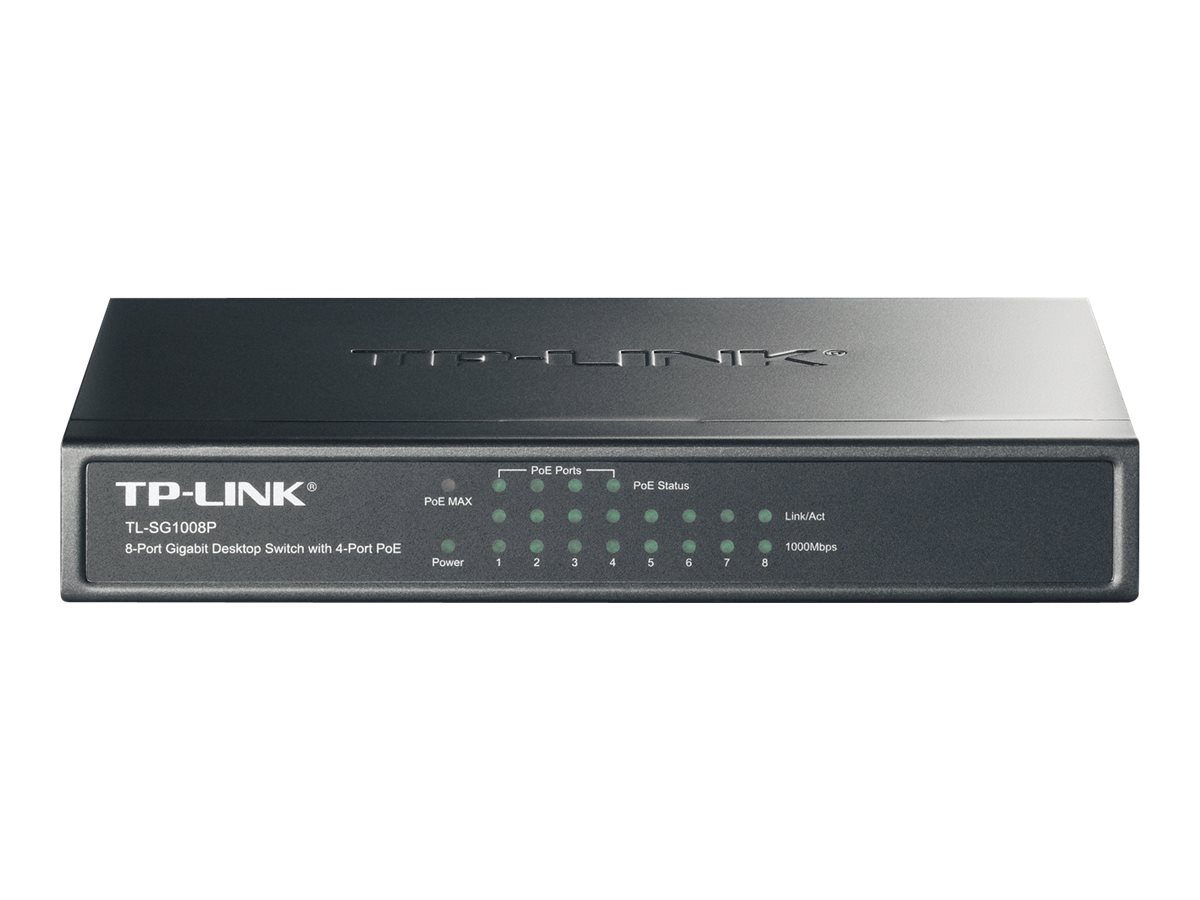

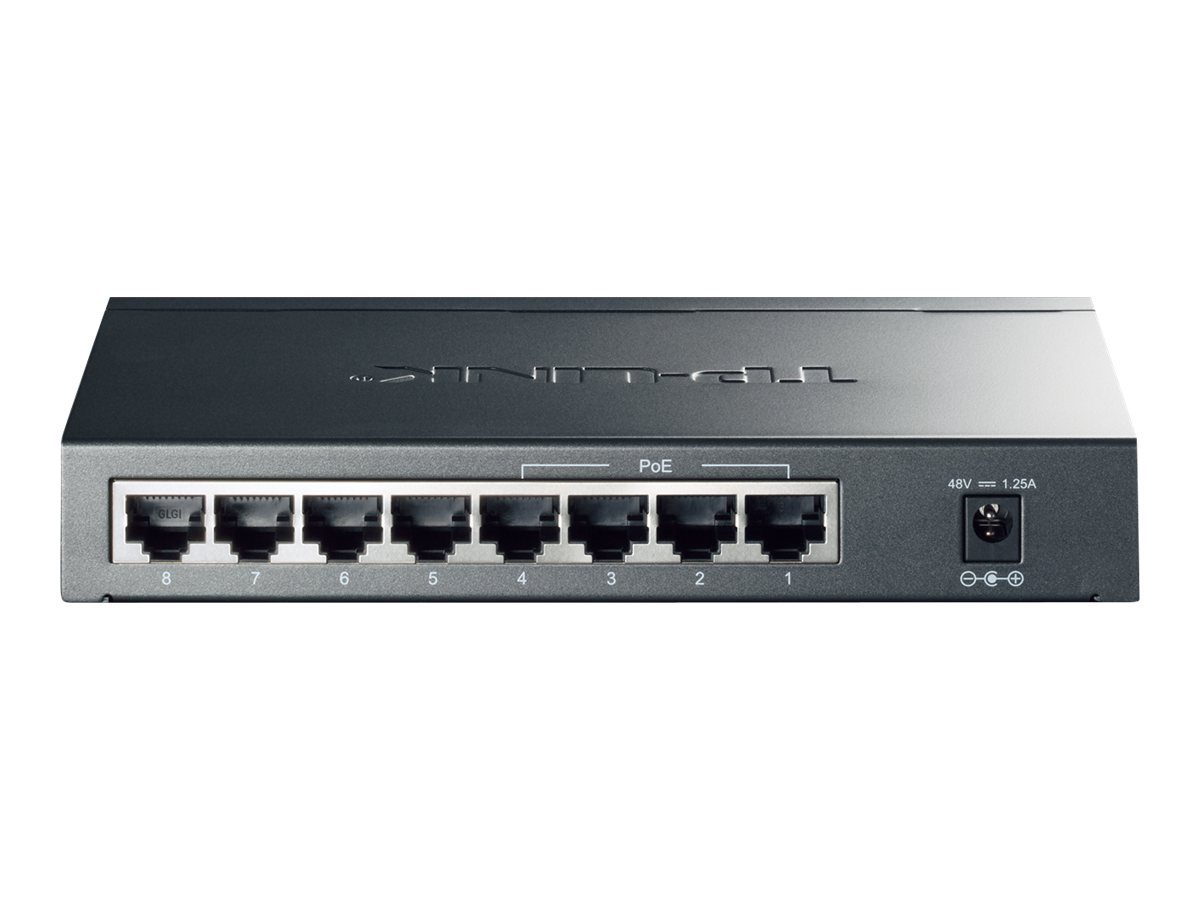

Switch, TL-SG1008P, Unmanaged, Desktop
Switch, TL-SG1008P, Unmanaged, Desktop, Gigabit Ethernet (copper) ports quantity 8, Power over Ethernet (PoE) ports quantity 4, Power supply type External, 36 month(s)
TP-LINK · 6935364021160
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 6935364021160
- Brand
- TP-LINK
Description
PoE Switches for Your Ultra Convenience
8-Port Gigabit Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
- 8 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 55W for all PoE ports
- Requires no configuration and installation
Specifications
| Quality of Service (QoS) | No |
| Switch type | Managed |
| Ethernet (RJ-45) ports | 8 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports | 8 |
| Power connector | DC-in jack |
| 10 Gigabit support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable type | Cat3/Cat4/Cat5/Cat5e |
| Cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Flow control | Yes |
| MAC address auto-aging | Yes |
| MAC address auto-learning | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Forwarding rate | 11.904 Mpps |
| Jumbo frame size | 16000 |
| Jumbo frames | Yes |
| MAC address table size | 4000 entries |
| Store and forward | Yes |
| Switching capacity | 16 Gbit/s |
| IGMP snooping | Yes |
| Material | Metal |
| LED indicators | Yes |
| Colour | Grey |
| Rack mountable | No |
| Stackable | No |
| Fanless | Yes |
| Maximum cable length | 100 m |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Input current | 1.31 A |
| Number of power supply units | 1 |
| Power consumption (max) | 75 W |
| Power source | DC/PoE |
| Power supply included | Yes |
| Power over Ethernet | Yes |
| PoE port count | 4 |
| Total PoE budget | 64 W |
| Heat dissipation | 225.75 BTU/h |
| Operating humidity | 10 - 90 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 5 - 90 % |
| Storage temperature | -40 - 70 °C |
| Depth | 98 mm |
| Height | 27 mm |
| Width | 171 mm |
| Cables included | AC |
| Manual included | Yes |
| Sustainability compliance | Yes |
| Certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Model name | 8-Port Gigabit Desktop PoE Switch with 4-Port |
