Switch, TL-SG1218MP, Unmanaged, Rackmountable
Switch, TL-SG1218MP, Unmanaged, Rackmountable, 10/100 Mbps (RJ-45) ports quantity 18, SFP ports quantity 2, PoE+ ports quantity 16, Power supply type 100-240VAC, 50-60Hz voltage
TP-LINK · 6935364072155
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 6935364072155
- Brand
- TP-LINK
Description
Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance

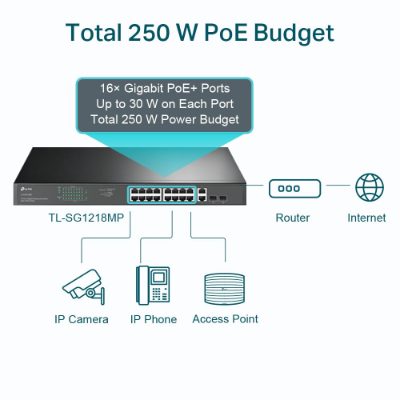

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

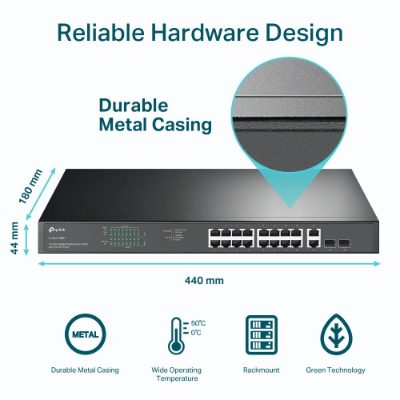

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

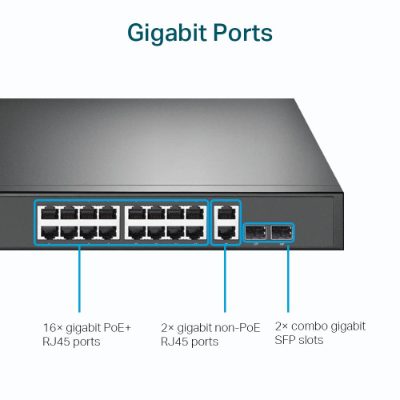

- 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
- Working with IEEE 802.3af/at compliant PDs

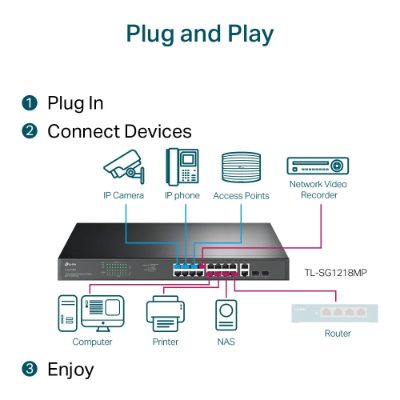

- Plug and play, with no configuration and installation needed
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)
Specifications
| Quality of Service (QoS) | Yes |
| Switch type | Unmanaged |
| Traffic classification | Yes |
| Ethernet (RJ-45) ports | 18 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports | 2 |
| Gigabit Ethernet (copper) ports | 18 |
| 10 Gigabit support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable type | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Ethernet data rates | 10,100,1000 Mbit/s |
| Flow control | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| MAC address auto-aging | Yes |
| MAC address auto-learning | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x |
| Forwarding rate | 26.78 Mpps |
| Jumbo frame size | 10000 |
| Jumbo frames | Yes |
| MAC address table size | 8000 entries |
| Packet buffer memory | 4.1 MB |
| Switching capacity | 36 Gbit/s |
| Form factor | 1U |
| Material | Metal |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Colour | Black |
| Rack mountable | Yes |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 286.64 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet | Yes |
| PoE power per port | 30 W |
| Power over Ethernet plus (PoE+) ports | 16 |
| Total PoE budget | 250 W |
| Heat dissipation | 977.44 BTU/h |
| Operating humidity | 10 - 90 % |
| Operating temperature | 0 - 50 °C |
| Non-operating relative humidity | 5 - 90 % |
| Storage temperature | -40 - 70 °C |
| Depth | 180 mm |
| Height | 44 mm |
| Width | 440 mm |
| Cables included | AC |
| Quick start guide included | Yes |
| Certification | CE, FCC, RoHS |
| Model name | 18-Port Gigabit Rackmount Switch with 16 PoE+ |
