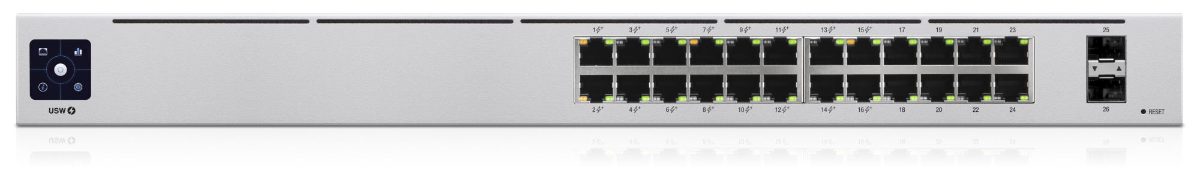

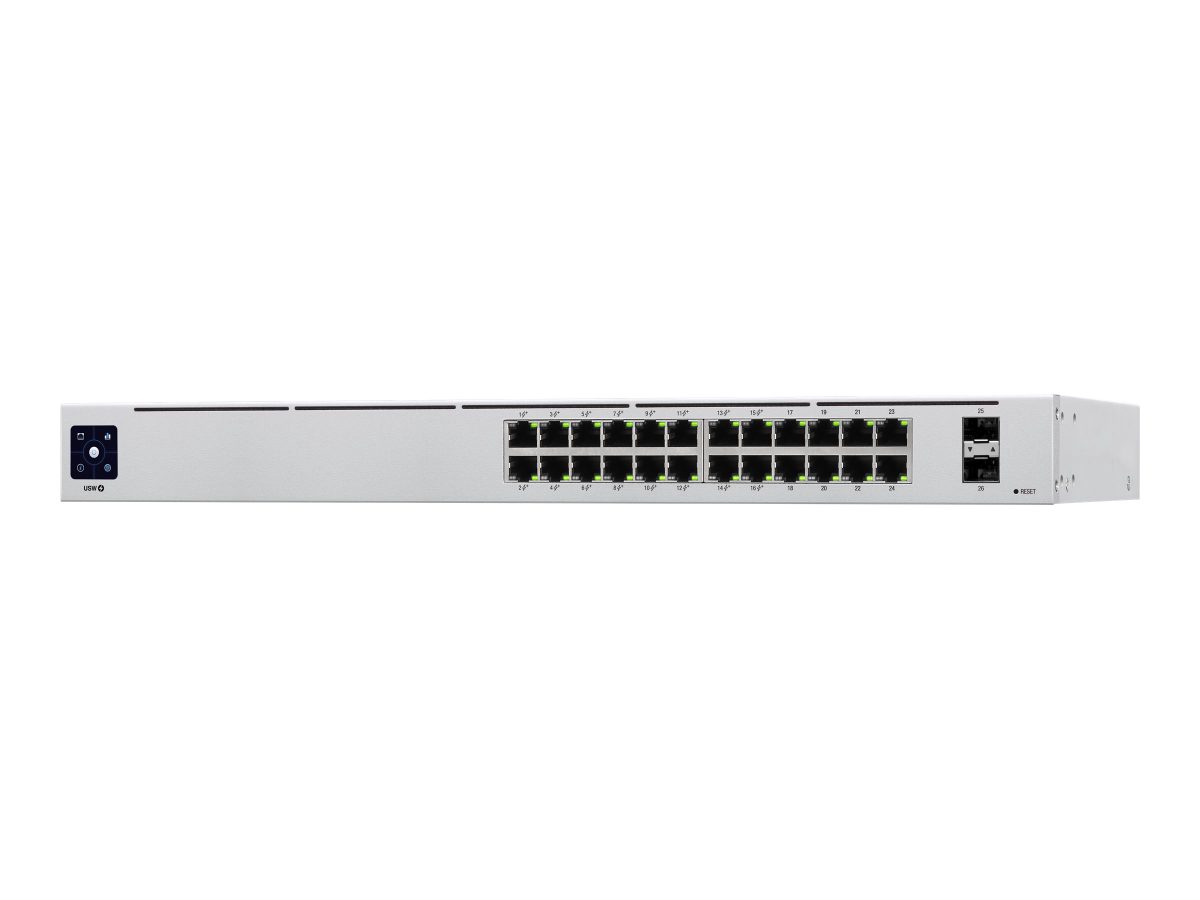

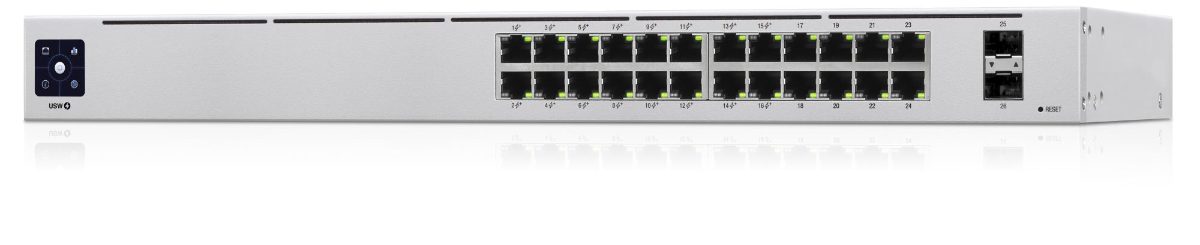

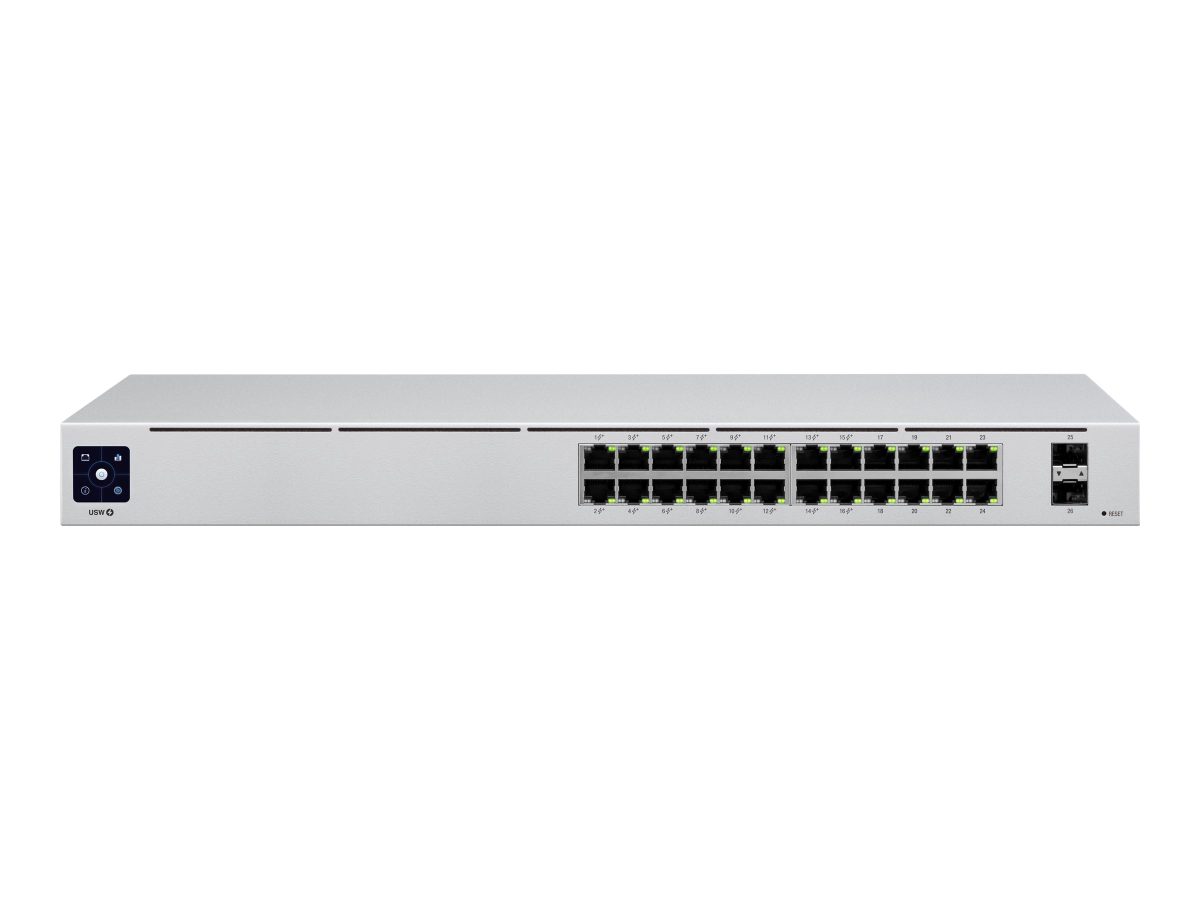

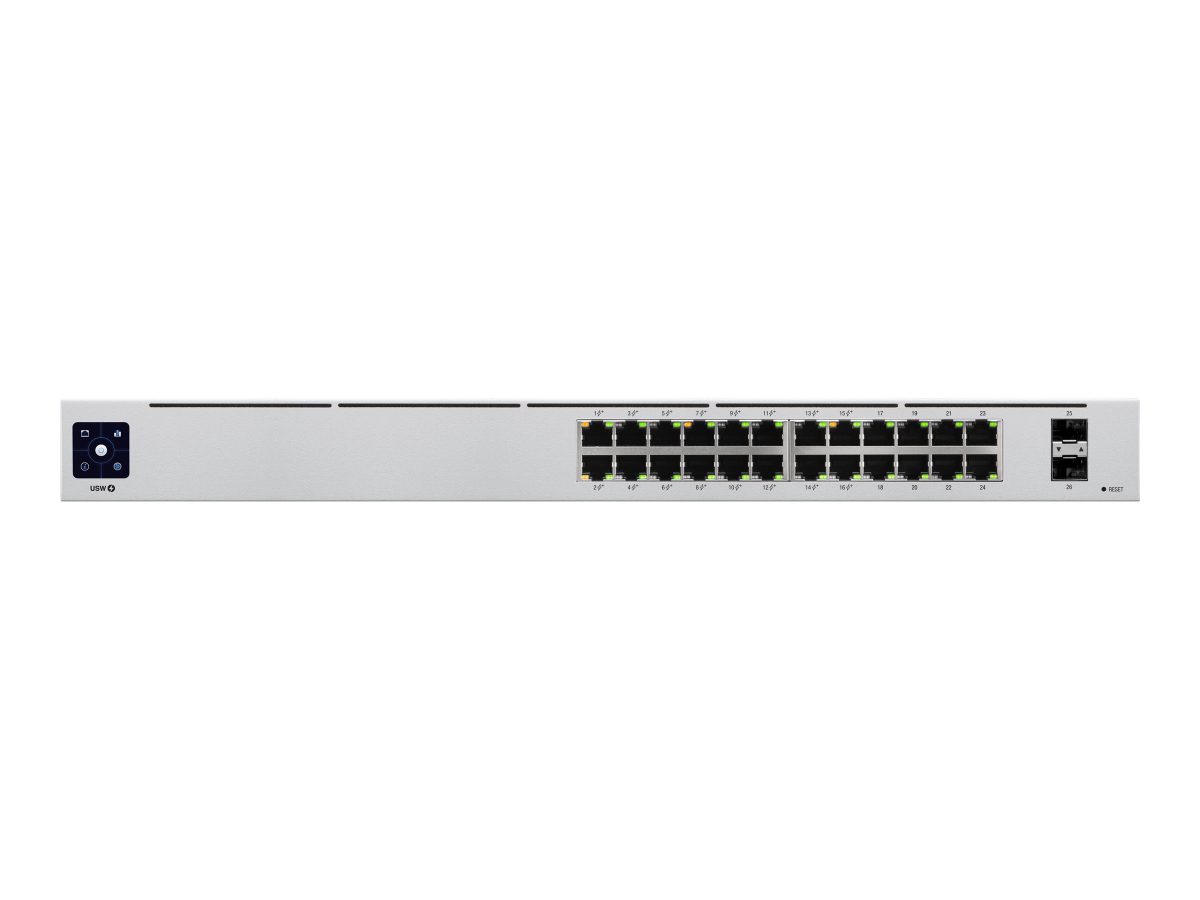

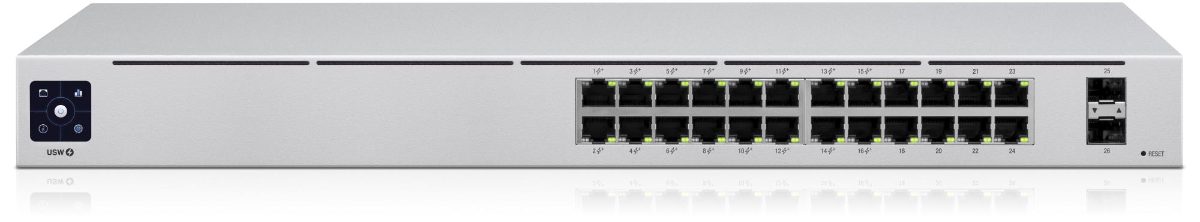

UniFi Switch USW-24-POE, USW-24-POE, Managed L2, Desktop/Rack-mountable
UniFi Switch USW-24-POE, USW-24-POE, Managed L2, Desktop/Rack-mountable, PoE+ ports quantity 16
Ubiquiti · 817882028554
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 12 mo.
- Invoice: with every order
- EAN
- 817882028554
- Brand
- Ubiquiti
Description
Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Specifications
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ethernet (RJ-45) ports | 24 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| SFP/SFP+ slots | 2 |
| Auto MDI/MDI-X | Yes |
| Flow control | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Forwarding rate | 38.69 Mpps |
| Jumbo frames | Yes |
| Static route | Yes |
| Switching capacity | 52 Gbit/s |
| Throughput | 26000 Mpps |
| Authentication | IEEE 802.1x,RADIUS |
| Form factor | 1U |
| LED indicators | Activity/Link/PoE/Speed/System |
| Colour | Silver |

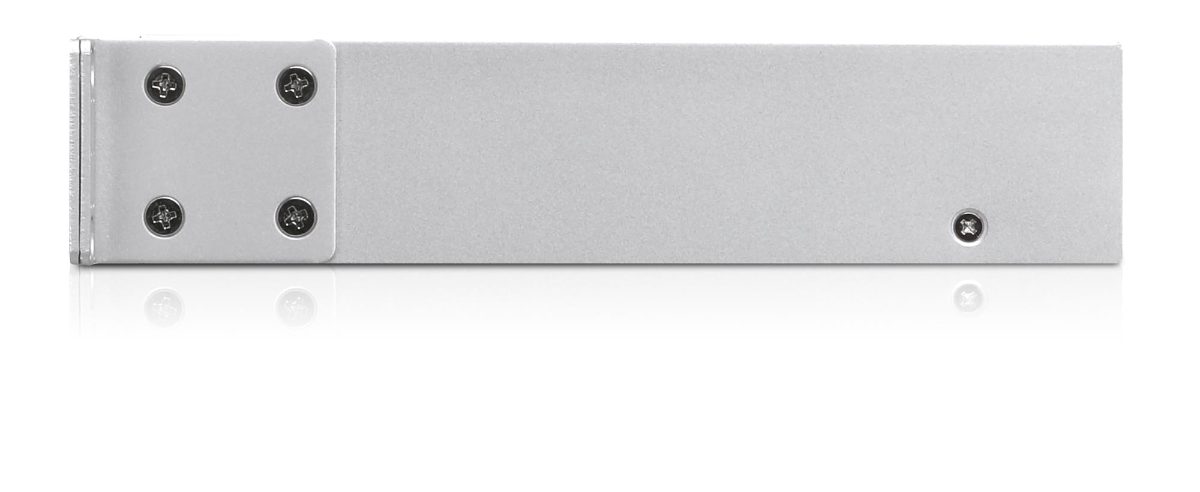

| Rack mountable | Yes |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power over Ethernet | Yes |
| PoE power per port | 32 W |
| Power over Ethernet plus (PoE+) ports | 16 |
| Total PoE budget | 92 W |
| Operating humidity | 10 - 90 % |
| Operating temperature | -5 - 40 °C |
| Depth | 200 mm |
| Height | 43.7 mm |
| Weight | 3000 g |
| Width | 442.4 mm |
| Certification | CE, FCC, IC |
| Model name | USW-24-POE |
