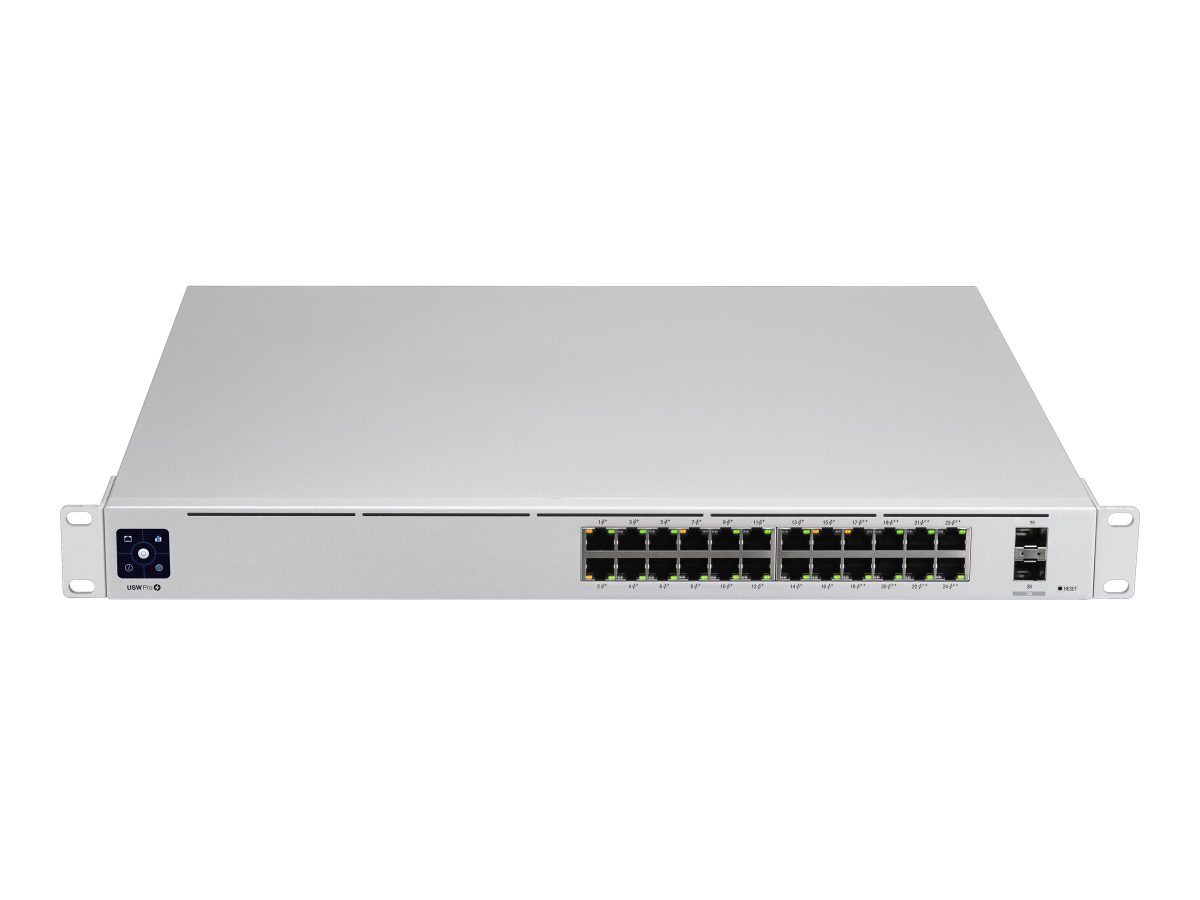

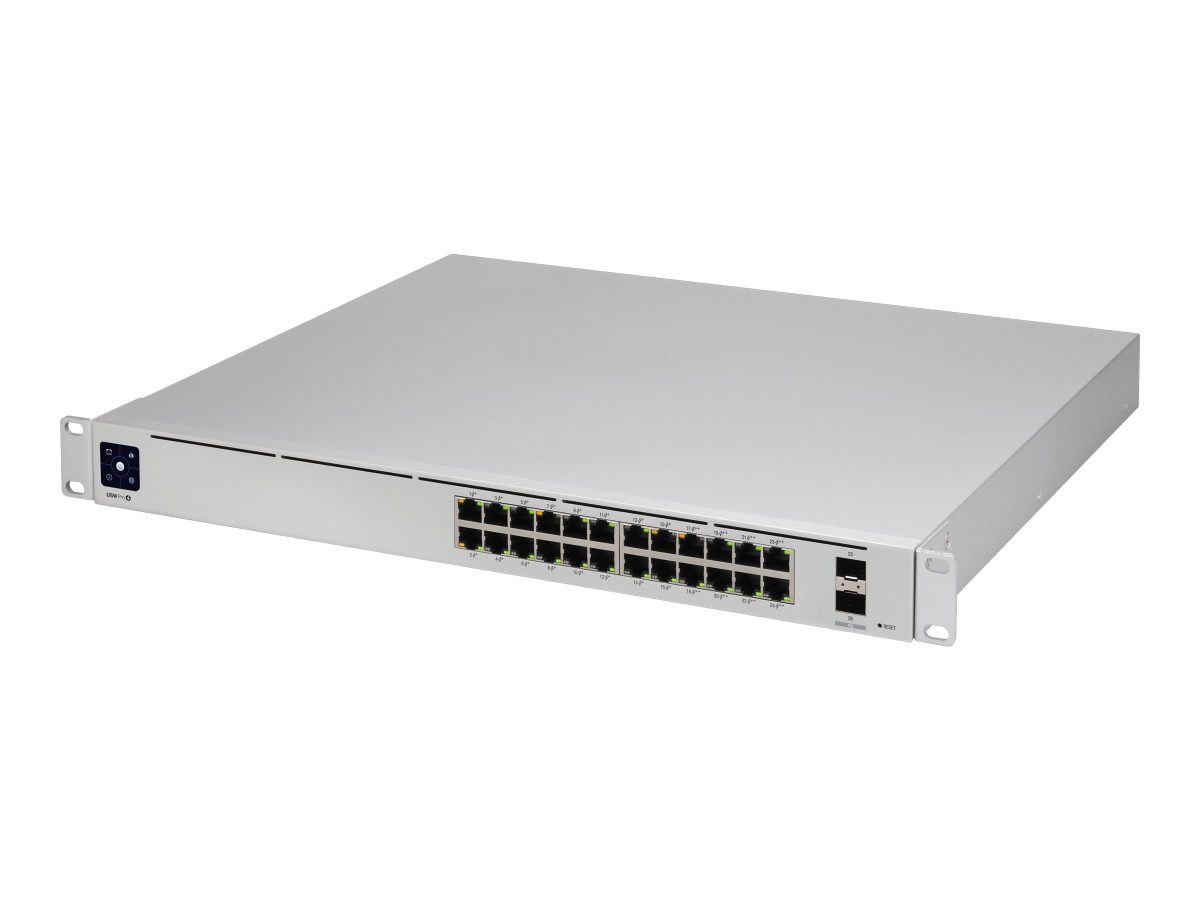

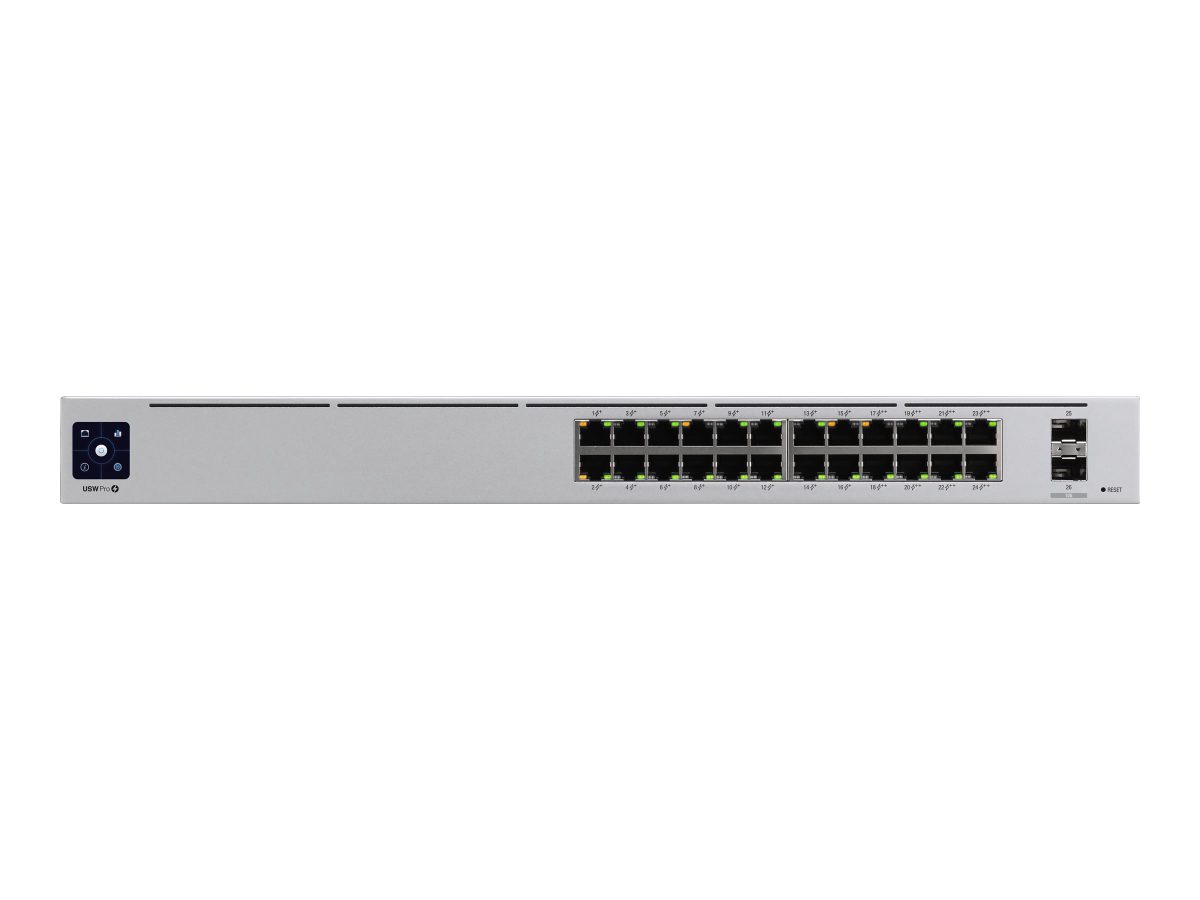

Unifi Switch, USW-PRO-24-POE, Managed L3, Desktop
Unifi Switch, USW-PRO-24-POE, Managed L3, Desktop, Gigabit Ethernet (copper) ports quantity 24, SFP+ ports quantity 2, PoE+ ports quantity 24, Power supply type AC/DC, Internal, 450W
Ubiquiti · 817882027649
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 12 mo.
- Invoice: with every order
- EAN
- 817882027649
- Brand
- Ubiquiti
Description
Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Specifications
| Quality of Service (QoS) | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Ethernet (RJ-45) ports | 24 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| SFP+ module slots | 2 |
| 10 Gigabit support | Yes |
| Broadcast storm control | Yes |
| Flow control | Yes |
| Full duplex | Yes |
| IPv4 route count | 64 |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Number of VLANs | 1000 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Forwarding rate | 65.472 Mpps |
| Jumbo frames | Yes |
| MAC address table size | 16000 entries |
| Packet buffer memory | 2 MB |
| Static route | Yes |
| Switching capacity | 88 Gbit/s |
| Throughput | 44000 Mpps |
| Authentication | IEEE 802.1x,RADIUS |
| DHCP features | DHCP relay/DHCP server/DHCP snooping |
| IGMP snooping | Yes |
| Display type | LCM |
| Form factor | 1U |
| LED indicators | Activity/Link/PoE/Speed/System |
| Colour | Silver |
| Rack mountable | Yes |
| Reset button | Yes |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power consumption (max) | 450 W |
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet | Yes |
| PoE power per port | 64 W |
| PoE port count | 8 |
| Power over Ethernet plus (PoE+) ports | 16 |
| Total PoE budget | 400 W |
| Operating humidity | 10 - 90 % |
| Operating temperature | -5 - 40 °C |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4300 g |
| Width | 442.4 mm |
| Certification | CE, FCC, IC |
| Model name | USW-Pro-24-PoE |
