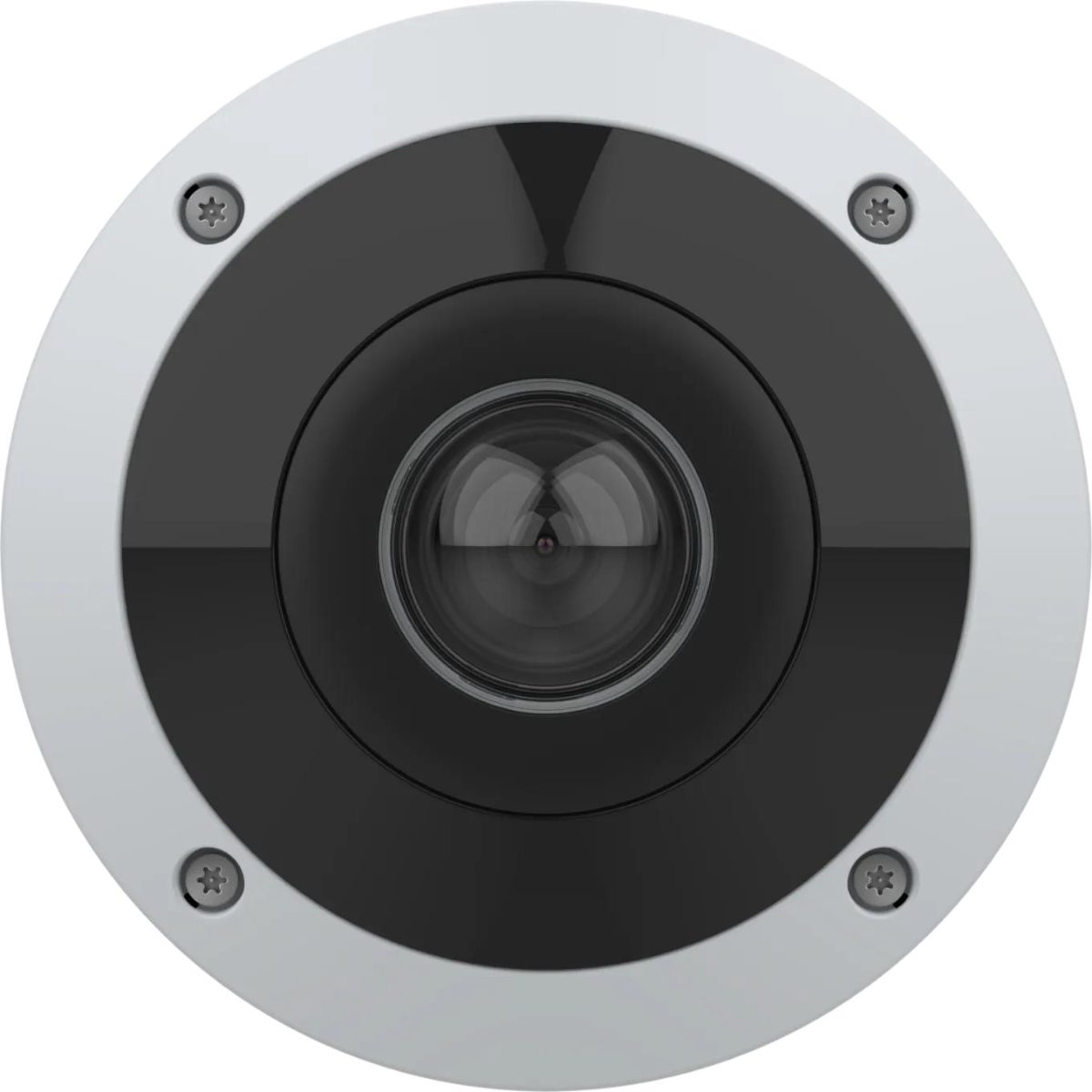

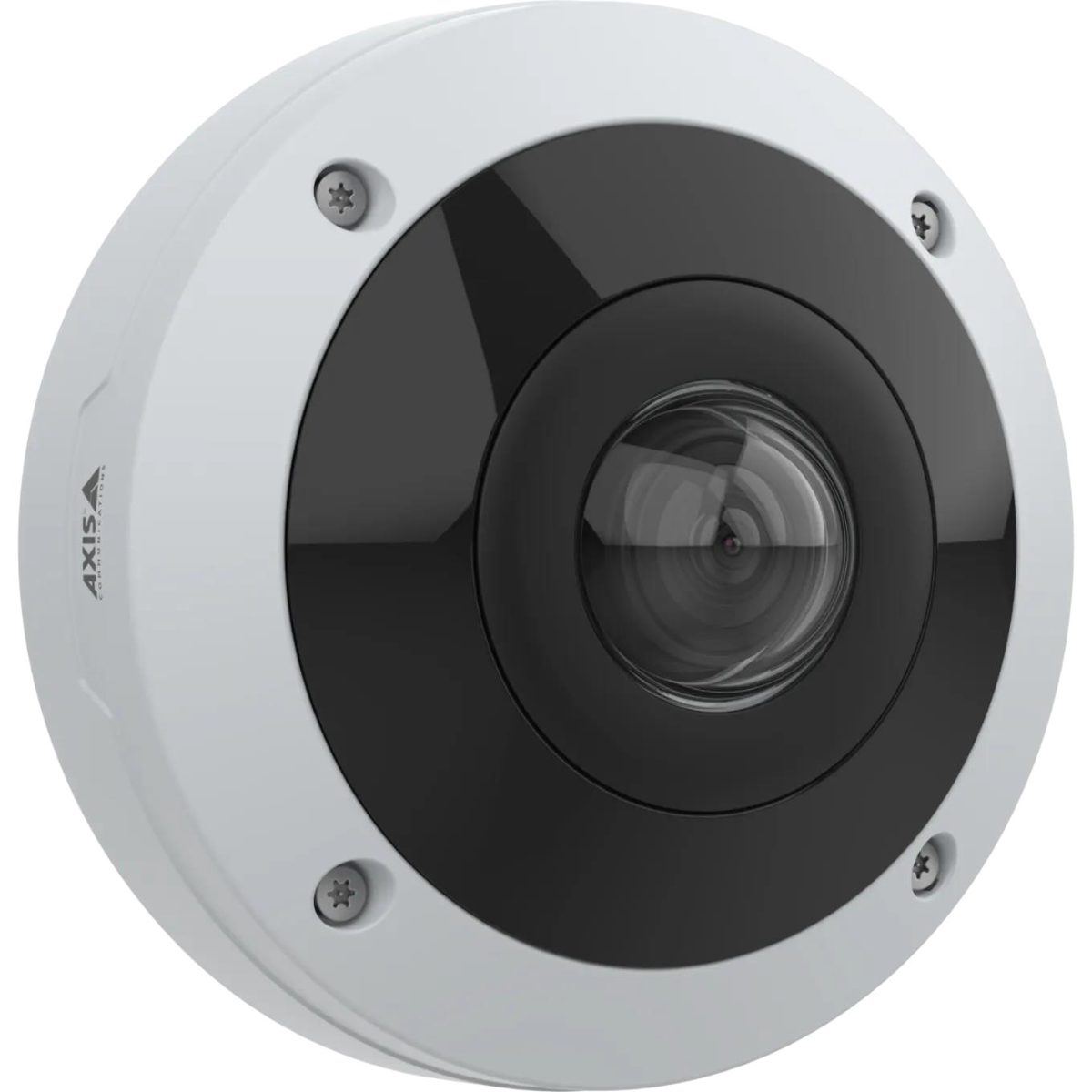

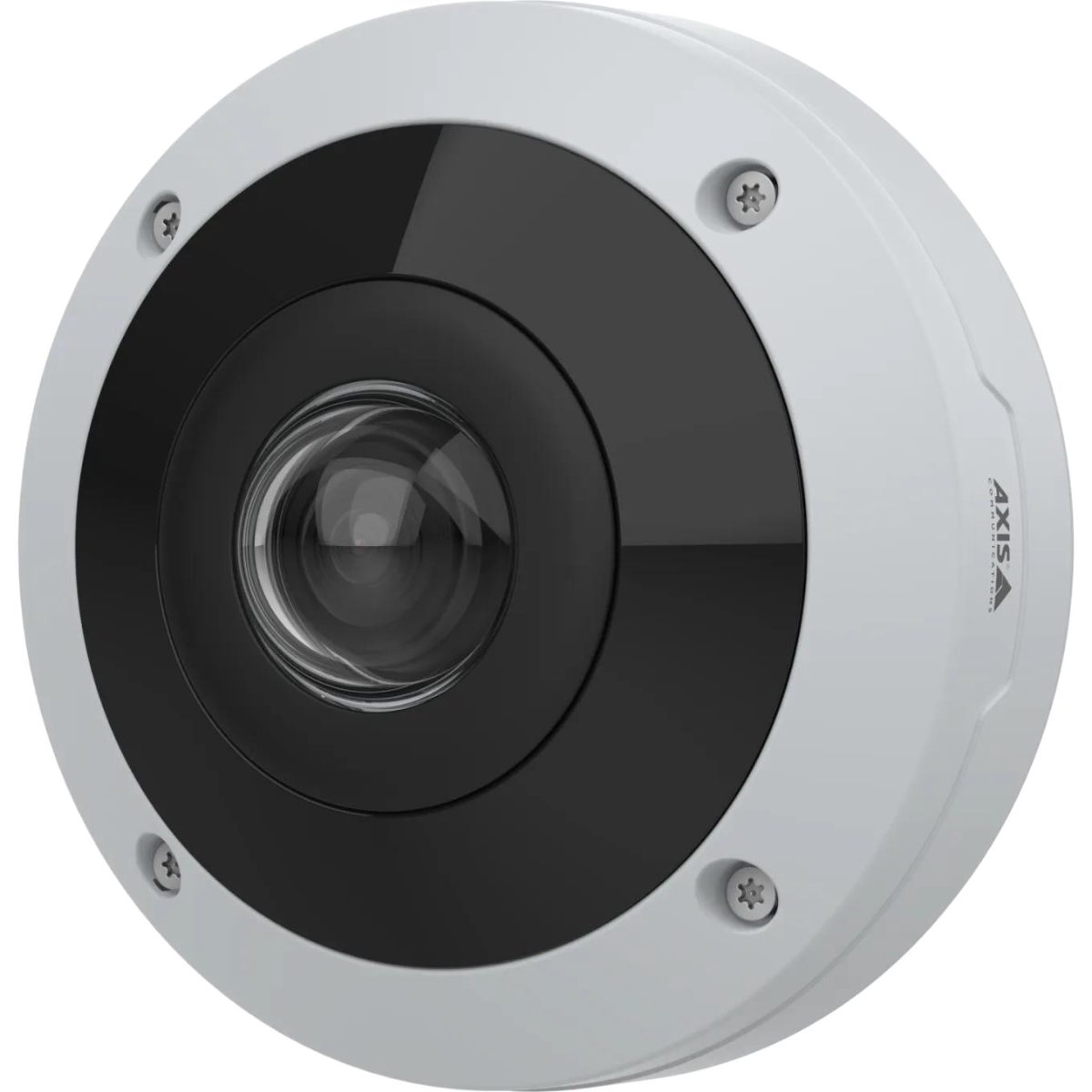

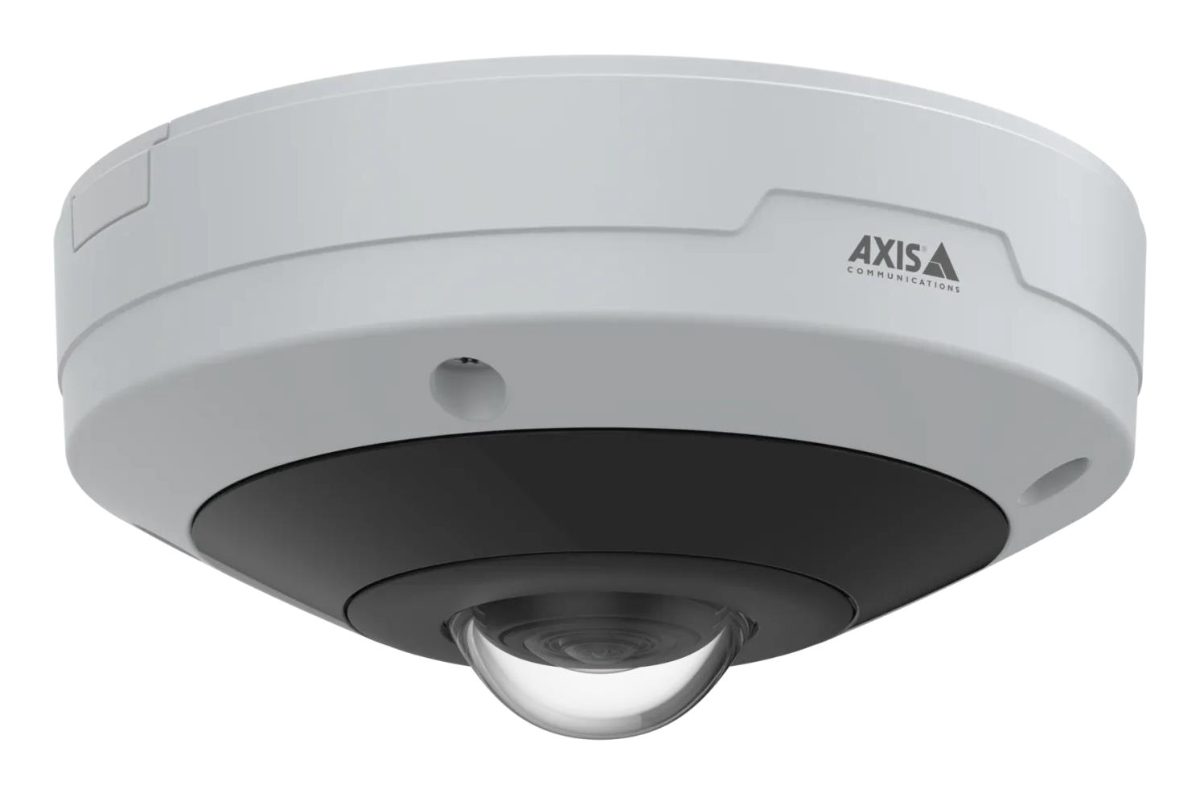

NET CAMERA FISHEYE DOME/M4348-PLVE 03133-001 AXIS
AXIS
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 60 mēn.
- Rēķins: katram pasūtījumam
- Zīmols
- AXIS
Apraksts
This AI-powered camera uses the latest sensor technology to provide high-quality image resolution 24/7. It includes camera-side dewarped views. And with AXIS Audio Analytics, you’ll know whenever something relevant happens, even when there's no visual indication.
Sharp images with great details
Using the latest sensor technology, AXIS M4348-PLVE offers 30% higher resolution than previous generations, reaching up to 3536x3536 pixels. Stereographic lens and Sharpdome 360 deliver outstanding image sharpness towards the edges and excellent corner image quality. It offers complete 180° or 360° coverage with no blind spots. Day/night functionality and built-in IR illumination ensure clear, reflection-free footage and excellent images even in low light or complete darkness. It supports up to four digital PTZ views, as well as panoramic, quad, corner, and corridor dewarped views. Furthermore, Axis Zipstream with AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements.
Powerful video and audio analytics
This AI-based camera comes with AXIS Object Analytics preinstalled to detect, classify, track, and count objects. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Plus, AI models are specifically trained for 360° fisheye views to ensure optimized performance. With built-in microphones and AXIS Audio Analytics preinstalled, it can detect critical sounds such as glass breaking, screams, and shouts, and measure noise pollution. Plus, directional audio detection provides the direction of the audio source and a visual overlay showing exactly where the sound is coming from.
Secure and easy- indoors and out
AXIS M4348-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With digital roll functionality, you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. It’s also delivered factory-focused for ease of installation. And it’s discreet, compact, flat design blends seamlessly into any environment. What’s more, this robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F).
- Latest sensor technology with 12 MP resolution
- Camera-side dewarped views
- Built-in IR with individual IR LEDs
- Next-generation video and audio analytics
- Built-in cybersecurity with Axis Edge Vault
Specifikācija
| Formas faktors | Dome |
| Materiāls | Aluminium/Polycarbonate (PC) |
| IK ietekmes novērtējums | IK10 |
| IP klase | IP66 |
| Montāžas veids | Ceiling/wall |
| Krāsa | Balts |
| Savienojuma tehnoloģija | Vadu |
| Dienas/nakts režīms | Jā |
| Dinamiskais diapazons | 120 dB |
| Infrasarkanā (IR) uztveršanas filtrs | Jā |
| Valodu atbalsts | Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese |
| Valodu skaits | 19 |
| Novietojums | Indoor & outdoor |
| Iepriekš iestatīti punkti | Jā |
| Procesora modelis | ARTPEC-9 |
| PTZ vadība | Jā |
| PTZ režīmi | Digital PTZ/Preset point |
| Produkta veids | IP drošības kamera |
| Digitālais plašs dinamiskais diapazons (DWDR) | Jā |
| Kameras pikseļa izmērs | 2 µm |
| Aizvara ātrums | 1/111000 - 2 s |
| Objektīva skatu leņķis, horizontāli | 185 ° |
| Objektīva skatu leņķis, vertikāli | 185 ° |
| Minimālais apgaismojums | 0 lx |
| Sensoru skaits | 1 |
| Optiskā sensora izmērs | 1/1.6 " |
| Progresīvā skenēšana | Jā |
| Sensora veids | CMOS |
| Tuvākais fokusa attālums | 0.1 m |
| Fokusa attālums | 1.7 mm |
| Maksimālā apertūra | 2 |
| Objektīvu skaits | 1 |
| Infrasarkanā viļņa garums | 850 nm |
| IR LED veids | IR |
| Nakts redzamība | Jā |
| Infrasarkanā nakts redzamības diapazons | 20 m |
| Bitreita vadība | Variable Bit Rate (VBR) |
| Kadru skaits sekundē | 30 fps |
| Pieauguma vadības veids | Automātisks |
| Attēla kvalitātes regulēšana | Brightness/Contrast/Mirror/Saturation/White balance |
| Maksimālā izšķirtspēja | 3536 x 3536 pikseļi |
| Privātuma maskēšana | Jā |
| Kopējie megapikseli | 12 MP |
| Video saspiešanas formāti | AV1/H.264/H.265/M-JPEG/MPEG4 |
| Video straumēšana | Jā |
| Atbalstīto audio formātu | AAC/AAC-LC/G.711/G.726/LPCM/OPUS |
| Iebūvēts mikrofons | Jā |
| Iebūvēti skaļruņi | Jā |
| Signāla-trokšņa attiecība (SNR) | 55 dB |
| Bluetooth | Nē |
| Ethernet veids | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Jā |
| Tīkla standardi | IEEE 802.1AE/IEEE 802.1x/IEEE 802.3at |
| Tīkla protokoli | Pv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, PTP, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v |
| Wi-Fi | Nē |
| Iebūvēts cietais disks | Nē |
| Karšu lasītājs | Jā |
| Atbalstītās atmiņas kartes | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash atmiņa | 8000 MB |
| Atmiņas ietilpība | 4000 MB |
| Ethernet (RJ-45) portu skaits | 1 |
| Spaiļu bloka ports | Jā |
| Privātuma aizsardzība | Jā |
| Drošības algoritmi | 802.1x RADIUS/AES/EAP-TLS/FIPS 140-2/FIPS 140-3/HTTPS/MSCHAPv2/PEAP/TLS |
| Pārvaldīts mākonī | Jā |
| Tīmekļa vadīšana | Jā |
| Maksimālais enerģijas patēriņš | 16.7 W |
| Tipiska enerģijas patēriņa | 7.1 W |
| Enerģijas avots | PoE,DC |
| Darbības mitrums | 10 - 100 % |
| Darbības temperatūra | -40 - 50 °C |
| Uzglabāšanas mitrums (ne-darbības) | 5 - 95 % |
| Uzglabāšanas temperatūra | -40 - 65 °C |
| Diametrs | 149 mm |
| Augstums | 70 mm |
| Svars | 880 g |
| Sertifikāti | CE/cUL/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/UL/VCCI |
| Kameru skaits | 1 |
| Brīvs no | Brominated Flame Retardant (BFR)/CFR/PVC |
| Irides atpazīšana | Jā |
