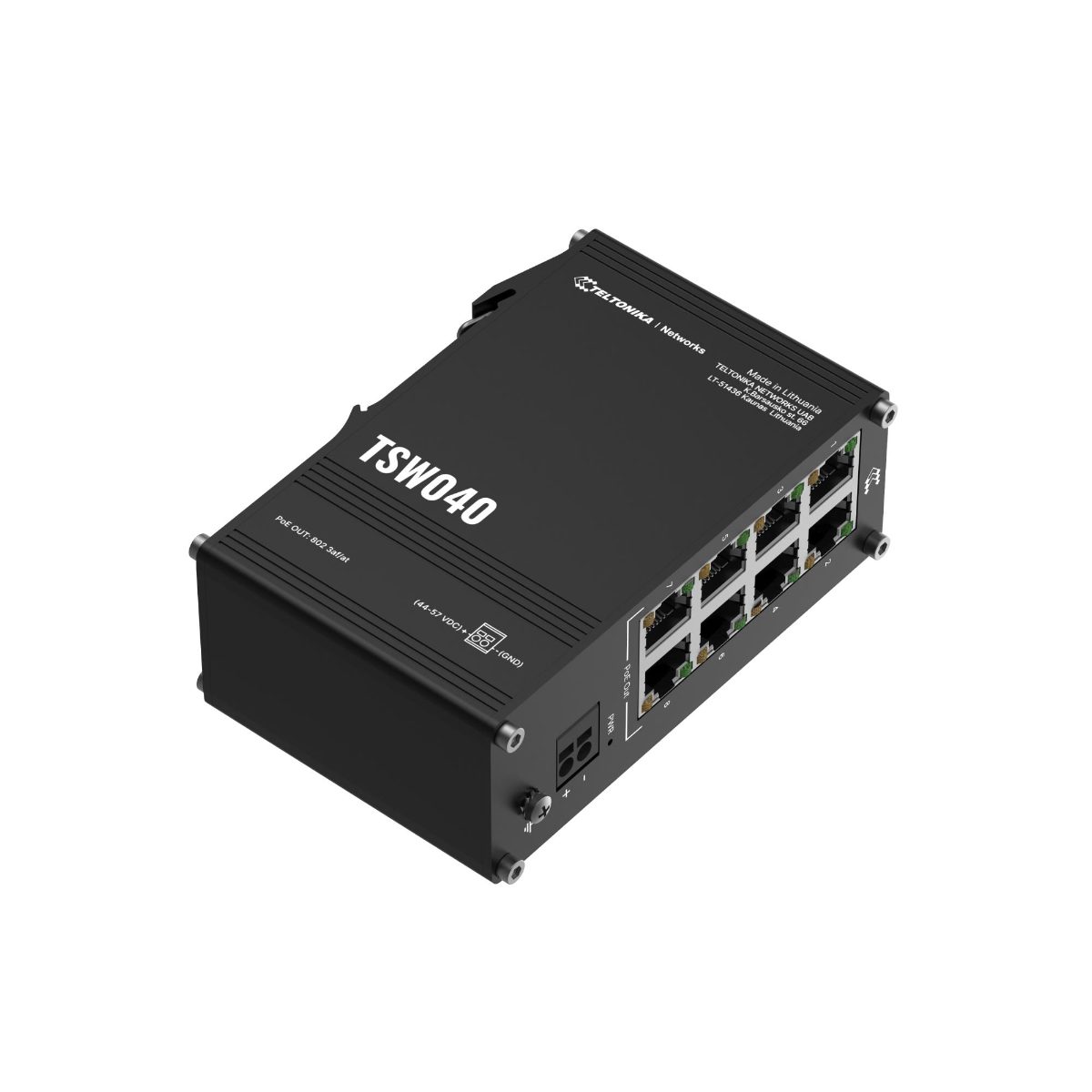

Industrial Switch, TSW040, Unmanaged, DIN rail mountable

Name: Industrial Switch, TSW040, Unmanaged, DIN rail mountable, 10/100 Mbps (RJ-45) ports quantity 8, PoE+ ports quantity 8, Power supply type 2-pin industrial DC power socket
Brand: Teltonika
SKU: 4779051841448
Price: 48.64 EUR
Availability: InStock

Industrial Switch, TSW040, Unmanaged, DIN rail mountable, 10/100 Mbps (RJ-45) ports quantity 8, PoE+ ports quantity 8, Power supply type 2-pin industrial DC power socket

Teltonika · 4779051841448

48,64 €

Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.

Pieejams · 3 gab.

Apmaksa: pārskaitījums vai maksājums saņemot
Piegāde: 1–3 darba dienas, visā Latvijā
Garantija: 24 mēn.
Rēķins: katram pasūtījumam

EAN: 4779051841448
Zīmols: Teltonika

Apraksts

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.

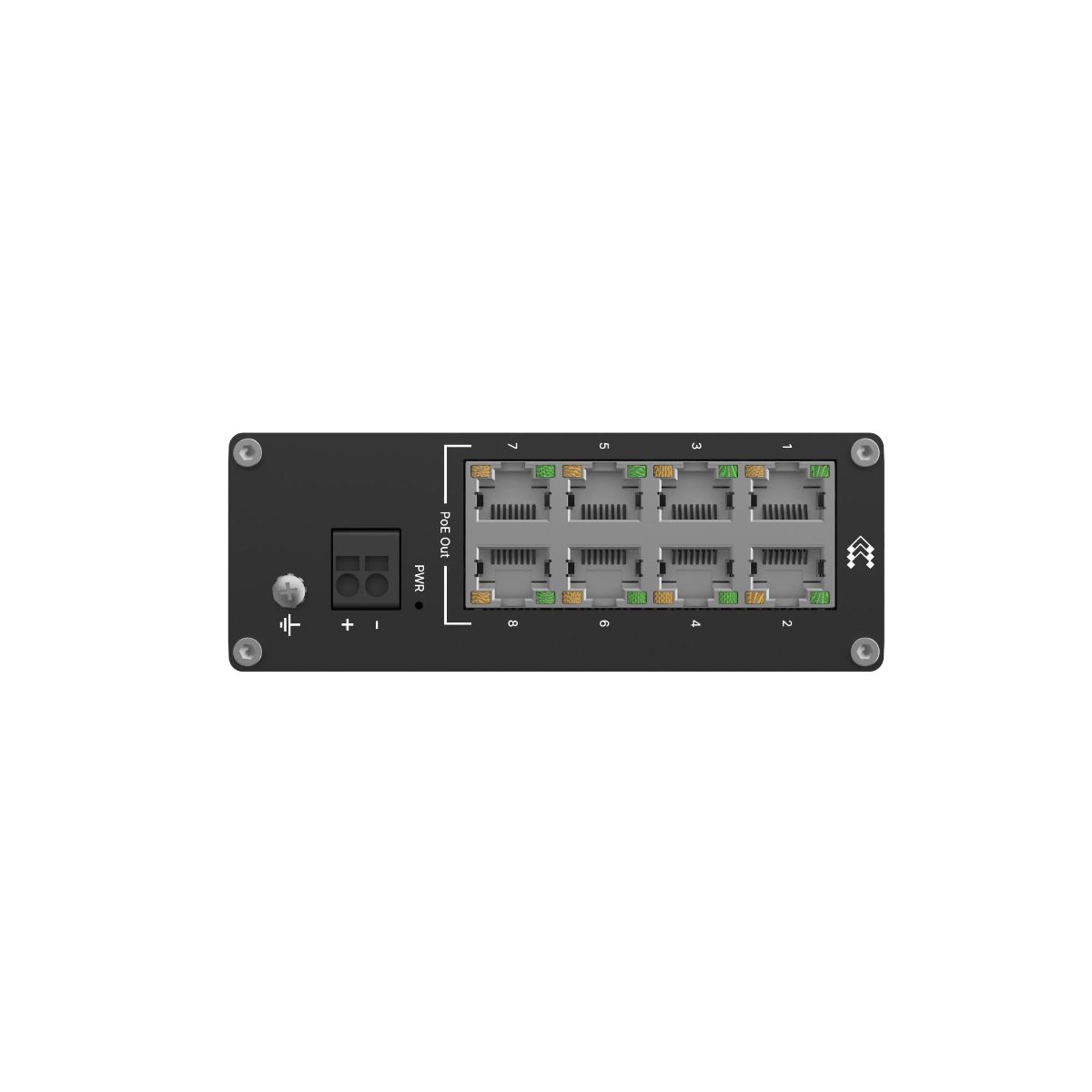

8 X POE-OUT RJ45
Eight PoE-out Ethernet ports with a total power budget of 240 W
2-PIN POWER INPUT
Simple and suitable for industrial applications

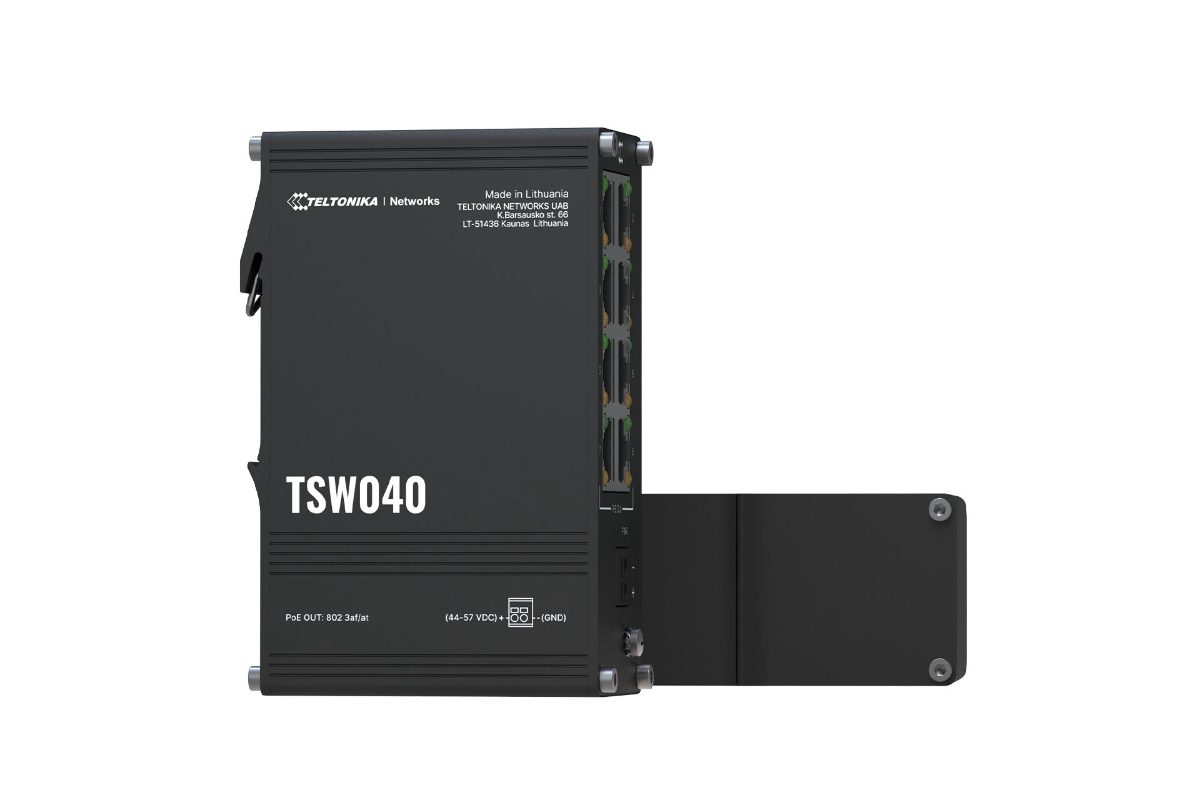

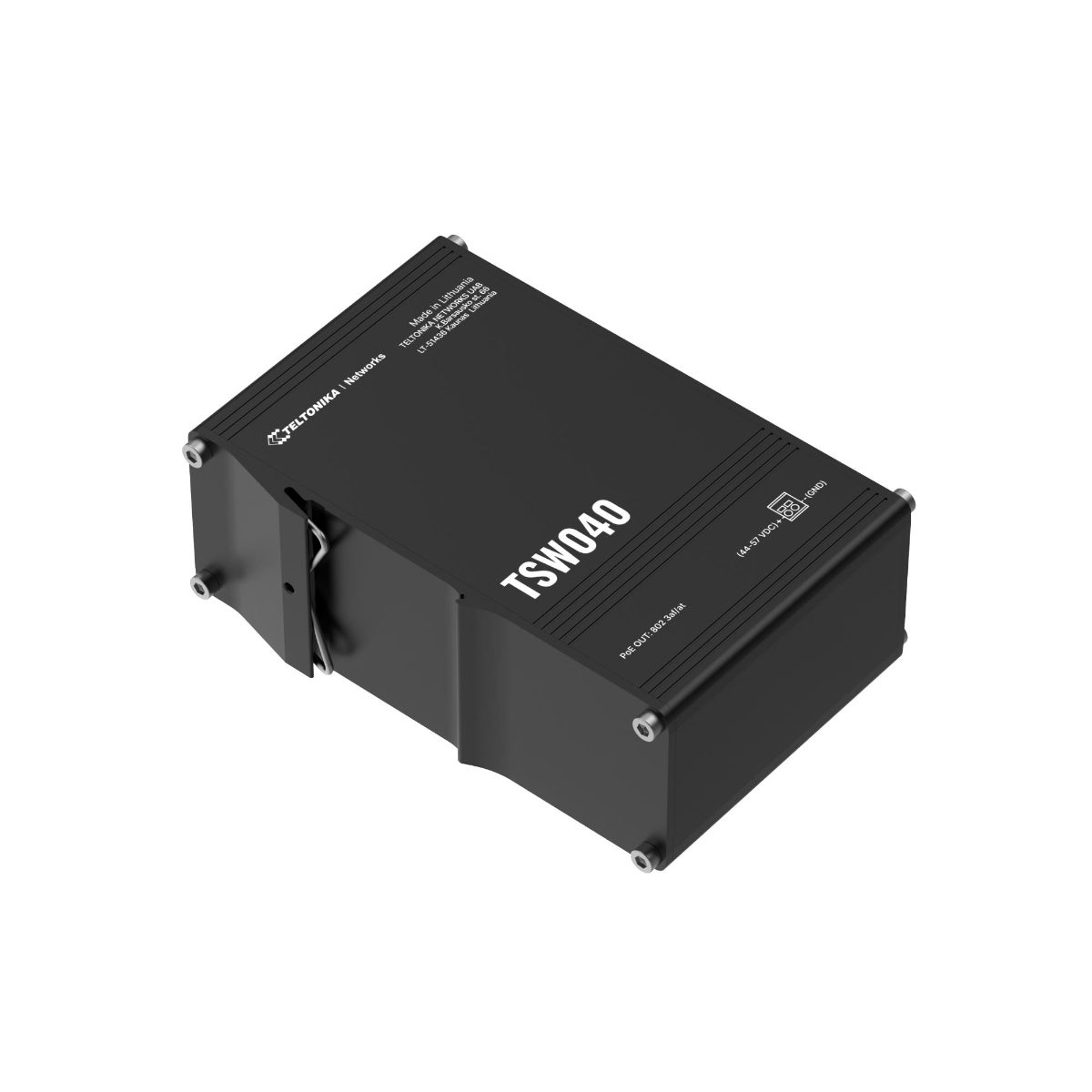

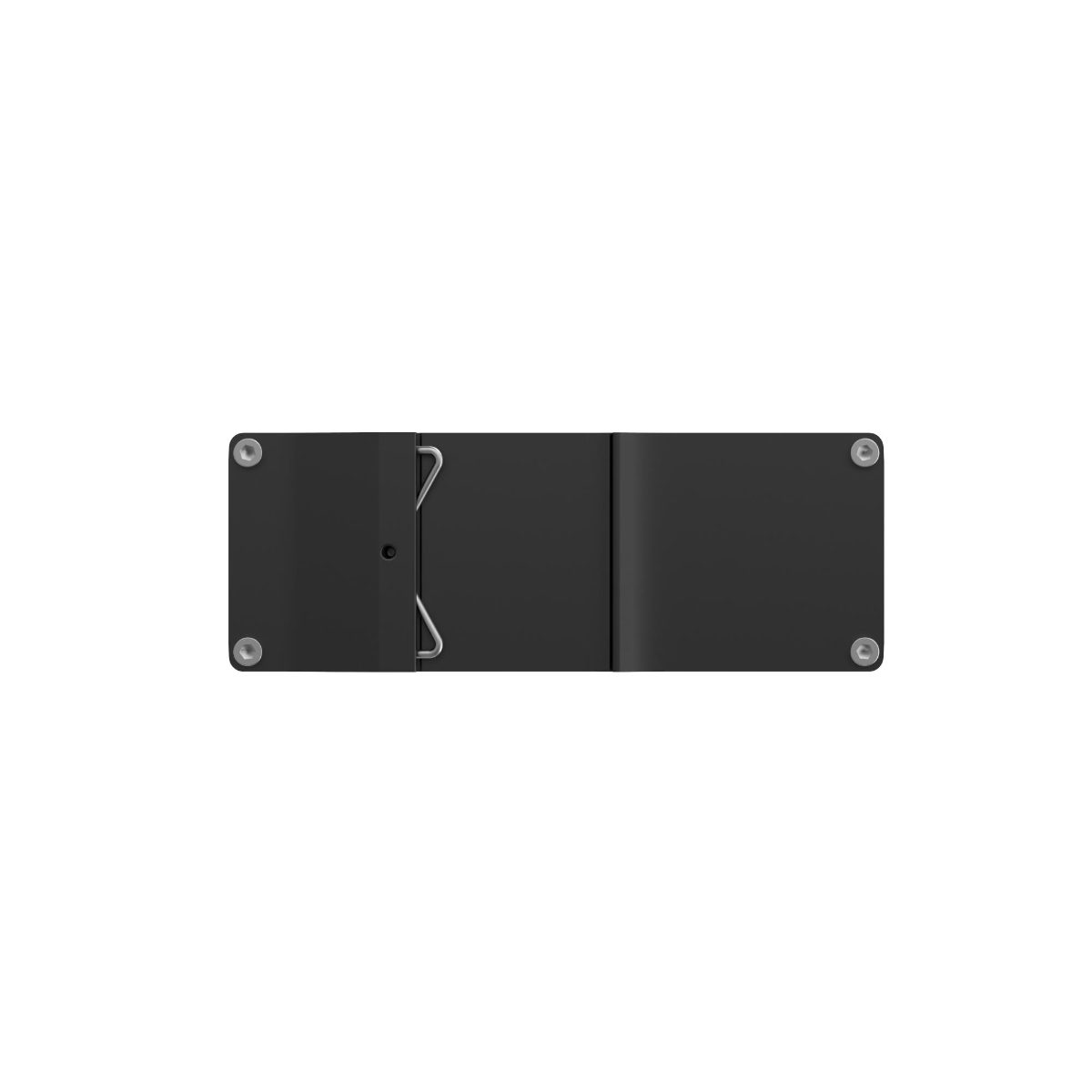

INTEGRATED DIN RAIL
Easy mounting for plug-and-play deployment
WIDE VOLTAGE RANGE
7-57 VDC, or 44-57 VDC for PoE-out

Specifikācija

Slēdža veids	Unmanaged
Ethernet (RJ-45) portu skaits	8
Ethernet veids	Fast Ethernet (10/100)
Ātrs Ethernet (vara) porti	8
10 Gigabitu atbalsts	Nē
Tīkla standardi	IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
MAC adreses tabulas lielums	2048 ieraksti
Pārslēgšanas jauda	20 Gbit/s
Materiāls	Alumīnijs
LED indikatori	Link/Power/Status
Krāsa	Melns
Kreklu montējams	Nē
Atiestatīšanas poga	Nē
Sakraujams	Nē
Ieejas spriegums	7 - 57 V
Enerģijas avots	DC
Barošanas bloks iekļauts	Nē
Power over Ethernet	Jā
PoE portu skaits	8
PoE jauda uz portu	30 W
PoE veids atbalstīts	Active PoE
PoE spriegums	48 V
Kopējais PoE budžets	240 W
Darbības mitrums	10 - 90 %
Darbības temperatūra	-40 - 75 °C
Dziļums	74.6 mm
Augstums	41.2 mm
Svars	280 g
Platums	113.1 mm
Ātrā sākuma ceļvedis iekļauts	Jā
Modelis	TSW040
Modeļa nosaukums	TSW040000000
