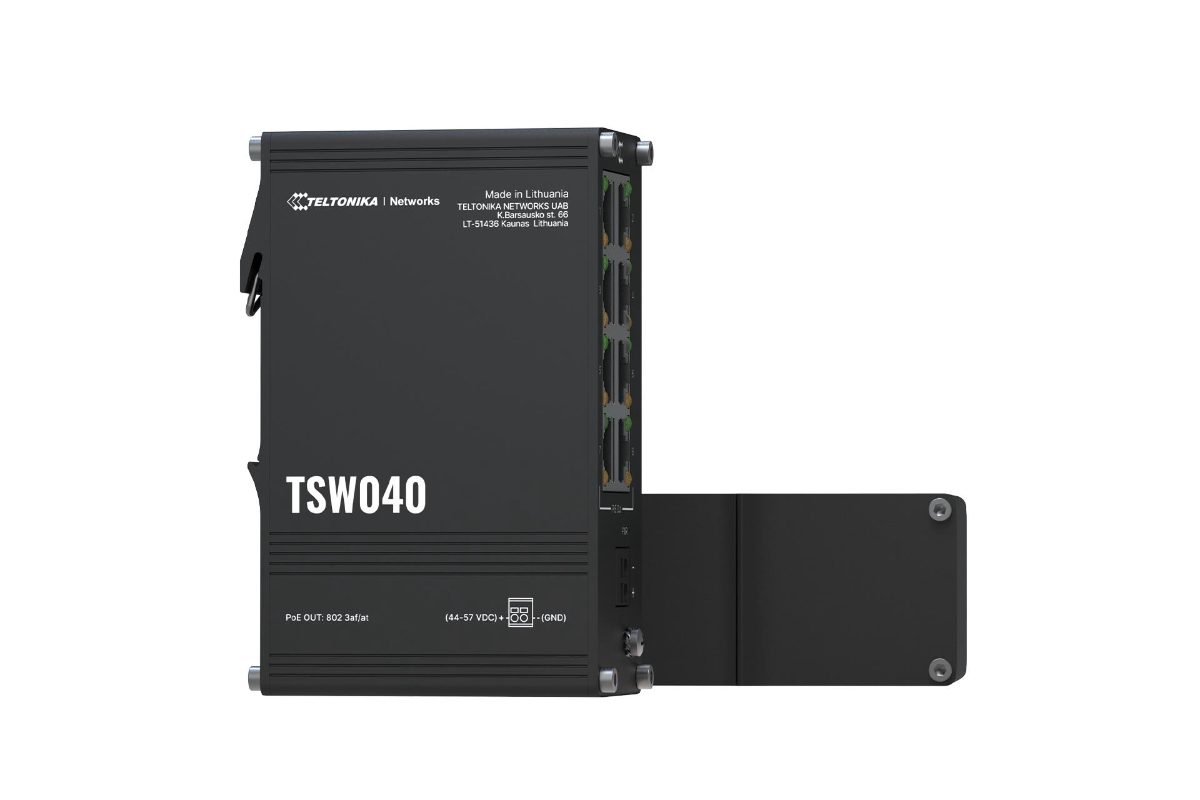

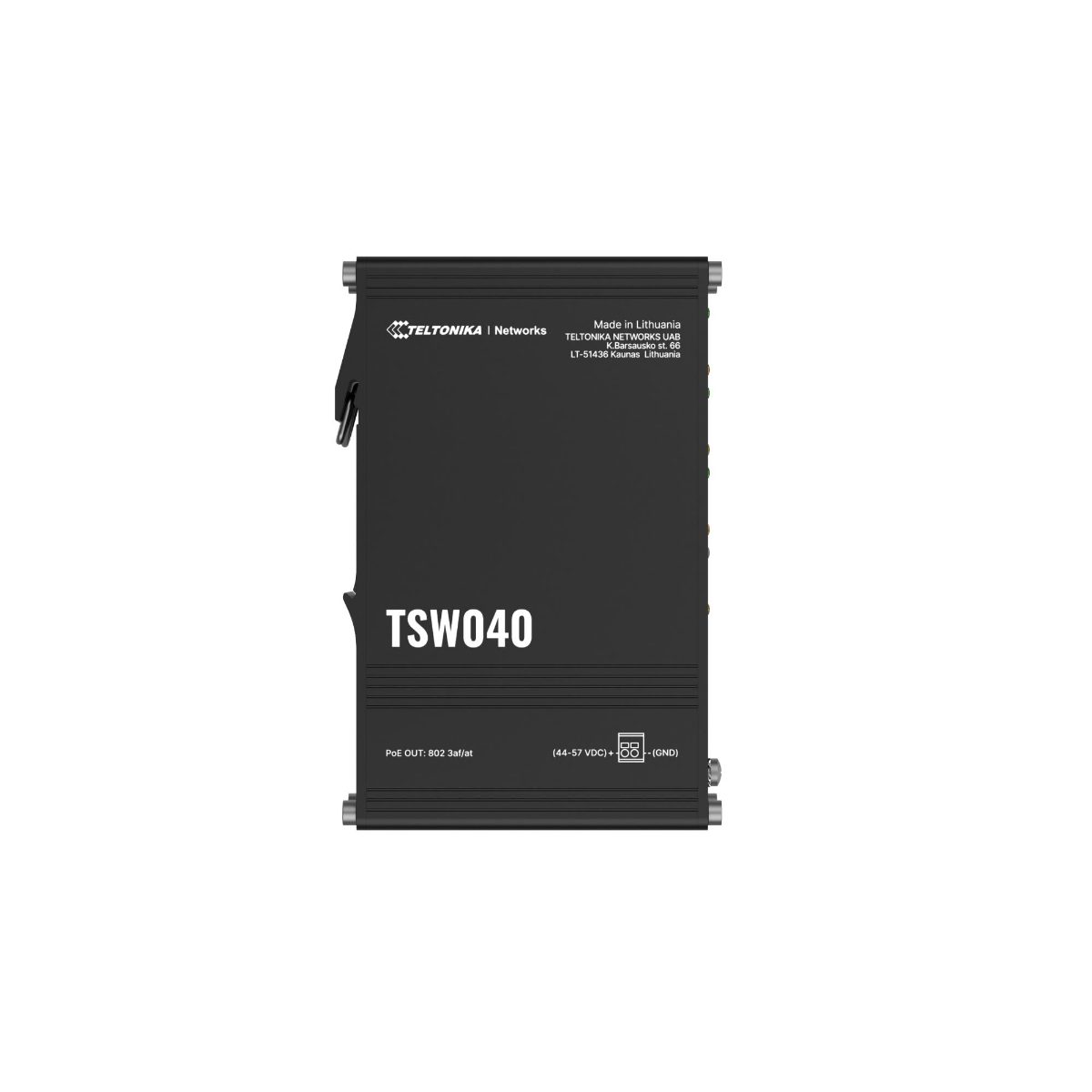

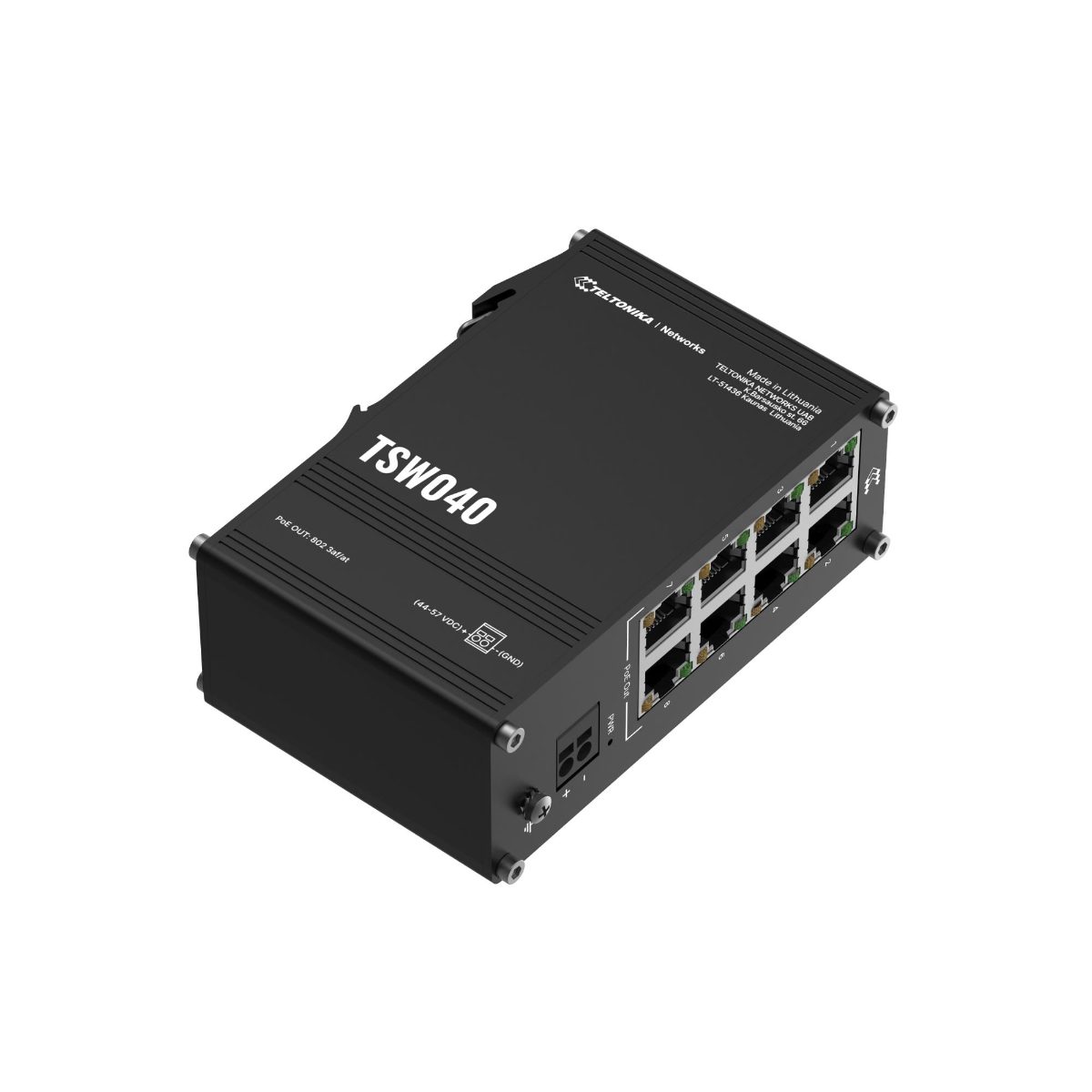

Industrial Switch, TSW040, Unmanaged, DIN rail mountable

Name: Industrial Switch, TSW040, Unmanaged, DIN rail mountable, 10/100 Mbps (RJ-45) ports quantity 8, PoE+ ports quantity 8, Power supply type 2-pin industrial DC power socket
Brand: Teltonika
SKU: 4779051841448
Price: 48.64 EUR
Availability: InStock

Industrial Switch, TSW040, Unmanaged, DIN rail mountable, 10/100 Mbps (RJ-45) ports quantity 8, PoE+ ports quantity 8, Power supply type 2-pin industrial DC power socket

Teltonika · 4779051841448

48,64 €

The invoice is sent as soon as you order.

Available · 3 pcs

Payment: bank transfer or cash on delivery
Delivery: 1–3 working days, anywhere in Latvia
Warranty: 24 mo.
Invoice: with every order

EAN: 4779051841448
Brand: Teltonika

Description

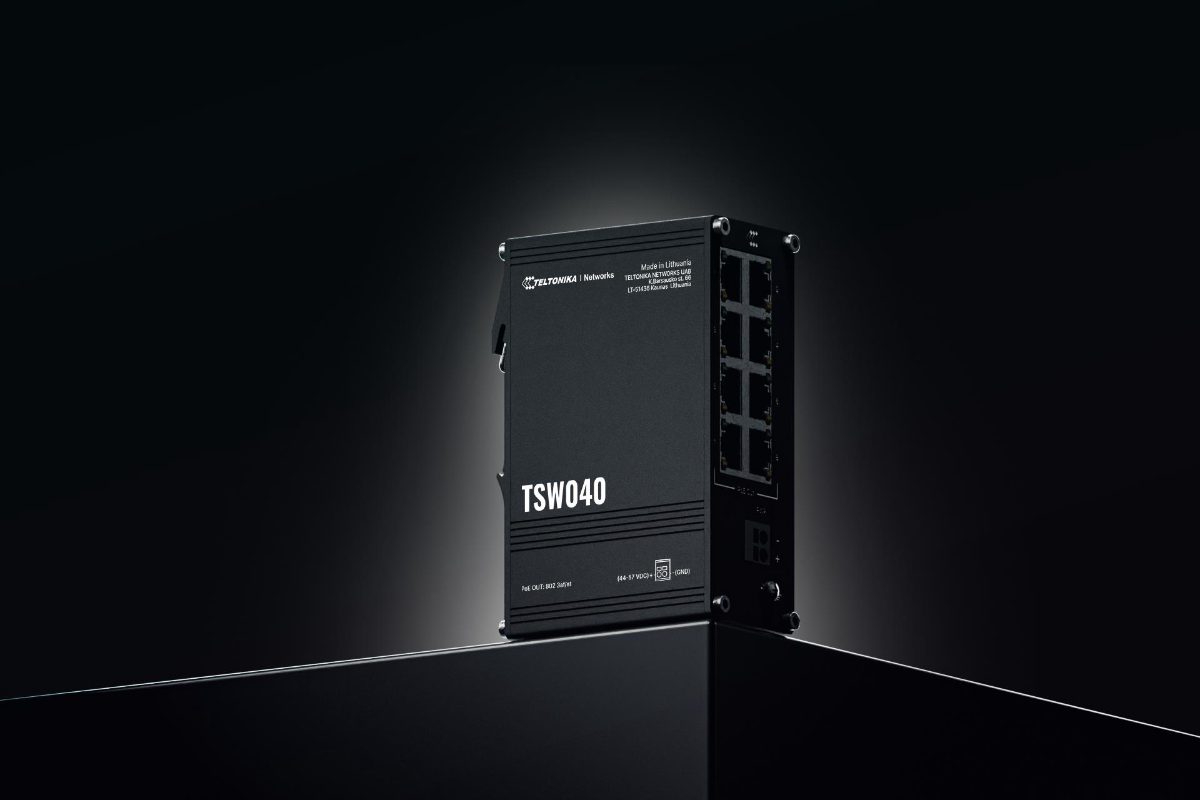

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.

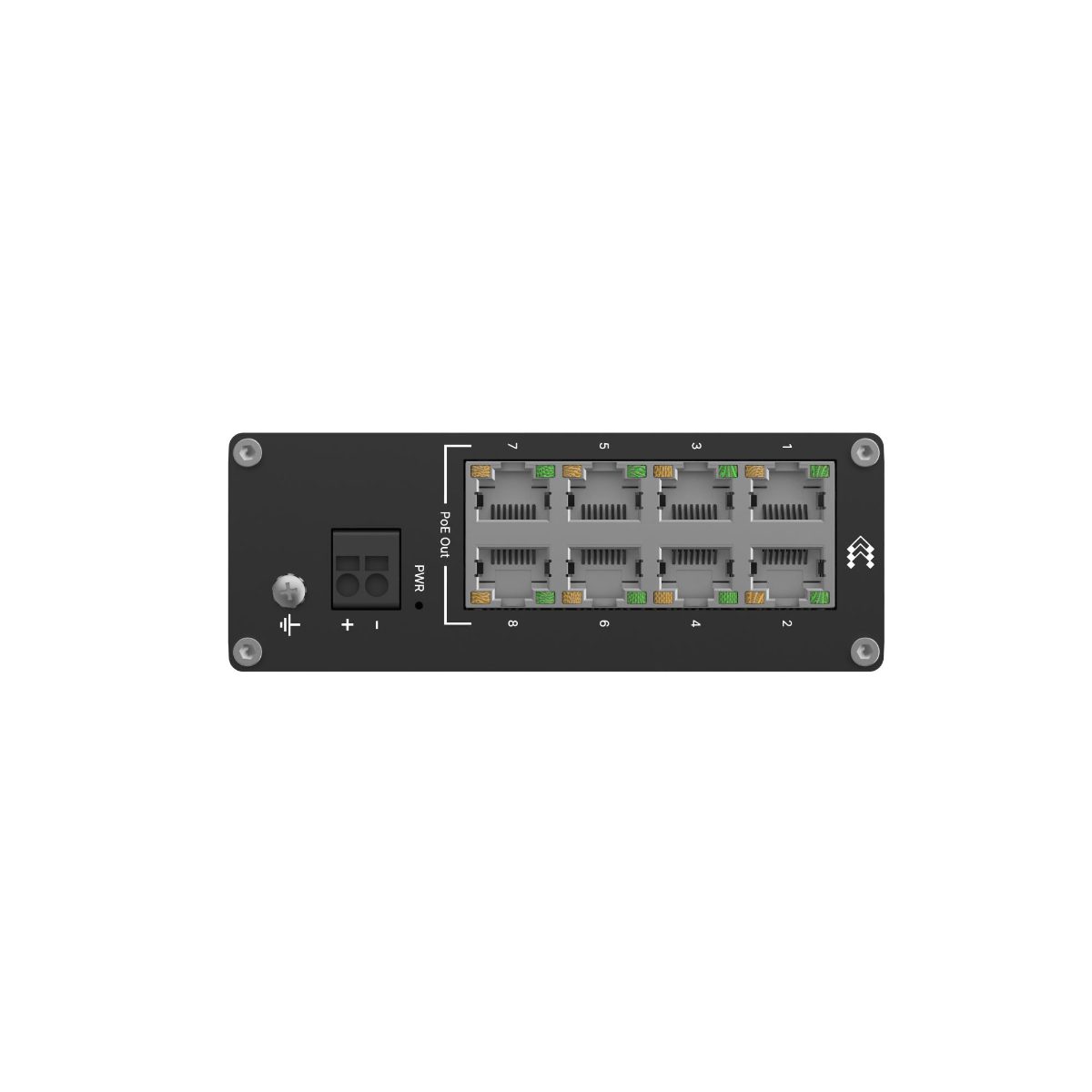

8 X POE-OUT RJ45
Eight PoE-out Ethernet ports with a total power budget of 240 W
2-PIN POWER INPUT
Simple and suitable for industrial applications

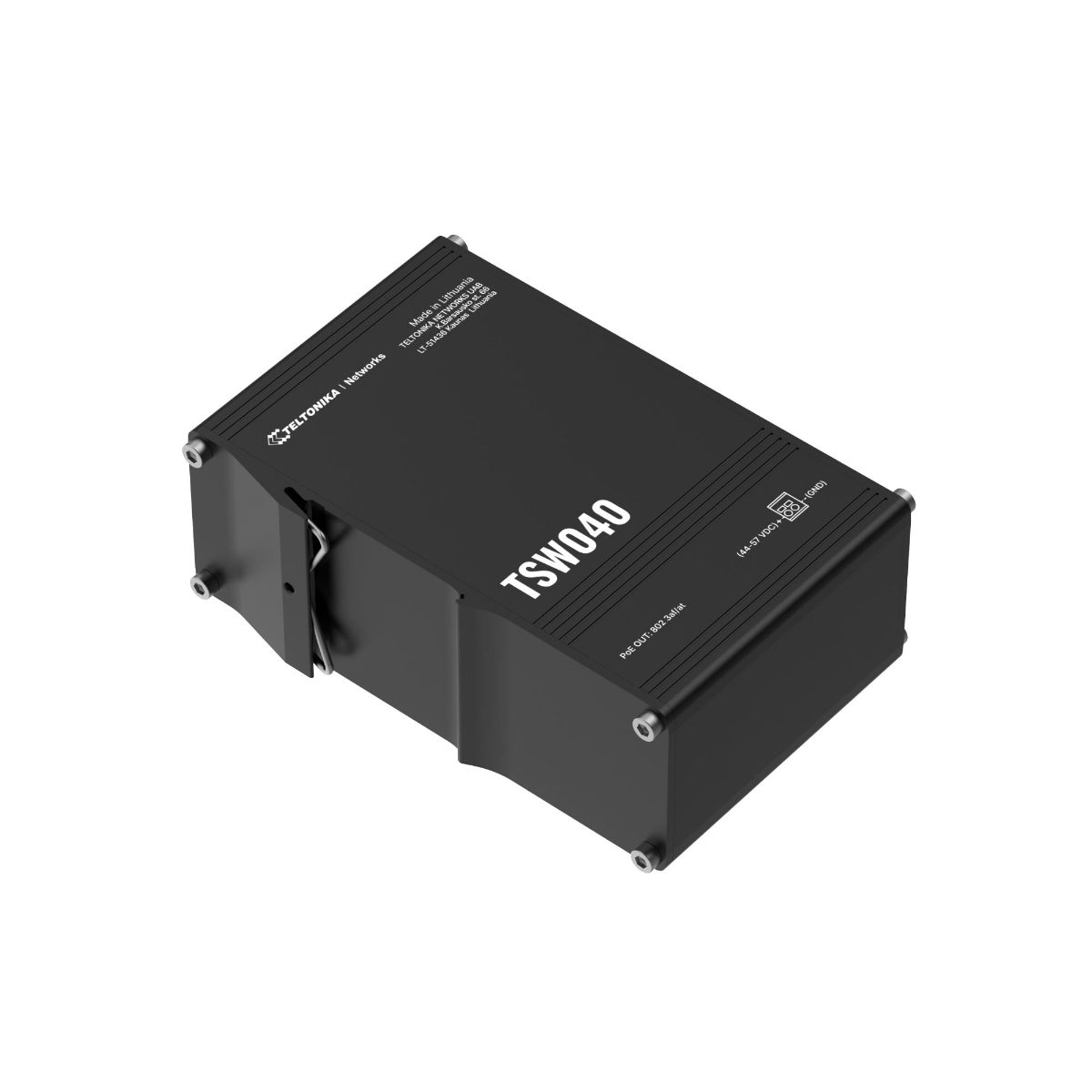

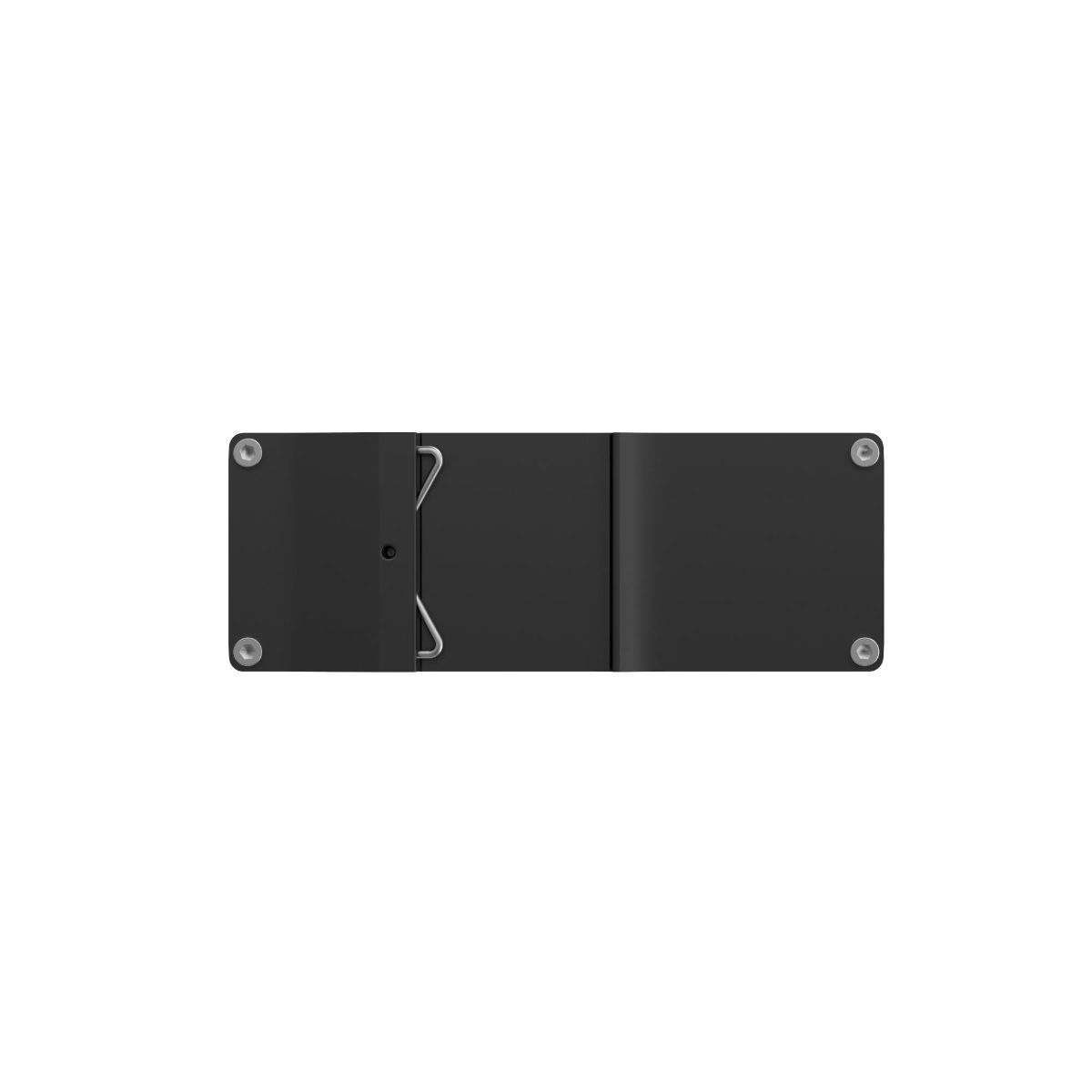

INTEGRATED DIN RAIL
Easy mounting for plug-and-play deployment
WIDE VOLTAGE RANGE
7-57 VDC, or 44-57 VDC for PoE-out

Specifications

Switch type	Unmanaged
Ethernet (RJ-45) ports	8
Ethernet type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports	8
10 Gigabit support	No
Networking standards	IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
MAC address table size	2048 entries
Switching capacity	20 Gbit/s
Material	Aluminium
LED indicators	Link/Power/Status
Colour	Black
Rack mountable	No
Reset button	No
Stackable	No
Input voltage	7 - 57 V
Power source	DC
Power supply included	No
Power over Ethernet	Yes
PoE port count	8
PoE power per port	30 W
PoE type supported	Active PoE
PoE voltage	48 V
Total PoE budget	240 W
Operating humidity	10 - 90 %
Operating temperature	-40 - 75 °C
Depth	74.6 mm
Height	41.2 mm
Weight	280 g
Width	113.1 mm
Quick start guide included	Yes
Model	TSW040
Model name	TSW040000000
