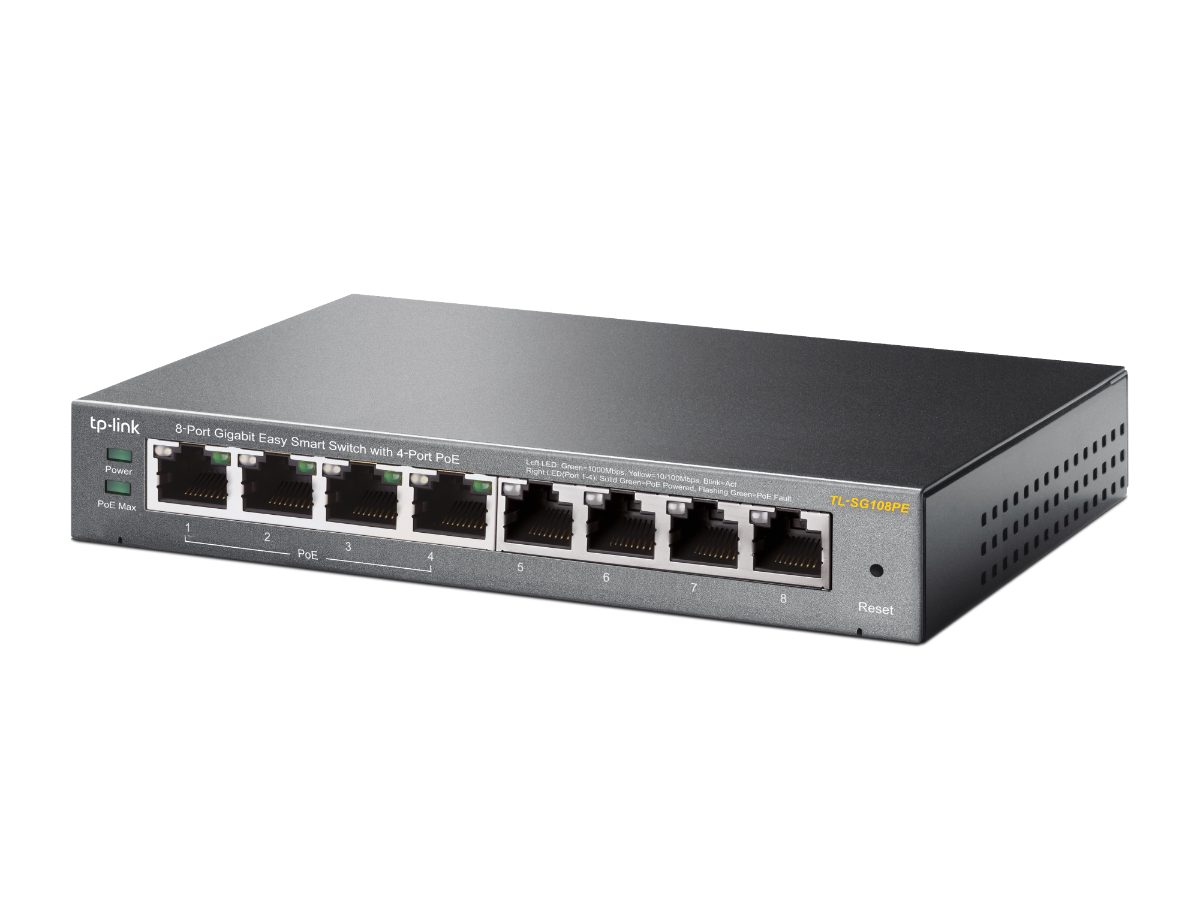

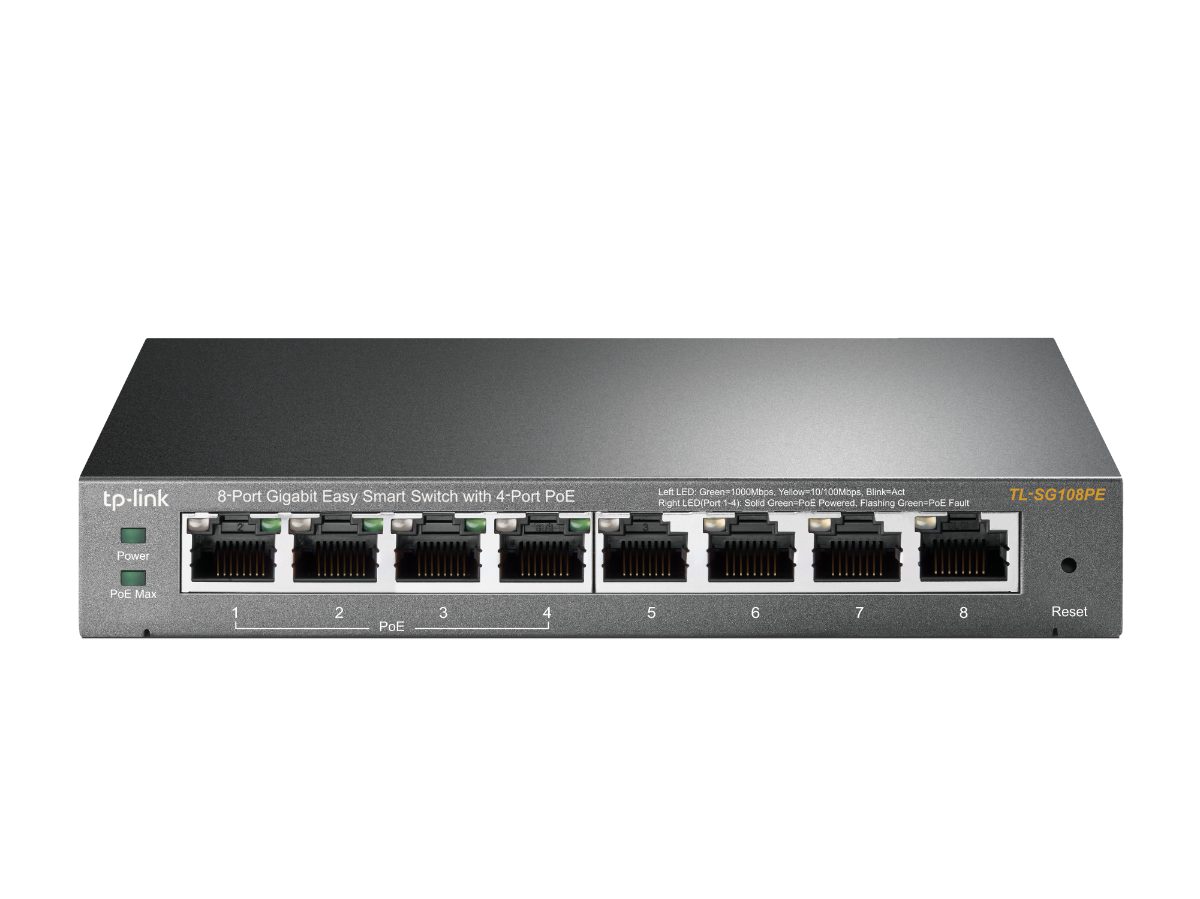

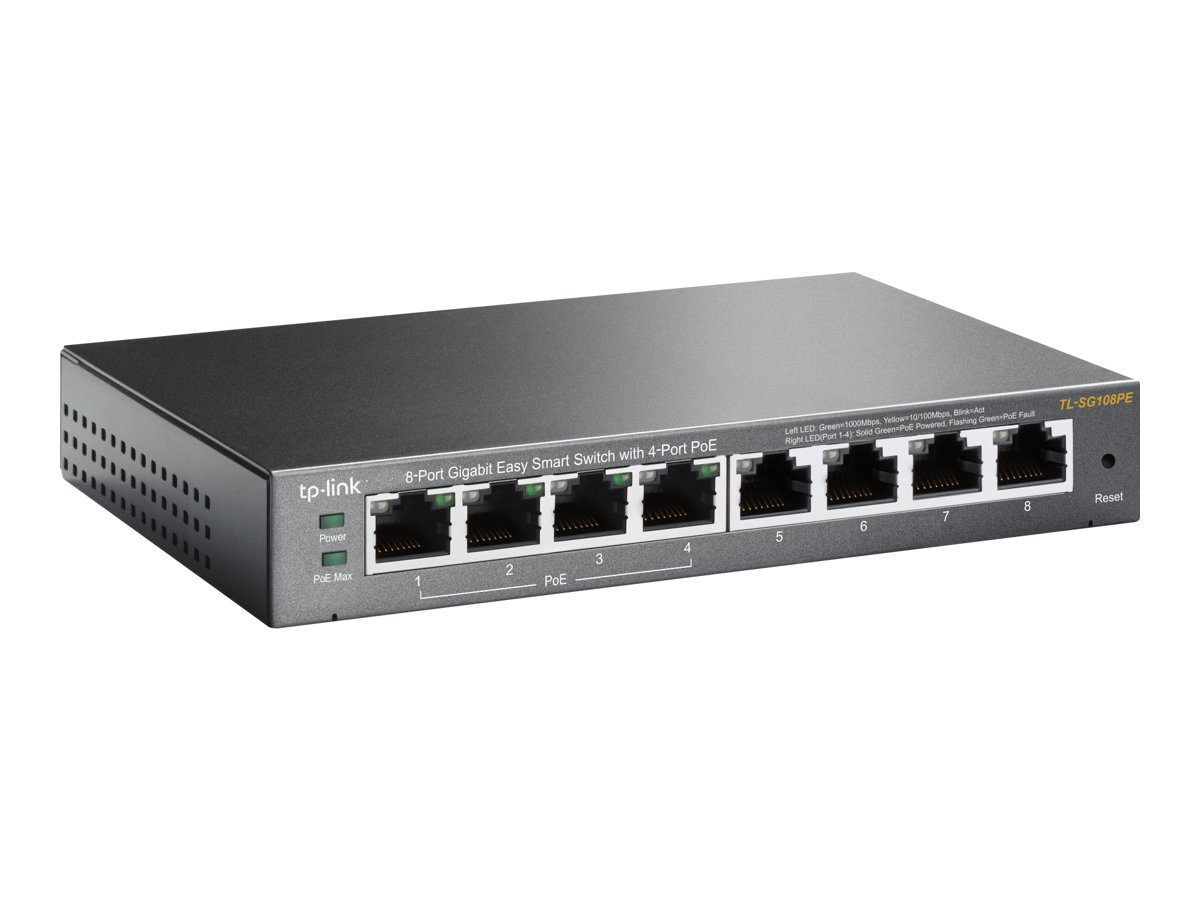

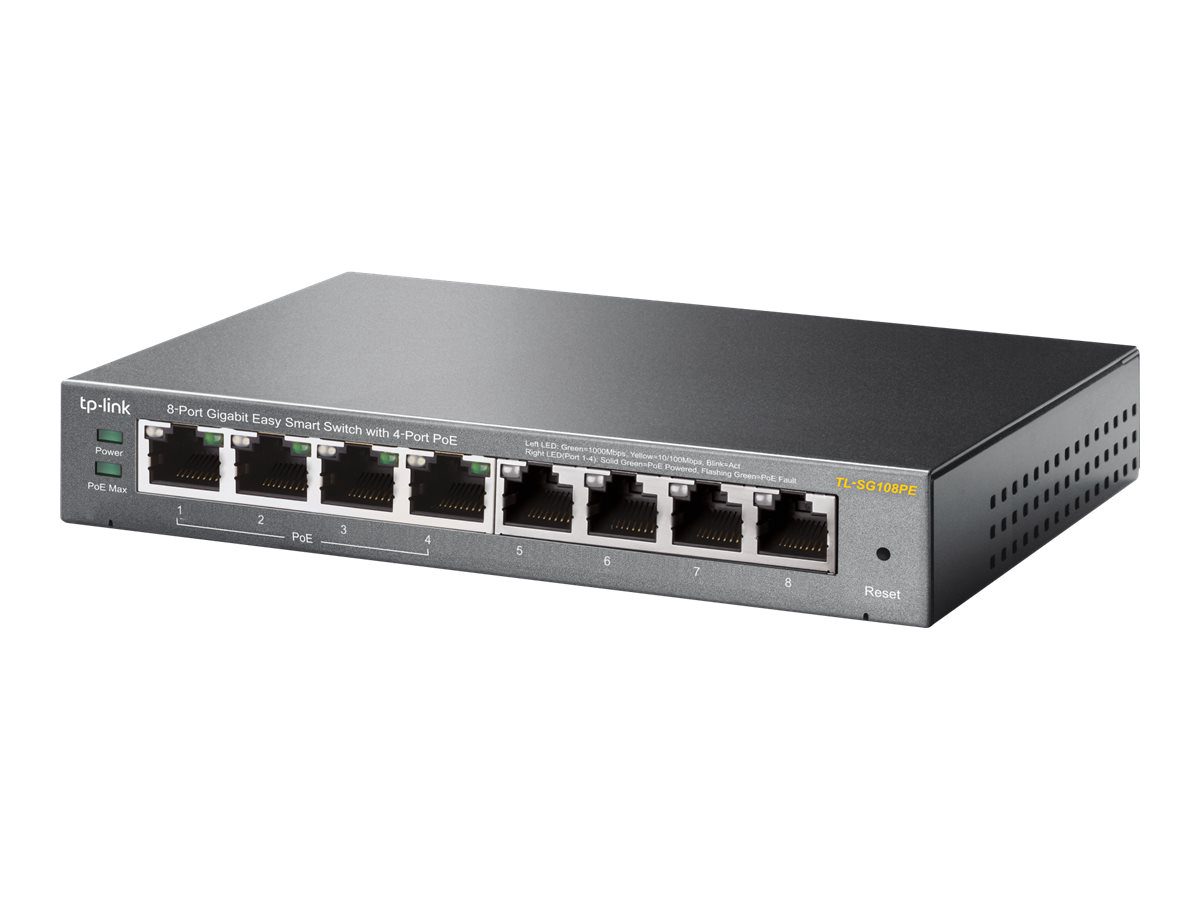

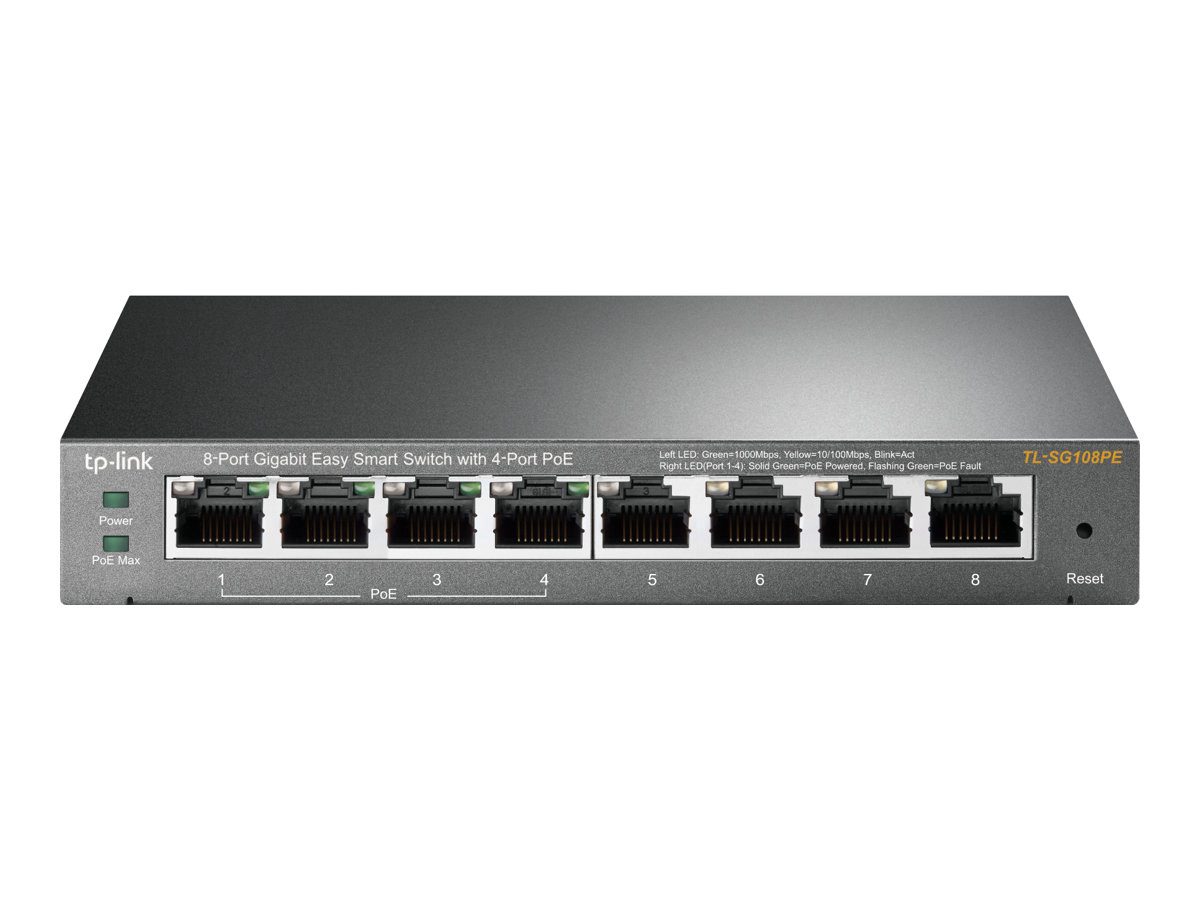

Smart Switch, TL-SG108PE, Web Managed, Desktop
Smart Switch, TL-SG108PE, Web Managed, Desktop, Gigabit Ethernet (copper) ports quantity 4, PoE+ ports quantity 4, Power supply type External, 36 month(s)
TP-LINK · 6935364094744
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 60 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 6935364094744
- Zīmols
- TP-LINK
Apraksts
PoE Switches for Your Ultra Convenience
8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
- Supports PoE power up to 55W for all PoE ports
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
Specifikācija
| Pakalpojuma kvalitāte (QoS) | Jā |
| Slēdža slānis | L2 |
| Slēdža veids | Managed |
| Tīmekļa vadīšana | Jā |
| Ethernet (RJ-45) portu skaits | 8 |
| Ethernet veids | Gigabit Ethernet (10/100/1000) |
| Gigabita Ethernet (vara) porti | 8 |
| 10 Gigabitu atbalsts | Nē |
| Auto MDI/MDI-X | Jā |
| Automātiska negociācija | Jā |
| Apraidēšanas vētreles vadība | Jā |
| Kabeļa veids | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Saites agregācija | Jā |
| Tīkla standardi | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| VLAN skaits | 32 |
| Porta spoguļošana | Jā |
| Pārsūtīšanas ātruma ierobežošana | Jā |
| Virtuālā LAN funkcijas | Port-based VLAN |
| VLAN atbalsts | Jā |
| Pārsūtīšanas ātrums | 11.9 Mpps |
| Lielas kadra izmērs | 15000 |
| Jumbo rāmji | Jā |
| MAC adreses tabulas lielums | 4000 ieraksti |
| Paketes buffera atmiņa | 1.5 MB |
| Pakešu pārsūtīšanas ātrums | 11900000 pps |
| Noglabāt un pārsūtīt | Jā |
| Pārslēgšanas jauda | 16 Gbit/s |
| IGMP nozīmīgums | Jā |
| Cilpas aizsardzība | Jā |
| LED indikatori | Activity/Link/PoE/Power/Speed/Status |
| Krāsa | Melns |
| Ieejas frekvence | 50 Hz |
| Ieejas spriegums | 220 V |
| Ieejas strāva | 1.25 A |
| Maksimālais enerģijas patēriņš | 65.2 W |
| Enerģijas avots | DC |
| Barošanas bloks iekļauts | Jā |
| Power over Ethernet | Jā |
| PoE portu skaits | 4 |
| PoE jauda uz portu | 15.4 W |
| Power over Ethernet plus (PoE+) porti | 4 |
| Kopējais PoE budžets | 64 W |
| Siltuma izkliede | 256.19 BTU/h |
| Darbības mitrums | 10 - 90 % |
| Darbības temperatūra | 0 - 40 °C |
| Uzglabāšanas mitrums (ne-darbības) | 5 - 95 % |
| Uzglabāšanas temperatūra | -40 - 70 °C |
| Dziļums | 101 mm |
| Augstums | 25 mm |
| Platums | 158 mm |
| Iekļautie kabeļi | AC |
| Instrukcija iekļauta | Jā |
| Sertifikācija | FCC, CE, RoHS |
| Modelis | TL-SG108PE |
| Modeļa nosaukums | 8-Port Gigabit Easy Smart Switch with 4-Port PoE |
