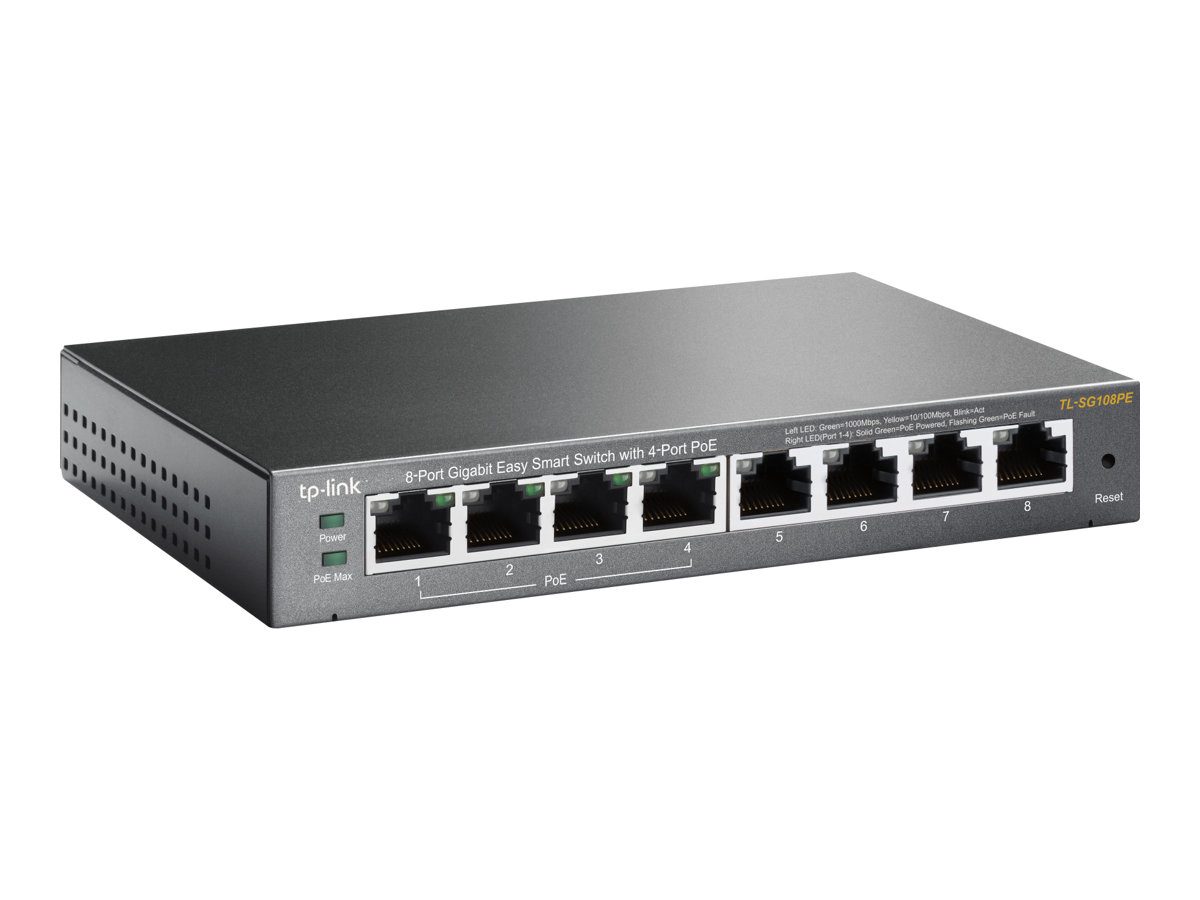

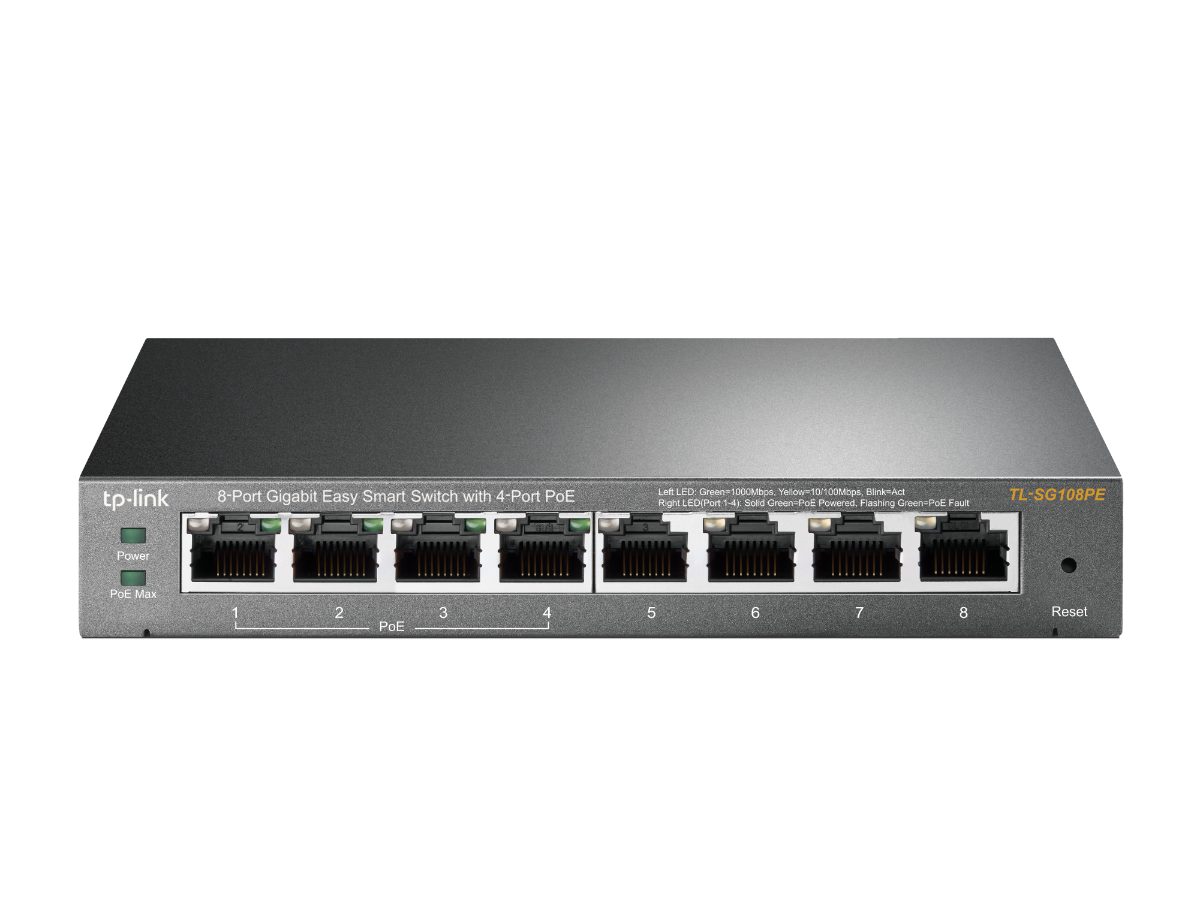

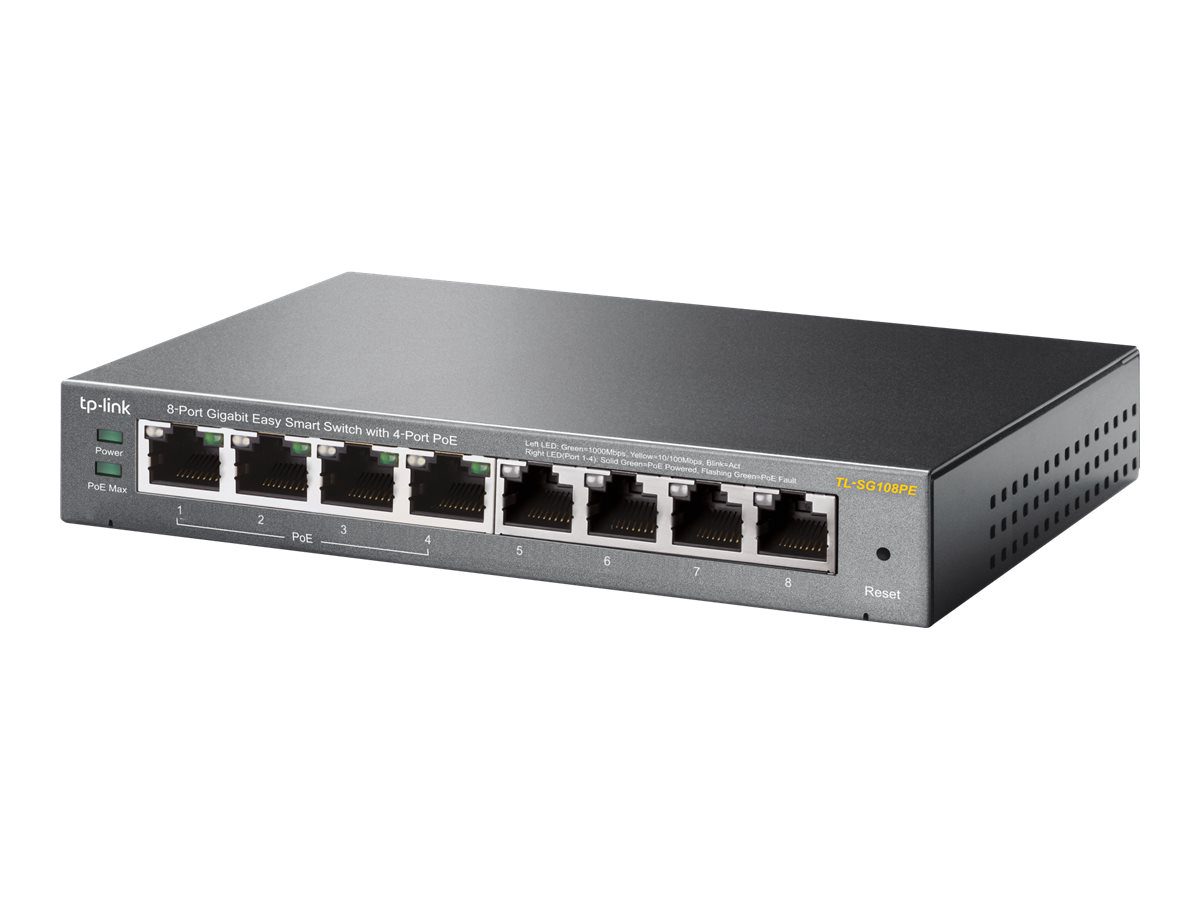

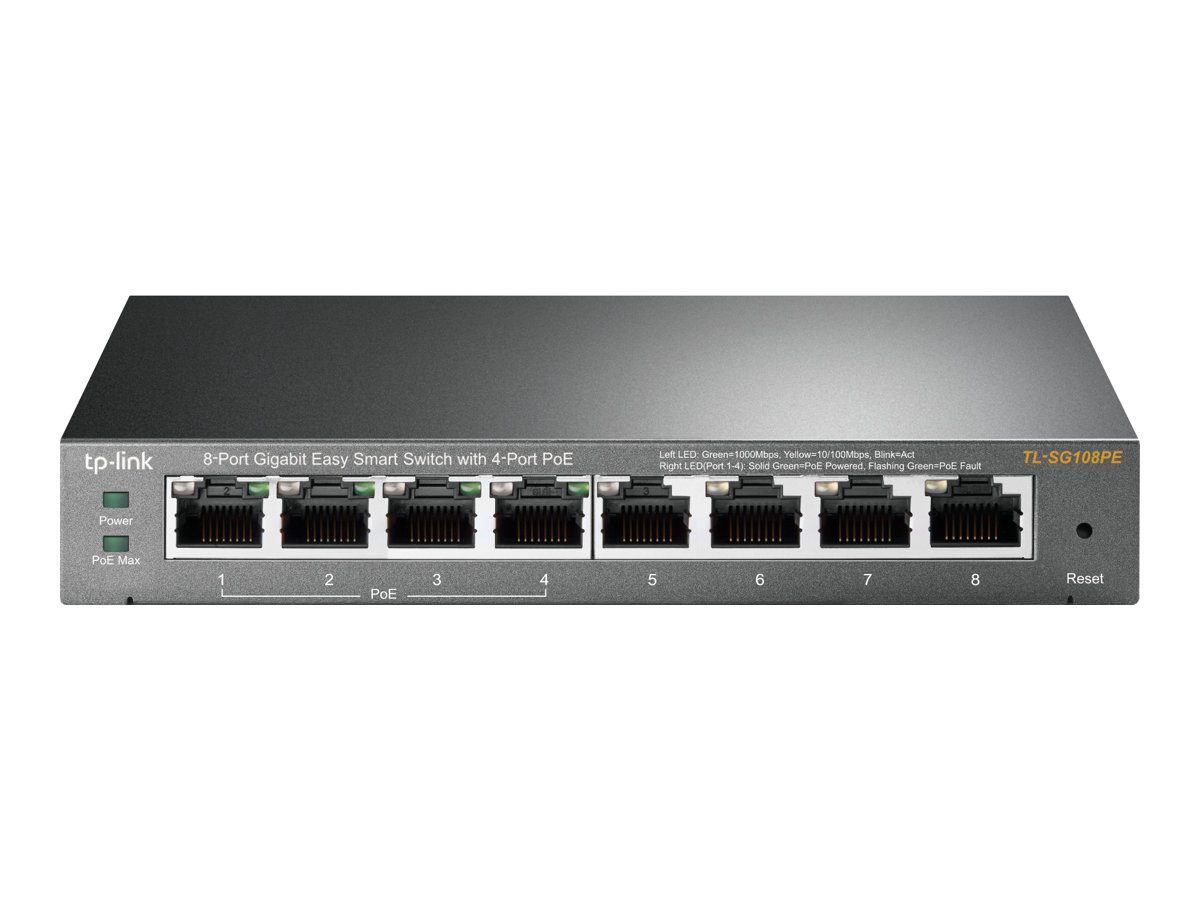

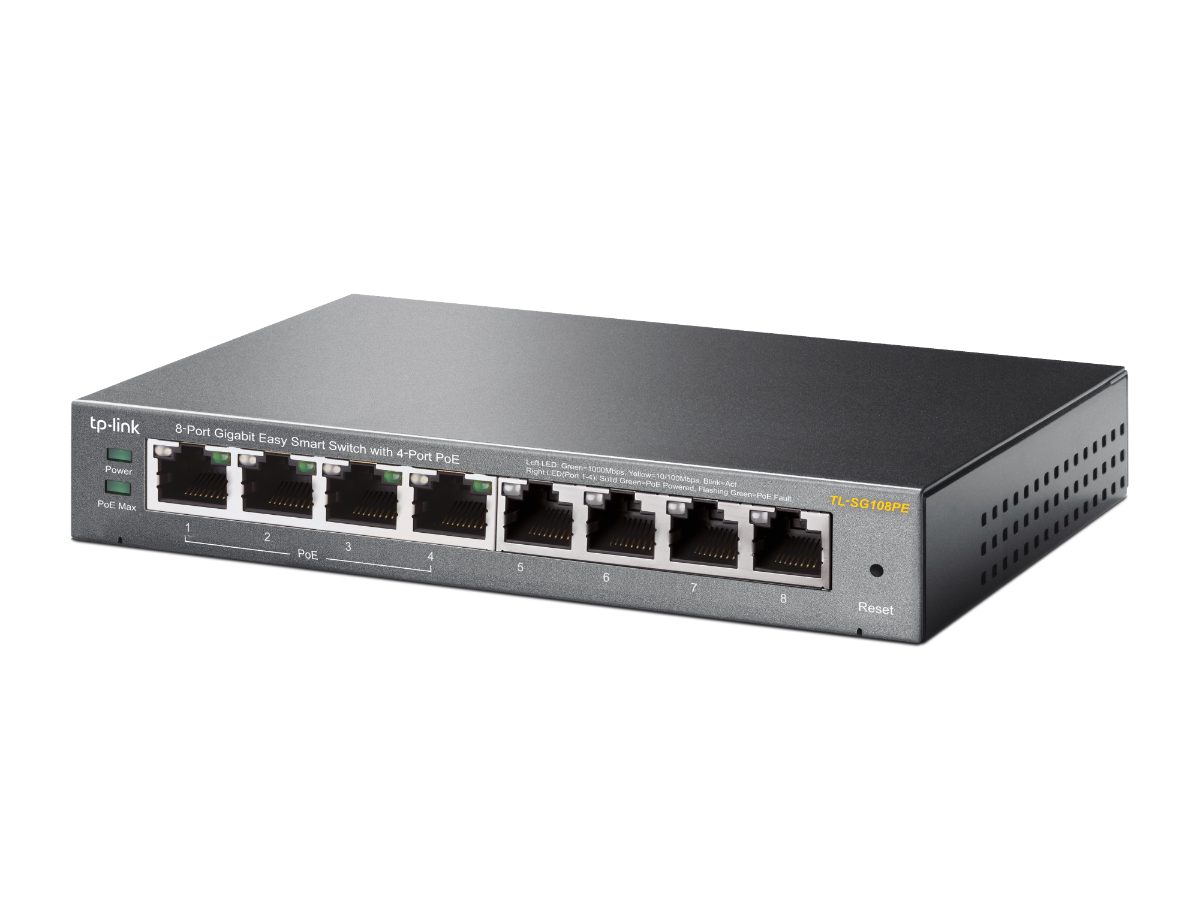

Smart Switch, TL-SG108PE, Web Managed, Desktop
Smart Switch, TL-SG108PE, Web Managed, Desktop, Gigabit Ethernet (copper) ports quantity 4, PoE+ ports quantity 4, Power supply type External, 36 month(s)
TP-LINK · 6935364094744
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 6935364094744
- Brand
- TP-LINK
Description
PoE Switches for Your Ultra Convenience
8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
- Supports PoE power up to 55W for all PoE ports
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
Specifications
| Quality of Service (QoS) | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Ethernet (RJ-45) ports | 8 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports | 8 |
| 10 Gigabit support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Cable type | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Number of VLANs | 32 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Yes |
| Forwarding rate | 11.9 Mpps |
| Jumbo frame size | 15000 |
| Jumbo frames | Yes |
| MAC address table size | 4000 entries |
| Packet buffer memory | 1.5 MB |
| Packet forwarding rate | 11900000 pps |
| Store and forward | Yes |
| Switching capacity | 16 Gbit/s |
| IGMP snooping | Yes |
| Loop protection | Yes |
| LED indicators | Activity/Link/PoE/Power/Speed/Status |
| Colour | Black |
| Input frequency | 50 Hz |
| Input voltage | 220 V |
| Input current | 1.25 A |
| Power consumption (max) | 65.2 W |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet | Yes |
| PoE port count | 4 |
| PoE power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports | 4 |
| Total PoE budget | 64 W |
| Heat dissipation | 256.19 BTU/h |
| Operating humidity | 10 - 90 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -40 - 70 °C |
| Depth | 101 mm |
| Height | 25 mm |
| Width | 158 mm |
| Cables included | AC |
| Manual included | Yes |
| Certification | FCC, CE, RoHS |
| Model | TL-SG108PE |
| Model name | 8-Port Gigabit Easy Smart Switch with 4-Port PoE |
